Annovi Reverberi Pump Parts Diagram: 2026 Guide
An Annovi Reverberi pump parts diagram details the exploded structure of high-pressure triplex pumps. Key elements include the manifold configuration, high/low-pressure water seals, solid ceramic plungers, and inlet/outlet check valves. Proper rebuilds require lubricating O-rings with silicone grease and torquing head bolts to 18–22 ft-lbs (24–30 Nm) in a cross pattern.
📌 Key Takeaways
- Head manifold bolt torque specification requires 18–22 ft-lbs (24–30 Nm) in an alternating cross pattern to prevent brass cracking.
- Check valves (6 total) must be installed in exact orientation shown in the schematic to maintain proper high-pressure hydraulic flow.
- Non-detergent ISO 68 or 30W pump oil (typically 10–15 oz capacity) is required to lubricate internal crankcase components.
- Cracked ceramic plungers are the leading cause of water leaking into the oil reservoir, turning sight glass milky white.
- Basic seal and valve kit replacements are DIY-friendly, but internal crankcase bearing replacements require specialized press tools.
Annovi Reverberi (AR) triplex plunger pumps are precision-engineered positive displacement units widely utilized across commercial pressure washers, agricultural spray rigs, and industrial washing systems. Understanding the internal fluid dynamics and mechanical layout requires a comprehensive grasp of the annovi reverberi pump parts diagram. Whether servicing popular AR series like the RMW, RK, or SJV, consulting an OEM exploded blueprint allows technicians to quickly isolate worn components, confirm torque tolerances, and select precise repair kits. This technical manual breaks down the complete structural configuration, detailing drive-end mechanics, fluid-end manifolds, valve trains, and seal stacks for optimal system maintenance.

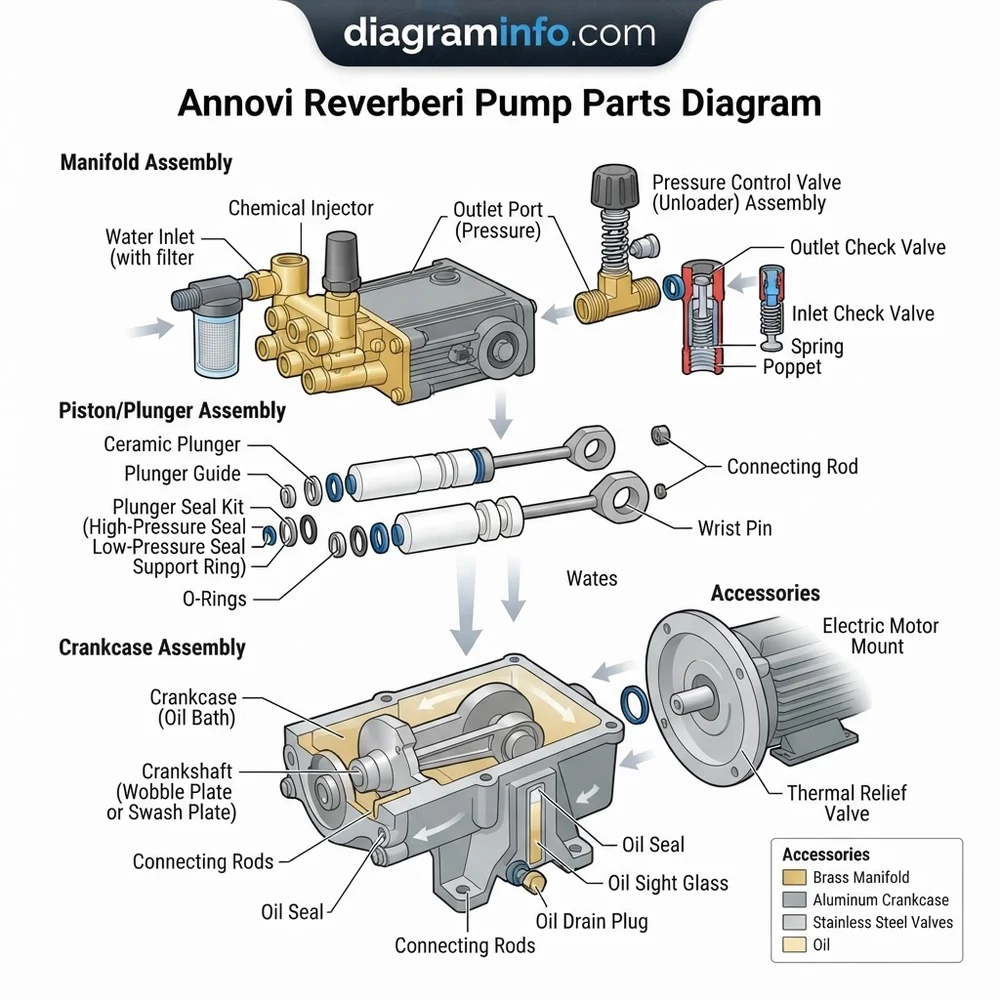

Annovi Reverberi Pump Parts Diagram: Core System Components
To accurately interpret an Annovi Reverberi schematic, the assembly must be divided into two primary functional sections: the Drive End (crankcase, transmission, and reciprocating power frame) and the Fluid End (manifold, valves, plungers, and dynamic packings). Each component operates under tight tolerances to sustain pressures frequently exceeding 3,000 PSI.
In the drive end, the precision-cast aluminum crankcase houses a forged alloy steel crankshaft supported by heavy-duty tapered roller bearings or needle bearings. The crankshaft transfers rotational energy from an electric motor or gas engine drive shaft into linear movement via solid bronze or aluminum alloy connecting rods. According to manufacturer specifications, these rods actuate solid ceramic plungers (or ceramic-sleeved stainless steel pistons) that slide smoothly through internal oil seals into the fluid head.
| Callout / Item | Component Name | Primary Function | Standard OEM Spec / Note |
|---|---|---|---|
| 01 – Drive End | Crankcase & Crankshaft | Converts rotational force to linear stroke | Anodized aluminum frame; 15W-40 or SAE 30 Non-Detergent |
| 02 – Drive End | Connecting Rods | Links crankshaft to wrist pin/plungers | Torque cap bolts to 9.5–11 ft-lbs (13–15 Nm) |
| 03 – Fluid End | Solid Ceramic Plungers | Displaces fluid within the manifold chamber | Precision ground 15mm, 18mm, or 22mm outer diameter |
| 04 – Fluid End | Inlet & Outlet Check Valves | Maintains unidirectional high-pressure fluid flow | Stainless steel cage, poppet, and spring assembly |
| 05 – Fluid End | V-Packing Seal Assemblies | Prevents high-pressure fluid leakage along plunger | Buna-N or Viton high-pressure / low-pressure dual seal stack |
| 06 – Manifold | Forged Brass Pump Head | Contains fluid compression chambers and valve seats | Torque manifold head bolts to 18–22 ft-lbs (24–30 Nm) |
The fluid end manifold on forged brass models is secured using high-tensile metric Allen bolts. Always follow a cross-pattern torque sequence when reinstalling the head to prevent uneven load distribution on the ceramic plungers and seal retainers.
Reading the Annovi Reverberi Schematic and Structural Layout
Deciphering an exploded annovi reverberi pump parts diagram requires a methodical approach to trace mechanical connections and locate reference part numbers. Schematics are organized numerically, matching specific item callout bubbles directly to factory spare kit lists.
When analyzing the layout schematic, begin from the drive input side. The oil sight glass and rear crankcase cover outline the crankcase oil reservoir capacity (typically 10 oz to 15 oz depending on pump frame size). Moving outward toward the fluid end, notice how each plunger rod features a slinger washer designed to prevent any water that bypasses the high-pressure seals from entering the drive housing.
To disassemble and overhaul the pump using the schematic as a blueprint, execute the following sequence:
- Step 1: Valve Chamber Access. Unbolt the top six valve caps across the top and front face of the manifold. As indicated on the schematic layout, each cap conceals an O-ring and a drop-in check valve assembly (Kit 1828 / Kit 2864).
- Step 2: Manifold Separation. Remove the eight perimeter head bolts. Carefully slide the brass manifold off the ceramic plungers. Take care not to tilt the head, which can chip the ceramic sleeves.
- Step 3: Seal Pack Removal. Extract the high-pressure V-packings, intermediate brass rings, and low-pressure retainers located inside the manifold bores. Observe the orientation of the seal lips relative to fluid flow direction.
- Step 4: Plunger and Oil Seal Inspection. Remove the ceramic plunger retaining bolts, copper sealing washers, and spacer shims. Check the radial shaft oil seals housed in the crankcase face for elasticity and wear.
Never strike ceramic plungers with metal hammers or use hard pliers for removal. Ceramic components are extremely brittle under lateral shear forces. Over-tightening the plunger bolt beyond 8 ft-lbs (11 Nm) will crack the ceramic core during operation.
Diagnosing Pressure Loss Using the AR Pump Layout Blueprint
When an AR pump exhibits erratic pressure spikes, cavitation, or oil contamination, the component configuration blueprint serves as a precise diagnostic flowchart. Correlating symptoms directly to internal hardware callouts streamlines field troubleshooting and repair operations.
A common failure mode is low working pressure accompanied by a pulsing discharge hose. Reference the inlet/outlet valve stack on your blueprint. Debris trapped under a stainless poppet valve or a broken valve return spring allows high-pressure water to backflow into the inlet manifold section. Inspecting and replacing the six valve assemblies using standard valve pliers usually restores immediate system functionality. Refer to our dedicated unloader valve adjustment tutorial for downstream pressure regulation issues.
Another major symptom is milky oil inside the crankcase sight glass. The blueprint reveals two barrier zones designed to isolate pump oil from process water: the dynamic low-pressure water seal in the manifold and the crankcase plunger oil seal behind the splash guard. If water bypasses damaged V-packings, it will eventually force past worn plunger oil seals into the oil bath. Performing a full seal rebuild—cross-referenced with a triplex pump seal replacement procedure—prevents severe crankcase bearing pitting and catastrophic rod failure.
For a detailed comparison of drive styles, check our comprehensive direct-drive vs. gear-reduction pump overview to determine if performance degradation stems from pump cavitation or drive-gear slip.
Annovi Reverberi Pump Configuration and Maintenance FAQs
How do I identify the exact model number on my Annovi Reverberi parts diagram?
The pump model series (e.g., RK 15.28 N, RMW 2.2G24, or SJV 2.5G27) is stamped into the metal data plate mounted on the top or side of the crankcase. Always use this exact alphanumeric code when downloading matching parts diagrams, as minor revisions change seal kit dimensions.
What type of oil is specified in the AR drive end layout diagram?
Manufacturer specifications mandate non-detergent ISO VG 100 or SAE 30 premium crankcase oil for high-pressure triplex pumps. Non-detergent oil allows suspended metallic wear particles to settle at the bottom of the sump away from precision needle bearings.
How often should high-pressure water seals be replaced according to the blueprint schedule?
Under continuous industrial usage, water seals and V-packings should be inspected every 500 operating hours or immediately upon detecting water leaks from the weep holes under the manifold. Valving assemblies typically last between 800 and 1,000 service hours under clean water conditions.
Why does the AR schematic show dual water seals on each plunger?
The tandem seal configuration uses a primary high-pressure V-packing to contain internal working pressure (e.g., 3,000 PSI) and a secondary low-pressure seal to retain incoming water feed pressure (approx. 20–60 PSI). This dual design creates a lubricated fluid pocket that cools the reciprocating ceramic rod.
What torque specification should be applied to the manifold head bolts during reassembly?
For standard 8mm brass head manifold bolts, tighten in an X-pattern to 18–22 ft-lbs (24–30 Nm). On smaller axial-cam units (such as the RMW series), head bolt torque should be kept strictly between 13–15 ft-lbs (18–20 Nm) to avoid stripping the aluminum crankcase threads.
Step-by-Step Guide to Understanding the Annovi Reverberi Pump Parts Diagram
Identify – Determine your specific Annovi Reverberi pump model number located on the brass manifold identification tag.
Locate – Find the corresponding section on the diagram for the manifold header, seal packing, or crankcase system.
Reference – Match damaged internal components with key numbers on the diagram legend to source exact OEM replacement kits.
Torque – Disassemble components and reinstall new parts, applying 18–22 ft-lbs torque to manifold bolts in a cross pattern.
Verify – Inspect seal seats and O-ring alignment against the structural layout before pressurizing the pump system.
Troubleshoot – Test system performance; if pressure drops, re-check valve orientation against the diagram’s flow direction arrows.
