Honda Lawn Mower Parts Diagram: Component Breakdown 2026
A Honda lawn mower parts diagram maps key structural assemblies, including the GCV160/190 engine, carburetor governor linkages, drive belt routing layout, and deck blade setup. It provides exact OEM part reference numbers, fastener torque configurations (e.g., blade bolts at 36-43 lb-ft), and exploded views for precise system maintenance.
📌 Key Takeaways
- Blade bolt specs require standard torque parameters between 36–43 lb-ft to ensure safe deck assembly retention.
- Exploded views clarify governor spring and throttle linkage configurations on GCV-series engine systems.
- Deck drive belts utilize a specific triangular routing structure across the engine pulley, tensioner, and transmission.
- Stale fuel deposits in the carburetor pilot jet account for over 70% of engine surging and starting issues.
- Replace severely cracked drive belts or bent blade adapters immediately; consult certified technicians for internal crank work.
Maintaining commercial-grade and residential power equipment requires precise reference materials, particularly when servicing Honda HRX, HRN, or HRR series walk-behind mowers. A complete honda lawn mower parts diagram provides an exploded, structural blueprint of the engine, deck assembly, drive mechanics, and safety interlocks. According to OEM specifications, referencing these schematics ensures exact part identification, correct fastener torque values, and proper spatial orientation during overhaul or repair. Whether servicing a GCV160 overhead-cam (OHC) engine, rebuilding a Smart Drive transmission, or replacing a flywheel brake cable, using an official technical schematic eliminates guesswork and preserves engineered tolerances across all equipment systems.
Honda Lawn Mower Parts Diagram Component Breakdown and System Layout
Exploded technical schematics categorize the machine into distinct mechanical sub-assemblies to simplify identification and teardown. Understanding how these sub-systems interface is essential for efficient servicing and accurate parts ordering.
Recommended Best Deal Products

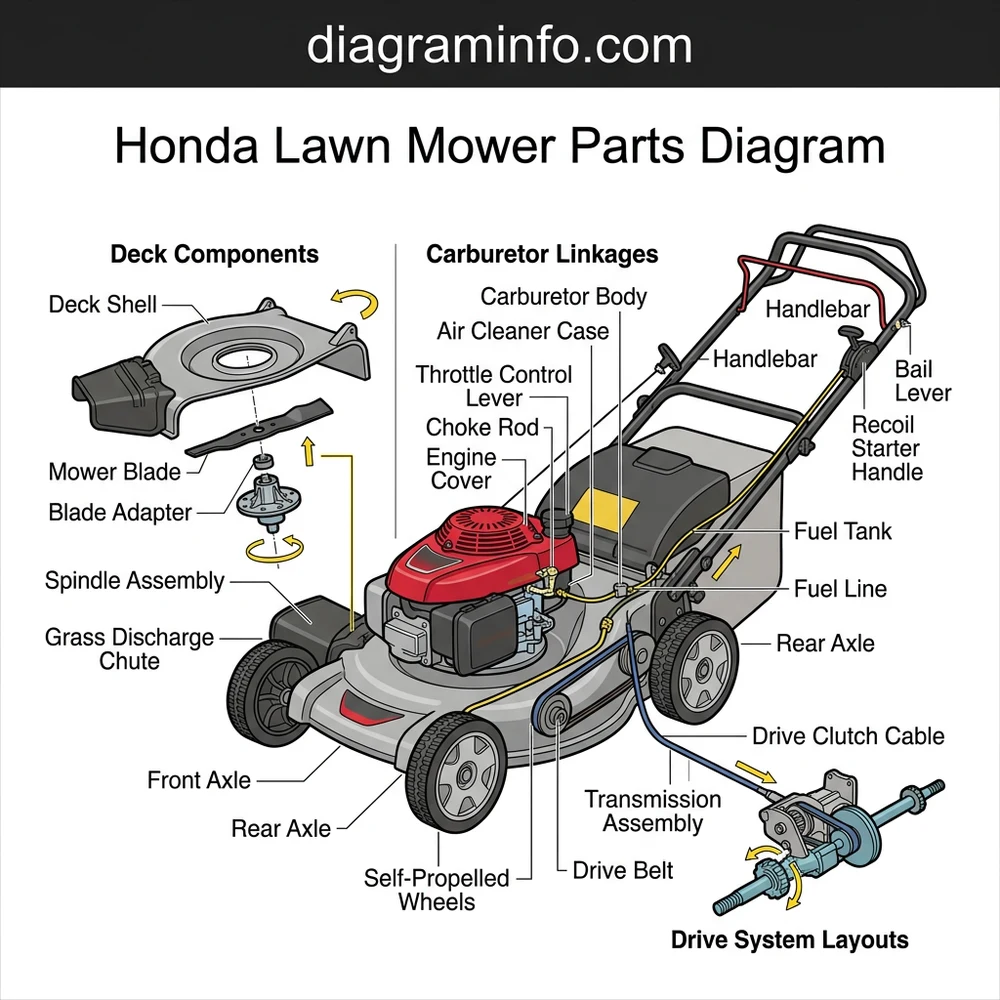

The primary power plant on most modern Honda walk-behind mowers consists of the GCV160, GCV190, GCV170, or GCV200 four-stroke engine configuration. As illustrated in the primary structural overview, the top-tier schematic separates the powerhead from the lower cutter housing. Key sub-assemblies include the fuel delivery network, ignition circuit, blade control clutch (BBC) or zone-start brake ring, and the self-propelled drive mechanism.
| System Module | Primary Components | OEM Specification / Torque Rating |
|---|---|---|
| Engine Upper End | Flywheel, Ignition Coil, Recoil Starter, Fan | Flywheel Nut: 52 N·m (38 lb-ft); Air Gap: 0.35–0.45 mm |
| Fuel & Carburetor | Auto-Choke Thermo-Wax Unit, Main Jet, Float Bowl | Main Jet size varies by altitude (#62–#68) |
| Cutter Housing / Deck | Twin MicroCut Blades, Blade Adaptor, Belt Guide | Blade Bolts: 49–59 N·m (36–43 lb-ft) |
| Drive Transmission | Variable Speed Transmission, Drive Belt, Rear Axle Pinions | Belt Tension Free-Play: 2.0–5.0 mm at control arm |
The engine schematic highlights the auto-choke thermo-wax actuator mounted adjacent to the intake manifold. When engine temperature changes, the wax expands or contracts, shifting the choke linkage automatically without manual operator lever input. Down lower, the blade system relies on an impact-resistant drive washer and dual-staggered cutting blades secured by two flange bolts. For detailed steps on deck balancing and blade maintenance, reference our detailed guide on mower deck blade alignment.
How to Read a Honda Lawn Mower Schematic and Blueprint Configuration
Deciphering an exploded Honda service diagram requires understanding callout numbers, index keys, and line terminations. Master schematics rely on standard mechanical drafting conventions to represent complex three-dimensional relationships on a two-dimensional layout.
Every mechanical item in a honda lawn mower parts diagram uses a two-digit or three-digit callout number (e.g., Ref #4, Ref #12). These reference callouts match an index table below or beside the illustration. Note that a callout number is not the actual Honda OEM part number; it is a location marker pointing to the physical assembly placement. The index table maps the reference number to the specific 13-digit Honda part number (such as 72511-VH7-000 for a upper cutting blade).
Dashed line boxes enclose complete sub-assemblies sold as a single pre-assembled unit. Hardware callouts labeled with bolt dimensions (e.g., 6 x 12 mm) indicate thread diameter and shank length under the head. Always torque flywheel retention nuts to 52 N·m (38 lb-ft) and blade retention flange bolts to 49–59 N·m (36–43 lb-ft) using a calibrated torque wrench upon reassembly.
Recommended Best Deal Products
Pay close attention to projection lines and directional arrows on the blueprint layout. Thin solid lines with terminal dots point to exact mating surfaces or fastener hole positions. Dashed alignment lines show the axis along which a component slides or rotates during installation. For instance, when analyzing the rear drive axle diagram, keyways, ratchet keys, and compression springs must be installed in a strict directional orientation. Installing an axle ratchet key backward will cause the drive wheel to lock when pulling the mower backward.
Using Your Honda Lawn Mower Parts Diagram for Mechanical Fault Diagnosis
A technical diagram is a functional diagnostic map for tracing mechanical, fuel, and electrical failures. By understanding system interlocks and spatial relationships, you can systematically isolate faults to specific components.
When resolving a no-spark condition on a GCV-series engine, locate the ignition switch and kill-wire circuit on the schematic. Trace the single black primary wire running from the ignition coil module under the flywheel to the engine stop switch lever. If the insulation rubs against the engine block and grounds out, the secondary winding cannot fire the spark plug. Set the ignition coil module air gap to precisely 0.35–0.45 mm off the flywheel magnet using a brass feeler gauge as outlined in the manufacturer blueprint. For broader electrical system troubleshooting, refer to our comprehensive guide on small engine ignition diagnostics.
Never bypass the fly-wheel brake switch cable or zone-start control mechanism shown in the engine controls layout. Defeating this safety circuit allows the cutting blade to continue spinning after releasing the handlebar control, violating ANSI B71.1 safety standards and creating severe impact risks.
If the self-propelled drive system slips under load, consult the variable speed transmission routing schematic. Check the drive belt line from the crankshaft pulley down to the transmission input pulley. Verify that the belt tension spring (ref callout in transmission frame group) maintains proper pre-load tension. If you are servicing a hydrostatic or Smart Drive model, consult our specialized walkthrough on hydrostatic drive belt replacement to ensure proper cable tension adjustment without stretching the return spring.
Honda Lawn Mower Parts Diagram Frequently Asked Questions
Where can I find the model and serial number needed to look up the correct honda lawn mower parts diagram?
The model name (e.g., HRX217K6 VKA) is printed on the top engine cover or frame deck. However, to access the exact diagram variant, locate the frame serial number tag stamped on the rear deck housing near the grass bag discharge chute. Honda frame serial numbers consist of a four-letter prefix followed by seven digits (e.g., MAGA-1234567). Always cross-reference the serial number prefix to ensure the schematic reflects minor model-year updates or mid-production engineering revisions.
Why does my carburetor parts diagram show multiple jet options for the same engine?
Manufacturer schematics list alternative main jet sizes based on operating altitude specifications. Engines operating above 5,000 feet require leaner fuel mixtures to prevent carbon fouling and unburned hydrocarbon emissions. Standard factory diagrams typically detail the sea-level jet (#68 or #65 depending on displacement) as default, while listing high-altitude jet part numbers in the reference key notes.
What do the bracketed letters or numbers (e.g., [A], [VKA], [HYA]) mean in Honda schematic tables?
These bracketed codes indicate specific mower feature variations within a shared model line. For example, “VKA” denotes Smart Drive variable speed self-propulsion with zone start, while “HYA” indicates a hydrostatic drive transmission equipped with a Blade Brake Clutch (BBC). Always verify your mower’s specific suffix code on the frame tag before ordering drive cables, transmission pulleys, or control levers from the diagram key.
How do I identify the orientation of the drive axle ratchet pinions on the rear axle diagram?
Look at the enlarged inset diagram within the rear wheel and axle section. The schematic illustrates the internal directional ratchet keys (“R” and “L” stamped components) fitted inside the drive pinions. The flat edge of the ratchet key must face the drive direction of the wheel gear teeth, allowing forward drive engagement while permitting the wheel to freewheel when pulling the mower backward.
Step-by-Step Guide to Understanding the Honda Lawn Mower Parts Diagram
Identify – Locate your specific Honda mower model and frame serial number on the rear deck label.
Locate – Find the corresponding section in the parts diagram, such as the carburetor or drive system.
Reference – Match callout numbers on the exploded layout to the parts index list for exact OEM numbers.
Connect/Route – Assemble components, routing drive cables and spring linkages according to diagram paths.
Verify – Torque key fasteners, such as blade bolts (36-43 lb-ft), to specified mechanical tolerances.
Troubleshoot – Compare physical linkage tension and component alignment against the schematic if binding occurs.
