DWV Bathroom Plumbing Diagram with Shower: Installation Setup 2026

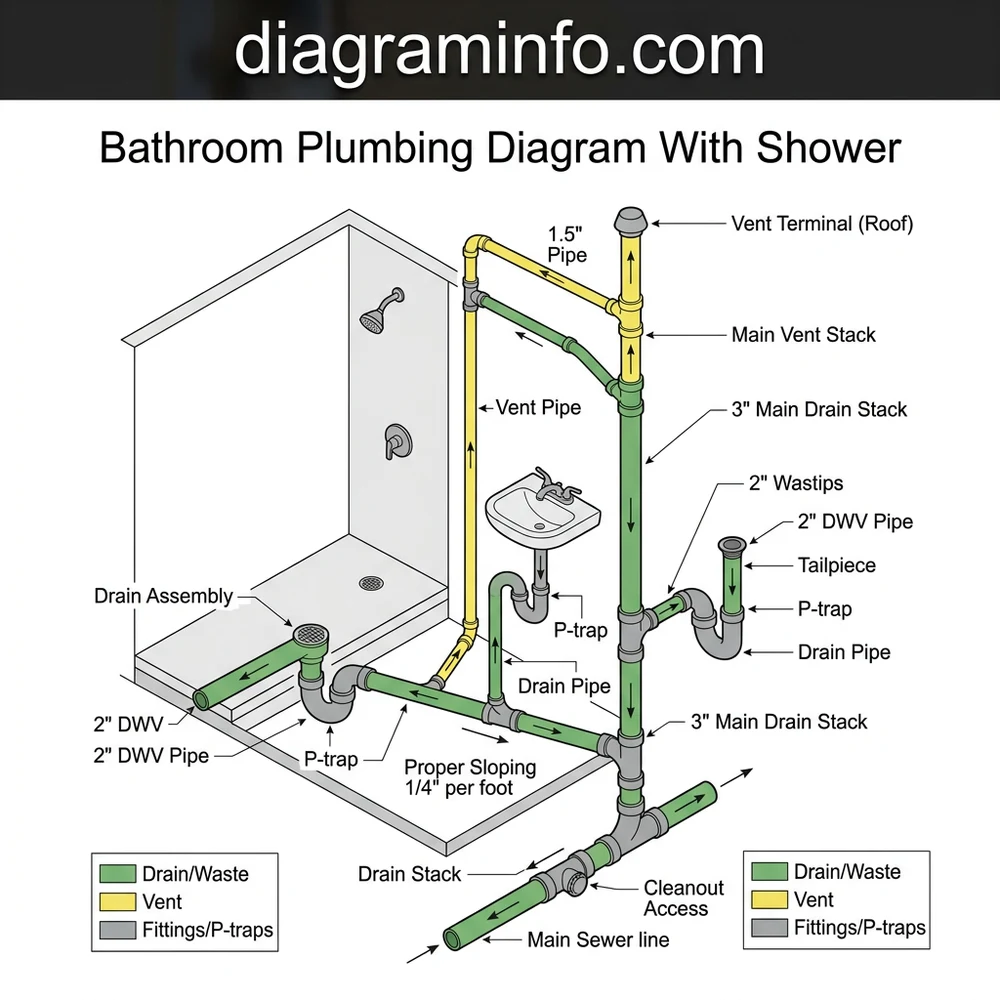

A bathroom plumbing diagram with shower illustrates the Drain-Waste-Vent (DWV) routing layout. The shower drain uses a 2-inch PVC drain assembly connected to a 2-inch P-trap pitched at 1/4 inch per foot toward the 3-inch main soil stack, safeguarded by a 1.5-inch or 2-inch dry vent pipe to prevent siphonage.
📌 Key Takeaways
- Shower waste lines require a minimum 2-inch PVC or ABS pipe diameter with a 1/4-inch per foot downward slope.
- The P-trap seal must maintain a water depth between 2 to 4 inches to block sewer gas invasion effectively.
- Shower vent pipes must connect within 8 feet of the trap arm to ensure proper atmospheric pressure equalization.
- Improper slope or missing vent pipes cause slow draining, gurgling noises, and dangerous P-trap siphoning.
- Always perform a static head water pressure test on drain assemblies before closing drywall or tile walls.
Mastering the layout of a modern Drain-Waste-Vent (DWV) system is essential for commercial and residential installations adhering to International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) standards. A complete bathroom plumbing layout integrates hydraulic drainage, air pressure neutralization, and backflow prevention across multiple fixtures. As illustrated in the schematics below, proper pipe sizing, trap seal retention, and slope calculations are critical to preventing sewer gas infiltration and fluid stagnation. This technical guide breaks down engineered schematics, piping specifications, and troubleshooting methodologies required for code-compliant bathroom installations.
Understanding the Bathroom Plumbing Diagram With Shower Components
A comprehensive DWV system operates on pneumatic balance and gravity flow. Each component identified in a technical schematic plays a vital role in routing fluid waste while preventing toxic sewer gases from entering living spaces.
Shower Drain Assembly and Tailpiece Specifications
The shower drain assembly serves as the primary intake point for fluid waste. Standard shower bases utilize a 2-inch strainer body secured through the subfloor via a mechanical compression gasket or a Schedule 40 PVC solvent-weld connection. Extending directly down from the shower flange is the tailpiece, which transitions liquid waste into the sub-floor drainage network. Unlike vanity sinks that utilize a 1.25-inch or 1.5-inch tailpiece, code mandates a minimum 2-inch internal diameter for shower tailpieces to handle the peak hydraulic loading from high-flow showerheads.
P-Trap Configurations and Rigid Solvent-Weld Connections
Positioned directly below the tailpiece, the P-trap retains a liquid barrier—known as the trap seal—typically between 2 and 4 inches deep. While vanity sink plumbing often uses a removable slip joint with synthetic rubber washers, sub-floor shower traps must feature solvent-welded PVC or ABS construction conforming to ASTM D2665 standards. Solvent welding creates a permanent fusion, preventing hidden structural leaks beneath joist bays. The P-trap prevents negative pressure from pulling toxic sewer gas up through the shower floor grid.
According to IPC Table 709.1, a private shower enclosure represents 2 Drainage Fixture Units (DFU). The minimal allowable pipe diameter for a shower drain assembly and branch drain line is 2 inches. The maximum horizontal distance from the shower P-trap weir to its corresponding vent pipe fitting is 8 feet for 2-inch Schedule 40 PVC piping.
Vent Pipe Routing and Air Admittance Valve Integration
The vent pipe is essential for pressure equilibrium. As water rushes down the DWV stack, it creates a localized vacuum behind the fluid column. Without proper atmospheric venting, this siphon action pulls the liquid seal out of the P-trap. The vent pipe extends vertically through the roof envelope or ties into a secondary dry vent stack minimum 6 inches above the fixture’s flood rim level. In structural renovations where running a traditional stack vent through exterior framing is physically impossible, an Air Admittance Valve (AAV valve) meeting ASSE 1051 standards may be installed. The one-way mechanical valve opens under negative pressure to pull air into the system and closes under neutral or positive pressure to seal in sewer gas.
DWV Differentiation: Shower Systems vs. Kitchen Disposals
It is important to distinguish bathroom DWV runs from kitchen systems. While a kitchen branch must manage ground organic waste and greasy solids from a high-torque garbage disposal using directional wye fittings and continuous waste tees, shower lines focus exclusively on high-volume liquid discharge and hair interceptors. Connecting a garbage disposal or non-bathroom appliance line upstream of a shower drain is a severe IPC code violation that risks solid waste cross-contamination into the shower tray during a main line backup.
How to Read a Bathroom Plumbing Diagram With Shower for System Installation
Translating a two-dimensional schematic drawing into an installed three-dimensional piping array requires precise reading of line types, fitting orientation symbols, and pitch angles. For further reading on multi-fixture integration, consult our detailed vanity sink plumbing layout guide.
Tracing DWV Lines from Shower Drain Assembly to Main Stack
Schematics depict wet drainage lines as solid thick lines, dry vent pipes as dashed or dotted lines, and hot/cold water supply lines as colored thin traces. Trace the flow path starting at the shower drain assembly. The liquid moves vertically down through the tailpiece, enters the 2-inch P-trap, and transitions into a horizontal branch line. The branch line must pitch downward toward the vertical soil stack at a uniform grade of 1/4 inch per foot (2% pitch).
In hydraulic DWV schematics, directional changes in drainage flow must utilize long-sweep 90-degree elbows, combination wye and 1/8th bends, or sanitary tees installed in the vertical plane. Standard short-radius pressure tees are strictly prohibited on horizontal drainage lines due to the high risk of solid deposition and flow turbulence.
Sizing Schedule 40 PVC DWV Piping and Slope Calculations
Refer to the reference table below when selecting Schedule 40 PVC, ABS, or cast-iron components for standard bathroom DWV applications. For higher fixture counts or complex layout considerations, review our residential DWV stack sizing criteria.
| Fixture Type | Min. Pipe Size (NPS) | Min. Slope Grade | Max. Trap-to-Vent Distance |
|---|---|---|---|
| Shower Drain Base | 2.0 Inches | 1/4″ per foot (2%) | 8 Feet (2.44 m) |
| Lavatory Sink | 1.25 to 1.5 Inches | 1/4″ per foot (2%) | 6 Feet (1.83 m) |
| Water Closet (Toilet) | 3.0 to 4.0 Inches | 1/8″ to 1/4″ per foot | 6 Feet (1.83 m) |
| Wet-Vented Branch Group | 2.0 to 3.0 Inches | 1/4″ per foot (2%) | Varies per code table |
Diagnosing Drainage and Venting Failures in Shower Plumbing Systems
When a physical system underperforms, comparing field conditions back to the original schematic helps pinpoint mechanical or hydraulic faults. Common operational failures include slow draining, gurgling trap seals, and recurring sewer gas odors.
Loss of P-trap seals allows sewer gas containing methane (CH4) and hydrogen sulfide (H2S) into interior spaces. Always wear atmospheric monitors and proper PPE when inspecting compromised or siphoned DWV lines in enclosed basements or crawlspaces.
P-Trap Siphonage and Vent Blockages
If a shower drain produces a distinct “gurgling” sound during or immediately after draining, the P-trap seal is undergoing hydraulic siphonage. This occurs when an obstructed atmospheric vent pipe creates a negative pressure differential inside the branch arm. Water draining from an adjacent toilet or vanity pulls air down through the shower P-trap, breaking the water barrier. Inspect the roof termination of the vent stack for bird nests, leaf buildup, or ice damming. If an AAV valve is used, replace the mechanical cartridge, as internal spring or elastomeric seals degrade over 5 to 7 years of service.
Sagging Horizontal Runs and Incorrect Fitting Orientations
Slow drainage despite a clear trap assembly often points to an improper slope or a backward-installed fitting. Horizontal Schedule 40 PVC pipes that lack adequate pipe hanger support every 4 feet will sag under fluid weight, creating localized bellies. Fluid slows down in these sagging spots, allowing hair and soap scum to drop out of suspension. Additionally, ensure that sanitary tees were not installed horizontally; horizontal-to-horizontal transitions require a combination wye or long-turn elbow to maintain fluid velocity.
Frequently Asked Questions About Bathroom Plumbing Diagram With Shower Layouts
Why does a shower drain assembly require a dedicated P-trap?
A shower drain assembly must have its own dedicated P-trap to maintain a localized liquid seal that isolates interior living areas from the public sewer or septic network. Sharing a trap between multiple fixtures (such as connecting a shower upstream of a toilet trap) is prohibited by IPC code because pressure fluctuations will instantly compromise the trap seal, allowing sewer gas infiltration and potential wastewater cross-contamination.
When should an AAV valve be used instead of a direct vent pipe?
An Air Admittance Valve (AAV valve) should be installed when structural constraints—such as load-bearing engineered beams, cathedral ceilings, or concrete slab conversions—prevent the extension of a traditional Schedule 40 PVC vent pipe upward through the roof. The AAV valve must be positioned at least 4 inches above the horizontal branch drain line, inside an accessible, ventilated void space that permits inward airflow during dynamic drainage cycles.
What size Schedule 40 PVC pipe is required for shower DWV runs?
Under both IPC and UPC standards, the minimum nominal pipe size for a dedicated shower drain line and P-trap is 2 inches. While a 1.5-inch pipe is sufficient for a standard vanity sink tailpiece, it lacks the hydraulic capacity to clear hair debris and continuous water flow from high-output shower heads, making 2-inch Schedule 40 PVC the mandatory standard.
How does a garbage disposal branch circuit differ from bathroom wet venting?
A garbage disposal branch circuit is engineered for high-solids food processing and requires directional baffle tees, high-velocity scouring flow, and isolated 1.5-inch branch lines. In contrast, bathroom commercial wet vent design allows a dry vent pipe from a vanity sink to serve as a wet vent for a downstream shower drain, provided the pipe sizing is increased to handle both air displacement and liquid waste simultaneously.
What causes sewer gas odors near the shower P-trap?
Sewer gas odors near the shower P-trap usually result from one of three conditions: a dried-out trap seal caused by long periods of disuse, loss of trap seal liquid due to negative-pressure siphonage from a clogged roof vent pipe, or a damaged slip joint / solvent-weld connection at the drain tailpiece. In infrequently used bathrooms, evaporation can lower the water level below the trap weir; running water for 10 seconds restores the 2-inch liquid seal instantly.
Step-by-Step Guide to Understanding the Bathroom Plumbing Diagram With Shower
Identify – Locate all supply lines, waste pipes, and fixture positions on your layout schematics.
Locate – Position the shower pan cutout to align perfectly with the incoming 2-inch waste line.
Reference – Consult the plumbing diagram for correct trap arm distance and vent pipe tie-in height.
Connect/Route – Assemble the shower drain assembly, tailpiece, and P-trap using solvent welded PVC joints with a 1/4-inch per foot slope.
Verify – Run a leak test and verify water seal integrity inside the P-trap before sealing subfloors.
Troubleshoot – Clear obstructions or inspect vent pipe termination if slow draining or sewer odor persists.
