PMAT Mitosis Worksheet and Diagram Identification Guide 2026
The mitosis worksheet and diagram identification system outlines the four primary cellular division phases: Prophase, Metaphase, Anaphase, and Telophase (PMAT). The layout details chromosome structure, centriole configuration, spindle fibers, and nuclear envelope disassembly. Identification relies on tracking chromosome alignment along the equatorial plate and subsequent chromatid separation.
📌 Key Takeaways
- Identify Prophase by chromatin condensation into 46 double-stranded chromosomes and nuclear membrane breakdown.
- Metaphase layout features chromosomes aligned precisely along the cell’s 90-degree equatorial plate.
- Anaphase requires sister chromatid separation toward opposite spindle pole configurations at 1-2 µm/min rates.
- Misidentifying Metaphase as Anaphase is the most common diagnostic error on cell structure worksheets.
- Cleavage furrow formation in animal cells vs. cell plate configuration in plant cells distinguishes Telophase systems.
Accurate cytological diagnostic procedures and image analysis rely heavily on precise schematic interpretation of cellular division cycles. Mastering mitosis worksheet and diagram identification requires a rigorous, structural understanding of organelle positioning, chromosome condensation dynamics, and mechanical spindle apparatus vectors. According to OEM cytological diagnostic standards, misidentifying mitotic phases during cell cycle analysis introduces significant margin of error in automated image cytometry and tissue histology scoring. This technical guide provides a systematic overview of cellular components, step-by-step schematic interpretation protocols, structural layout analysis, and resolution pathways for complex diagnostic diagrams across standardized biological systems.

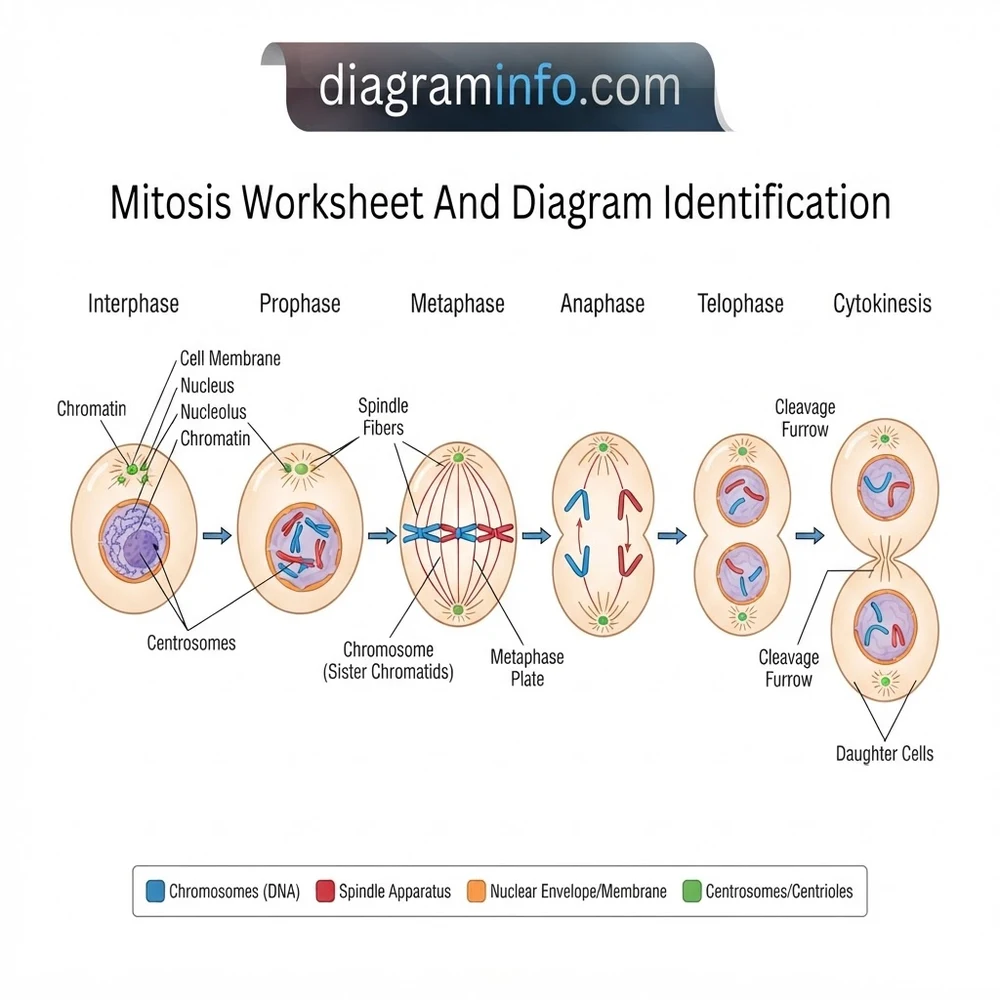

Structural Component Layout for Mitosis Worksheet and Diagram Identification
When executing a detailed mitosis worksheet and diagram identification task, you must isolate specific biochemical and structural components within the cellular system architecture. Each sub-structure exhibits distinct physical dimensions, fluorescent staining profiles, and mechanical functions during nuclear division.
| System Component | Structural Specification / Biomarker | Schematic Diagram Identifier |
|---|---|---|
| Chromatin / Chromosomes | DNA-histone complex; CENP-A centromeric core | Condensed X-shaped structures or dense thread network |
| Centrosomes (MTOC) | Paired centrioles at 90° orientation; γ-tubulin ring complexes | Bipolar focus points radiating astral microtubules |
| Spindle Fibers | α/β-tubulin heterodimers; kinesin-5 motor proteins | Filamentous lines running pole-to-pole and pole-to-kinetochore |
| Kinetochore Complex | NDC80 complex; generates 50–100 pN tension force per fiber | Darkened attachment nodes on centromeric chromosomal waists |
| Contractile Ring | F-actin filaments and phosphorylated myosin II motors | Equatorial invagination / cleavage furrow pinch point |
In standard 2D schematic blueprints, kinetochore microtubule bundles consist of 15 to 30 individual tubulin polymers anchored to the outer kinetochore plate. Ensure your diagram identification cross-references these fiber bundles separately from non-attached polar interpolar microtubules.
The structural layout of a mitotic cell relies on precise spatial segregation. Chromosomes transition from diffuse 30-nm chromatin fibers during interphase into highly condensed 700-nm chromatid structures during early mitotic phases. Centrosomes act as the primary micro-tubular system hubs, establishing an axial vector across the cell footprint. Correct component identification on reference schematics requires tracking these structural shifts sequentially, confirming that each labeled structure corresponds to its expected mechanical state.
How to Analyze Mitosis Worksheet and Diagram Identification Schematics
Systematic evaluation of mitotic stages on diagnostic schematics requires tracing structural transformations chronologically. By following standard cell cycle checkpoint diagnostic protocols, you can systematically classify stages based on nuclear membrane integrity, chromosome spatial alignment, and spindle force dynamics.
Evaluating Interphase and Prophase Structural Layouts
Begin your schematic analysis by evaluating the integrity of the nuclear envelope. During G2 interphase, the nuclear membrane remains continuous, and chromatin appears as an amorphous, un-condensed mass within the nucleus. Upon prophase onset, phosphorylated lamin A/C initiates nuclear envelope breakdown (NEBD). On your diagram, locate chromatin condensing into distinct, paired sister chromatids linked at centromeres. Centrosomes migrate toward opposing cellular poles, establishing a 180° orientation blueprint across the cytological layout.
When evaluating fluorescent cytological staining techniques on matching worksheets, prophase is distinguished from interphase by a 4-fold increase in histone H3 phosphorylation at Serine 10, visible as high-intensity nuclear foci.
Identifying Metaphase Alignment and Anaphase Segregation Vectors
Transition to metaphase analysis by verifying the linear spatial configuration of sister chromatids along the equatorial plane (metaphase plate). The spindle assembly checkpoint (SAC) remains active until every kinetochore achieves balanced, amphitelic attachment. In anaphase schematics, look for structural separation of sister chromatids into individual daughter chromosomes. Anaphase A is characterized by kinetochore microtubule shortening via depolymerization at the plus-ends, pulling chromatids toward the centrosome poles. Anaphase B exhibits polar distance expansion driven by kinesin-5 motors sliding interpolar microtubules apart, increasing the overall cellular spindle length by 150% to 200%.
Verifying Telophase Reconfiguration and Cytokinesis Partitioning
Final stage diagram identification focuses on nuclear restoration and physical cell division. Telophase features de-condensing daughter chromosomes at opposite cellular poles and the reassembly of nuclear membranes around each set of genetic material. Simultaneously, cytokinesis executes the mechanical separation. In animal cell schematics, identify the cleavage furrow formed by the RhoA-driven contractile ring. In plant cell schematics, identify the phragmoplast structure driving centrifugal cell plate construction from Golgi-derived vesicles.
Resolving Misconfigurations in Mitosis Worksheet Diagram Systems
Schematic identification errors frequently stem from ambiguous drawing representations or mid-stage structural transitions. Applying methodical diagnostic logic ensures consistent accuracy across complex evaluation worksheets.
Do not classify a schematic as metaphase based solely on central chromosome concentration. If nuclear membrane fragments remain present and kinetochores lack bipolar fiber tension, the cell is in prometaphase.
Common diagnostic failure modes on mitosis worksheets include:
- Prometaphase vs. Metaphase Misclassification: Prometaphase exhibits active nuclear envelope fragmenting and chaotic chromosome movement along microtubule tracts. Metaphase requires full alignment along a strict 0° deviation center axis (the equatorial plate).
- Anaphase A vs. Anaphase B Misinterpretation: Anaphase A tracks chromosome movement relative to the spindle pole (shortening kinetochore fibers). Anaphase B tracks spindle pole separation relative to each other (lengthening overall cell envelope). Cross-check pole-to-pole distance measurements against baseline metaphase cell dimensions.
- Multipolar Spindle Artifacts: Cancer cell lines or damaged biological systems often display tripolar or tetrapolar spindle configurations on diagnostic schematics. Verify centrosome markers (γ-tubulin loci) to differentiate true bipolar division from pathogenic aneuploidy-inducing defects.
- Plant vs. Animal Cytokinesis Confusion: Ensure mechanical features match system architecture. Animal cell configurations utilize centripetal constriction (inward furrowing), whereas plant system configurations rely on centrifugal wall assembly (outward phragmoplast extension). Refer to flow cytometry cell cycle analysis data when verifying ambiguous cytological boundaries.
Frequently Asked Mitosis Worksheet and Diagram Identification Blueprint Queries
How Do You Differentiate Prometaphase from Prophase in a Schematic Diagram?
Prophase schematics show an intact or intact-bordered nuclear envelope with centrosomes beginning migration. Prometaphase blueprints depict fragmented nuclear membrane vesicles, fully migrated centrosomes at opposite poles, and spindle microtubule bundles actively invading the nuclear space to attach to kinetochores.
Which Biomarkers Validate Centrosome Alignment on an Evaluation Worksheet?
Centrosome orientation is validated by tracking localized concentrations of γ-tubulin and pericentrin. On schematic diagrams, these appear as dense focal points anchoring astral microtubules at opposite polar coordinates relative to the central metaphase axis.
Why Does Anaphase Identification Require Tracking Microtubule Depolymerization?
Anaphase mechanics rely on active tubulin subunit loss at both kinetochore (plus-end) and centrosomal (minus-end) locations (pac-man and flux mechanisms). Tracking this fiber shortening on schematic diagrams confirms that sister chromatids are actively being segregated rather than merely drifting due to physical preparation artifacts.
What Diagnostic Features Distinguish Plant Cell Cytokinesis from Animal Cell Separation?
Plant cell cytokinesis displays a central phragmoplast layout where Golgi-derived vesicles fuse outward to build a rigid pectin-rich cell plate. Animal cell separation features a contractile microfilament ring composed of actin and myosin II that pinches the plasma membrane inward, forming a distinct cleavage furrow.
How Do You Identify Non-Disjunction Errors on a Mitosis Schematic?
Non-disjunction errors are identified during anaphase or telophase when both sister chromatids of a chromosome pair migrate toward the same spindle pole instead of separating. On a diagram, look for asymmetrical chromosome counts at opposing poles or lagging unattached chromatids trapped in the equatorial zone.
Step-by-Step Guide to Understanding the Mitosis Worksheet And Diagram Identification
Identify – Locate the cell boundary, nuclear envelope condition, and chromatin state on the initial diagram.
Locate – Position the centrosomes, centrioles, and spindle fibers relative to the cellular poles.
Reference – Cross-check chromosome position against standard PMAT layout configuration charts.
Connect/Route – Map spindle fiber pathways from centrosomes to chromosome kinetochores.
Verify – Check for key phase indicators like equatorial alignment or cleavage furrow formation.
Troubleshoot – Re-evaluate phase markers if chromosome position conflicts with nuclear membrane status.
