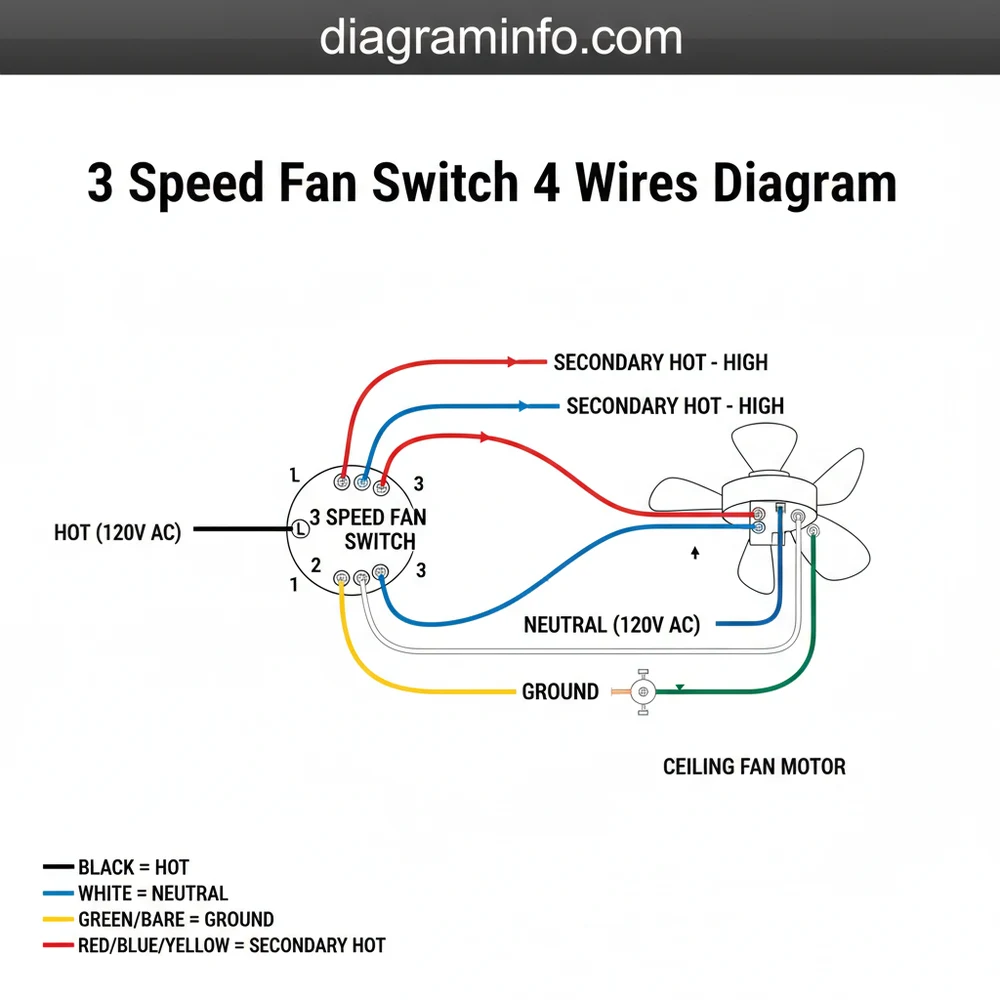

3 Speed Fan Switch 4 Wires Diagram: Pinout Guide 2026
A standard 4-wire 3-speed fan switch (like Zing Ear ZE-268S6) connects the black hot wire to line terminal L. Pin 1 wires to high speed (black wire), Pin 2 to medium speed (blue wire), and Pin 3 to low speed (red wire). Ground connects to the fan frame.
📌 Key Takeaways
- Terminal L must always receive the primary 120V AC hot wire input feed.
- Pin assignments 1, 2, and 3 route voltage through varying capacitor values to set fan speeds.
- Ensure power is fully cut at the breaker before replacing or touching internal switch leads.
- Misidentifying speed output wires will cause incorrect fan speeds or non-functional settings.
- Replacing a modular 4-wire switch is a DIY task, but motor winding faults require replacement.
Properly wiring a 4-wire, 3-speed rotary fan switch is critical for maintaining climate control functionality in automotive HVAC systems, heavy equipment cabs, and industrial blower units. Whether you are replacing a failed OEM rotary selector or performing a custom HVAC retrofitting project, understanding the underlying schematic ensures reliable operation, prevents circuit overheating, and protects system components. This technical guide provides a complete wire color code breakdown, terminal block pin assignment details, step-by-step wiring instructions, and diagnostic procedures for standard 12V DC and select equipment fan circuits.
3 Speed Fan Switch 4 Wires Diagram Color Codes and Pin Assignment
Automotive and equipment manufacturers utilize different color coding conventions based on production year and supplier standards (such as Indak, Everco, or custom OEM harnesses). The following reference table outlines standard factory terminal pin assignment layouts, wire color codes, and functional descriptions for a standard 4-wire, 3-speed blower control switch.
| Terminal ID | Function / Circuit | Standard Wire Color Code | Recommended Wire Gauge | Notes & Destination |
|---|---|---|---|---|
| B / POWER / IN | Main Hot Wire (+12V DC Supply) | Red or Orange (w/ Black Stripe) | 12 AWG | Fused ignition switch output (20A–30A fuse inline) |
| L / POS 1 | Low Speed Signal Output | Yellow or Light Blue | 14 AWG | Connects to High-Resistance terminal on resistor pack |
| M / POS 2 | Medium Speed Signal Output | Green or Light Green | 14 AWG | Connects to Mid-Resistance terminal on resistor pack |
| H / POS 3 | High Speed Signal Output | Orange or Dark Blue | 12 AWG – 14 AWG | Direct feed to blower motor or high-speed bypass relay |
In most 4-wire 3-speed blower configurations, the ground wire does not connect directly to the rotary switch. Grounding occurs at the blower motor housing, a dedicated motor frame lug, or via a grounded terminal block at the resistor pack assembly. Always consult our comprehensive HVAC blower resistor wiring guide for deep-dive terminal schematics on specific equipment models.
Terminal Block Pin Assignment and Internal Switch Architecture
To correctly interpret a 3 speed fan switch 4 wires diagram, you must understand how internal rotary contacts route voltage across different selector positions. A 4-wire switch features one primary supply input (commonly stamped B, BAT, or C for Common) and three output spade terminals labeled L (Low), M (Medium), and H (High).
When the switch knob is rotated from the OFF position:
- Low Speed (Position 1): Internal wiper bridges terminal B to terminal L. Voltage travels through the full series length of the blower motor resistor pack, reducing continuous voltage to approximately 6V–7V DC, producing slow motor rotation.
- Medium Speed (Position 2): Internal wiper bridges terminal B to terminal M. Current routes through a lower-resistance segment of the resistor block, delivering roughly 9V–10V DC to the motor.
- High Speed (Position 3): Internal wiper bridges terminal B directly to terminal H. This path completely bypasses the resistor block, delivering full system battery voltage (12.6V–14.2V DC depending on alternator output) directly to the blower motor winding.
Continuous Amperage Rating: 20 Amps @ 12V DC
Inrush Current Capacity: 35 Amps peak
Terminal Type: 1/4 inch (6.3mm) Male Quick-Connect Spade Terminals
Dielectric Strength: 1500V AC per minute
How to Connect a 3 Speed Fan Switch Using a 4 Wires Diagram
Follow this exact technical installation sequence to connect a 4-wire 3-speed selector switch to your vehicle or equipment HVAC harness. Ensure system power is completely disconnected before proceeding.
Step 1: System Power Isolation and Cable Gauge Selection
Disconnect the negative battery terminal to eliminate short-circuit risks. Verify that the power feeding line (hot wire) originates from an ignition-switched source protected by an appropriately rated fuse (typically 20A to 30A). Ensure the primary input feed utilizes 12 AWG stranded copper wire to safely handle maximum continuous current draw during high-speed blower motor engagement without excessive line voltage drop.
Step 2: Identifying Hot Wire and Speed Terminal Pin Assignment
Inspect the back of the 3-speed switch terminal block. Identify the markings stamped next to each spade connector:
- Locate the B (Battery/Power) terminal pin. Strip 3/8-inch of insulation from the 12 AWG hot wire supply line, crimp a heat-shrink female spade terminal onto the lead, and securely slide it onto terminal B.
- Identify terminals L, M, and H. Connect the corresponding output signal wires from your HVAC wiring harness to these designated pins using 14 AWG heat-shrink insulated spade connectors.
Step 3: Blower Resistor and Chassis Ground Wire Integration
Route the low speed output wire (terminal L) to the high-resistance pin on the resistor block terminal block. Attach the medium speed output wire (terminal M) to the step-down resistance pin. Connect the high speed output wire (terminal H) to the direct blower feed lug or an external high-speed relay coil terminal. Ensure a clean, unpainted chassis ground wire (minimum 12 AWG) is terminated from the blower motor housing to the primary ground point on the chassis or cab frame.
Never substitute 16 AWG or 18 AWG standard hookup wire for high-speed HVAC blower circuits. Undersized wire gauge under high amperage load will generate severe thermal resistance, risking insulation melting, short circuits, and dashboard electrical fires.
Step 4: Circuit Continuity and Operating Voltage Verification
Before mounting the switch assembly into the dashboard bezel, reconnect the negative battery terminal and set your Digital Multimeter (DMM) to DC Volts range. Touch the red probe to terminal B and the black probe to a known good ground wire location. Turn the ignition switch to RUN.
- Verify 12.6V+ DC presence at terminal B.
- Cycle to Position 1 (Low): Probe terminal L to confirm voltage output.
- Cycle to Position 2 (Med): Probe terminal M to confirm voltage output.
- Cycle to Position 3 (High): Probe terminal H to confirm full line voltage output.
Troubleshooting 3 Speed Blower Fan Voltage and Ground Wire Issues
Electrical failures within a 4-wire 3-speed blower system usually stem from wiring errors, improper ground continuity, component overheating, or corroded terminal block interfaces. Use the diagnostic matrix below to troubleshoot common installation faults.
1. High Speed Works, But Low and Medium Speeds Are Dead
If the blower fan operates exclusively in Position 3 (High), the rotary fan switch itself and the main hot wire supply are fully functional. This symptom indicates a burned-out resistor block coil or an open circuit in the thermal cutoff fuse located inside the resistor assembly. Inspect the resistor block terminal block for thermal discoloration or open resistance using an ohmmeter.
2. Fan Operates in Reverse Sequence (High on Position 1, Low on Position 3)
This condition is caused by incorrect terminal pin assignment during installation. Cross-referencing the wire color code against the switch terminal block labels is essential. Swapping the L (Low) and H (High) wire leads on the switch spade terminals will immediately resolve the reverse progression.
3. Switch Assembly Overheats or Casing Melts
Rotary switch body overheating is caused by high contact resistance from loose spade connections or excessive continuous amperage draw from an aging, binding blower motor. Check continuous current draw using an inline amp clamp multimeter. If motor draw exceeds 80% of the switch rated capacity (e.g., >16A on a 20A switch), integrate an automotive relay wiring diagram configuration to offload high- ampers directly to a dedicated fused battery relay feed.
4. Total Circuit Inoperation Across All Speed Positions
Check for open circuit conditions along the main supply path. Verify blown fuses at the main power distribution center. Confirm chassis ground wire continuity between the motor case and vehicle frame; an open ground wire breaks the electrical circuit completely, preventing operation regardless of switch position.
3 Speed Fan Switch 4 Wires Wiring FAQ and Technical Specs
What wire gauge is required for a 12V 3 speed fan switch wiring setup?
The primary power hot wire feeding terminal B must be a minimum of 12 AWG rated for continuous automotive thermal conditions (such as TXL or GHY cross-linked polyethylene wire). The speed output signal wires (L, M, H) feeding the resistor block and motor should be 14 AWG copper wire. Never use smaller than 14 AWG on high-amperage HVAC equipment circuits.
Why is there no ground wire terminal on my 4-wire 3-speed switch?
Standard DC rotary HVAC switches function strictly as high-side positive selectors. They interrupt and route the +12V DC power feed to different output circuits. The negative return path (ground wire) is established separately at the blower motor body or through a dedicated ground lug on the motor chassis, simplifying switch design to 4 terminal pins.
How do you wire a 4-wire switch in 120V AC equipment with a neutral wire?
In AC equipment applications (such as commercial cab ventilation or utility equipment powered by AC generators), the 4-wire switch routes the AC Line (Hot wire) across terminal speed taps (L, M, H). The neutral wire connects directly to the motor’s neutral lead or terminal block and does not attach to the speed selector switch itself.
How do you test terminal pin assignment using a Digital Multimeter?
Set your multimeter to the Resistance / Continuity setting (Ω/Beeper). Place one probe on the power input terminal (B). With the switch turned OFF, no terminal should show continuity. Switch to Position 1: terminal B should show 0.00 Ω continuity to terminal L only. Switch to Position 2: terminal B should show continuity to terminal M only. Switch to Position 3: terminal B should show continuity to terminal H only.
Can I bypass the resistor block and wire the 4-wire switch directly to the motor?
You can only bypass the resistor pack if your blower motor features internal speed windings with multi-lead outputs (a 4-wire or 5-wire motor casing). If your motor is a simple single-winding 2-wire unit, connecting a 3-speed switch without an inline resistor block will cause the fan to run at maximum speed across all switch ON positions. Reference our heavy equipment electrical system maintenance articles for detailed circuit isolation techniques.
Step-by-Step Guide to Understanding the 3 Speed Fan Switch 4 Wires Diagram
Identify – Shut off power at the main circuit breaker and identify the hot wire, neutral wire, and ground wire.
Locate – Access the fan switch housing and locate terminals L, 1, 2, and 3 on the 4-wire switch.
Reference – Match the wire color code from your fan’s capacitor and motor to the pin assignment diagram.
Connect/Route – Insert the black hot wire into terminal L, then connect the speed leads to terminals 1, 2, and 3.
Verify – Ensure all wire connections are secured, ground wire is fastened to frame, and twist wire nuts tightly.
Troubleshoot – Restore breaker power and cycle through pull-chain settings; swap speed output leads if speeds are out of order.
