4 Stroke Mercury Outboard Water Flow Diagram: 2026 Guide
The 4-stroke Mercury outboard cooling path draws raw water through lower-unit intake screens via a rubber impeller pump, routing coolant up through the drive shaft housing to the thermostat, fuel cooler, engine block jacket, and exhaust manifold, before exiting through the propeller hub exhaust and tell-tale bypass port at 10-15 PSI.
📌 Key Takeaways
- Water pump pressure should maintain 10-15 PSI at WOT (wide open throttle) and 2-5 PSI at idle speed.
- Thermal regulation relies on a 120°F-143°F thermostat opening threshold before diverting flow to block jackets.
- Raw water enters through lower unit pickup screens and passes through a stainless steel wear plate and rubber impeller assembly.
- Blocked tell-tale streams usually indicate debris in the flushing tailpiece adapter or vent fitting rather than pump failure.
- Replace the flexible water pump impeller every 100 hours or 12 months to prevent catastrophic engine overheating.
Understanding the complete cooling path on a modern four-stroke marine engine is critical for preventing catastrophic powerhead failure, diagnosing low-pressure alarms, and maintaining correct operating temperatures. A 4 stroke mercury outboard water flow diagram provides technicians and experienced marine mechanics with an authoritative blueprint of raw water circulation—from lower unit pick-up screens through the oil cooler, block water jackets, thermostat housing, poppet valve assembly, and ultimate discharge via the prop hub and tell-tale stream. Whether servicing a 75HP FourStroke or a high-output Verado platform, mastering this plumbing topology ensures precise troubleshooting, accurate component replacement, and effective test tank drain setup design in the shop.

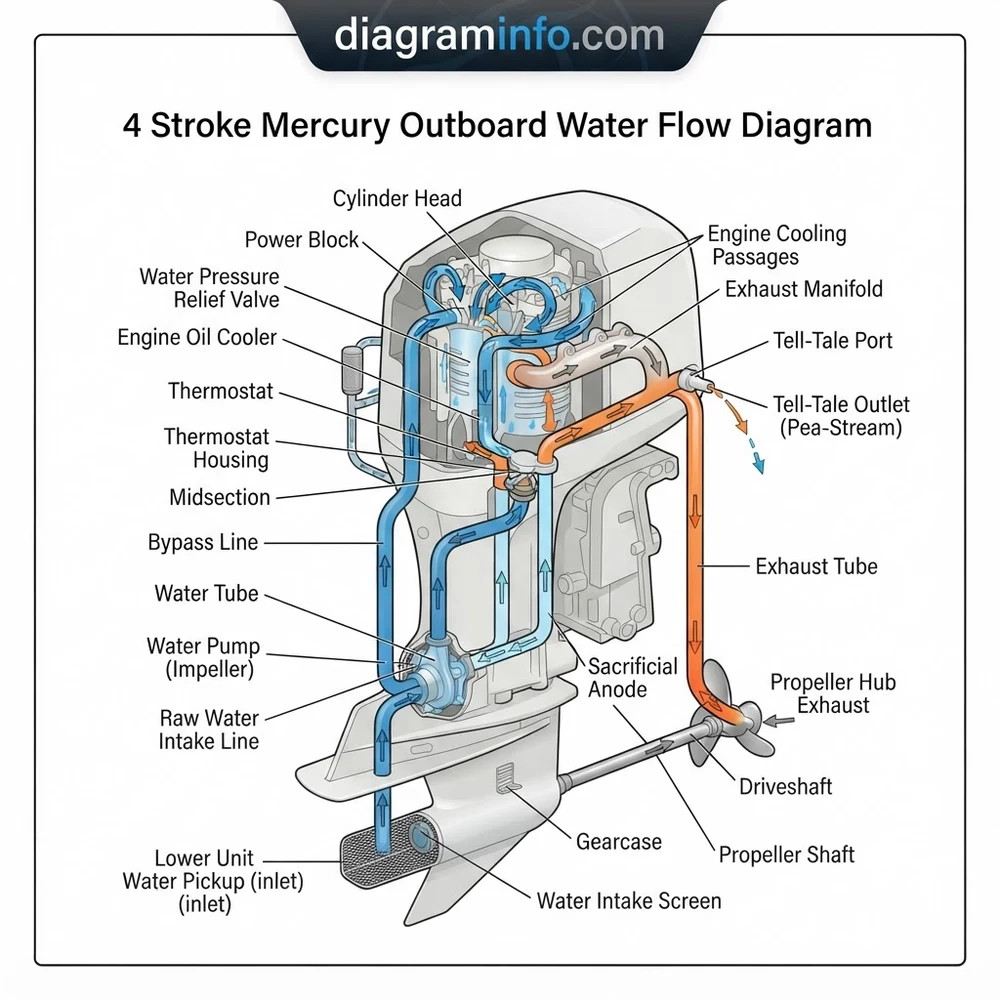

4 Stroke Mercury Outboard Water Flow Diagram Component Breakdown
According to OEM factory service manuals, Mercury four-stroke cooling systems utilize a combination of positive displacement pumps, thermal regulation, and dynamic pressure relief valves to control powerhead temperatures across all RPM bands. As shown in the 4 stroke mercury outboard water flow diagram, the cooling plumbing system is divided into low-pressure suction, high-pressure distribution, and thermal/pressure relief discharge circuits.
Mercury four-stroke outboards rely on a dynamic dual-stage cooling concept: at idle and low speeds (below ~1800 RPM), water flow is strictly regulated by the thermostat. At high RPM, water pressure overrides the poppet valve spring, bypassing the thermostat to dump maximum volume through the exhaust tuner.
Lower Unit Water Intake and Impeller Assembly
The primary intake begins at the gear housing dual-water pickups located on the lower unit sides or nosecone. Water enters under ambient suction created by the rotating elastomeric rubber impeller (Mercury Part # 47-85M006438 or model equivalent) housed within a stainless steel cup inside the pump body. The shaft-driven impeller compresses water within the offset housing, pushing high-volume liquid upward through the vertical copper or rigid PVC guide tube via a high-temperature rubber slip joint upper guide seal.
Powerhead Cooling Passages and Thermal Regulation Control
Upon exiting the intermediate drive shaft housing, water enters the crankcase adapter plate. In oil-cooled four-stroke architectures, water passes through an integrated oil cooler heat exchanger before entering the lower cylinder block water jacket. The liquid flows upward surrounding all cylinder walls and moves into the cylinder head cooling jackets to cool exhaust valves and spark plug bosses. System temperature is maintained by a 130°F–143°F (54°C–62°C) wax-pellet thermostat seated at the upper cylinder head manifold.
Tell-Tale Port, Flush Port Tailpiece, and Drain Assembly
A small portion of pressurized water is routed directly off the lower cylinder block or fuel cooler to the visual indicator nozzle (tell-tale port) via a flexible rubber tailpiece barb connection. This provides a continuous visual verification of water pump operation. Additionally, modern Mercury outboards feature an integrated fresh-water flush adapter port. During shop servicing or engine flush cycles, this port connects to external supply lines. In permanent service bays, engine wash water discharges into a shop drain assembly equipped with a standard P-trap and vent pipe to prevent sewer gas backflow during heavy flushing cycles.
| System Component | OEM Specification / Range | Primary Plumbing Function |
|---|---|---|
| Water Pump Impeller Housing | Torque: 55 in-lbs (6.2 Nm) | Positive displacement raw water supply |
| Thermostat Assembly | Cracks @ 130°F (54°C), Full @ 143°F | Low-speed thermal regulation |
| Poppet Pressure Relief Valve | Opens @ 15–18 PSI (~1800+ RPM) | High-speed high-volume coolant bypass |
| System Pressure (Idle) | 1.5 – 5.0 PSI | Base idle cooling circuit pressure |
| System Pressure (WOT) | 12.0 – 25.0 PSI (Model specific) | Maximum high-speed cooling loop pressure |
Tracing Plumbing Routes on the 4 Stroke Mercury Outboard Water Flow Diagram
Tracing the fluid path on a 4 stroke mercury outboard water flow diagram requires following three sequential pressure stages: intake/elevation, internal head/block distribution, and active discharge/relief routing. Technical service procedures detailed in the Mercury 150HP Water Pump Replacement Guide outline precise flow tracing steps during diagnostic overhauls.
When replacing water pump assemblies or rebuilding powerheads, always inspect the water tube upper rubber seal (grommet). An improperly seated slip joint at the adapter plate causes aerated water supply, leading to high-RPM overheat codes (DTC 117) on SmartCraft displays.
Stage 1: Lower Intake and Rigid Supply Tube Circuit
Raw seawater or fresh water is drawn through the screen intakes into the lower pump cavity. The rotating flexible impeller blades seal against the liner, building dynamic head pressure. Liquid exits through the top discharge nozzle of the pump housing, entering a rigid brass or heavy-wall synthetic tube. This tube connects to the powerhead adapter plate via a rubber sealing slip joint coupler. If performing stationary shop testing, fresh water can also be back-fed into the circuit via the rear maintenance connection or test basin.
Stage 2: Powerhead Branching and Manifold Passages
Water enters the lower adapter plate where it splits into two distinct paths:
- Fuel/Oil Cooling Loop: Routes coolant through the Vapor Separator Tank (VST) heat exchanger and oil cooler body to manage fuel temperatures and engine oil viscosity.
- Engine Block Parallel Loop: Directs raw water into the bottom of the cylinder block water jackets, forcing water upward against gravity to eliminate trapped air pockets within the cast iron/aluminum block interface.
Stage 3: Pressure Relief, Exhaust Cooling, and Test Station Waste Discharge
Once water reaches the top of the cylinder head assembly, thermal regulation takes over. Below 130°F, water remains restricted by the thermostat valve, forcing a minimal bypass stream through the visual indicator hose out through the tailpiece nozzle. Once the engine reaches operating temperature, the thermostat unseats, allowing hot water to spill into the midsection exhaust housing to cool the exhaust tuner and inner mid-section liner.
When operating above 2000 RPM, high pump head pressure forces the spring-loaded poppet valve off its seat. This opens a massive secondary discharge cavity, permitting unrestricted water to dump through the driveshaft housing and exit out through the propeller hub core. In shop test bay installations, high-volume discharge water collected in testing tanks flows down through a dedicated 2-inch synthetic PVC pipe, passing through an inline AAV valve (Air Admittance Valve) and a heavy-duty drain assembly equipped with a clear cleanout plug to prevent hydraulic lockup during continuous high-RPM running.
Troubleshooting 4 Stroke Mercury Outboard Water Flow Diagram Faults
Diagnostics on modern Mercury 4-stroke cooling systems require comparing observed symptom patterns against the flow diagram logic. Technicians must differentiate between thermal failures (thermostat) and pressure/volume failures (impeller or poppet valve). Reviewing the Mercury Outboard Thermostat Diagnostics protocol helps isolate localized blockages from total flow failures.
Never run a 4-stroke Mercury outboard without adequate cooling water supply for more than 5 seconds. Dry operation causes instant thermal degradation of the neoprene impeller vanes, melting the plastic pump housing and pushing shredded rubber debris into the powerhead water jackets.
Low RPM Overheating: Impeller Degradation and Intake Restrictions
If the engine overheats at idle (800–1200 RPM) but cools down when throttle is applied, the fault lies in the low-pressure supply circuit. Inspect the following items:
- Worn, set-curved, or melted rubber impeller vanes failing to generate required low-speed lift pressure (under 2.0 PSI).
- Scored upper stainless wear plate or outer liner cup allowing internal fluid slip inside the pump body.
- Debris, sand, or marine growth choking the lower unit pickup grates or internal supply passage.
High RPM Overheating: Poppet Valve Jamming and Passage Scale
If idle temperatures remain stable (~140°F) but thermal alarms sound above 3000 RPM, water volume is inadequate under high thermal load. As indicated on the 4 stroke mercury outboard water flow diagram, the primary suspect is the diaphragm-operated poppet valve. Salt crystallization, sand, or wood chips frequently jam the poppet poppet-stem open or closed. If stuck closed, water cannot bypass the restricted thermostat passages, causing rapid temperature spikes and over-pressurization of internal gaskets.
No Tell-Tale Stream: Indicator Obstruction vs. Water Pump Failure
A missing visual indicator stream does not always signal an overheating powerhead. Because the tell-tale circuit branches off near the top of the block or fuel cooler, small salt crystals or sand regularly clog the plastic tell-tale elbow or rubber tailpiece hose. Clear the nozzle using a short length of monofilament line or compressed air. If temperature gauges and SmartCraft digital stream readings remain normal, the issue is isolated to the indicator barb. If gauge pressure drops to zero, shut down immediately—this signals total raw water pump failure or loss of prime.
FAQ: Outboard Cooling, Vent Pipe Circuits, and Drain Assembly Rigs
How does the thermostat operate on a 4 stroke Mercury outboard water flow diagram?
The thermostat acts as a thermal gatekeeper located at the top of the cylinder head. When engine coolant temperature is below its rating (typically 130°F/54°C), the valve remains closed to allow the powerhead to reach efficient combustion temperatures quickly. Once warmed, the wax element expands against an internal spring, lifting the poppet disc to vent hot water down into the exhaust tuner exhaust cooling jacket.
Can shop flush tank drainage utilize a PVC drain assembly with a P-trap and AAV valve?
Yes. When constructing professional marine engine test tanks, test tank waste lines utilize standard 2-inch Schedule 40 PVC pipe combined with a deep P-trap to capture debris and an AAV valve (Air Admittance Valve). The AAV valve breaks vacuum suction during rapid water dumps, preventing air locks and allowing high-volume discharge water from large V6/V8 outboards to drain smoothly through the building’s floor drain assembly without splashback.
What causes raw water leakage around the water tube slip joint connection?
Water leaks at the midsection junction are usually caused by a deteriorated rubber water tube seal grommet or improper alignment during lower unit installation. If the vertical tube misses the center of the upper slip joint socket, raw water sprays into the midsection casing rather than entering the powerhead. This causes severe low-pressure overheat conditions under load, as documented in our Outboard Marine Cooling Flush Protocol.
Why is maintaining a clear vent pipe or flush port important on Mercury outboards?
The upper body vent paths allow trapped air to escape when the engine is submerged or flushed. If air pockets remain locked inside the upper cylinder head water jacket, localized boiling occurs around exhaust ports, causing head gasket failure. Keeping all flush port barb fittings, indicator lines, and air vent passages free of salt corrosion ensures complete liquid saturation of all powerhead cooling passages during operation.
How does a garbage disposal or shop interceptor sink fit into marine repair plumbing?
In commercial marine service shops, test bay wash areas or parts cleaning sinks often integrate a heavy-duty commercial garbage disposal or solids interceptor trap before entering the main sewer line. This setup breaks down small organic debris, seaweed, and degraded impellers washed out of engine cooling systems during flushing, protecting the shop’s main vent pipe and underground plumbing network from severe blockages.
Step-by-Step Guide to Understanding the 4 Stroke Mercury Outboard Water Flow Diagram
Identify – Locate the raw water pickup screens on the lower unit gearcase housing.
Locate – Find the water pump assembly, vertical copper supply tube, and thermostat housing on the reference diagram.
Reference – Trace the cooling path from lower unit intake up through the block water jacket to the relief circuit.
Connect/Route – Route the high-pressure hose lines from the flushing tailpiece connection to the indicator vent pipe port.
Verify – Run the engine on flush muffs to confirm steady tell-tale stream and 10-15 PSI gauge pressure.
Troubleshoot – If flow is weak, inspect lower drain assembly fittings and clean tailpiece ports using rigid nylon wire.
