6.0 Powerstroke Fuel Line Diagram: Routing & Troubleshooting 2026
The 6.0 Powerstroke fuel system routes fuel from the tank, through chassis filters, to the engine’s fuel bowl. Fuel then goes to the high pressure fuel pump (HPFP) for injection, with excess fuel returning via the fuel return line, regulated by the injection pressure regulator (IPR).
📌 Key Takeaways
- The 6.0 Powerstroke operates with a low-pressure fuel system (45-60 PSI) and a high-pressure oil system for injector actuation.
- Identifying the fuel bowl, HPFP, and fuel return line is crucial for diagnosing 6.0 Powerstroke fuel system issues.
- Always relieve fuel pressure before disconnecting any fuel lines to prevent injury and hazardous spills.
- Clogged fuel filters and failing fuel pressure regulators are the most common 6.0 Powerstroke fuel system problems.
- Serious fuel pressure diagnostics involving specialized tools or high-pressure components often require professional assistance.
Understanding the intricate fuel delivery system of the 6.0 Powerstroke diesel engine is paramount for any technician or dedicated owner. This comprehensive guide, complete with a detailed 6.0 Powerstroke fuel line diagram, meticulously charts the fuel flow from the tank to the high-pressure injection system. The diagram elucidates the complex network of fuel lines, components, and return paths essential for optimal engine performance and adherence to emission standards. Mastering this system is critical for accurate diagnostics, effective maintenance, and successful repairs, ensuring the robust operation characteristic of the 6.0 Powerstroke.
FUEL SYSTEM COMPONENTS BREAKDOWN
The 6.0 Powerstroke fuel system is a sophisticated assembly engineered for precise fuel delivery and pressure regulation. A thorough understanding of each component’s function, as depicted in the 6.0 Powerstroke fuel line diagram above, is fundamental for accurate diagnostics and service.
- Fuel Tank: The primary reservoir for diesel fuel. It houses the fuel pump module, which includes the electric fuel pump and fuel sender.
- Electric Fuel Pump (Lift Pump): Located within the fuel tank, this pump draws fuel from the tank and sends it forward under low pressure (approximately 45-70 PSI) through the supply line to the fuel bowl.
- Fuel Supply Line: Carries low-pressure fuel from the electric fuel pump to the fuel bowl on the engine.
- Fuel Heater: Integrated into the fuel bowl assembly, this component warms the incoming diesel fuel, especially in cold conditions, to prevent waxing or gelling and ensure consistent fuel viscosity.
- Fuel Bowl (Fuel Filter Housing): This central component, often referred to as the fuel filter housing, contains both the primary and secondary fuel filters. It also typically houses the fuel pressure regulator (FPR) and a water-in-fuel (WIF) sensor. It ensures fuel is clean and at the correct pressure before reaching the high-pressure pump.
- Primary Fuel Filter: Located in the horizontal position within the fuel bowl, it filters larger contaminants from the fuel, protecting the secondary filter and other downstream components.
- Secondary Fuel Filter: Positioned vertically in the fuel bowl, this filter provides finer filtration, crucial for protecting the sensitive high-pressure fuel pump and fuel injectors.
- Fuel Pressure Regulator (FPR): Integrated into the fuel bowl assembly, the FPR maintains consistent fuel pressure to the high-pressure fuel pump (HPFP) by bleeding off excess fuel into the fuel return line.
- High Pressure Fuel Pump (HPFP): Driven by the camshaft, this pump is critical for generating the extremely high fuel pressures (up to 26,000 PSI) required for the HEUI (Hydraulically Actuated Electronically Controlled Unit Injector) system. Fuel from the HPFP is sent to the high-pressure oil pump reservoir, where it’s further pressurized before reaching the injectors. For a detailed exploration of the HPFP’s internal workings, consult our article on 6.0 Powerstroke HPFP Diagnostics.
- High Pressure Oil Pump (HPOP): While primarily for oil, the HPOP system is intricately linked, using high-pressure engine oil to actuate the fuel injectors. Fuel from the HPFP is supplied to the injectors through the oil rail.
- Fuel Injectors: Electrically actuated and hydraulically assisted, these injectors atomize and deliver fuel directly into the combustion chambers.
- Fuel Return Line: Carries excess fuel, not used by the injectors or regulated by the FPR, back to the fuel tank. This ensures a constant flow of cooler fuel to the engine.
- Fuel Cooler: Located on the frame rail, this component dissipates heat from the returning fuel before it re-enters the fuel tank, preventing excessive fuel temperature buildup.
- Primer Pump (Hand Primer): While not standard on all models, some aftermarket setups or earlier diesel systems might feature a manual primer pump to facilitate bleeding air from the fuel system after service. The 6.0 Powerstroke typically self-primes using the electric fuel pump.
COMMON FAILURE POINTS & SYMPTOMS
The 6.0 Powerstroke fuel system, while robust, is prone to specific failure points. Recognizing the symptoms and understanding the diagnostic process is crucial for timely and effective repairs.
- Electric Fuel Pump (Lift Pump) Failure:
- Symptoms: Extended crank times, hard starts (especially when warm), low power, stalling, “no start” condition, P0087 (Fuel Rail/System Pressure – Too Low) code.
- Diagnosis: Perform a fuel pressure test at the fuel bowl. OEM specifications indicate a minimum of 45-50 PSI at idle. Pressures below this range, particularly under load, point to a failing lift pump.
- Clogged Fuel Filters (Primary/Secondary):
- Symptoms: Reduced engine power, hesitation, rough idle, black smoke under acceleration, fuel pressure drops under load, P0087.
- Diagnosis: First, check the fuel filter change interval. If overdue, replace both filters. If symptoms persist, check fuel pressure before and after the filters. A significant pressure drop across the filters confirms clogging.
- Fuel Pressure Regulator (FPR) Malfunction:
- Symptoms: Low fuel pressure at the fuel bowl, poor cold starting, rough idle, P0087, excessive fuel return to tank.
- Diagnosis: Monitor fuel pressure at the fuel bowl. If it’s consistently low even with a new lift pump and filters, the FPR may be stuck open or failing to maintain adequate pressure.
- Leaking Fuel Lines/Connectors:
- Symptoms: Visible fuel leaks (odor), air intrusion into the fuel system (leading to hard starts, stalling, rough running), diminished fuel pressure.
- Diagnosis: Visually inspect all fuel lines, especially around connections to the fuel tank, fuel cooler, fuel bowl, and HPFP. Look for wet spots, drips, or cracked hoses. A clear hose can be temporarily inserted into the supply line to check for air bubbles.
- Injection Pressure Regulator (IPR) Valve Failure:
- Symptoms: Hard starts, no start, rough idle, stalling, poor performance, P2290 (Injector Control Pressure Too Low), P2287 (Injector Control Pressure Sensor Circuit Intermittent).
- Diagnosis: Monitor ICP (Injection Control Pressure) and IPR duty cycle using a diagnostic scanner. An IPR stuck open or leaking can prevent the high-pressure oil system from building sufficient pressure to actuate the injectors. Refer to our extensive resource on 6.0 Powerstroke IPR Valve Troubleshooting for in-depth procedures.
- High Pressure Fuel Pump (HPFP) Issues:
- Symptoms: Severe power loss, misfires, hard start/no start, often accompanied by very low or no fuel pressure at the injectors (even if lift pump pressure is good), P0087, P020x (Injector Circuit Malfunction) codes.
- Diagnosis: Requires advanced diagnostics, often involving isolating the HPFP or observing fuel flow/pressure directly from the HPFP output. This is less common than other issues but devastating when it occurs.
REPAIR & REPLACEMENT STEPS: Addressing a Common Fuel Line Leak
One of the more frequent issues encountered with the 6.0 Powerstroke fuel system involves leaks in the low-pressure fuel lines, particularly at quick-disconnect fittings or rubber hose sections near the fuel bowl or fuel cooler. This procedure outlines replacing a section of the fuel supply line leading to the fuel bowl, often prone to cracking or quick-disconnect failure.
Always wear appropriate personal protective equipment (PPE), including eye protection and gloves. Diesel fuel is flammable and an irritant. Ensure the engine is cool and the battery is disconnected before beginning any work on the fuel system.
- Depressurize the Fuel System:
Before disconnecting any fuel lines, it is crucial to relieve fuel pressure. Disconnect the electrical connector to the electric fuel pump (located on the frame rail near the tank or directly at the tank module). Start the engine and allow it to run until it stalls, indicating the fuel pressure has bled down. Alternatively, pull the fuel pump relay in the fuse box and crank the engine for 15-20 seconds.
- Disconnect Battery:
Disconnect both negative battery cables to prevent accidental starting or electrical shorts during the repair.
- Locate and Access the Leaking Line:
Identify the specific section of the fuel line exhibiting the leak. This often requires removing air intake components or other ancillary parts to gain clear access. For leaks near the fuel bowl, you will typically be working on top of the engine.
- Prepare for Disconnection:
Place shop rags or a drain pan underneath the connection points to catch residual fuel. Have appropriate fuel line quick-disconnect tools ready if applicable.
- Disconnect the Old Fuel Line:
Carefully release the quick-disconnect fittings at both ends of the leaking fuel line section. For compression fittings, use two wrenches to prevent twisting other components. Inspect the mating surfaces (O-rings, flares) for damage. Remove the old line.
- Inspect and Clean Connections:
Thoroughly inspect the male ends of the fuel lines or fittings where the new line will connect. Clean off any dirt or debris. Replace O-rings if they appear worn or damaged, even if they are not part of the new line assembly.
- Install the New Fuel Line:
Carefully connect the new fuel line. For quick-disconnects, push firmly until you hear and feel a positive “click.” Gently pull on the line to confirm it is seated securely. For compression fittings, start threads by hand to prevent cross-threading, then tighten to manufacturer specifications. Refer to OEM service manual for specific torque values.
- Torque Specifications (Typical for Fuel Line Fittings):
Fitting Type Location (Example) Torque Spec (Approx.) Quick-Disconnect O-rings Fuel Bowl Inlet Securely seated, no torque Compression Fittings (AN style) Fuel Cooler to Tank 20-25 ft-lbs (Consult specific fitting/line spec) Banjo Bolt (Fuel Bowl Return) Fuel Bowl Assembly 25-28 ft-lbs (New washers mandatory) 💡 Technical NoteAlways consult the specific OEM service manual for the exact torque specifications for your vehicle’s year and component. Over-tightening can strip threads or crack components, while under-tightening can lead to leaks.
- Reconnect and Prime the System:
Reconnect the electrical connector to the fuel pump and both negative battery cables. Turn the ignition key to the “ON” position (without starting the engine) for 30 seconds to allow the fuel pump to run and prime the system. Cycle the key several times, listening for the pump and checking for leaks. After 3-4 cycles, attempt to start the engine. It may take a few cranking attempts to purge air from the system. For more complex priming issues, refer to our guide on 6.0 Powerstroke Air in Fuel System Diagnostics.
- Final Inspection:
Once the engine starts and runs smoothly, carefully inspect all repaired connections for any signs of leakage. Allow the engine to reach operating temperature and re-inspect.
FAQ
What are the common symptoms of low fuel pressure in a 6.0 Powerstroke?
Low fuel pressure in the 6.0 Powerstroke typically manifests as extended crank times, especially when the engine is warm, reduced engine power or hesitation under acceleration, a rough idle, or even a complete no-start condition. You might also encounter diagnostic trouble codes (DTCs) such as P0087 (Fuel Rail/System Pressure – Too Low). Consistent pressure below the OEM specified 45-50 PSI at the fuel bowl is a clear indicator.
How do I diagnose a clogged fuel filter on a 6.0 Powerstroke?
The primary method to diagnose a clogged fuel filter is by monitoring fuel pressure at the fuel bowl. If the pressure drops significantly under load, or if it’s consistently below specification even with a healthy lift pump, clogged filters are a prime suspect. Visual inspection of the removed filters can also reveal heavy contamination. Always adhere to the recommended 15,000-mile or 250-hour replacement interval for both primary and secondary filters. Neglecting this leads to diminished performance and potential damage to the HPFP.
What is the role of the Injection Pressure Regulator (IPR) valve in the 6.0 Powerstroke fuel system?
While the IPR valve doesn’t directly regulate fuel pressure, it critically controls the high-pressure oil system which, in turn, actuates the fuel injectors. By regulating the amount of oil flowing into the high-pressure oil rail, the IPR maintains the required injection control pressure (ICP). A malfunctioning IPR can lead to insufficient ICP, resulting in hard starts, no-starts, rough running, and various driveability issues, often accompanied by specific ICP-related fault codes. For insights into related issues, explore our content on 6.0 Powerstroke Hot Start Problems.
Can I bypass the fuel heater on a 6.0 Powerstroke?
Bypassing the fuel heater is not recommended, especially in colder climates. The fuel heater’s purpose is to prevent fuel gelling or waxing in low temperatures, which can severely restrict fuel flow and lead to engine stalling or no-start conditions. While a failed heater may not prevent the truck from running in warm weather, it’s a critical component for reliable operation in diverse conditions. If the fuel heater is suspected of failure, it should be repaired or replaced to maintain system integrity and prevent future issues.

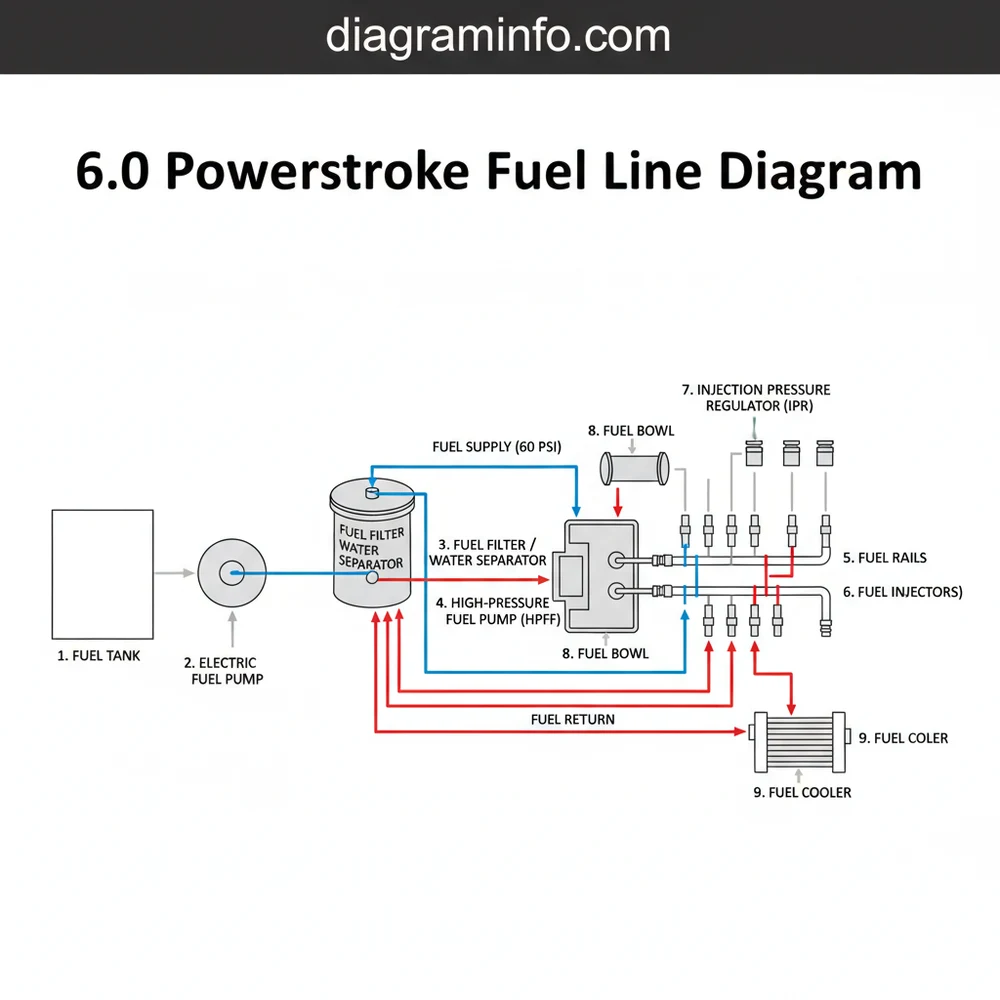

Step-by-Step Guide to Understanding the 6.0 Powerstroke Fuel Line Diagram: Routing & Troubleshooting 2026
Identify – Locate the main fuel system components such as the fuel tank, frame rail filters, and engine-mounted fuel bowl.
Locate – Pinpoint the high pressure fuel pump (HPFP) and the injection pressure regulator (IPR) on the engine.
Reference – Use the 6.0 Powerstroke fuel line diagram to trace the supply and fuel return line routing from the tank to the engine and back.
Inspect – Examine all fuel lines, fittings, and connections for signs of leaks, kinks, or damage.
Verify – Check fuel pressure at the fuel bowl using a specialized gauge to confirm it meets specification (45-60 PSI).
Troubleshoot – If pressure is low, suspect clogged filters or a failing fuel pump. Address identified issues based on diagnostic results.
Frequently Asked Questions
What are the main components of the 6.0 powerstroke fuel line diagram?
The 6.0 Powerstroke fuel system includes the fuel tank, frame-mounted filters, fuel pump, fuel bowl (engine-mounted filter housing), high pressure fuel pump (HPFP), injection pressure regulator (IPR), fuel injectors, and the fuel return line back to the tank.
What are symptoms of a failing 6.0 powerstroke fuel line diagram pump?
Symptoms of a failing fuel pump often include extended crank times, loss of power under load, rough idling, misfires, or the engine stalling. Low fuel pressure at the fuel bowl, usually below 45 PSI, confirms a failing pump.
How do I diagnose a fuel leak in 6.0 powerstroke fuel line diagram?
Diagnose a fuel leak by visually inspecting all fuel lines, fittings, and the fuel bowl for wetness or drips, especially around the high pressure fuel pump (HPFP) and fuel return line connections. A fuel pressure test can also indicate leaks if pressure drops rapidly.
What is the fuel pressure spec for 6.0 powerstroke fuel line diagram?
The ideal fuel pressure specification for the 6.0 Powerstroke at the fuel bowl should be between 45-60 PSI at idle and under load. Pressures below 40-45 PSI can lead to injector damage and poor engine performance. The injection pressure regulator (IPR) controls this.
How long does 6.0 powerstroke fuel line diagram fuel pump last?
A 6.0 Powerstroke fuel pump typically lasts between 100,000 to 150,000 miles, but this can vary significantly based on fuel quality, filter maintenance, and driving conditions. Regular fuel filter changes extend its lifespan.
Can I replace the 6.0 powerstroke fuel line diagram fuel filter myself?
Yes, replacing the 6.0 Powerstroke fuel filters (both frame-mounted and in the fuel bowl) is a common DIY task. Ensure you relieve fuel pressure, use quality filters, and properly bleed the system afterward to avoid air-in-fuel issues.
