6.4 Powerstroke Fuel System Diagram: Routing & Repair 2026
The 6.4 Powerstroke fuel system features a high-pressure common rail design with dual high-pressure fuel pumps (HPFP)—one driven by the camshaft, another by the accessory belt. It includes a fuel bowl with filters, an injection pressure regulator (IPR) for rail pressure control, and a fuel return line managing excess fuel back to the tank.
📌 Key Takeaways
- The 6.4 Powerstroke utilizes a dual high-pressure fuel pump (HPFP) system for consistent rail pressure.
- Regular inspection of the fuel bowl for contaminants is crucial to prevent injector damage.
- Maintain correct injection pressure regulator (IPR) function for optimal engine performance and fuel delivery.
- Clogged fuel filters or air leaks in the fuel return line are common causes of power loss and hard starts.
- Any significant fuel pressure drop or unusual noises from the HPFP require immediate professional diagnosis to prevent catastrophic failure.
The Ford 6.4L Power Stroke diesel engine, manufactured from 2008 to 2010, employs a sophisticated common rail fuel system designed for high performance and emissions compliance. Understanding its intricate design is paramount for proper diagnosis, maintenance, and repair. This comprehensive guide, centered around the 6.4 Powerstroke fuel system diagram, will dissect each component, highlight common failure points, and provide practical repair insights, equipping you with the knowledge to maintain this robust yet complex system.

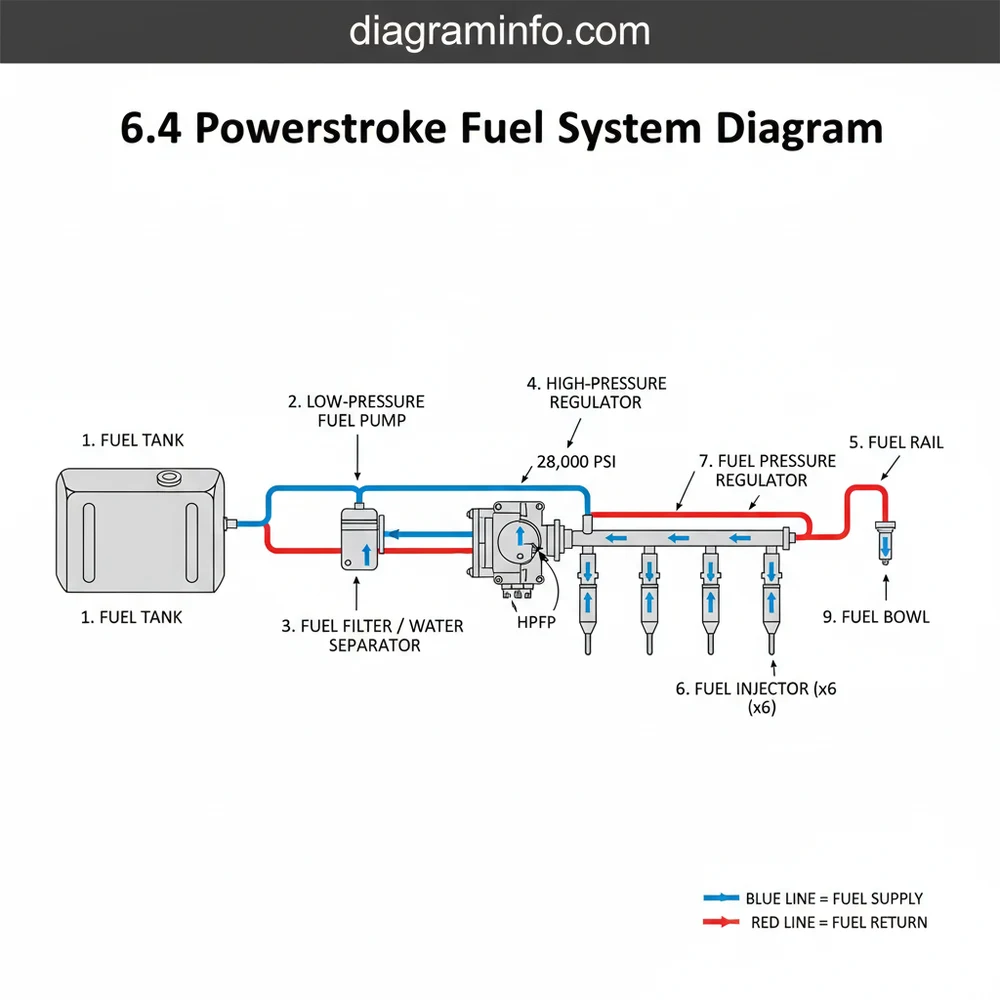

FUEL SYSTEM COMPONENTS BREAKDOWN
The 6.4L Power Stroke fuel system is a high-pressure common rail design, meticulously engineered to deliver precise fuel metering and atomization for optimal combustion. Tracing the fuel’s journey from the tank to the injectors reveals a series of critical components, each playing a vital role in the engine’s operation and longevity.
| Component | Function |
|---|---|
| Fuel Tank & Lift Pump | Stores diesel fuel; the in-tank electric lift pump draws fuel and sends it forward at low pressure (typically 45-65 PSI). |
| Primary Fuel Filter/Water Separator | A frame-mounted filter that removes larger particulates and separates water from the fuel before it reaches engine-mounted components. |
| Fuel Cooler | Cools the return fuel before it re-enters the fuel tank, preventing excessive fuel temperature which can impact fuel density and pump longevity. |
| Primer Pump | Typically integrated with the secondary fuel filter housing (fuel bowl), this manual pump is used to prime the fuel system after filter changes or system intrusion. |
| Secondary Fuel Filter (Fuel Bowl) | An engine-mounted, finer filtration stage that removes smaller particulates before fuel enters the high-pressure pump. It often houses the fuel heater and fuel pressure sensor. |
| Fuel Heater | Located within the fuel bowl, it warms fuel in cold conditions to prevent gelling and maintain viscosity for optimal flow and injection. |
| High Pressure Fuel Pump (HPFP) | The heart of the common rail system, this pump (Bosch CP3 on the 6.4L) generates extremely high fuel pressure (up to 26,000 PSI) for injection. It is gear-driven by the engine. |
| Injection Pressure Regulator (IPR) | Mounted on the HPFP or common rail, the IPR valve controls the amount of fuel entering the high-pressure side, thereby regulating rail pressure. It is precisely controlled by the Powertrain Control Module (PCM). |
| Common Rail | A single manifold that stores high-pressure fuel from the HPFP and distributes it evenly to each injector. It includes a fuel pressure sensor (FRP) to monitor rail pressure. |
| Piezoelectric Fuel Injectors | Electronically controlled injectors that deliver atomized fuel directly into the combustion chamber. Their piezoelectric design allows for multiple, precise injection events per cycle. |
| Fuel Return Line | Collects unused fuel from the HPFP and injectors, returning it to the fuel tank, often passing through the fuel cooler. This helps regulate system pressure and dissipate heat. |
The 6.4L Power Stroke utilizes a two-stage filtration system. The primary filter typically has a 10-micron rating, while the secondary filter provides a much finer 2-micron filtration. Maintaining both filters according to OEM schedule is critical for protecting the high-precision components downstream, especially the HPFP and injectors. For proper filter selection and replacement, explore our Diesel Fuel Filtration Guide.
COMMON FAILURE POINTS & SYMPTOMS
The 6.4L Power Stroke’s fuel system is robust but susceptible to specific failures that can lead to significant engine issues. Identifying symptoms early is key to preventing catastrophic damage.
- High Pressure Fuel Pump (HPFP) Failure:
- Symptom: Sudden loss of engine power, hard starting or no start, engine stalling, illuminated check engine light with diagnostic trouble codes (DTCs) such as P0087 (Fuel Rail/System Pressure – Too Low) or P0253 (Injection Pump Fuel Metering Control “A” Low). Audible metallic noises from the engine bay.
- Diagnosis: Often catastrophic, HPFP failure on the 6.4L can introduce metal shavings into the entire high-pressure fuel system. Diagnosis involves monitoring fuel rail pressure (FRP) via a scan tool during cranking and running conditions. If pressure is erratic or significantly below specifications (e.g., failing to reach 3,000-5,000 PSI during cranking), the HPFP is suspect. A visual inspection of the fuel filters for metal particulate confirms contamination.
- Fuel Injector Failure:
- Symptom: Rough idle, misfires, excessive white or black smoke from the exhaust, increased fuel consumption, engine oil dilution (smell of diesel in oil), hard starts, or engine knocking.
- Diagnosis: Use a scan tool to monitor injector contribution/balance rates. High positive or negative values for specific cylinders indicate an issue. A cylinder contribution test can pinpoint misfiring cylinders. Leak-off tests can also identify injectors that are returning too much fuel or not holding pressure. For a detailed look at injector diagnostics, refer to our article on 6.4 Powerstroke Injector Troubleshooting.
- Fuel Bowl/Secondary Fuel Filter Issues:
- Symptom: Reduced engine power, hesitation during acceleration, hard starting (especially after filter changes), engine dying, or air in fuel symptoms. Warning light for “Water In Fuel” (WIF) may illuminate.
- Diagnosis: Typically caused by a clogged filter or air leaks around the filter housing or cap O-rings. Inspect the filter element for contamination. Check fuel pressure at the secondary filter housing; it should match lift pump output. Listen for air leaks or observe fuel lines for bubbles.
- Injection Pressure Regulator (IPR) Valve Malfunction:
- Symptom: Extended cranking time, hard starts (hot or cold), engine stalling, rough idle, fluctuating fuel rail pressure, and DTCs related to fuel pressure control (e.g., P0090 – Fuel Pressure Regulator Control Circuit).
- Diagnosis: Monitor IPR duty cycle and fuel rail pressure with a scan tool. An IPR valve commanded to a high duty cycle without achieving target rail pressure indicates a potential issue with the valve or a high-pressure leak. Unplugging the IPR (engine off) and observing the resistance (typically 7-9 ohms at 68°F/20°C) can also help diagnose electrical faults.
- Fuel Pressure Sensor (FRP) Failure:
- Symptom: Erratic engine operation, sudden loss of power, engine entering “limp mode,” or incorrect fuel rail pressure readings on a scan tool.
- Diagnosis: Compare FRP sensor readings to target rail pressure and IPR duty cycle. If the FRP reading is implausible or remains stuck, the sensor itself may be faulty. Verify sensor wiring integrity.
REPAIR & REPLACEMENT STEPS
One of the most critical maintenance procedures for the 6.4L Power Stroke fuel system is the regular replacement of its fuel filters. This prevents premature wear of the HPFP and injectors, which are highly susceptible to contamination. We will detail the procedure for replacing both the frame-mounted primary fuel filter/water separator and the engine-mounted secondary fuel filter (fuel bowl filter).
Always wear appropriate personal protective equipment (PPE) including safety glasses and gloves when working with diesel fuel. Diesel fuel is highly flammable and can cause skin irritation. Ensure the engine is cool and the vehicle is securely supported before beginning any work.
Required Tools and Materials:
- New Primary Fuel Filter (e.g., Motorcraft FD4604)
- New Secondary Fuel Filter (e.g., Motorcraft FD4609)
- Drain pan
- Filter wrench (strap wrench or specific cap wrench for secondary filter)
- Ratchet and appropriate sockets (e.g., 36mm for secondary filter cap)
- Clean shop rags
- Torque wrench
Procedure for Fuel Filter Replacement:
- Prepare the Vehicle: Park the vehicle on a level surface, engage the parking brake, and place the transmission in park (or neutral for manual). Ensure the engine is off and cool. Disconnect the negative battery cable to prevent accidental starts or electrical shorts.
- Drain the Primary Fuel Filter (Frame-Mounted):
- Locate the frame-mounted primary fuel filter on the driver’s side, typically near the fuel tank.
- Place a drain pan underneath the filter housing.
- Open the yellow drain valve at the bottom of the filter assembly. Allow fuel and water to drain completely.
- Close the drain valve once draining stops.
- Replace the Primary Fuel Filter:
- Using a strap wrench or large oil filter wrench, loosen and remove the primary fuel filter cartridge. Be prepared for additional fuel spillage.
- Clean the filter housing mounting surface.
- Lightly lubricate the new filter’s O-ring with fresh diesel fuel.
- Thread on the new primary fuel filter by hand until the gasket makes contact, then tighten an additional 3/4 to 1 full turn as specified by the filter manufacturer (typically found on the filter itself or in the OEM service manual).
- Drain the Secondary Fuel Filter (Engine-Mounted Fuel Bowl):
- Locate the secondary fuel filter housing (fuel bowl) on top of the engine, typically toward the rear passenger side.
- Place a drain pan underneath the engine.
- Locate the drain plug at the bottom of the fuel bowl. This is often a 1/2-inch square drive or a hex plug.
- Remove the drain plug and allow all fuel to drain from the bowl.
- Reinstall the drain plug and torque to OEM specifications (typically 18-20 ft-lbs). Replace the O-ring on the drain plug if present and necessary.
- Replace the Secondary Fuel Filter:
- Using a 36mm socket, carefully loosen and remove the cap of the secondary fuel filter housing.
- Extract the old filter element from the housing.
- Clean the inside of the fuel bowl and the filter cap thoroughly.
- Install the new secondary fuel filter element into the housing, ensuring it seats properly.
- Replace the O-ring on the filter cap with the new one supplied with the filter. Lightly lubricate the new O-ring with clean diesel fuel.
- Thread the cap back onto the housing by hand, ensuring it doesn’t cross-thread.
- Tighten the cap to the manufacturer’s specified torque (typically 20-22 ft-lbs or 27-30 Nm). Do not overtighten, as this can damage the housing or cap.
- Prime the Fuel System:
- Reconnect the negative battery cable.
- Turn the ignition key to the ON position (don’t start the engine). The electric lift pump will run for approximately 30 seconds to prime the system.
- Turn the key OFF, then ON again. Repeat this cycle 3-4 times to ensure all air is purged from the system. If your vehicle has a manual primer pump (often on the fuel bowl), use it until resistance is felt.
- Check for any fuel leaks around the new filters.
- Start the Engine:
- Start the engine. It may crank longer than usual as residual air is purged.
- Allow the engine to idle smoothly for several minutes. Inspect for leaks again.
- Take a short test drive to confirm proper operation and check for any warning lights.
Recommended Fuel Filter Replacement Interval: Every 15,000 miles or 12 months, whichever comes first, according to Ford’s OEM specifications. More frequent changes are recommended under severe service conditions (e.g., heavy towing, dusty environments, poor fuel quality).
FAQ
What are the symptoms of a failing 6.4 Powerstroke HPFP?
A failing High Pressure Fuel Pump (HPFP) on a 6.4L Power Stroke can manifest with severe symptoms including sudden and significant loss of engine power, engine stalling, hard starting or no start condition, and rough engine operation. You may also notice metallic noises from the engine bay, and the check engine light will likely illuminate, often accompanied by Diagnostic Trouble Codes (DTCs) such as P0087 (Fuel Rail/System Pressure – Too Low) or P0253 (Injection Pump Fuel Metering Control “A” Low). If not addressed promptly, HPFP failure can lead to catastrophic engine damage due to metal contamination of the entire fuel system.
How often should I replace the fuel filters on my 6.4 Powerstroke?
According to Ford’s OEM recommendations, you should replace both the primary (frame-mounted) and secondary (engine-mounted fuel bowl) fuel filters every 15,000 miles or 12 months, whichever comes first. However, for vehicles operating under severe service conditions such as heavy towing, frequent idling, dusty environments, or using fuel of questionable quality, it is highly advisable to shorten this interval to every 7,500 to 10,000 miles to ensure optimal fuel system protection and longevity. Proper fuel filtration is paramount; learn more about filter selection in our Diesel Fuel Filtration Guide.
What is the function of the fuel bowl in a 6.4 Powerstroke?
The fuel bowl, also known as the secondary fuel filter housing, is a critical component on the 6.4L Power Stroke fuel system located on top of the engine. Its primary function is to house the secondary fuel filter, which provides a much finer filtration stage (typically 2 microns) than the primary filter. This ensures that the fuel entering the sensitive High Pressure Fuel Pump (HPFP) and injectors is free of even the smallest contaminants. Additionally, the fuel bowl often integrates the fuel heater, which warms the fuel in cold weather to prevent gelling, and a manual primer pump used to purge air from the system after maintenance.
Can I run my 6.4 Powerstroke on alternative fuels?
No, it is not recommended to run a 6.4L Power Stroke engine on alternative fuels such as biodiesel blends higher than B20 (20% biodiesel, 80% petrodiesel) or waste vegetable oil (WVO). The 6.4L fuel system, particularly the HPFP and piezoelectric injectors, is highly sensitive to fuel quality, viscosity, and lubricity. Using unapproved or higher blend alternative fuels can lead to accelerated wear, component failure, and void your engine warranty. Adhere strictly to manufacturer specifications for diesel fuel to ensure the longevity and proper operation of your sophisticated common rail system. Understanding the Common Rail Diesel (CRD) system is crucial; explore our CRD Technology Deep Dive for more information.
Where is the injection pressure regulator (IPR) located on the 6.4 Powerstroke?
On the 6.4L Power Stroke, the Injection Pressure Regulator (IPR) valve is typically located on the High Pressure Fuel Pump (HPFP) itself, which is situated on the passenger side of the engine, driven off the timing gear train. The IPR valve is a solenoid-controlled valve that the Powertrain Control Module (PCM) uses to precisely regulate the amount of fuel entering the high-pressure side of the HPFP, thereby controlling the fuel pressure within the common rail. If you suspect issues with your exhaust gas recirculation (EGR) system, which can sometimes present similar symptoms, consult our 6.4 Powerstroke EGR System Overview.
Step-by-Step Guide to Understanding the 6.4 Powerstroke Fuel System Diagram: Routing & Repair 2026
Identify – Locate the specific component (e.g., HPFP, fuel bowl, injection pressure regulator) on the 6.4 Powerstroke fuel system diagram.
Locate – Physically pinpoint the corresponding part on the engine or chassis, tracing associated fuel return line and supply hoses.
Reference – Use the diagram to understand fuel flow, component connections, and pressure test points for diagnostic purposes.
Connect/Route – If replacing a component, ensure new parts are connected or routed exactly as shown on the diagram, paying attention to torque specs.
Verify – After any work, check for leaks, proper fuel pressure (using a gauge), and clear any diagnostic trouble codes.
Troubleshoot – If issues persist, re-examine the diagram for overlooked connections, common failure points, or test related sensors like the injection pressure regulator.
