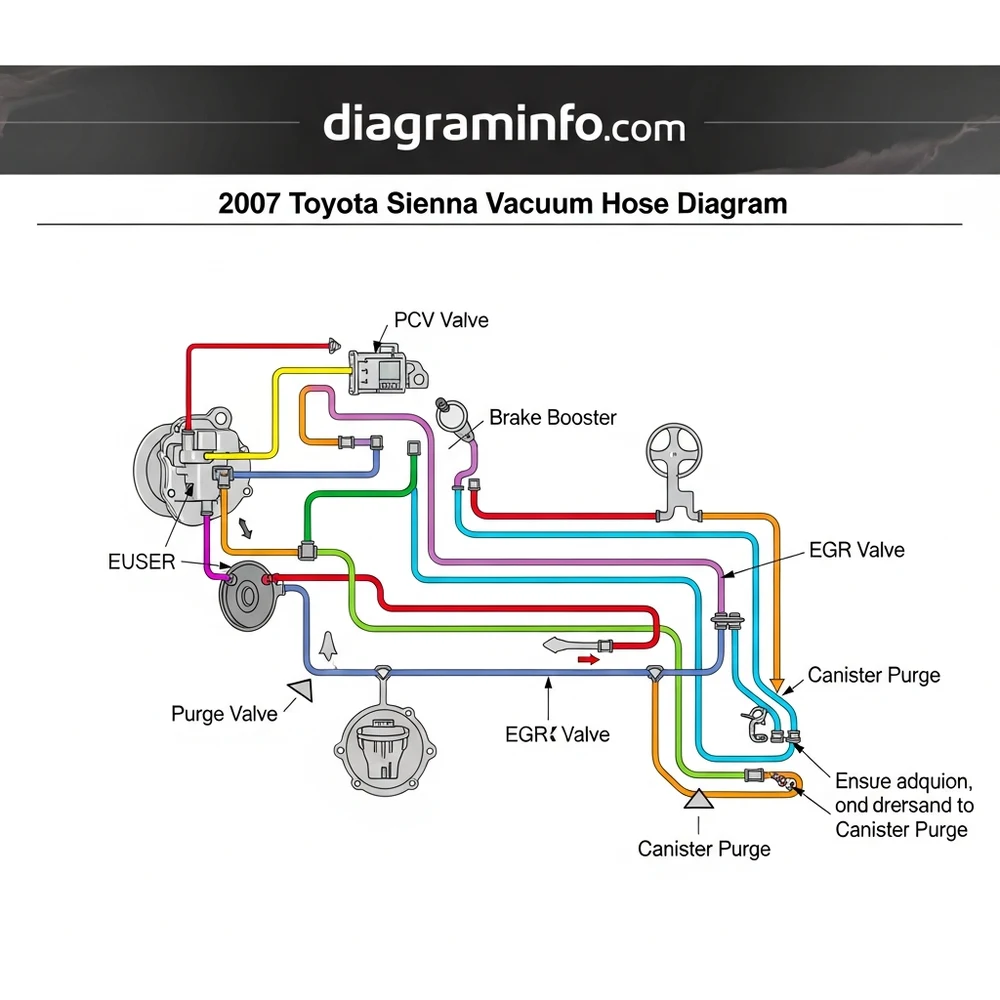

2007 Toyota Sienna Vacuum Hose Diagram: Routing & Repair 2026
The 2007 Toyota Sienna vacuum hose system connects components like the PCV valve, brake booster, EGR valve, and canister purge valve to the intake manifold, ensuring proper engine operation, emissions control, and brake assistance. Leaks affect idle quality, fuel economy, and brake performance, requiring precise diagnosis.
📌 Key Takeaways
- Inspect all vacuum hoses regularly for cracks, stiffness, or disconnections, especially near heat sources on your 2007 Sienna.
- A common failure point is the PCV valve hose, often becoming brittle or collapsing due to oil vapor exposure and age.
- Engine performance issues like rough idle, misfires, or DTCs (P0171/P0174) frequently indicate vacuum leaks in the system.
- Use a smoke machine or an unlit propane torch for accurate leak diagnosis, avoiding flammable sprays on a hot engine.
- While DIY diagnosis is possible, complex EVAP system or brake booster vacuum issues might require professional diagnostic tools for precise repair.
The vacuum system in your 2007 Toyota Sienna, whether equipped with the 3.5L 2GR-FE V6 or the less common 3.3L 3MZ-FE V6, is a sophisticated network critical for numerous engine functions, emissions control, and driver safety. Far from being a simple collection of hoses, this intricate system utilizes the negative pressure generated by the engine’s intake manifold vacuum to operate components ranging from the brake booster to various emission control valves, such as the EVAP purge valve and EGR vacuum solenoid. Understanding the complex interplay of engine sensors and the vacuum network is crucial for accurate diagnosis and repair, ensuring optimal engine performance, fuel efficiency, and compliance with emission standards. This comprehensive guide will illuminate the 2007 Toyota Sienna vacuum hose diagram, providing the technical insights required for professional-level maintenance.
While many vacuum system principles remain consistent across model years, specific hose routings, component locations, and even hose material specifications can vary. Always consult the OEM factory service manual pertinent to your vehicle’s specific production date and engine code. For the 2007 Sienna, particular attention should be paid to the PCV valve system and the brake booster vacuum line, as these are critical for both engine health and safety.
VACUUM LINE COLOR & ROUTING TABLE
The following table provides a generalized guide to common vacuum line routings and their functions within the 2007 Toyota Sienna’s system. Note that actual line colors may vary; the primary identifier should always be the physical routing and the connected components as depicted in the official diagram above. The integrity of these lines, along with associated vacuum check valves and vacuum ports, is paramount for system functionality.
| Line Identifier / Color (Illustrative) | Routing From → To | Function / Associated Component |
|---|---|---|
| Main Brake Booster Line (Black, larger diameter) | Intake Manifold Vacuum Port → Brake Booster | Provides vacuum assistance for power brakes. Often includes an in-line check valve. |
| PCV Valve Line (Black/Grey, medium diameter) | PCV Valve → Intake Manifold Vacuum Port (often upper) | Routes crankcase vapors back into the intake for combustion, preventing pressure buildup. |
| EVAP Purge Line (Green/Blue Stripe, smaller diameter) | Charcoal Canister (Canister Purge) → Purge Valve Solenoid → Intake Manifold | Transfers fuel vapors from the EVAP canister to the engine for burning, controlled by the purge valve. |
| EGR Valve Line (Red/Yellow Stripe, smaller diameter) | EGR Vacuum Solenoid → EGR Valve | Controls the opening and closing of the EGR valve, recirculating exhaust gases to reduce NOx emissions. |
| Fuel Pressure Regulator Line (Black, small diameter) | Fuel Pressure Regulator → Intake Manifold Vacuum Port | Modulates fuel pressure based on engine load, ensuring proper fuel delivery. (May be electronically controlled on some 2007 Sienna variants.) |
| MAP Sensor Reference Line (Clear/White, small diameter) | MAP Sensor → Intake Manifold Vacuum Port | Provides a direct vacuum reference to the Manifold Absolute Pressure (MAP) sensor for engine management. |
Vacuum hose material for the 2007 Toyota Sienna is typically reinforced rubber or silicone, designed to withstand engine heat and chemical exposure. Manufacturers often specify specific hose diameters (e.g., 3.5mm, 6mm, 10mm ID) for different circuits. Using incorrect hose material or diameter can lead to premature failure or unreliable vacuum delivery. Always use OEM-equivalent or higher-grade replacements.
COMMON VACUUM LEAK SYMPTOMS
📤 Share
💾 Download
A compromised vacuum system in your 2007 Toyota Sienna can manifest in a variety of symptoms, ranging from subtle drivability issues to severe engine malfunction and illuminated Malfunction Indicator Lamps (MIL). Identifying these symptoms is the first step in diagnosing a vacuum leak.
A primary symptom is a rough or erratic idle. The engine management system relies on precise intake manifold vacuum readings to calculate air-fuel mixture. A leak introduces unmetered air, leaning out the mixture and causing the engine to struggle, especially at idle. This can often be accompanied by engine misfires or a general lack of smoothness. You might also notice a distinct hissing or whistling sound coming from the engine bay, indicative of air being drawn into the system through a breach.
Performance degradation is another common indicator. This includes reduced engine power, particularly during acceleration, and poor fuel economy. The engine’s struggle to maintain optimal combustion due to the lean condition directly impacts efficiency. Furthermore, issues with emissions components like the EGR vacuum system or canister purge valve can lead to failing emissions tests.
Safety-critical symptoms include a hard brake pedal requiring excessive effort to stop the vehicle. This points directly to a leak in the brake booster vacuum line or the booster unit itself. The check valve in the brake booster line is a common failure point that can cause this specific symptom.
Finally, the MIL (Check Engine Light) will often illuminate, accompanied by specific Diagnostic Trouble Codes (DTCs). Common codes related to vacuum leaks include P0171 and P0174 (System Too Lean Bank 1/2), P030X (Misfire Detected), or various EVAP system codes (e.g., P044X series) if the purge valve or associated lines are leaking. Proper diagnosis of these codes requires a systematic approach to pinpoint the exact source of the leak within the intricate vacuum network of your 2007 Sienna.
Never use highly flammable liquids like starting fluid or gasoline to test for vacuum leaks. This poses a significant fire hazard. Use approved methods such as a smoke machine, propane, or non-flammable carburetor cleaner, always with proper ventilation and fire suppression readily available.
DIAGNOSIS & REPAIR STEPS
📤 Share
💾 Download
Diagnosing and repairing vacuum leaks on a 2007 Toyota Sienna requires a systematic approach, leveraging knowledge of the vacuum hose diagram and appropriate tools. Follow these steps for effective troubleshooting:
- Initial Visual Inspection: Begin with a thorough visual inspection of all accessible vacuum lines, connectors, and vacuum ports. Pay close attention to areas near heat sources, sharp edges, or moving parts where hoses might chafe or degrade. Look for cracked, collapsed, disconnected, or melted hoses, especially around the intake manifold vacuum connections, PCV valve, brake booster vacuum line, and the EGR vacuum lines. Confirm all clamps are secure.
- Listen for Audible Leaks: With the engine running at idle (and safely warmed up), listen carefully for any hissing, whistling, or sucking sounds. These noises are often indicators of a significant vacuum leak. Use a mechanic’s stethoscope or a length of hose held to your ear to localize the sound.
- Vacuum Gauge Test: Connect a vacuum gauge to a reliable intake manifold vacuum port (ensure it’s directly from the manifold, not a ported vacuum source). Start the engine and observe the gauge reading at idle. A healthy 2007 Sienna engine should typically show a steady reading of 17-22 inches of mercury (inHg) or approximately 57-75 kPa. A low, unsteady, or rapidly fluctuating reading is a strong indicator of a vacuum leak. Perform a snap throttle test: rapidly open and close the throttle. The gauge should drop sharply to near zero and then quickly recover to a reading higher than idle before settling back to the normal idle vacuum.
- Smoke Machine Test (Recommended Method): This is the most effective and safest method for locating subtle or intermittent leaks. Introduce smoke into the vacuum system, typically through a vacuum port on the intake manifold or the EVAP purge valve line (with the engine off). The smoke will visibly escape from any leak point, making it easy to identify cracked hoses, faulty gaskets (e.g., intake manifold gasket), or compromised components like the canister purge valve.
- Propane or Non-Flammable Carburetor Cleaner Test (Caution Required): If a smoke machine is unavailable, carefully spray short bursts of propane (from an unlit torch) or non-flammable carburetor cleaner around suspected leak areas while the engine is idling. If the engine RPM increases or smooths out momentarily, you’ve likely found a leak as the engine draws in the combustible material. This method requires extreme caution and good ventilation.
- Component-Specific Testing:
- PCV Valve: Remove the PCV valve from its grommet. If you shake it and don’t hear a rattle, it’s likely stuck. Test for vacuum at the hose leading to it with the engine running.
- Brake Booster Check Valve: Disconnect the brake booster vacuum line from the booster. With the engine off, apply a vacuum pump to the booster port. It should hold vacuum. If not, the booster or its internal check valve is faulty. Test the external check valve by pulling vacuum on one side and ensuring it holds on the other.
- Purge Valve: The purge valve should be closed when the engine is off. Apply a vacuum pump to the port connected to the intake manifold; it should hold vacuum. If it doesn’t, the valve is stuck open and leaking. Its electrical operation can also be tested using a scan tool to command it open and closed.
- EGR Valve: If vacuum-controlled, apply vacuum directly to the EGR valve’s vacuum diaphragm (engine off). It should hold vacuum and the valve stem should move. Leaks here are less common than in the associated vacuum solenoid.
- Repair and Verification: Once identified, replace damaged hoses with OEM-quality or equivalent bulk hose of the correct internal diameter. Secure connections with appropriate clamps. Replace faulty components such as the PCV valve, purge valve, or check valve as needed. After repairs, clear any stored DTCs and perform another vacuum gauge test or smoke test to confirm the leak has been eliminated. Road test the vehicle to ensure proper operation and absence of symptoms.
FAQ
How important is the vacuum diagram for troubleshooting a 2007 Toyota Sienna?
The vacuum diagram for your 2007 Toyota Sienna is paramount for effective troubleshooting. It serves as the authoritative map of the entire vacuum network, identifying every hose, valve, and vacuum port. Without it, accurately tracing lines to diagnose issues related to the PCV valve, brake booster vacuum, or EGR vacuum system becomes a process of guesswork, leading to wasted time and potentially incorrect repairs. It’s the first reference point for any vacuum-related symptom or diagnostic trouble code.
What common components in the 2007 Sienna vacuum system are prone to failure?
Several components in the 2007 Sienna’s vacuum system are known failure points. Flexible rubber or plastic vacuum hoses are susceptible to cracking, hardening, and collapsing over time due to heat and age. The PCV valve can clog or stick open/closed, affecting crankcase ventilation. The brake booster check valve is crucial and can fail, leading to a hard brake pedal. The purge valve (part of the canister purge system) is another common item that can stick open, causing lean codes or EVAP system faults. Lastly, the intake manifold gasket can degrade, creating a significant intake manifold vacuum leak.
Can a vacuum leak significantly impact fuel economy in my 2007 Sienna?
Yes, a vacuum leak can significantly impact the fuel economy of your 2007 Toyota Sienna. When unmetered air enters the engine through a leak, the oxygen sensors detect a lean air-fuel mixture. The engine control unit (ECU) then attempts to compensate by adding more fuel (running “richer”) to achieve the stoichometric ratio. This constant enrichment directly translates to increased fuel consumption and diminished efficiency, often accompanied by symptoms like rough idle and reduced power.
What vacuum pressure should my 2007 Sienna engine read at idle?
For a healthy 2007 Toyota Sienna engine (typically the 3.5L 2GR-FE V6) at normal operating temperature and idle, the intake manifold vacuum reading should generally be between 17 and 22 inches of mercury (inHg) or approximately 57-75 kPa. A lower, fluctuating, or erratic reading usually indicates a vacuum leak, incorrect engine timing, or other underlying engine mechanical issues. A steady needle is as important as the absolute value.
How does the EVAP purge valve function in the 2007 Sienna’s vacuum system?
The EVAP purge valve in your 2007 Sienna is a critical component of the evaporative emissions control system. Its primary function is to control the flow of fuel vapors from the charcoal canister (where they are stored) into the engine’s intake manifold vacuum. The engine’s ECU modulates the purge valve, opening it periodically during specific driving conditions (e.g., cruising, not at idle or wide-open throttle) to draw vapors into the engine for combustion. This prevents harmful fuel vapors from escaping into the atmosphere. A faulty purge valve, particularly one stuck open, can cause a persistent vacuum leak and trigger EVAP-related DTCs.
Step-by-Step Guide to Understanding the 2007 Toyota Sienna Vacuum Hose Diagram: Routing & Repair 2026
Identify – Locate the specific vacuum system components (PCV, EGR, brake booster, canister purge) on your 2007 Sienna engine.
Locate – Find the corresponding vacuum hose connections on the intake manifold, engine accessories, and emission components.
Reference – Consult the 2007 Toyota Sienna vacuum hose diagram to understand the correct routing paths for each line and connection points.
Connect/Route – Carefully connect or re-route hoses according to the diagram, ensuring snug, leak-free connections to prevent vacuum loss.
Verify – Start the engine and listen for any abnormal hissing sounds; perform a thorough visual inspection for any disconnected or collapsed hoses.
Troubleshoot – If issues persist, use a smoke test or propane method to pinpoint exact leak locations, then replace compromised sections or components.
Frequently Asked Questions
What are the symptoms of a vacuum leak in 2007 toyota sienna vacuum hose diagram?
Common symptoms of a 2007 Toyota Sienna vacuum leak include a rough idle, engine hesitation or stalling, increased fuel consumption, a hissing sound from the engine bay, and illumination of the ‘Check Engine’ light with codes like P0171 or P0174 (lean condition). Brake booster performance may also be reduced.
How do I find a vacuum leak in 2007 toyota sienna vacuum hose diagram?
To find a vacuum leak in your 2007 Toyota Sienna, visually inspect all vacuum hoses for cracks. A smoke machine is highly effective, introducing smoke into the intake to reveal leaks. Alternatively, carefully spray unlit propane or a non-flammable carb cleaner around suspected areas, listening for engine RPM changes.
What color are the vacuum lines on 2007 toyota sienna vacuum hose diagram?
While a universal color code for all 2007 Toyota Sienna vacuum lines isn’t standard, most factory hoses are black or dark grey. Some systems, like the EVAP or specific emissions hoses, might have different colored stripes or be made of a slightly different material to distinguish them. Always refer to a specific diagram for routing.
What does the 2007 toyota sienna vacuum hose diagram EVAP system do?
The 2007 Toyota Sienna’s EVAP (Evaporative Emission Control) system prevents fuel vapors from escaping into the atmosphere. It uses a series of vacuum hoses to direct vapors from the fuel tank canister to the engine for combustion, often managed by the purge valve. A malfunctioning EVAP system can cause check engine lights and emissions test failures.
How do I replace vacuum lines on 2007 toyota sienna vacuum hose diagram?
To replace 2007 Toyota Sienna vacuum lines, first, obtain a diagram for correct routing. Disconnect the old hose, noting its path and connections. Cut new vacuum hose to the precise length of the old one, ensuring a snug fit over barbs. Use high-quality, automotive-grade hose to prevent future leaks, especially for the PCV valve and brake booster vacuum.
What tools do I need to diagnose 2007 toyota sienna vacuum hose diagram vacuum issues?
Diagnosing 2007 Toyota Sienna vacuum issues typically requires basic hand tools for access, a good flashlight, and optionally a smoke machine for effective leak detection. An OBD-II scanner is crucial for reading diagnostic trouble codes (DTCs) like P0171. A vacuum gauge can also test individual components like the brake booster or EGR valve operation.
