120V Reversing Single Phase Motor Wiring Diagram: 2026 Guide
To wire a reversing single phase AC motor, swap the start winding leads (typically T5 and T8) while keeping main run winding leads (T1 and T4) fixed. Connect the black hot wire to L1 and white neutral wire to L2/N. Ensure the green ground wire grounds the motor frame to prevent electrical shock.
📌 Key Takeaways
- Reversing motor direction requires swapping start winding terminals (T5 red and T8 black/violet) relative to run winding terminals (T1 and T4).
- Standard single-phase 120V hookups require a minimum 14 AWG copper wire rated for 15-amp branch circuits.
- The green or bare ground wire must bolt directly to the motor frame grounding terminal for surge protection and shock prevention.
- Thermal overload switch tripping is the primary cause of sudden motor shutdown during directional switching.
- Always wait for the motor rotor to come to a complete stop before flipping a manual drum switch to reverse direction.
Reversing the rotational direction of a single-phase AC induction motor requires modifying the phase relationship between the main (run) winding and the auxiliary (start) winding. Unlike three-phase motors, where swapping any two incoming line leads reverses shaft rotation, single-phase motors rely on altering current flow strictly through the start winding relative to the main winding. Whether you are wiring a manual drum switch for a workshop machine tool, integrating dual-pole magnetic contactors, or replacing a burnt-out motor, following a precise reversing single phase motor wiring diagram ensures maximum starting torque, prevents insulation failure, and guarantees compliance with electrical safety codes across 120V and 240V configurations.
Reversing Single Phase Motor Wiring Diagram Color Codes and Pin Assignments
According to NEMA MG-1 standards, standard single-phase motors utilize standard numerical designations (T1 through T8) alongside standardized wire color codes. The table below details terminal lead assignments, typical wire colors, circuit functions, and operational parameters required when interpreting a reversing single phase motor wiring diagram.
Recommended Best Deal Products
| Terminal ID | Standard Color Code | Circuit Function | Pin / Terminal Block Link | Voltage & Line Designation |
|---|---|---|---|---|
| T1 | Blue | Main Winding 1 (Primary Lead) | Terminal Block Pin 1 | Hot Wire (L1) / 120V or 240V |
| T2 | White | Main Winding 1 (Secondary Lead) | Terminal Block Pin 2 | Series Tie (240V) / Line 2 (120V) |
| T3 | Orange | Main Winding 2 (Primary Lead) | Terminal Block Pin 3 | Series Tie (240V) / L1 (120V) |
| T4 | Yellow | Main Winding 2 (Secondary Lead) | Terminal Block Pin 4 | Neutral Wire (120V) / L2 (240V) |
| T5 | Black | Auxiliary (Start) Winding Lead 1 | Reversing Switch Pole A | Reversed for CW/CCW Control |
| T8 | Red / Purple | Auxiliary (Start) Winding Lead 2 | Reversing Switch Pole B | Reversed for CW/CCW Control |
| PE / GND | Green / Bare Copper | Equipment Safety Ground Wire | Chassis Grounding Stud | Bonded Earth Ground |
When working with legacy or non-standard equipment, never rely solely on wire color code choices. Always verify coil connections using a calibrated digital multimeter. On standard single-phase motors, the main run winding exhibits a lower resistance value compared to the start winding because the auxiliary circuit utilizes finer copper wire combined with a start capacitor and a mechanical centrifugal switch.
Stator Winding Dynamics and Terminal Block Layouts
Single-phase induction motors are not self-starting without an auxiliary circuit. A standard split-phase, Capacitor-Start Induction-Run (CSIR), or Capacitor-Start Capacitor-Run (CSCR) motor contains two isolated stator winding sets: the main winding and the start winding. The start winding incorporates a series-connected capacitor to create a electrical phase shift (roughly 90 degrees), generating a rotating magnetic field to initiate rotor movement.
Once the shaft achieves roughly 75% of rated synchronous speed, the internal centrifugal switch opens, dropping the start winding out of the active circuit. Because shaft rotation direction is determined exclusively by the vector direction of the initial rotating magnetic field, reversing current flow through terminals T5 and T8 relative to T1 and T4 reverses shaft rotation.
NEMA terminal blocks require lead connection screws to be torqued to 18–22 in-lbs (2.0–2.5 Nm). Loose connections on T5/T8 auxiliary leads induce electrical arcing, which can quickly pit centrifugal switch contacts or ruin start capacitors during direction reversal.
Capacitor-Start and Dual-Voltage Terminal Block Configurations
Dual-voltage single-phase motors (120V/240V) feature two distinct main winding coils (T1-T2 and T3-T4). For 120V operation, these main coils connect in parallel across line voltage. For 240V operation, they connect in series. Regardless of the supply voltage setup, the start winding circuit (T5-T8) remains configured for its internal rated voltage (typically 120V) and is wired across one leg of the main winding or connected directly across line terminals through internal taps. When implementing a reversing single phase motor wiring diagram, swapping T5 and T8 switches the magnetic polarity of the auxiliary winding relative to the main field, reversing rotation from Counter-Clockwise (CCW) to Clockwise (CW).

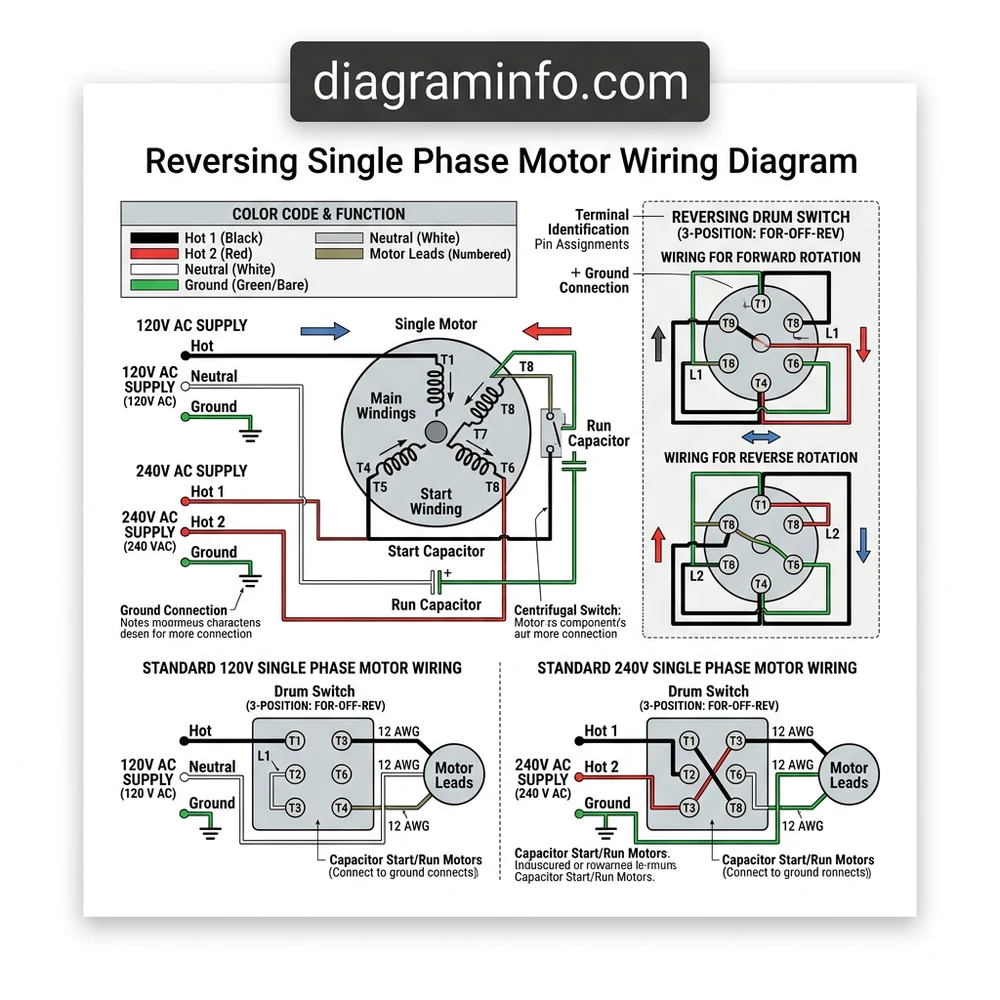

Step-by-Step Guide to the Reversing Single Phase Motor Wiring Diagram
To successfully wire a reversing single-phase motor using either a drum switch or a dual-contactor control scheme, follow this structured installation sequence. Ensure all line power feeds pass through a dedicated lock-out disconnect before touching terminal block assemblies.
Wiring a Manual Reversing Drum Switch to NEMA Lead Terminals
A standard double-pole double-throw (DPDT) or drum switch changes motor direction by physically swapping the connections of leads T5 and T8 while keeping line voltage across T1 and T4 constant.
- Isolate and Verify Power: Disconnect incoming AC line power. Use a voltage tester to verify 0V AC across the incoming hot wire and neutral wire (or L1/L2 for 240V circuits).
- Expose Terminal Junctions: Remove the motor terminal box cover plate to access leads T1 through T8. If working with external controls, cross-check your connections against established magnetic starter wiring schematics.
- Configure Main Winding Leads: Connect line lead L1 (hot wire) directly to motor terminal T1. Connect line lead L2 or neutral wire directly to terminal T4 (for 120V high-voltage parallel setups, group T1 with T3 and T2 with T4 as indicated on the motor nameplate).
- Route Auxiliary Leads to the Drum Switch: Run dedicated lead conductors from motor terminals T5 and T8 to the internal switching contacts of the drum switch. Connect T5 to drum terminal 1 and T8 to drum terminal 3.
- Establish Switch Jumpers: Wire the drum switch internal jumper bars so that in the “FORWARD” position, terminal 1 links to incoming L1, and terminal 3 links to L2/Neutral. In the “REVERSE” position, the internal contact mechanism crosses these connections, landing terminal 1 on L2/Neutral and terminal 3 on L1.
- Bond Equipment Ground Wire: Secure the bare or green ground wire directly to the internal chassis ground stud on both the motor housing and the drum switch enclosure. Ensure ground continuity reads below 0.1 ohms using a low-resistance ohmmeter.
Never attempt to reverse a single-phase motor while the shaft is spinning at full speed. Because the centrifugal switch remains open while running, switching T5 and T8 while energized will not alter rotation; the motor will continue running in its original direction. The shaft must decelerate below 75% RPM to re-engage the centrifugal switch before applying reverse power.
Integrating Reversing Magnetic Contactors and Overload Relays
For automated machinery, dual magnetic contactors (Forward and Reverse) managed through push-buttons replace manual drum switches. The forward contactor feeds L1 to T1/T5 and L2/Neutral to T4/T8. The reverse contactor feeds L1 to T1/T8 and L2/Neutral to T4/T5. An electromechanical interlock must be installed between the two contactors to prevent simultaneous coil closure, which would create a phase-to-phase short circuit across the line leads. Match your overload protection using standardized thermal overload relay sizing guidelines based on motor Nameplate Full Load Amps (FLA).
Selecting Wire Gauge, Voltage Taps, and Ground Wire Bonding
Sizing electrical conductors for reversing single-phase motor circuits requires evaluating motor horsepower, operating voltage, distance from the panel board, and National Electrical Code (NEC) continuous duty requirements. According to NEC Article 430, branch circuit conductors supplying a single motor must have an ampacity rating of at least 125% of the motor’s full-load current (FLA) rating.
| Motor Horsepower (HP) | Voltage Configuration | Typical FLA Rating | Minimum Wire Gauge (Copper AWG) | Max Circuit Breaker Size |
|---|---|---|---|---|
| 0.5 HP | 120V AC / 240V AC | 9.8 A / 4.9 A | 14 AWG CU | 20 A / 15 A |
| 1.0 HP | 120V AC / 240V AC | 16.0 A / 8.0 A | 12 AWG CU / 14 AWG CU | 30 A / 15 A |
| 1.5 HP | 120V AC / 240V AC | 20.0 A / 10.0 A | 10 AWG CU / 14 AWG CU | 35 A / 20 A |
| 2.0 HP | 120V AC / 240V AC | 24.0 A / 12.0 A | 10 AWG CU / 12 AWG CU | 40 A / 25 A |
| 3.0 HP | 240V AC Only | 17.0 A | 10 AWG CU | 35 A |
Excessive voltage drop during startup reduces motor torque proportional to the square of the voltage. For run distances exceeding 50 feet from the distribution panel, step up one conductor size (e.g., use 10 AWG instead of 12 AWG) to ensure voltage drop stays under 3% under peak starting current.
Failure to properly bond the green ground wire to the main enclosure grounding terminal block creates an electrocution hazard. Never use the neutral wire as an equipment grounding point. Always maintain separate ground and neutral pathways past the main service entrance.
Common Reversing Single Phase Motor Wiring Diagram Diagnostic Errors
When implementing or troubleshooting a reversing single phase motor wiring diagram, electrical system faults often stem from simple pin assignment errors, shorted capacitors, or incorrect switch contact configurations. Review these primary symptoms and corrective procedures:
Motor Hums Loudly, Draws High Current, and Fails to Turn
This condition typically points to an open auxiliary start winding circuit or a failed capacitor. Inspect terminal T5 and T8 connections at the terminal block and drum switch. Use an ohmmeter to measure resistance across T5 and T8. A reading of infinity (∞) indicates an open start winding or an open centrifugal switch. If resistance is normal (typically 2 to 8 ohms), test the start capacitor using a capacitance meter. Replace the capacitor if capacitance drops more than 10% below its nominal microfarad (μF) rating.
Motor Operates in Only One Direction Regardless of Switch Position
If toggling the reversing switch or contactor fails to reverse motor direction, the switch is likely failing to swap leads T5 and T8 relative to the line input. Disconnect power and perform a continuity test across the reversing switch terminals in both Forward and Reverse positions. If continuity readings do not show T5 and T8 swapping line connections, replace the switch mechanism. Alternatively, ensure the motor has come to a complete stop before switching directions; reversing controls will not change shaft rotation if activated while the centrifugal switch remains disengaged.
Immediate Circuit Breaker Tripping Upon Startup
An immediate trip of the branch circuit protection indicates a direct line-to-line or line-to-ground short circuit. This usually happens when main winding leads (T2, T3) or auxiliary leads (T5, T8) are shorted to the grounded motor enclosure or incorrectly tied across both hot wire and neutral wire terminals on the terminal block simultaneously. Verify all terminal block jumper bars match the wiring diagram for your specific operating voltage. Ensure lead connections are insulated using heat-shrink tubing or rated wire nuts.
Frequently Asked Questions on Reversing Single Phase Motor Circuits
Can any single-phase AC electric motor be made reversible?
No. A single-phase motor can only be reversed if both leads of the auxiliary start winding (typically labeled T5 and T8) are accessible inside the wiring terminal box. If a motor has internally connected start windings (commonly seen on single-voltage, 2-wire or 3-wire utility motors), current direction through the start coil cannot be isolated or swapped. Look at the motor nameplate: if it lists terminals T1 through T8 or explicitly shows a reversing diagram, it can be reversed.
What happens if you reverse incoming line leads L1 and Neutral on a single-phase motor?
Swapping incoming L1 (hot wire) and Neutral (or L1 and L2 on 240V systems) will not change motor rotation. Because alternating current reverses polarity 60 times per second (60 Hz), swapping the main power feeds changes the polarity of both the main winding and start winding simultaneously, leaving their relative phase relationship unchanged. Rotation can only be reversed by swapping the relative current direction of the start winding (T5/T8) with respect to the main winding (T1/T4).
How can you identify motor lead wires if the terminal labels or color codes are missing?
If terminal markings are missing, use a digital multimeter to measure resistance across all disconnected lead pairs. The main winding leads (T1-T2 and T3-T4) will show the lowest resistance (typically 0.5 to 3.0 ohms). The start winding circuit (T5-T8) will show noticeably higher resistance due to finer wire gauges and internal series components. If the motor contains an internal centrifugal switch and start capacitor, you can identify the T5-T8 pair by checking for continuity while manually operating the centrifugal mechanism at the end bell assembly.
What type of reversing switch is recommended for heavy workshop machinery?
A heavy-duty drum switch with a maintained Forward-Off-Reverse position detent (NEMA Type 1 or Type 4 enclosure) is recommended for manual machinery such as metal lathes, milling machines, and heavy hoists. For automatic or remote operation, use a dual-contactor magnetic reversing starter equipped with both mechanical and electrical interlocks. This setup prevents accidental engagement of opposing contactors and protects against voltage phase shorts. When wiring complex industrial machinery, cross-reference your layout with broader industrial guidance for three-phase motor control circuits to better understand interlock integration.
