2010 Mazda 3 Fuse Box Diagram: 2026 Repair Guide
The 2010 Mazda 3 features two fuse boxes: the main engine compartment box near the battery housing high-current fuses (F1-F58) and ECU relays, and the passenger compartment box behind the glovebox containing interior circuit fuses (1-36). Refer to panel covers for amp ratings from 7.5A (brown) to 40A (green).
📌 Key Takeaways
- Engine compartment panel contains high-current MAXI fuses (30A-60A) protecting the ECU, ABS, and starter circuit.
- Passenger junction box (PJB) behind glovebox handles lower amperage 7.5A-15A mini fuses for OBD-II, audio, and lighting.
- Always disconnect the negative battery terminal before replacing relays; torque battery cable clamps to 35-45 in-lbs upon reconnection.
- Corrosion on the PJB connectors often triggers a check engine light or false diagnostic code without blowing a fuse.
- DIY replacement is straightforward for standard blade fuses, but burnt circuit boards or ECU relay failures require professional diagnosis.
Proper electrical troubleshooting on second-generation BL-chassis vehicles requires accurate circuit identification and precise terminal mapping. The power distribution infrastructure of the 2010 Mazda 3—equipped with either the 2.0L MZR or 2.5L MZR I4 engine—relies on a dual-junction architecture split between the Engine Junction Box (EJB) in the engine bay and the Passenger Junction Box (PJB) inside the cabin. Utilizing an authentic 2010 mazda 3 fuse box diagram enables technicians to trace voltage feeds to the Engine Control Unit (ECU), systematically diagnose sensor circuits, and isolate high-current supply faults without inducing secondary control module damage.

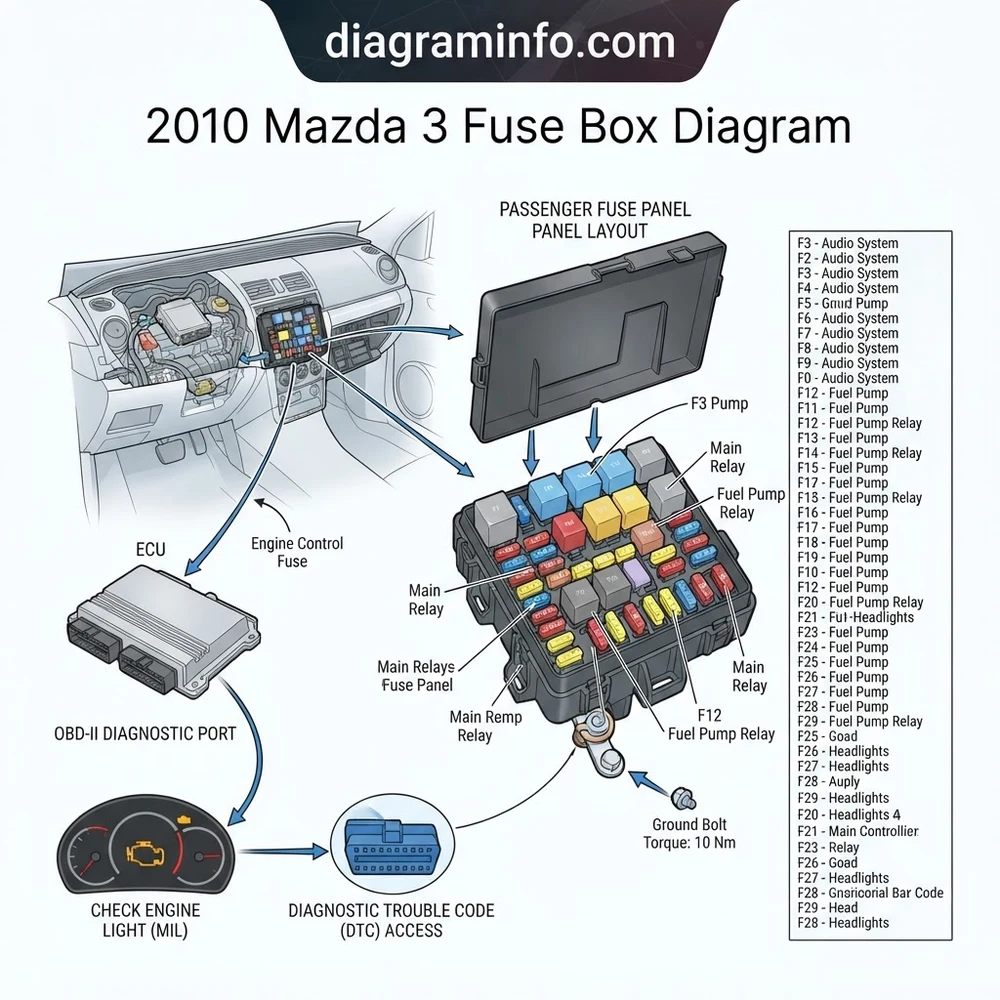

Locating Terminals in the 2010 Mazda 3 Fuse Box Diagram
The 2010 Mazda 3 electrical network isolates high-amperage, harsh-environment powertrain circuits from low-amperage cabin comfort components. The underhood Engine Junction Box (EJB) sits on the driver-side fender apron adjacent to the battery box and air cleaner assembly. This unit houses high-current block fuses (M-CASE and JCASE types), standard mini-fuses, and ISO-style switching relays. Conversely, the interior Passenger Junction Box (PJB) is situated on the lower passenger side, mounted beneath the instrument panel behind the glove box assembly.
Recommended Best Deal Products
Understanding the internal routing of the 2010 mazda 3 fuse box diagram requires breaking down the primary junction boxes into their respective circuit groups. Below are the definitive terminal mappings and circuit allocations compiled according to OEM factory service specifications.
Underhood Engine Junction Box (EJB) Circuit Allocations
The engine compartment fuse block distributes battery power to high-load inductive circuits, including the starter motor, radiator fan control module, hydraulic power steering pump, and primary powertrain electronics. Trace these circuits using the technical specification table below:
| Fuse / Relay ID | Rating (Amps) | Protected Circuit / System | Feeder Wire Wire Color / Wire Gauge |
|---|---|---|---|
| MAIN 150A | 150A Block | Primary Battery Supply / Alternator B+ Line | Black (0 AWG) |
| F1 (EGI MAIN) | 40A JCASE | ECU Main Relay Supply, Fuel Injection Power | Red/Yellow (12 AWG) |
| F2 (ABS/DSC) | 50A JCASE | ABS/Dynamic Stability Control Pump Motor | Red/White (10 AWG) |
| F6 (FAN) | 40A JCASE | Engine Cooling Fan Control Module / Coolant Flow System | Blue/Black (10 AWG) |
| F24 (ENG INJ) | 15A Mini | Ignition Coils, Timing Chain VVT Solenoid, Injectors | Black/Yellow (16 AWG) |
| F28 (ENG CTRL) | 10A Mini | PCM System Sensors, Oil Pressure Switch Logic Input | White/Blue (18 AWG) |
| F38 (A/C) | 10A Mini | A/C Compressor Magnetic Clutch Relay | Violet/White (18 AWG) |
Passenger Junction Box (PJB) Circuit Allocations
The interior compartment block manages driver interfaces, lighting, comfort control electronics, and diagnostic interfaces. Complete pinouts and line feeds can be cross-referenced with our Mazda 3 Body Control Module Wiring & Pinout Guide.
| Fuse ID | Rating (Amps) | Circuit Function | Terminal Feed Type |
|---|---|---|---|
| F43 (OBD) | 15A Mini | OBD-II Data Link Connector (Pin 16), DLC Power | Constant Battery B+ |
| F44 (ROOM) | 15A Mini | Overhead Console, Interior Illumination, Memory ECU | Constant Battery B+ |
| F51 (CIGAR) | 15A Mini | Front Accessory Power Outlet | Switched Ignition (ACC) |
| F60 (R_WIPER) | 15A Mini | Rear Window Wiper Motor (Hatchback Models) | Switched Ignition (ON) |
When replacing main stud-mounted fuses within the underhood block, strictly observe torque parameters. Fasteners securing the 150A MAIN fuse and alternator feed cable to the junction terminal must be tightened to an OEM torque spec of 8.8–10.7 N·m (78–95 in-lb). Insufficient torque induces high terminal resistance, voltage drops, and thermal degradation of the junction block casing.
Common Symptoms, Diagnostic Codes, and ECU Power Failures
Electrical anomalies in the 2010 Mazda 3 typically stem from terminal fretting, ground bus degradation, or opened circuit protection elements triggered by component short-circuits. System failures manifest through specific drivability symptoms, total loss of module communications, or active powertrain fault flags.
When an electrical short or voltage fluctuation occurs on protected sensor circuits, the Powertrain Control Module logs an active diagnostic code and illuminates the check engine light on the instrument cluster. Diagnostic procedures must begin at the junction block level by referencing the schematic layout of the 2010 mazda 3 fuse box diagram.
Engine Control Unit & Sensor Power Circuit Faults
A degraded or blown Fuse 28 (10A ENG CTRL) or Fuse 24 (15A ENG INJ) in the engine bay directly starves the ECU, variable valve timing (VVT) actuators, and ignition coils of operating voltage. This condition prevents complete engine ignition or causes violent misfires under engine load. Technicians will observe an immediate illuminated check engine light accompanied by specific OBD-II diagnostic codes during scan tool interrogation:
- P0606 (ECU / PCM Processor Fault): Often triggered when system supply voltage to the engine control unit drops below 9.0V DC during crank phase due to pitted contacts in the EGI MAIN relay.
- P0011 / P0012 (Variable Camshaft Timing Timing Chain Control Circuit): Occurs if voltage to the oil control valve (OCV) solenoid on the variable timing chain assembly is interrupted by a blown 15A ENG INJ fuse or high-resistance terminal post within the junction box.
- P0521 / P0522 (Engine Oil Pressure Switch Switch/Sensor Circuit Low Input): Caused by power interruptions or high signal wire resistance originating at the sensor feed bus in the EJB block, leading to false low oil pressure warnings on the cluster.
Cross-check active fault codes with our OBD-II Diagnostic Code Index for Mazda Powertrain Faults to verify secondary ground path specs and freeze-frame sensor logs.
Do not jump-start a 2010 Mazda 3 with reversed polarity cables. Reverse bias instantly destroys the high-amperage 150A MAIN fuse and internally bridges internal zener diodes inside the ECU. Always disconnect the negative battery cable before removing or re-installing main terminal bus bars inside the underhood fuse box.
Cooling System Thermal Overload & Radiator Fan Failures
Inadequate engine cooling or engine thermal runaways on the 2.0L and 2.5L engines are frequently linked to Fuse 6 (40A FAN) failures within the underhood block. The ECU dictates cooling fan duty cycle based on engine coolant temperature (ECT) sensor inputs. If the high-current circuit fails, coolant flow efficiency drops drastically during idling or low-speed stop-and-go driving, causing rapid engine overheating and storing diagnostic code P0128 or severe over-temp flags.
System Voltage Testing with the 2010 Mazda 3 Fuse Box Diagram
Accurate diagnosis of the 2010 Mazda 3 electrical system requires methodical testing using a high-impedance Digital Multimeter (DMM) rated for automotive CAN-bus systems. Passive visual inspection alone fails to detect subtle hairline element fractures or terminal fretting that breaks connection only under thermal or mechanical load.
When probing micro-fit terminals in the Passenger Junction Box, always utilize back-probe pins or high-density needle tips. Inserting standard 2mm multimeter probes directly into female terminal spades expands the spring steel contacts, causing permanent loose-terminal drag and intermittent circuit drops.
Step 1: OBD-II Interface Power & Chassis Ground Verification
When a diagnostic scan tool fails to power up or communicate with the vehicle, inspect the diagnostic circuit bus fed by the interior Passenger Junction Box:
- Connect the negative black lead of your DMM to a known good chassis ground point (such as the unpainted door hinge bolt).
- Set the DMM to measure DC Volts (VDC). Touch the positive probe tip to Pin 16 of the OBD-II Data Link Connector located beneath the lower driver-side dash panel.
- Verify steady battery voltage (12.4V to 12.8V DC engine off). If 0V is read, pull and inspect Fuse 43 (15A OBD) in the interior fuse box using your 2010 mazda 3 fuse box diagram layout map.
- Switch DMM to Resistance (Ω). Measure resistance between Pin 4 (Chassis Ground) / Pin 5 (Signal Ground) and the vehicle frame. Resistance must read less than 0.2 Ω. High ground resistance disrupts scan tool telemetry and triggers false communication loss codes (U-series DTCs).
Step 2: Voltage Drop Testing Powertrain Control Module (ECU) Feeds
To detect high resistance across fuse contact blades without disturbing the operating state of the circuit, perform static and dynamic voltage drop testing across the EGI MAIN and ENG CTRL protection elements in the underhood block:
- Turn the ignition key to the ON position (Engine Running idle if testing dynamic supply).
- Set your DMM to millivolts DC (mV DC).
- Place the positive probe tip on the test pad located on top of the target fuse (e.g., Fuse 28 10A ENG CTRL) on the line side terminal. Place the negative probe tip on the load side test pad on the same fuse.
- A healthy, fully functional circuit will show a voltage drop of less than 50 mV (0.050V) across the internal fuse element under load. A reading exceeding 200 mV indicates excessive contact corrosion, mechanical fretting, or an degraded internal fuse element approaching open-circuit failure.
If complex CAN-bus communication dropouts persist after confirming solid terminal voltages, consult our Mazda Oscilloscope Waveform & Signal Trace Reference to inspect differential voltage lines (CAN-H and CAN-L) directly at the main PCM harness connector.
Underhood Terminal Torque Specs, ECU Power Circuitry, and Relay Ratings
Servicing the Engine Junction Box requires strict adherence to system current limits and mechanical connection specifications. The internal bus bar feeds battery positive voltage directly from the starter cable junction. Modifying or bypassing fuse blocks without verifying total system current draw risks severe damage to secondary wiring harnesses.
| System Hardware / Terminal Connection | OEM Specification Metric / Imperial | Electrical Rating Parameters |
|---|---|---|
| Main Battery Junction Post Bolt (EJB) | 8.8 – 10.7 N·m / 78 – 95 in-lb | 12V DC Constant / 150A Continuous Load |
| Alternator B+ Stud Connection | 9.8 – 13.5 N·m / 87 – 119 in-lb | 14.1V – 14.7V Charging Voltage Output |
| EGI Main ISO Switching Relay | Plug-in 4-Pin Micro ISO | 12V DC Coil / 30A Contact Load Max |
| Cooling Fan Speed Relay Control Module | Solid State PWM Variable Control | 40A Peak Operating Current Draw |
Frequently Asked Questions Regarding 2010 Mazda 3 Fuse Box Diagrams
Where are the primary fuse boxes located on the 2010 Mazda 3?
The 2010 Mazda 3 utilizes two distinct distribution panels. The main Engine Junction Box (EJB) is located under the hood on the driver-side fender well, directly behind the air filter housing. The interior Passenger Junction Box (PJB) is mounted inside the cabin, beneath the glove compartment assembly on the passenger side lower kick panel area.
Which fuse controls the OBD-II port power and check engine light cluster logic?
Pin 16 battery power for the OBD-II diagnostic link connector is supplied by Fuse 43 (15A Mini), located inside the interior Passenger Junction Box. Power for the instrument cluster logic and PCM signal processing runs through Fuse 28 (10A Mini) in the underhood Engine Junction Box. If Fuse 43 is blown, handheld OBD-II code readers will fail to power on when plugged into the diagnostic port.
Why does the EGI MAIN fuse or relay keep blowing continuously on my 2010 Mazda 3?
Repeated blowout of the EGI MAIN fuse (40A JCASE) or damaged relay contacts indicates a direct dead-short to ground on the load side of the engine control circuit. Common culprits on the 2.0L/2.5L MZR engines include shorted internal windings within the variable timing chain oil control valve solenoid, chafe damage on the oxygen sensor heater wire harness grounding against the exhaust manifold, or internal short circuits within the fuel injectors.
How do I bench-test an ISO relay pulled from the underhood fuse box diagram layout?
Remove the relay from the junction block. Using a digital multimeter set to Resistance (Ω), probe across control terminals 85 and 86; normal coil resistance should measure between 60 Ω and 100 Ω. Next, verify open circuit continuity (infinite resistance) between switch load terminals 30 and 87. Apply 12V DC power from a bench supply across terminals 85 and 86 to energize the coil; an audible click should sound, and resistance across terminals 30 and 87 must drop below 0.2 Ω.
What torque spec is strictly required when reinstalling main power studs to the underhood block?
The M6 terminal nut securing the main battery cable and 150A block fuse bar inside the underhood Engine Junction Box must be torqued precisely to 8.8–10.7 N·m (78–95 in-lb). Over-torquing snaps the plastic junction housing structure, while under-torquing results in thermal arcing, erratic charging voltages, low oil pressure warnings, and intermittent engine stalling under load.
Step-by-Step Guide to Understanding the 2010 Mazda 3 Fuse Box Diagram
Identify – Locate the affected electrical system and confirm symptoms like an illuminated check engine light.
Locate – Access the under-hood engine fuse box near the battery or the passenger compartment panel behind the glovebox.
Reference – Match the circuit number on the panel diagram lid to identify the correct mini fuse or relay slot.
Extract – Use the fuse puller to remove the suspect fuse and inspect the internal wire element for physical breaks.
Verify – Measure electrical continuity with a multimeter or check for 12V power at the fuse test points.
Troubleshoot – Connect an OBD-II scanner to clear any active diagnostic code if a blown ECU fuse triggered an engine light.
