Braun Wheelchair Lift Wiring Diagram: 2026 Repair Guide
A Braun wheelchair lift wiring diagram centers on a high-amp main power circuit. The primary hot wire (4 AWG red) connects from the battery through a 150A circuit breaker to the solenoid pin assignment. The heavy-duty ground wire (4 AWG black, serving as the DC return neutral wire) anchors directly to the chassis frame.
📌 Key Takeaways
- Main power requires a 4 AWG copper hot wire protected by a 150-amp inline circuit breaker.
- Chassis ground wire connections must maintain direct metal-to-metal contact with zero voltage drop.
- Hand pendant controls use standardized pin assignments for UP, DOWN, FOLD, and UNFOLD switches.
- Door interlock safety wires prevent lift deployment unless the vehicle park brake is engaged.
- Always disconnect the main battery source before performing wire color code or relay inspection.
Executing a precision repair or retrofit on a commercial or personal mobility vehicle requires a complete understanding of the manufacturer’s electrical control system. The braun wheelchair lift wiring diagram serves as the master blueprint for diagnosing power distribution faults, wiring secondary control switches, and installing replacement hydraulic pump assemblies on BraunAbility Century, Millennium, and Vista series lifts. Because these electromechanical systems draw up to 150 amps under peak load, precise conductor sizing, accurate pin assignments, and clean terminal block connections are imperative to prevent excessive voltage drop, intermittent control logic failure, or catastrophic thermal runaway in the main harness.

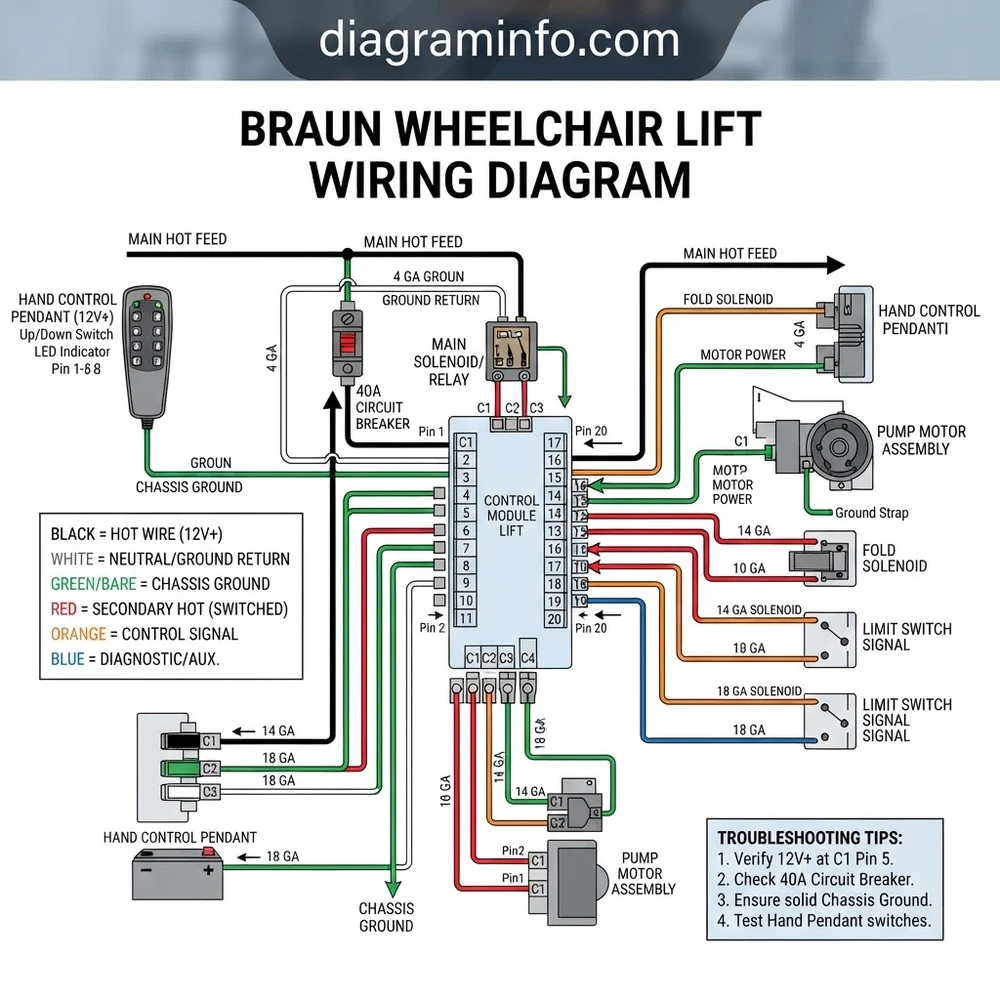

Understanding the Braun Wheelchair Lift Wiring Diagram and Wire Color Codes
According to OEM manufacturer specifications, Braun mobility lifts utilize a standardized wiring harness color code across most 12V DC production lines. However, technicians must verify whether they are servicing a legacy analog relay-based lift or a modern microprocessor-controlled circuit board system. Below is the complete functional wire color breakdown for terminal block wiring and harness pin routing.
| Wire Color | Function / Signal Path | Pin / Terminal ID | Circuit Notes |
|---|---|---|---|
| Red (4 AWG) | Primary Battery Hot Wire (+12V DC) | BATT + / Main Solenoid Stud | Protected by 150A inline manual-reset breaker |
| Black (4 AWG) | Primary Ground Wire (-12V Return) | GND / Chassis Bus Bar | Direct connection to vehicle chassis or battery (-) |
| Red (14 AWG) | Control Logic Fused Supply Wire | TB1 – Pin 1 (12V Supply) | Fed via 15A internal blade fuse |
| Green (16 AWG) | Deploy Signal Command | TB1 – Pin 2 (Deploy Relay) | Switched +12V from hand pendant switch |
| Yellow (16 AWG) | Stow Signal Command | TB1 – Pin 3 (Stow Relay) | Switched +12V from hand pendant switch |
| Blue (16 AWG) | Up / Lift Hyd Valve Command | TB1 – Pin 4 (Up Solenoid) | Triggers motor solenoid and pump pressure valve |
| Orange (16 AWG) | Down / Lower Solenoid Signal | TB1 – Pin 5 (Down Valve) | Activates hydraulic release coil only (gravity down) |
| White (16 AWG) | Vehicle Door Safety Interlock Input | TB2 – Pin 1 (Interlock IN) | Requires +12V or GND signal depending on interlock type |
| Brown (16 AWG) | Outer Barrier Limit Switch Logic | TB2 – Pin 3 (Roll Stop) | Normally Closed (NC) loop to ground for safety check |
| Purple (16 AWG) | Threshold Warning System Input | TB2 – Pin 4 (Threshold Alarm) | Triggers auditory buzzer if weight is detected on threshold plate |
When analyzing wire colors on legacy units, be aware that pre-2008 Braun Millennium lifts used solid yellow conductors for ground wire return loops on auxiliary microswitches, whereas modern production models utilize standard black wiring. Always cross-reference wire insulation colors with terminal numbers on the main control module board before applying battery voltage.
For runs up to 12 feet from the vehicle starter battery to the lift power module, 4 AWG copper wire is mandatory. For runs exceeding 12 feet (such as rear-entry extended wheelbase vans), 2 AWG pure copper conductor is required to keep voltage drop under 3% at a 150-amp continuous draw.
Control Harness Pin Assignment and Module Terminal Block Identification
The operational brain of the modern Braun wheelchair lift relies on a multi-pin connector harness and a central terminal block located inside the hydraulic power unit (HPU) cabinet. Understanding the pin assignment structure prevents miswiring control logic circuits, which can destroy the onboard printed circuit board (PCB) microprocessors or burn out delicate microswitch contacts.
The primary control interface consists of two distinct connector groups: the high-current distribution studs mounted on the motor solenoid, and the low-current signaling terminal blocks (designated TB1, TB2, and TB3) located on the main logic controller.
Handheld Pendant Control Pin Assignments
The standard 4-button handheld pendant switch communicates with terminal block 1 (TB1) through a heavy-duty coiled cable. The internal wiring assignment for the 6-pin hand pendant quick-disconnect plug is routed as follows:
- Pin A (Brown Wire): Common +12V DC logic power supplied directly from the internal 15A control fuse.
- Pin B (Green Wire): Deploy command line; energizes the pump motor relay and deploy valve solenoid simultaneously.
- Pin C (Yellow Wire): Stow command line; activates the pump motor relay and stow valve solenoid.
- Pin D (Blue Wire): Up command line; closes the pump motor solenoid contactor to extend lifting cylinders.
- Pin E (Orange Wire): Down command line; opens the hydraulic lower valve coil to safely drop the platform via gravity.
- Pin F (Bare Shield / Black): Neutral wire loop ground used for internal LED pendant illumination.
Safety Interlock Terminal Block Pin Assignments
Modern commercial installations mandate a door safety interlock system to prevent lift deployment while the vehicle is in motion or when the access door is shut. The interlock pin assignment on terminal block 2 (TB2) uses a dedicated safety loop:
- TB2 – Pin 1 (White Wire): Interlock power input (+12V DC input supplied from park brake switch or transmission park sense circuit).
- TB2 – Pin 2 (White/Black Wire): Interlock output return; must show complete continuity to ground or +12V (model dependent) before the logic module will allow power to flow to the hand pendant switch harness.
- TB2 – Pin 3 & Pin 4 (Grey Wires): Outer roll stop safety barrier microswitch circuit. If the outer roll stop fails to lock in the fully upright vertical position during platform ascent, this pin loop opens, immediately cutting power to the Up valve circuit.
Step-by-Step Installation Using the Braun Wheelchair Lift Wiring Diagram
Follow this precise step-by-step wiring procedure when installing a Braun lift or replacing a damaged wiring harness. Ensure the vehicle ignition is turned OFF and the main battery ground cable is disconnected prior to handling high-amperage components.
Step 1: Install the Primary Circuit Breaker and Battery Hot Wire
Mount the provided 150-amp manual reset circuit breaker within 18 inches of the primary vehicle battery positive terminal. Route a 4 AWG red hot wire from the load side of the circuit breaker along the vehicle chassis frame rail to the lift power cabinet. Secure the cable every 18 inches using rubber-insulated p-clamps. Connect the 4 AWG red lead directly to the high-current stud of the primary pump motor solenoid, torquing the terminal nut to 55 in-lbs.
Step 2: Establish the Primary Ground Wire Circuit
Run a 4 AWG black ground wire from the lift chassis baseplate grounding stud directly to the vehicle chassis frame or the battery negative terminal. Strip the vehicle frame attachment point down to bare bare metal, apply dielectric grease, and secure the ring terminal with a 3/8-inch Grade 8 bolt and star lock washer. Test ground wire resistance; static resistance must measure below 0.2 ohms between the lift cabinet frame and the main battery negative post.
Never rely solely on sheet metal floor contact for grounding the lift cabinet. Poor chassis grounding forces high hydraulic motor currents (100A+) to back-feed through microswitch signal wires and hand pendant shield wires, instantly frying the printed circuit board.
Step 3: Connect the Safety Interlock Control Harness
Locate terminal block TB2 on the logic module board. Strip 3/8-inch of insulation from the white interlock signal wire coming from the vehicle interlock module (such as an InterMotive plug-and-play module). Insert the bare conductor into TB2 Terminal 1 and tighten the screw clamp. Connect the interlock return wire to TB2 Terminal 2. If no vehicle interlock is present on a private non-commercial van, install an authorized bypass jumper wire between Pin 1 and Pin 2 (verify local regulations before bypassing safety interlocks).
Step 4: Wire the Handheld Pendant Interface Connector
Plug the 6-pin molded pendant harness plug into the mating chassis connector on the hydraulic power unit housing. If hardwiring directly to the terminal block TB1, connect the color-coded pendant lead wires according to the pin assignment schematic: Brown to TB1-1 (+12V logic supply), Green to TB1-2 (Deploy), Yellow to TB1-3 (Stow), Blue to TB1-4 (Up), and Orange to TB1-5 (Down).
Step 5: Connect System Microswitches and Pressure Valves
Plug the pre-wired microswitch harness into terminal block TB3. Route the green, orange, and blue valve coil leads to their respective hydraulic solenoid valves on the pump manifold:
- Attach the blue valve wire to the Up hydraulic valve coil terminal.
- Attach the orange valve wire to the Down hydraulic release valve coil.
- Attach the green/yellow wires to the dual-stage Deploy/Stow directional manifold valves.
- Ensure all coil ground wires are securely fastened to the common grounding block located inside the pump housing cabinet.
Step 6: Final Voltage and Systems Testing
Reconnect the vehicle battery earth lead. Reset the 150A primary circuit breaker to the ON position. Using a digital multimeter set to DC volts, measure line voltage at the main battery stud on the motor solenoid. The reading must equal static battery voltage (minimum 12.6V DC). Depress the hand pendant “Deploy” switch while observing system voltage. System operating voltage under load must not drop below 11.5V DC.
Voltage Ratings, Hot Wire Sizing, and Ground Wire Requirements
Proper electrical component sizing is mandatory to ensure reliability under heavy thermal load cycles. Electrical current consumption varies significantly depending on which mechanical motion the lift is performing.
| Operation Phase | Active Circuit Component | Nominal Current Draw | Minimum Required Voltage |
|---|---|---|---|
| Standby / Idle | Control Logic Board PCB | 0.05 to 0.15 Amps | 12.0 V DC |
| Deploying / Stowing | Hydraulic Motor + Directional Valve | 45 to 65 Amps | 11.8 V DC |
| Up (Platform Raising) | Hydraulic Pump Motor Solenoid | 90 to 145 Amps (Peak Load) | 11.2 V DC |
| Down (Platform Lowering) | Down Solenoid Release Valve Only | 1.8 to 2.5 Amps | 10.5 V DC |
Because the hydraulic motor generates significant inductive back-EMF spikes during high-amperage cutoff, the control board utilizes flywheel diodes across the relay coil terminals. If a replacement solenoid is installed without an integrated resistor or diode suppressor, control voltage transient spikes can disrupt the vehicle’s electronic CAN-bus network or damage the internal logic microprocessor.
Maximum allowable conductor voltage drop across the main power harness is 0.5V DC under maximum lifting load (150A). If voltage measured at the motor solenoid battery stud drops from 12.6V down to under 10.8V during platform ascent, inspect the main battery hot wire for internal corrosion or recalculate cable gauge for line length.
Diagnosing Faults in the Braun Wheelchair Lift Wiring Schematic
Diagnosing complex electrical issues on Braun mobility equipment requires systematically isolating circuit paths using a digital multimeter (DMM) and referring back to the master schematic pin layout.
Fault 1: Hydraulic Motor Rapidly Chatters or Clicks Without Lifting
- Cause: Severe voltage drop across the primary hot wire circuit, loose main ground wire connection, or weak battery capacity.
- Consequence: High current draw causes system voltage to plummet below the motor solenoid pull-in threshold (approx. 9.5V DC), forcing the contactor to open. Once opened, voltage bounces back, causing the contactor to repeatedly drop in and out (chatter).
- Diagnostic Procedure: Place multimeter leads across the main starter relay high-current posts while pressing the UP button. If voltage drops below 10.5V DC, clean chassis ground surfaces, check for corroded 4 AWG ring terminals, or load-test the vehicle battery.
Fault 2: Lift Deploys Fully but Refuses to Move Up or Down
- Cause: Tripped outer barrier safety switch circuit or open threshold warning sensor circuit.
- Consequence: Microprocessor board halts output power to terminal block 1 (TB1) Pin 4 (Up Command) as a safety lock-out mechanism.
- Diagnostic Procedure: Check continuity across the brown microswitch wires at terminal block 2 (TB2 Pin 3). Inspect the outer roll stop mechanical latch. If the roll stop belt or actuator arm is damaged, the limit microswitch will remain open, breaking the control circuit.
Fault 3: Fuse F2 Blews Instantly Upon Pressing Any Pendant Button
- Cause: Short circuit to ground in the hand control pendant cord, pinched switch wiring inside the pendant casing, or shorted hydraulic valve coil.
- Consequence: Control logic power (+12V DC) is grounded directly, blowing the 15A internal blade fuse on the circuit module board.
- Diagnostic Procedure: Unplug the pendant coiled cord from the chassis wall receptacle. Using a DMM set to ohms, check resistance between Pin A (+12V feed) and all other pins on the cable plug while flexing the coiled wire. Resistance reading should be infinite; a zero-ohm reading indicates an internal conductor short inside the coiled harness.
Frequently Asked Questions on Braun Lift Electrical Wiring
What size circuit breaker is required for a Braun wheelchair lift power cable?
BraunAbility standard specifications require a 150-amp, manual-reset, ignition-protected circuit breaker installed on the primary 4 AWG hot wire within 18 inches of the vehicle battery. Never install a standard automotive auto-reset breaker or standard slow-blow fuse on primary power feeds, as sustained heavy lifting loads can cause nuisance tripping and thermal risk.
Why does the Braun lift wire color layout differ between older and newer models?
Pre-2008 Braun lifts utilized basic mechanical relays and color-coded relay harnesses where high currents were routed through manual switches. Modern units utilize modular printed circuit control boards (PCBs) with integrated microprocessors, solid-state switches, and dedicated terminal blocks (TB1, TB2, TB3). Always consult the exact serial number wiring schematic supplied inside the pump module access door to confirm pin assignment color codes for that specific build year.
How do I wire a door interlock bypass switch for diagnostic testing?
For diagnostic bench testing only, a jumper wire can be connected between Terminal Block 2 Pin 1 (+12V interlock power input) and Terminal Block 2 Pin 2 (interlock output signal). This simulates an active vehicle park signal and open door status, supplying power to the pendant control logic. Remove all temporary bypass jumpers prior to returning the equipment to service.
What causes the ground wire to melt or get hot during lift operation?
A hot ground wire indicates high electrical resistance or severe current back-feed. If the primary 4 AWG ground wire connection to the vehicle chassis frame is loose or corroded, the heavy return current from the 150-amp hydraulic motor pump will attempt to complete its circuit back to the battery through secondary low-gauge neutral wire loops, control harness shielding, or metallic mounting hardware, causing severe thermal overload on those smaller wires.
What is the correct terminal torque spec for the main battery solenoid studs?
The high-current 5/16-inch brass studs on the primary hydraulic motor solenoid must be torqued to exactly 50 to 60 in-lbs (5.6 to 6.8 Nm). Over-tightening can crack the solenoid plastic bakelite housing, causing internal contact misalignment, while under-tightening creates high electrical resistance, resulting in extreme terminal heating and arcing under load.
