7 Pin Rocker Switch Wiring Diagram: Easy Installation
A 7 pin rocker switch wiring diagram illustrates how to connect power, ground, and load wires for complex circuits. Typically, you connect the hot wire to the common terminal, bridge the neutral wire, and use the traveler wire for alternating paths. Always ensure the ground wire is secured to prevent electrical shorts during operation.
📌 Key Takeaways
- Explains DPDT (Double Pole Double Throw) connections for complex switch setups.
- Identify the common terminal to ensure power is distributed correctly to the loads.
- Proper grounding is essential to prevent circuit failure or electrical shocks.
- Use color-coded traveler wire sets to keep track of alternating circuit paths.
- Use this diagram for winches, linear actuators, or dual-light configurations.
Navigating the complexities of automotive or marine electrical systems often requires a clear understanding of specialized components, and the 7 pin rocker switch stands as one of the most versatile yet intimidating parts to install. Whether you are upgrading your off-road lighting, managing a winch system, or configuring a dual-battery setup, having a precise 7 pin rocker switch wiring diagram is essential for ensuring both functionality and safety. This comprehensive guide is designed to demystify the terminal layout, explain the flow of current through each pin, and provide you with the technical confidence to complete your project. You will learn the specific roles of the common terminal, how to manage traveler wires in complex circuits, and how to choose the correct gauge of wire to handle your system’s voltage requirements without failure.
Understanding the 7 Pin Rocker Switch Layout
A 7 pin rocker switch is typically a Double Pole Double Throw (DPDT) device, often featuring internal LEDs for illumination. Unlike simpler On/Off switches, the 7-pin configuration allows you to control two separate circuits simultaneously or reverse the polarity of a motor. The physical layout usually consists of two parallel columns of three pins, with a seventh pin offset to provide a dedicated ground for the internal lights. To read a 7 pin rocker switch wiring diagram effectively, you must understand that the pins are not just random connection points; they are paired to manage different “poles” of electricity.

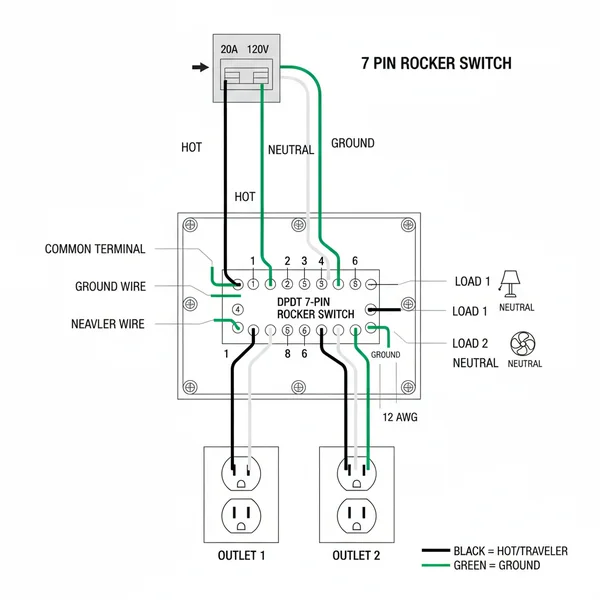

[ VISUAL WIRING REPRESENTATION ]
——————-
PIN 1 (Load A1) [ ] [ ] PIN 4 (Load B1)
PIN 2 (Common A) [ + ] [ + ] PIN 5 (Common B)
PIN 3 (Load A2) [ ] [ ] PIN 6 (Load B2)
(Viewed from the rear of the switch)
In this configuration, Pins 2 and 5 serve as the common terminal points where the hot wire (incoming power) is connected. Pins 1, 3, 4, and 6 act as the outputs. Depending on the position of the rocker, power is “thrown” from the center pins to either the top or bottom pins. Pin 7 is specifically designated for the ground wire, which completes the circuit for the switch’s internal backlighting. Some variations may use a brass screw or a specific silver-plated terminal to distinguish the ground or load sides, but the spade-terminal layout remains the industry standard. Variations in models might include “momentary” actions (where the switch springs back) or “maintained” actions, but the fundamental wiring logic remains consistent across most 12V and 24V applications.
Most 7-pin switches are designed for DC systems. While the physical pins can handle various signals, always ensure your switch is rated for the specific voltage and amperage of your application to prevent internal melting or fire hazards.
Step-by-Step Installation Guide
Properly interpreting and implementing a 7 pin rocker switch wiring diagram requires a methodical approach. Before beginning, ensure you have gathered the necessary tools: a wire stripper, crimping tool, heat-shrink tubing, and the correct gauge of wire for your load (typically 14 or 16 AWG for most 20A automotive accessories). Follow these steps to ensure a professional-grade installation:
- 1. Disconnect Power: Always begin by disconnecting the negative terminal of your battery. This prevents accidental shorts while you are handling the hot wire and ground connections.
- 2. Identify the Common Terminals: Locate Pins 2 and 5 in the center of the switch. These are your main power inputs. If you are running a single device, you might jumper these two pins together so a single hot wire feeds both poles of the switch.
- 3. Connect the Traveler Wires: In a DPDT setup, the wires leading from the switch to your accessory are often referred to as traveler wire sets. Connect your primary loads to Pins 1 and 4 (the “UP” position) and your secondary loads or reverse polarity wires to Pins 3 and 6 (the “DOWN” position).
- 4. Establish the Ground: Connect a wire from Pin 7 to a reliable chassis ground or the negative terminal of your power source. This ground wire is essential for the LEDs inside the switch to light up when activated.
- 5. Integrate the Neutral Path: While “neutral” is more common in AC systems, in a DC environment, your neutral wire equivalent is the return path from the device back to the battery. Ensure the accessory you are powering is also properly grounded.
- 6. Inspect Terminal Connections: Check if your switch uses a brass screw or spade terminal. Ensure all crimps are tight and that no stray copper strands are touching adjacent pins, which could cause a short circuit.
- 7. Test the Circuit: Reconnect the battery. Toggle the switch to both positions. The internal light should illuminate according to the switch design, and the connected device should respond correctly to each position.
Never exceed the rated amperage of the switch. If you are powering high-draw items like a large light bar or a cooling fan, use the rocker switch to trigger a relay rather than passing the full current through the switch itself.
Common Issues & Troubleshooting
Even with a high-quality 7 pin rocker switch wiring diagram, errors can occur. One of the most frequent problems is the internal LED failing to light up. This is usually caused by a poor connection at Pin 7 or a reversed polarity on the common terminal. If the switch operates the device but does not light up, verify that the ground wire is making metal-to-metal contact with the vehicle frame.
Another common issue is “backfeeding,” where a device stays partially powered or a light glows dimly when the switch is off. This often happens when traveler wire sets are crossed or when a neutral wire is sharing a ground with a high-resistance component. If the switch feels hot to the touch, this is a major warning sign that the gauge of your wiring is too thin for the current load, or that the voltage drop across the circuit is creating excessive heat. In such cases, stop use immediately. If you find that the switch behaves erratically—such as turning on the device in the “off” position—re-examine your 7 pin rocker switch wiring diagram to ensure you haven’t swapped Pin 2 (Input) with Pin 1 (Output).
Tips & Best Practices for Wiring
To ensure a long-lasting and reliable electrical setup, always prioritize the quality of your components and the integrity of your connections. When selecting wire, always check the gauge requirements; using 12-gauge wire for a 20-amp circuit is often safer than the bare minimum 14-gauge, as it reduces resistance and heat buildup. For marine environments, use tinned copper wire to prevent the “green rot” of corrosion that can travel up a traveler wire and destroy the switch terminals.
Use dielectric grease on the spade terminals before sliding them onto the switch. This creates a moisture-proof barrier that prevents oxidation, especially in engine bays or open-top vehicles.
Labeling your wires is another best practice that saves hours of frustration during future maintenance. Use a small piece of heat-shrink label or colored electrical tape to identify which is the hot wire and which leads to the specific load. If your switch uses a brass screw for a specific connection, ensure the terminal ring is properly sized to avoid loose “wiggle” connections. Lastly, always buy switches from reputable manufacturers. While budget switches may look identical, their internal contact plates are often thinner and prone to arcing, which can eventually lead to a failure that your 7 pin rocker switch wiring diagram cannot fix. By investing in quality parts and following a disciplined wiring protocol, you ensure your electrical system remains robust and dependable under any conditions.
In conclusion, mastering the 7 pin rocker switch wiring diagram allows you to unlock advanced control over your vehicle or boat’s electrical accessories. By carefully identifying the common terminal, securing your ground wire, and ensuring the correct voltage alignment, you can create a custom interface that is both functional and safe. Always remember to double-check your connections and use the appropriate wire gauge to handle the demands of your specific power application.
