3-Wire Pressure Transducer Wiring Diagram: Complete Connection Guide 2026
A 3-wire pressure transducer typically uses three wires: Power (often red/brown, 10-30V DC), Ground (black/blue), and Signal (white/green/yellow). The power wire supplies voltage, ground completes the circuit, and the signal wire transmits the pressure reading as an analog output, usually 0.5-4.5V or 4-20mA. Ensure correct polarity to prevent damage.
📌 Key Takeaways
- A 3-wire transducer requires dedicated power (+V), ground (GND), and signal output (SIG) connections, separating power supply from the analog signal.
- Standard wire color code for 3-wire transducers often uses Red/Brown for Power (+V), Black/Blue for Ground (GND), and White/Green/Yellow for Signal (SIG).
- Ensure the supply voltage (e.g., 10-30V DC) and output type (e.g., 0.5-4.5V or 4-20mA) match your system specifications to prevent damage.
- Reverse polarity (incorrect hot wire and ground wire connection) is the most common mistake and can instantly damage the transducer or connected equipment.
- If transducer readings are consistently inaccurate despite correct wiring, professional calibration or replacement may be necessary, as internal components could be faulty.
This article provides a detailed “3 wire pressure transducer wiring diagram” and comprehensive installation instructions, essential for automotive and heavy equipment technicians. Accurate wiring is paramount for the reliable operation of these critical sensors, ensuring precise data acquisition for engine management systems, transmission control, hydraulic pressure monitoring, and more. This guide meticulously outlines wire color codes, pin assignments, and proper connection sequences to facilitate correct installation and prevent common errors that can lead to system malfunction or component damage. Understanding these specifics guarantees optimal performance and longevity for your pressure monitoring systems.

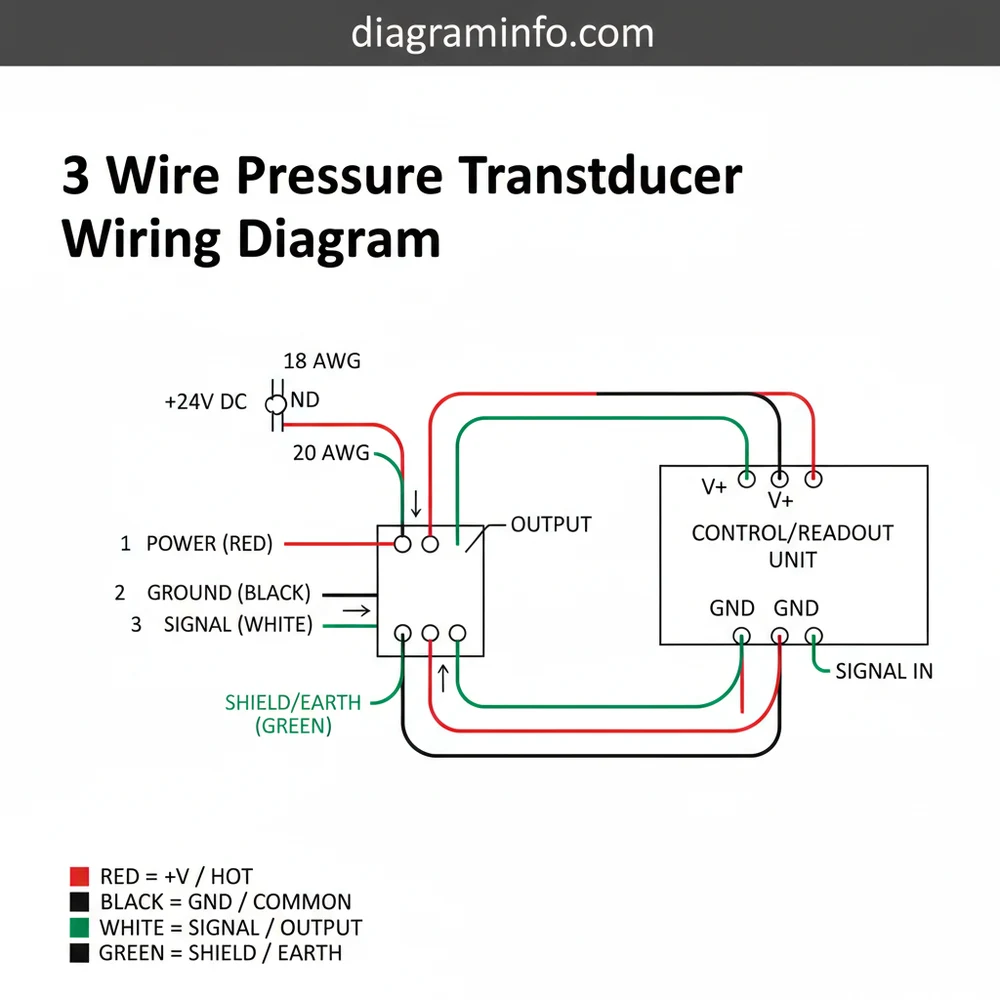

[INSERT 3-WIRE PRESSURE TRANSDUCER WIRING DIAGRAM HERE]
WIRE COLOR REFERENCE TABLE
While specific wire colors can vary slightly by manufacturer and transducer model, the following table represents the most common conventions for a 3-wire pressure transducer. Always consult the manufacturer’s datasheet or your equipment’s service manual for definitive pin assignments and color codes relevant to your specific component.
| Wire Color (Typical) | Function | Pin/Terminal (Common) | Notes |
|---|---|---|---|
| Red (+Vcc) | Power Supply Input (Hot Wire) | Pin 1 / ‘A’ | Receives regulated DC voltage (e.g., +5VDC, +12VDC, +24VDC) from ECU or dedicated power supply. |
| Black (GND) | Ground Reference (Neutral Wire) | Pin 2 / ‘B’ | Connects to chassis ground or sensor ground from ECU/power supply. Crucial for signal integrity. |
| Blue, White, or Green (SIG) | Signal Output | Pin 3 / ‘C’ | Transmits the pressure reading as an analog voltage (e.g., 0.5-4.5V, 0-5V) to the receiving module. |
STEP-BY-STEP CONNECTION GUIDE
Properly wiring a 3-wire pressure transducer is a precise task demanding strict adherence to manufacturer specifications and best practices. This guide assumes you have identified the appropriate mounting location for the transducer and have access to the necessary tools and power sources.
Before commencing any wiring procedures, ensure that the vehicle or equipment’s primary power source is completely disconnected. This includes disconnecting battery terminals or shutting down main power to industrial control panels. Failure to do so can result in severe electrical shock, system damage, or fire.
- Identify Components: Familiarize yourself with the pressure transducer, its connector, the wiring harness (if supplied), the power source (typically an ECU or a regulated DC power supply), and the receiving device (e.g., a dedicated gauge, PLC, data logger, or vehicle ECU input).
- Verify Power Requirements: Consult the transducer’s datasheet to confirm its operating voltage range (e.g., +5VDC, +12VDC, +24VDC) and current draw. Ensure your chosen power source can reliably supply this voltage and sufficient current.
- Prepare Wiring:
- Measure the required length of each wire (Power, Ground, Signal) to reach from the transducer to its respective connection point, allowing for a service loop to prevent strain.
- Select the correct wire gauge. According to OEM specifications, a 20-22 AWG wire is typically adequate for transducer signal and power in short runs. For longer runs or higher current transducers, consult wire gauge selection charts to mitigate voltage drop.
- Strip approximately 1/4 to 3/8 inch of insulation from the ends of each wire, ensuring strands are not nicked or frayed.
- Connect Power (Hot Wire):
- Locate the Power input terminal on the transducer (typically marked +Vcc, Vp, or Pin 1).
- Connect the red wire (or manufacturer-specified power wire) from your chosen regulated power source to this terminal.
- Utilize appropriate connectors: secure crimp terminals (e.g., Deutsch, AMPhenol, insulated spade connectors) for robust connections. For permanent installations, consider soldering and heat shrinking.
- Connect Ground (Neutral Wire):
- Identify the Ground terminal on the transducer (typically marked GND, Vret, or Pin 2).
- Connect the black wire (or manufacturer-specified ground wire) from the power source’s ground return or a clean, established chassis ground point to this terminal. A strong, low-resistance ground connection is crucial for accurate signal output and preventing noise.
- Ensure the ground connection is made to the same ground plane as the receiving device to avoid ground loops.
- Connect Signal Output:
- Identify the Signal Output terminal on the transducer (typically marked SIG, Vout, or Pin 3).
- Connect the blue, white, or green wire (or manufacturer-specified signal wire) to the analog input terminal of your receiving device (e.g., ECU, gauge, PLC).
- Verify the receiving device’s input type matches the transducer’s output (e.g., 0-5V, 0.5-4.5V).
- Secure and Protect Connections:
- Once all connections are made, visually inspect them for tightness, correct polarity, and insulation integrity.
- Use heat shrink tubing or electrical tape to insulate any exposed conductors.
- Bundle wires neatly with zip ties or loom, ensuring they are protected from heat, abrasion, and pinch points. Avoid routing signal wires parallel to high-current power wires to minimize electromagnetic interference.
- Verify Operation:
- Reconnect the primary power source to the equipment.
- Apply pressure to the transducer (within its specified range) and observe the output on your receiving device. Verify that the readings are consistent and accurate.
- Perform a functional test across the operating range of the transducer.
Many automotive and heavy equipment ECUs provide a dedicated +5VDC reference voltage for sensors like pressure transducers. Confirm this output voltage and current capacity directly from the vehicle’s service manual or ECU pinout diagrams to ensure compatibility and prevent overloading the ECU’s internal power supply.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Despite the straightforward nature of a 3-wire pressure transducer wiring diagram, several common mistakes can lead to erratic readings, no output, or even permanent damage. Understanding these pitfalls and their solutions is crucial for efficient troubleshooting.
- Reversed Polarity (+Vcc and GND):
- Consequence: Applying reverse voltage to a transducer can instantly destroy its internal electronics, rendering it permanently inoperative. In some cases, it may just prevent operation without damage, but this is not guaranteed.
- Fix: Always double-check the wire color code and pin assignments against the manufacturer’s datasheet before applying power. Use a multimeter to confirm the polarity of your power source. If damage is suspected, replace the transducer.
- Incorrect Signal Wire Connection:
- Consequence: Connecting the signal wire to a power or ground pin, or to the wrong input on the receiving device, will result in no output, a constant maximum/minimum output, or illogical readings.
- Fix: Verify the signal wire connects directly to the specified analog input on your ECU, gauge, or PLC. Ensure the receiving device is configured for the correct input type (e.g., 0-5V, 0.5-4.5V). Refer to the device’s manual for proper input terminal identification.
- Poor or Shared Ground Connection:
- Consequence: A high-resistance or noisy ground connection can introduce electrical interference into the signal, leading to unstable, fluctuating, or inaccurate pressure readings. Sharing a ground wire with high-current devices can cause “ground bounce.”
- Fix: Ensure the ground wire (Black) has a clean, solid connection to the chassis or a dedicated sensor ground. Avoid daisy-chaining sensor grounds if possible. For critical applications, a dedicated, low-impedance ground path is recommended, ideally shared with the receiving device’s ground. Use a multimeter to check for continuity and resistance between the transducer ground and the system’s main ground point.
- Incorrect Voltage Supply:
- Consequence: Supplying voltage outside the transducer’s specified range can lead to inaccurate readings (if voltage is too low) or irreversible damage (if voltage is too high). For example, applying 12V to a 5V transducer is almost certainly destructive.
- Fix: Always confirm the transducer’s required input voltage from its datasheet. Use a voltmeter to verify the actual output of your power source under load. If the voltage is incorrect, adjust or replace the power supply or voltage regulator.
- Wire Gauge Misapplication or Excessive Length:
- Consequence: Using too small a wire gauge, especially over long distances, can result in significant voltage drop to the transducer’s power input and signal line. This causes inaccurate readings as the transducer may not receive its required voltage, and the signal voltage can be attenuated.
- Fix: Calculate voltage drop for the expected current and wire length using standard electrical formulas or online calculators. Select a wire gauge that minimizes drop to acceptable levels, typically less than 3-5% of the supply voltage. For signal wires, shielding may also be necessary in electromagnetically noisy environments.
When troubleshooting intermittent issues, consider transient voltage spikes or electromagnetic interference (EMI). These can be caused by switching inductive loads nearby. Routing wires away from such sources, using shielded cable for the signal wire, and employing ferrite beads can often mitigate these issues.
FAQ
What is the primary function of each of the three wires in a pressure transducer?
In a 3-wire pressure transducer, each wire serves a distinct and critical function. The first wire (typically red) provides the positive power supply (+Vcc) to energize the transducer’s internal electronics. The second wire (typically black) establishes the ground reference (GND) for the transducer’s power supply and signal circuit. The third wire (often blue, white, or green) is the signal output (SIG), which transmits an analog voltage proportional to the measured pressure back to the receiving control module or display.
What are the typical operating voltage ranges for 3-wire pressure transducers?
The most common operating voltage ranges for 3-wire pressure transducers are +5VDC, +12VDC, and +24VDC. +5VDC transducers are frequently found in automotive engine management systems, often powered directly from the ECU. +12VDC transducers are common in general automotive and light equipment applications, utilizing the vehicle’s battery voltage, while +24VDC transducers are prevalent in heavy equipment, industrial machinery, and commercial vehicles with 24-volt electrical systems. Always refer to the transducer’s specification sheet for the exact voltage requirements.
Can a 3-wire pressure transducer be used with a 2-wire system?
Directly connecting a 3-wire pressure transducer to a system designed for 2-wire (loop-powered) sensors is generally not possible without an interface module. A 2-wire sensor operates by drawing power and transmitting its signal over the same two wires (typically 4-20mA current loop). A 3-wire sensor requires a dedicated power input, a separate ground, and an independent signal output wire. While custom interfacing solutions might exist, they add complexity and cost. It is always recommended to use sensors that match the system’s intended wiring configuration.
How can I identify the wires on a 3-wire pressure transducer if there’s no color code or datasheet?
If you lack a wiring diagram or manufacturer datasheet, identifying the wires requires caution and a multimeter. First, visually inspect the connector for any stamped numbers (1, 2, 3) or letters (A, B, C) that might correspond to universal pinouts. If not, with power disconnected, use an ohmmeter to check resistance between wires. One common method involves applying a known, safe voltage (e.g., 5V from a regulated lab supply) across two wires, then measuring the voltage on the third wire relative to ground. If you get a stable output that changes with applied pressure, you’ve likely found Vcc, GND, and SIG. Proceed with extreme caution, as incorrect application of voltage can damage the sensor. Always start with the lowest safe voltage. When in doubt, contact the transducer’s manufacturer or replace the unit if identification is impossible.
What precautions should be taken against electromagnetic interference (EMI) when wiring these transducers?
Minimizing EMI is crucial for signal integrity. Route the transducer’s signal wire (and ideally the power wires) away from high-current cables, ignition wires, alternators, and other sources of strong electromagnetic fields. If severe EMI is anticipated, use shielded cable for the transducer wiring, ensuring the shield is properly grounded at one end (typically at the receiving device’s ground, not both ends, to prevent ground loops). Additionally, consider using ferrite beads on the signal wire to suppress high-frequency noise. Proper grounding of both the transducer and the receiving device to a common, clean ground plane is also a primary defense against EMI.
Step-by-Step Guide to Understanding the 3-Wire Pressure Transducer Wiring Diagram: Complete Connection Guide 2026
Identify – Identify the pressure transducer’s specific model and retrieve its official wiring diagram and wire color code from the manufacturer’s datasheet.
Locate – Locate the power supply (+VDC), signal input (e.g., PLC/DCS analog input), and proper chassis or circuit ground wire connections for your system.
Reference – Reference the transducer’s pin assignment: connect the hot wire (Power, often red/brown), ground wire (GND, often black/blue), and signal wire (SIG, often white/green/yellow) as per the diagram.
Connect – Carefully connect each transducer wire to its corresponding terminal on your power supply and signal receiving device, ensuring secure, insulated connections.
Verify – Verify all connections for correct polarity, wire color code matching, and secure mechanical integrity. Use a multimeter to check supply voltage at the transducer.
Troubleshoot – If no signal or incorrect readings, re-check power supply, ground wire connection, and signal path continuity using the provided wiring diagram for common errors.
Frequently Asked Questions
What wire color is power on a 3-wire pressure transducer wiring diagram?
On a 3-wire pressure transducer, the ‘hot wire’ or power input is commonly red or brown. This wire supplies the necessary DC voltage (typically 10-30V) to operate the transducer. Always consult your specific transducer’s datasheet for the definitive wire color code, as variations exist between manufacturers to ensure correct pin assignment.
What do the pin numbers mean on a 3-wire pressure transducer wiring diagram?
Pin numbers on a 3-wire pressure transducer typically denote Power (+V), Ground (GND), and Signal (SIG) connections. For example, Pin 1 might be +V, Pin 2 GND, and Pin 3 Signal. These pin assignments are crucial for correct wiring and preventing damage. Refer to the manufacturer’s documentation for the exact pinout and wire color code for your model.
How many wires does a 3-wire pressure transducer wiring diagram have?
As the name suggests, a 3-wire pressure transducer wiring diagram specifically details connections for three wires. These wires are dedicated to Power, Ground, and an independent Signal output. This configuration ensures a stable power supply for the sensor while providing an isolated, accurate analog signal for your control system, clearly defining each wire’s role.
What are common wiring mistakes with a 3-wire pressure transducer wiring diagram?
Common wiring mistakes include reverse polarity (connecting power to ground or vice-versa), using an incorrect supply voltage, or confusing the signal wire with power/ground. Incorrectly connecting the ground wire or hot wire can instantly damage the transducer. Always double-check your pin assignment against the manufacturer’s wire color code to avoid these issues and ensure proper operation.
Do I need special shielding for the 3-wire pressure transducer signal wire?
For optimal performance, especially in noisy industrial environments, using a shielded cable for the signal wire of your 3-wire pressure transducer is highly recommended. The shielding helps prevent electromagnetic interference (EMI) from corrupting the analog signal, ensuring accurate pressure readings. Properly connect the shield to ground at one end, typically the receiver side, as per the wiring diagram.
What gauge wire does a 3-wire pressure transducer wiring diagram require?
The required wire gauge for a 3-wire pressure transducer depends on cable length and current draw, though transducers typically draw very low current. For most installations up to 100 feet, 22 AWG or 20 AWG shielded twisted pair cable is sufficient. Longer runs or higher current applications might require 18 AWG. Always follow the manufacturer’s recommendations and local electrical codes.
