Universal Golf Cart 48V Ignition Switch Wiring Diagram: Component Repair 2026
A typical golf cart ignition switch connects battery positive to its ‘B’ terminal, then routes power to the controller’s ignition input via the ‘IGN’ terminal when turned on. It often has an ‘ACC’ terminal for accessories. Common wire colors are Red for B+, Yellow or Orange for IGN, and Blue for ACC, ensuring proper circuit activation.
📌 Key Takeaways
- Confirm battery bank voltage (36V or 48V) before wiring any golf cart ignition components.
- Identify B+, IGN (Ignition), and ACC (Accessory) terminals on the ignition switch before connecting any wires.
- Always disconnect the main battery bank negative terminal before working on the golf cart’s electrical system for safety.
- Corroded or loose ignition switch terminals are a primary cause of intermittent power or no-start conditions.
- Consult a certified golf cart technician for complex controller wiring issues or if consistent shorts occur during installation.
Understanding the intricacies of a golf cart’s electrical system, particularly the ignition switch wiring, is paramount for both routine maintenance and advanced diagnostics. This comprehensive guide delves into the specific wiring configurations for common golf cart models, such as the Club Car DS and EZ-GO TXT, focusing on 36 volt system and 48 volt system architectures. The ignition switch serves as the master control for the golf cart’s power, dictating when the vehicle’s primary circuits, including the controller and solenoid, are active. Proper terminal identification, wire color coding, and connection sequencing are critical for ensuring reliable operation and preventing electrical system damage.

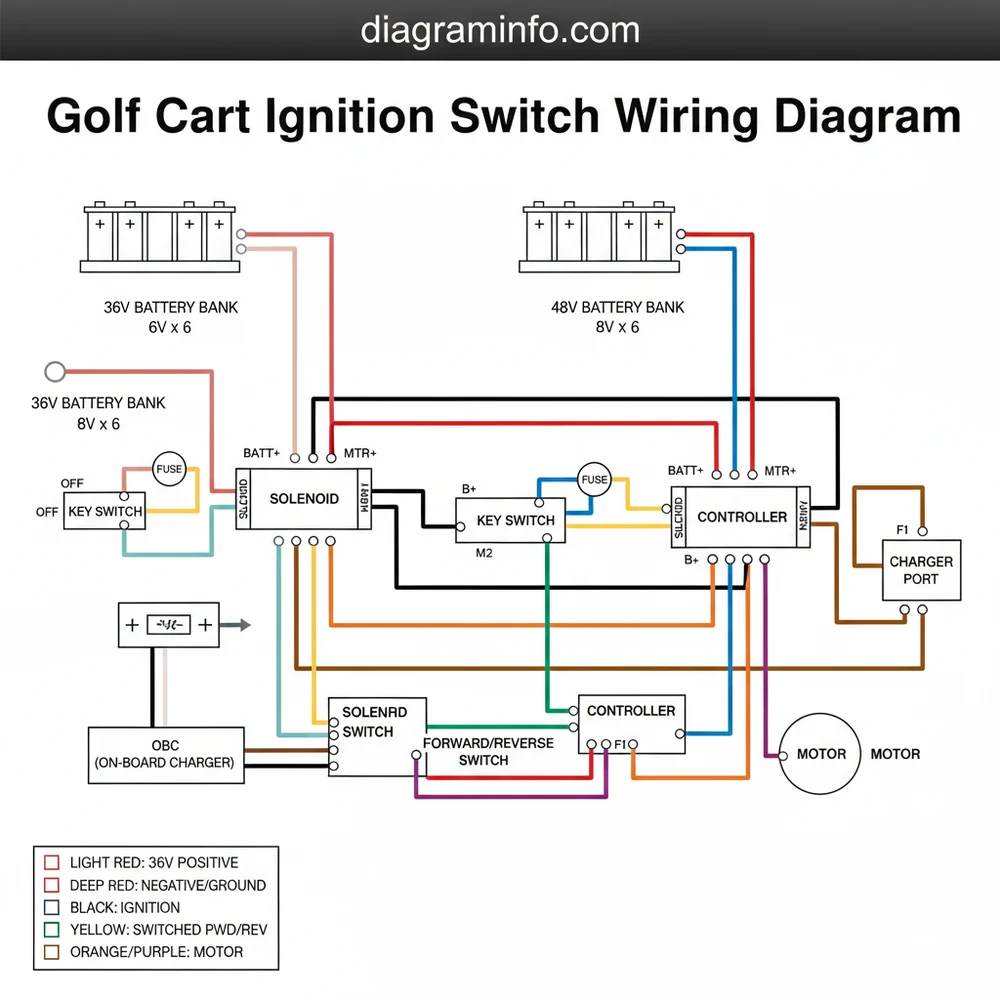

Wire Color Reference Table
While specific wire colors can vary slightly by manufacturer and model year, the following table outlines typical wire colors and their functions for golf cart ignition switch circuits. Always consult your specific golf cart’s OEM wiring diagram for precise identification.
| Wire Color (Typical) | Function | Connect To (From/To) | Notes |
|---|---|---|---|
| Red (Thick) | Battery Positive Input (B+) | Main battery bank positive terminal (via fuse) | Constant 36V or 48V power. Fused. |
| Red (Thin) / Orange | Switched B+ Output (Run) | Controller (Key Switch Input), Solenoid Small Terminal, F/R Switch | Power when ignition is in “RUN” position. |
| Blue / Yellow | Accessory Power Output (ACC/Lights) | Lights, Horn, USB ports, Radio | Power in “ACC” or “RUN” position, depending on switch type. |
| Black | Ground / Battery Negative | Battery bank negative terminal, Chassis Ground | Common ground for accessories, sometimes for switch backlighting. |
| White / Brown | Solenoid Activation / Controller Enable | Solenoid coil (small terminal), Controller logic input | Often carries the switched B+ to enable main power circuits. |
Many modern golf carts utilize a 4- or 5-pin ignition switch. A common configuration includes B+ (Battery Positive), LOAD (Switched Power to Controller/Solenoid), ACC (Accessory Power), and sometimes a START or additional ground/light wire. Confirm your specific switch type and pinout using the manufacturer’s documentation or a multimeter.
Component Connection Guide
The ignition switch is the gateway to your golf cart’s electrical operations. Proper integration with key components like the solenoid, controller, on-board charger (OBC), and motor is crucial for system integrity and performance. As shown in the diagram above, the ignition switch orchestrates the flow of control voltage.
Solenoid Wiring
The solenoid acts as a high-current relay, connecting the main battery bank to the controller. The ignition switch’s role is to activate this relay.
- Main Battery Input: A heavy-gauge Red wire (typically 4AWG or larger for the main battery bank positive) connects to one of the large terminals of the solenoid. This line often originates from the positive terminal of your 48 volt system or 36 volt system battery bank, often passing through a main fuse.
- Controller Output: Another heavy-gauge wire connects the second large solenoid terminal to the B+ input terminal of the motor controller.
- Activation Circuit: The ignition switch’s “RUN” (switched B+) output typically routes to one of the small terminals of the solenoid. This often a thinner gauge Red, Orange, or White wire.
- Ground/Negative Activation: The other small terminal of the solenoid usually receives a ground signal. In many systems (e.g., Club Car DS), this ground is controlled by the controller itself, or it may be a direct connection to the battery negative or a component like the microswitch on the forward reverse switch.
When the ignition switch is turned to “RUN,” it supplies positive voltage to the solenoid’s activation coil, closing the internal contacts and allowing high-current flow to the controller. Refer to your golf cart’s specific model year for variations, as older models might have direct ground, while newer ones often incorporate controller-driven solenoid activation.
Controller Wiring
The motor controller is the brain of your golf cart’s drive system. The ignition switch provides the “wake-up” call.
- Key Switch Input: A designated terminal on the motor controller (often labeled “KS,” “KSI,” “Key Switch Input,” or similar) receives the switched B+ voltage directly from the ignition switch’s “RUN” output. This is typically a thinner gauge wire, Red or Orange, corresponding to the ignition switch’s power output.
- Main Power Input: The controller’s main B+ terminal receives high-current positive voltage from the large terminal of the solenoid, as described above. The main B- terminal connects directly to the battery bank negative.
- Operational Signals: Beyond the ignition input, the controller also receives signals from the throttle pedal sensor, the forward reverse switch, and the run tow switch. The ignition switch’s role is to enable the controller to process these signals and engage the motor. For deeper insights into controller diagnostics, consider exploring our golf cart controller troubleshooting guide.
Manufacturer specs indicate that without the proper voltage on the Key Switch Input, the controller will remain in a standby or off state, regardless of other inputs.
On-Board Charger (OBC) Interaction
The OBC, particularly in models like the Club Car DS 48V system, manages battery charging and prevents operation while charging.
- Interlock Relay: The OBC typically includes a relay that opens the primary circuit to the controller or solenoid when the charger is plugged in. This interlock circuit effectively overrides the ignition switch, ensuring the cart cannot be driven while connected to the charger port.
- Solenoid Bypass: In some configurations, the OBC may also provide a ground path for the solenoid or interrupt the ignition switch’s power to the solenoid to prevent activation during charging.
Ensuring this interlock functions correctly is vital for safety. If your cart moves while charging, inspect the OBC’s interlock wiring. This functionality is separate but complementary to the run tow switch, which isolates power for maintenance, rather than for charging safety.
Motor Wiring
The motor receives its power directly from the controller, not the ignition switch.
- Controller Output: The controller has dedicated output terminals (e.g., A1, A2, F1, F2 for series motors; U, V, W for AC motors) that connect to the motor’s terminals via heavy-gauge cables.
- Ignition’s Indirect Role: The ignition switch’s role for the motor is indirect. By enabling the controller and solenoid, it permits the high-current flow from the battery bank through the controller to the motor, allowing it to turn. If there’s no power from the ignition to the controller, the motor will not receive commands to operate.
For 48V systems, ensure all wiring for the main power circuit (solenoid to controller, controller to motor) is at least 4AWG stranded copper cable, rated for the vehicle’s peak current draw. For control circuits from the ignition switch, 16-18AWG is typically sufficient, but verify wire gauge specifications against OEM manuals.
Common Wiring Problems & Fixes
Issues with the golf cart ignition switch wiring can manifest in various ways, from complete power loss to intermittent accessory function. Diagnosing these problems requires a systematic approach and understanding of the electrical pathways.
1. No Power / Cart Doesn’t Move When Key is On
Diagnosis: If the cart remains completely unresponsive (no solenoid click, no movement) when the key is turned to the “RUN” position, the ignition switch itself or its immediate power supply is often the culprit.
Checks:
- Main Fuse: Verify the main fuse (often inline with the battery positive line to the ignition switch) is intact. Use a multimeter to check for continuity.
- Input Voltage to Ignition: With the ignition in “OFF,” check for full battery voltage (36V or 48V, depending on your system) at the battery input terminal of the ignition switch. If no voltage, trace back to the battery bank.
- Output Voltage from Ignition: With the ignition in “RUN,” check for full battery voltage at the “LOAD” or “KSI” output terminal of the ignition switch. If input voltage is present but no output, the switch is faulty.
- Solenoid Activation Circuit: Trace the ignition’s “RUN” output wire to the small terminal of the solenoid. Confirm voltage presence here when the key is on. If voltage reaches the solenoid but it doesn’t click, the solenoid itself or its ground connection may be faulty. For more detailed solenoid testing, consult our golf cart solenoid testing guide.
Fix: Replace faulty fuse, ignition switch, or repair open circuit in the wiring.
2. Intermittent Power or Stalling
Diagnosis: The cart operates sometimes but intermittently loses power or stalls. This often points to loose connections or a failing ignition switch.
Checks:
- Terminal Integrity: Inspect all connections at the ignition switch, including the main power input and switched outputs, for corrosion, looseness, or signs of arcing.
- Ignition Switch Resistance: With the battery disconnected, use a multimeter to check the internal resistance of the ignition switch across its input and output terminals in the “RUN” position. Excessive resistance (several ohms) or erratic readings indicate an internal switch defect.
- Vibration Testing: Gently wiggle the ignition switch and its wiring while the cart is in “RUN” mode (stationary, on jack stands) to see if power flickers. This can reveal loose internal contacts.
Fix: Clean and tighten all terminals. If the switch shows high resistance or intermittent internal connection, replace the ignition switch.
3. Accessories Not Working with Ignition
Diagnosis: The cart moves, but accessories (lights, horn, radio) do not turn on when the ignition is in the appropriate position (e.g., “ACC” or “RUN” if integrated).
Checks:
- Accessory Output Voltage: With the ignition in the “ACC” or “RUN” position, check for voltage at the accessory output terminal of the ignition switch.
- Accessory Fuse: Many accessory circuits have dedicated inline fuses. Check these for continuity.
- Wiring to Accessories: Trace the accessory power wire from the ignition switch to the first accessory or accessory fuse block. Look for open circuits or damaged insulation.
Fix: Replace fuse, repair wiring, or replace ignition switch if the accessory output terminal is faulty.
Before performing any electrical work or diagnosis on your golf cart, always disconnect the main battery bank by placing the run tow switch in the “TOW” position or disconnecting the main negative cable. Failure to do so can result in severe electrical shock, component damage, or fire.
FAQ
What are the common types of golf cart ignition switches?
Golf cart ignition switches typically come in a 2-position (Off/Run) or 3-position (Off/Run/Lights or Off/Run/Accessories) configuration. Some specialized switches may include a “Start” position for internal combustion engine carts or additional functions. The number of terminals usually corresponds to the number of positions plus a common input, often 3-5 terminals in total. Always verify the terminal functions against your specific model’s wiring schematic.
Can I upgrade my 36V system ignition switch to a 48V system switch?
While physically similar, ignition switches are generally rated for a specific voltage and current capacity. A 36V switch may operate in a 48V system if its internal contacts can handle the increased voltage and the current draw of the control circuits it powers. However, it is always recommended to use a switch specifically designed and rated for your golf cart’s operating voltage (e.g., a 48V rated switch for a 48 volt system) to ensure longevity and prevent premature failure or overheating.
How do I test if my golf cart ignition switch is bad?
To test an ignition switch, first disconnect the battery bank. Use a multimeter set to continuity or resistance mode. Identify the main battery input terminal (often marked “B” or “BAT”) and the switched output terminals (“S” or “LOAD” for run, “A” or “ACC” for accessories). With the key in the “OFF” position, there should be no continuity between any terminals. In the “RUN” position, there should be continuity between “B” and “S” (and “A” if it’s a 3-position switch that powers accessories in run). In the “ACC” position (if applicable), there should be continuity between “B” and “A”. If any of these tests fail, the switch is likely faulty.
Does the ignition switch directly control the motor?
No, the ignition switch does not directly control the motor. Its primary function is to provide a low-current control signal (switched battery voltage) to enable the main power components, specifically the solenoid and the motor controller. When the ignition is “ON,” it energizes the solenoid’s coil, allowing high-current flow to the controller. The controller then processes signals from the throttle and forward reverse switch to regulate power to the motor. The ignition switch effectively acts as a master enable for the drive system.
What role does the run tow switch play with the ignition system?
The run tow switch is a critical safety and maintenance component that provides an additional layer of control over the entire electrical system. When in the “TOW” position, it disconnects the main battery bank from the rest of the golf cart’s electrical system, including the ignition switch, controller, and solenoid. This effectively renders the ignition switch inoperable and prevents any power draw, making it safe for towing, maintenance, or extended storage. When in “RUN,” it re-establishes the connection, allowing the ignition switch to then control the power flow. Always ensure the run tow switch is in “TOW” before working on any high-voltage components.
Step-by-Step Guide to Understanding the Universal Golf Cart 48V Ignition Switch Wiring Diagram: Component Repair 2026
Identify – Locate the golf cart ignition switch and its associated wire harness.
Locate – Find the main battery bank and safely disconnect the negative terminal for safety precautions.
Reference – Consult the specific golf cart ignition switch wiring diagram for your model and voltage system (e.g., 36V or 48V).
Connect/Route – Route and connect the B+, IGN (Ignition), and ACC (Accessory) wires to their correct terminals on the switch, ensuring secure and insulated connections.
Verify – Reconnect the battery bank, then test the ignition switch’s functionality with a multimeter to confirm proper voltage output at the IGN and ACC terminals when turned ON.
Troubleshoot – If the cart doesn’t power on, re-check all connections, wire continuity, and the solenoid for proper activation as per the wiring diagram.
Frequently Asked Questions
What voltage is golf cart ignition switch wiring diagram?
Golf cart ignition switch wiring diagrams typically apply to either 36-volt or 48-volt systems, which are the most common battery bank configurations. The switch itself is usually rated for the system voltage, ensuring it can handle the electrical load and safely activate the controller and other components.
What do the wire colors mean on golf cart ignition switch wiring diagram?
Common wire colors on a golf cart ignition switch wiring diagram include Red for battery positive (B+), Yellow or Orange for the ignition output to the controller, and Blue for accessory power. Black wires often indicate ground. Always consult your specific cart’s diagram as colors can vary by manufacturer and model.
How do I troubleshoot golf cart ignition switch wiring diagram that won’t run?
First, check for continuity across the ignition switch terminals using a multimeter when in the ‘ON’ position. Verify the 36-volt or 48-volt battery bank voltage reaches the switch. Then, confirm the ignition output wire (often Yellow/Orange) receives power when the switch is engaged, indicating a healthy ignition switch. Check solenoid activation next.
What is the solenoid wiring on golf cart ignition switch wiring diagram?
The solenoid wiring often involves two small wires for the coil (one from the ignition switch output, the other typically grounded via a controller or microswitch) and two large wires for the main power. When the ignition switch activates the coil, the solenoid engages, allowing high current from the battery bank to flow to the motor controller.
How many batteries does golf cart ignition switch wiring diagram have?
A 36-volt golf cart typically uses six 6-volt batteries wired in series, while a 48-volt system often uses four 12-volt batteries or six 8-volt batteries, also in series. The ignition switch itself doesn’t have batteries, but its wiring diagram details how it integrates with the primary battery bank to power the cart’s electrical system.
What gauge wire does golf cart ignition switch wiring diagram use?
For the ignition switch’s primary input and output wires (carrying control current), 16-18 gauge wire is typically sufficient. However, for the main battery bank connections to the solenoid and controller, much heavier 2-4 gauge wire is essential due to the high amperage. Always match wire gauge to the expected current load to prevent overheating.
