Cub Cadet Starter Solenoid Wiring Diagram: Complete Connection Guide 2026
A typical Cub Cadet starter solenoid connects the battery’s positive cable to one large terminal, the starter motor’s positive cable to the other large terminal, and a small ignition switch wire (often red/white or yellow) to a small terminal, activating the solenoid to engage the starter. A robust ground wire ensures proper circuit completion.
📌 Key Takeaways
- Identify two large terminals for battery (input) and starter motor (output), and one or two small terminals for control signals.
- Confirm the primary high-current battery positive cable (typically 4-6 AWG red) connects to the solenoid’s designated large battery terminal.
- Ensure the ignition switch signal wire (often 18-20 AWG, yellow or red/white) provides a consistent 12V signal to activate the solenoid’s control coil.
- The most common failure points are loose, corroded, or dirty connections at the solenoid, battery terminals, or ground points, leading to high resistance and starting issues.
- Seek professional assistance if, after checking all external connections and battery voltage, the solenoid still fails to engage the starter or exhibits intermittent behavior.

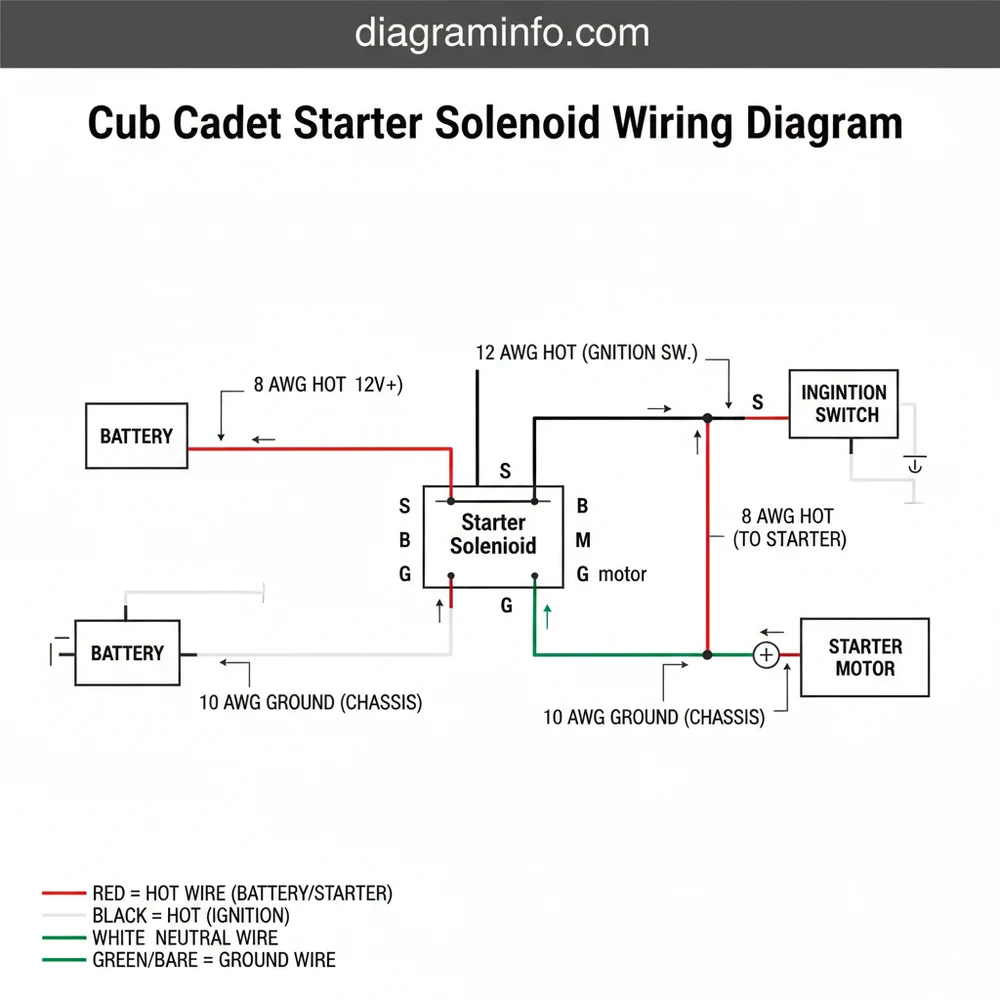

This guide provides a precise understanding of the Cub Cadet starter solenoid wiring diagram, a critical component for engine ignition in your equipment. For mechanics and experienced technicians, comprehending the exact wire color code, pin assignment, and proper wiring sequence is paramount for accurate diagnostics, repair, and replacement. This detailed diagram analysis ensures reliable starter engagement, preventing common no-start conditions attributable to incorrect electrical connections. Mastering this wiring schematic is essential for maintaining the operational integrity of your Cub Cadet machinery.
While specific wire colors and terminal designations can vary slightly by Cub Cadet model year and engine type, the fundamental operational principle of the starter solenoid and its electrical connections remain consistent. Always consult your specific equipment’s service manual for the most accurate and up-to-date wiring schematic.
WIRE COLOR REFERENCE TABLE
| Wire Color (Typical) | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Heavy Gauge Red | Battery Positive (12V Hot) | Large Terminal 1 (BAT) | Direct connection from battery positive post. Often equipped with a terminal block for chassis distribution. |
| Heavy Gauge Black (or Red) | Starter Motor Positive Feed | Large Terminal 2 (MTR) | Connects directly to the starter motor’s positive terminal. Only energized during cranking. |
| Small Gauge Yellow/White | Ignition Switch Start Signal (12V) | Small Terminal 1 (S/IGN) | Provides 12V from the ignition switch ‘START’ position, typically after passing through safety interlock switches (e.g., PTO, seat, brake). |
| Small Gauge Black/Brown/Green | Solenoid Coil Ground | Small Terminal 2 (GND/M) | Completes the ground path for the solenoid coil. On many Cub Cadets, this ground is provided through the series of safety interlock switches. |
| Heavy Gauge Black | Battery Negative (Ground) | Chassis/Engine Block | Direct connection from battery negative post to chassis ground. Essential for a complete circuit. |
STEP-BY-STEP CONNECTION GUIDE
Before commencing any electrical work, always disconnect the battery’s negative terminal first to prevent accidental short circuits or electrical shock. Verify the absence of voltage with a multimeter before handling any wires.
Properly wiring a Cub Cadet starter solenoid demands meticulous attention to detail, gauge selection, and terminal identification. This guide outlines the standard procedure for a typical four-terminal solenoid. Refer to the “cub cadet starter solenoid wiring diagram” specific to your model year for precise configurations.
1. Mount the Starter Solenoid: Securely mount the new starter solenoid to the chassis using its designated mounting holes. Ensure a clean, unpainted metal surface for optimal grounding, as some solenoids use the mounting bracket as part of their ground path.
2. Connect Battery Positive to Large Terminal 1 (BAT): Identify the heavy gauge Red wire originating from the positive (+) terminal of the battery. This is your primary 12V hot wire. Connect this wire to the large terminal of the solenoid typically labeled ‘BAT’ or marked with a ‘+’ symbol. Ensure the connection is tight and free of corrosion. For OEM specifications, the wire gauge should be 6 AWG or 4 AWG, depending on the engine’s cranking amperage.
3. Connect Starter Motor to Large Terminal 2 (MTR): Locate the heavy gauge wire (often Black or Red) that runs directly to the positive terminal of the starter motor. Connect this wire to the other large terminal on the solenoid, commonly labeled ‘MTR’ or ‘ST’. This terminal supplies high current to the starter motor only when the solenoid is activated. Confirm the connection’s integrity for maximum current flow.
4. Connect Ignition Switch Signal to Small Terminal 1 (S/IGN): Identify the smaller gauge wire (typically Yellow with a White stripe or solid Yellow) that carries the 12V ‘start’ signal from the ignition switch. This signal passes through various safety interlock switches (e.g., PTO switch, seat switch, brake/clutch switch). Connect this wire to one of the small terminals on the solenoid, usually marked ‘S’ or ‘IGN’. This terminal activates the solenoid coil when 12V is applied.
5. Connect Solenoid Coil Ground to Small Terminal 2 (GND/M): Find the other small gauge wire (often Black, Brown, or Green) that completes the ground path for the solenoid’s internal coil. On many Cub Cadet models, this ground path is routed through the series of safety interlock switches. For instance, if the PTO is engaged, the safety switch will interrupt this ground path, preventing the solenoid from energizing. Connect this wire to the remaining small terminal on the solenoid, sometimes marked ‘M’ or ‘GND’. Verify continuity to ground through the safety switch circuit when all safety conditions are met. This is a critical component of the equipment’s safety system.
6. Connect Battery Negative to Chassis Ground: Ensure a heavy gauge Black wire connects the battery’s negative (-) terminal directly to a clean, unpainted section of the chassis or engine block. This ground wire is vital for the entire electrical system. Verify its tightness and condition.
7. Final Inspection and Testing: Double-check all connections for tightness and correct routing as per the Cub Cadet starter solenoid wiring diagram. Reconnect the battery’s negative terminal. Test the starter operation by engaging the ignition switch to the ‘START’ position, ensuring all safety conditions (e.g., PTO disengaged, brake set, operator on seat) are met.
For starter motor applications on most Cub Cadet equipment, the primary battery and starter cables (hot wire and ground wire) should be minimum 6 AWG copper, with 4 AWG recommended for longer runs or higher amperage starter motors. Control wires (ignition signal, ground for coil) are typically 16-18 AWG. Ensure all terminals are torqued to manufacturer specifications, often between 45-60 in-lbs for large terminals and 15-20 in-lbs for small terminals, to prevent resistance and heat buildup.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Incorrect wiring or overlooked details can lead to persistent starting issues on Cub Cadet equipment. Understanding these common mistakes and their specific troubleshooting steps is crucial for efficient repairs.
1. Reversing Solenoid Control Wires (Small Terminals):
Consequence: The solenoid will likely not click or engage, even if 12V is present. While some solenoids are non-polarity sensitive on their coil control, many Cub Cadet units rely on a specific 12V input on one small terminal and a ground path on the other, often through safety switches. Reversing these can disrupt the intended coil activation circuit.
Fix: Consult the specific Cub Cadet starter solenoid wiring diagram for your model. Typically, the small terminal receiving 12V from the ignition switch (Yellow/White wire) is distinct from the small terminal providing the ground path through the safety interlock system (Black/Brown/Green wire). Correctly identify and connect the wires based on the schematic.
2. Inadequate Ground Connection for Solenoid or Battery:
Consequence: A poor ground wire connection can manifest as a weak click from the solenoid, no click at all, or erratic starter engagement. If the main battery ground is compromised, the entire electrical system will suffer from insufficient voltage and current.
Fix: Ensure the battery’s negative cable (heavy gauge Black wire) is securely fastened to a clean, unpainted section of the chassis or engine block. Clean any corrosion from the terminal and contact point. For the solenoid’s coil ground, verify the integrity of the small gauge wire running from the solenoid to its ground point via the safety switches. Test for continuity with a multimeter between the solenoid’s ground terminal and chassis ground when all safety conditions are met.
3. Incorrect Wire Gauge or Corroded Cables:
Consequence: Using wires that are too thin (high gauge number) for the high current paths (battery to solenoid, solenoid to starter) will result in voltage drop, excessive heat generation, and a sluggish or non-cranking starter motor. Corroded terminals or wires exhibit similar symptoms, increasing resistance in the circuit.
Fix: Always use the OEM-specified wire gauge (typically 6 AWG or 4 AWG for primary power). Replace any heavily corroded battery cables, starter cables, or solenoid control wires. Clean all terminal connections thoroughly with a wire brush, ensuring shiny metal-to-metal contact. Apply dielectric grease to prevent future corrosion.
4. Bypassing Safety Switches Improperly:
Consequence: While troubleshooting, technicians might temporarily bypass safety switches. However, if this bypass is performed incorrectly or left in place, it can lead to hazardous operation, and in some cases, still prevent the solenoid from engaging if the circuit logic is misunderstood.
Fix: Understand that Cub Cadet safety circuits often complete a ground path to the solenoid’s coil, rather than providing the 12V signal directly. If a temporary bypass is needed, ensure it correctly completes the circuit (either by providing 12V or ground, as per the OEM Cub Cadet starter solenoid wiring diagram) to the solenoid’s small terminals. For permanent repair, diagnose and replace the faulty safety switch.
5. Loose or Damaged Terminal Block Connections:
Consequence: Many Cub Cadet models utilize a terminal block (often located near the battery or fuse panel) to distribute battery power and connect various accessories. Loose or corroded connections at this block can interrupt power to the solenoid’s main hot wire or the ignition switch, leading to intermittent or no-start conditions.
Fix: Inspect the main terminal block for any signs of corrosion, loose wires, or burnt connections. Clean and tighten all fasteners on the terminal block, ensuring each wire has a secure connection. Test for voltage presence at all relevant points of the terminal block using a multimeter to confirm proper power distribution.
FAQ
What is the typical voltage for a Cub Cadet starter solenoid circuit?
The Cub Cadet starter solenoid operates within a 12-volt DC electrical system. The large terminals handle high current (hundreds of amps) from the 12V battery to the starter motor, while the small control terminals require a 12V signal to energize the solenoid coil, typically drawing less than 1 amp. Consistent 12V at the solenoid control circuit is essential for proper function.
Can I use a 3-terminal solenoid instead of a 4-terminal on my Cub Cadet?
Generally, no. Most Cub Cadet equipment that uses a 4-terminal solenoid relies on both small terminals for specific circuit functions: one for the 12V ignition signal and the other to complete the ground path for the solenoid coil, often routed through the safety interlock system. A 3-terminal solenoid typically has an integrated ground and would not provide the necessary connection points for the safety circuit’s ground path, leading to a no-start condition or bypassing critical safety features. Always use the OEM-specified solenoid type.
What role do safety switches play in the starter solenoid wiring?
Safety switches are integral to the Cub Cadet starter solenoid wiring diagram, ensuring the equipment only starts under safe operating conditions. These switches (e.g., PTO disengaged, brake applied, operator in seat) are typically wired in series, forming a critical part of the solenoid’s control circuit. On many models, they complete the ground path for the solenoid’s coil. If any safety switch is open, the circuit is incomplete, preventing the solenoid from energizing and the engine from cranking. Understanding these interlocks is key to diagnosing starting issues.
How can I test if my starter solenoid is faulty?
To test the solenoid, first ensure the battery is fully charged and all cable connections are clean and tight. With the negative battery cable disconnected for safety, you can perform a continuity test on the coil. Reconnect the battery, then apply 12V directly to the small ‘S/IGN’ terminal and connect the small ‘GND/M’ terminal to a known good chassis ground (if it doesn’t already go to ground via safety switches). A healthy solenoid should produce an audible “click” as the internal plunger engages. If it clicks, then test for continuity between the two large terminals (BAT and MTR) to confirm the main contacts are closing. If it clicks but the starter still doesn’t engage, or if there’s no click, the solenoid is likely faulty. For more detailed diagnostics, refer to this detailed guide on Cub Cadet starter troubleshooting.
What gauge wire should I use if I need to replace the battery cables connected to the solenoid?
According to OEM specifications for most Cub Cadet lawn and garden tractors, the primary battery cables connecting the battery to the starter solenoid (hot wire) and the solenoid to the starter motor should be a heavy gauge, typically 6 AWG (American Wire Gauge) or 4 AWG. The ground wire from the battery to the chassis should also be of similar heavy gauge. Using smaller gauge wires can cause excessive voltage drop during cranking, leading to poor starter performance or component damage. For electrical system maintenance, it is always recommended to use high-quality, marine-grade copper wire to ensure optimal current flow and prevent corrosion. This often ties into understanding the broader lawn tractor electrical system basics.
Step-by-Step Guide to Understanding the Cub Cadet Starter Solenoid Wiring Diagram: Complete Connection Guide 2026
Identify – Locate the starter solenoid, battery, ignition switch, and starter motor components on your Cub Cadet for proper context.
Locate – Reference the specific Cub Cadet wiring diagram to identify the precise terminal designations (e.g., B for battery, S for switch, M for motor, G for ground) on your solenoid model.
Reference – Match the wire color codes and gauge sizes from the wiring diagram to the physical wires connected to or extending from each component, noting specific LSI keywords like wire color code and pin assignment.
Connect/Route – Securely connect the large battery positive cable (hot wire) to the solenoid’s battery terminal, and the large starter motor cable to its dedicated terminal. Connect the ignition signal wire to the small ‘S’ (switch) terminal, ensuring all connections are tight and corrosion-free.
Verify – After all connections, use a multimeter to check for correct voltage (12V) at the solenoid’s ‘S’ terminal when the ignition key is turned to the start position, and confirm continuity for the ground wire.
Troubleshoot – If the starter doesn’t engage, systematically check for loose connections, corroded terminals, or insufficient battery voltage (below 12.4V). Test the solenoid’s control circuit, and if necessary, diagnose the starter motor or battery before replacing components.
Frequently Asked Questions
What wire color is the ignition signal on cub cadet starter solenoid wiring diagram?
The ignition signal wire to a Cub Cadet starter solenoid is commonly yellow or red with a white stripe. This smaller gauge wire (typically 18-20 AWG) carries 12V from the ignition switch, activating the solenoid’s internal coil. It energizes the coil, closing the main contacts to send power to the starter motor.
What do the terminals mean on cub cadet starter solenoid wiring diagram?
On a Cub Cadet starter solenoid, the two large terminals are for high-current connections: one for the battery’s positive cable and the other for the starter motor’s positive cable. The smaller terminal(s) connect to the ignition switch (control signal) and sometimes a ground, completing the low-current activation circuit.
How many wires does cub cadet starter solenoid wiring diagram have?
A typical Cub Cadet starter solenoid wiring diagram shows 3 to 4 wires. These usually include a large positive wire from the battery, a large positive wire to the starter motor, and one or two smaller wires for the ignition switch signal and, sometimes, a separate ground connection for the control circuit.
What are common wiring mistakes with cub cadet starter solenoid wiring diagram?
Common mistakes include incorrect polarity on battery connections, loose or corroded terminals causing voltage drop, using an undersized gauge wire for high-current paths, and misidentifying the ignition switch signal wire. Improper grounding for the solenoid’s control circuit can also prevent it from activating, leading to no-start conditions.
Do I need a brake controller for cub cadet starter solenoid wiring diagram?
No, a brake controller is completely unrelated to a Cub Cadet starter solenoid wiring diagram. A brake controller is used for towing trailers equipped with electric brakes. The starter solenoid is an electrical relay critical for engaging the engine’s starter motor on the lawn tractor itself, facilitating engine startup.
What gauge wire does cub cadet starter solenoid wiring diagram require?
For the high-current battery and starter motor connections, a Cub Cadet starter solenoid typically requires heavy-gauge wire, such as 4 AWG or 6 AWG, to handle significant current flow without excessive voltage drop. The smaller ignition control wire for the solenoid’s activation circuit usually requires 18 AWG to 20 AWG wire.
