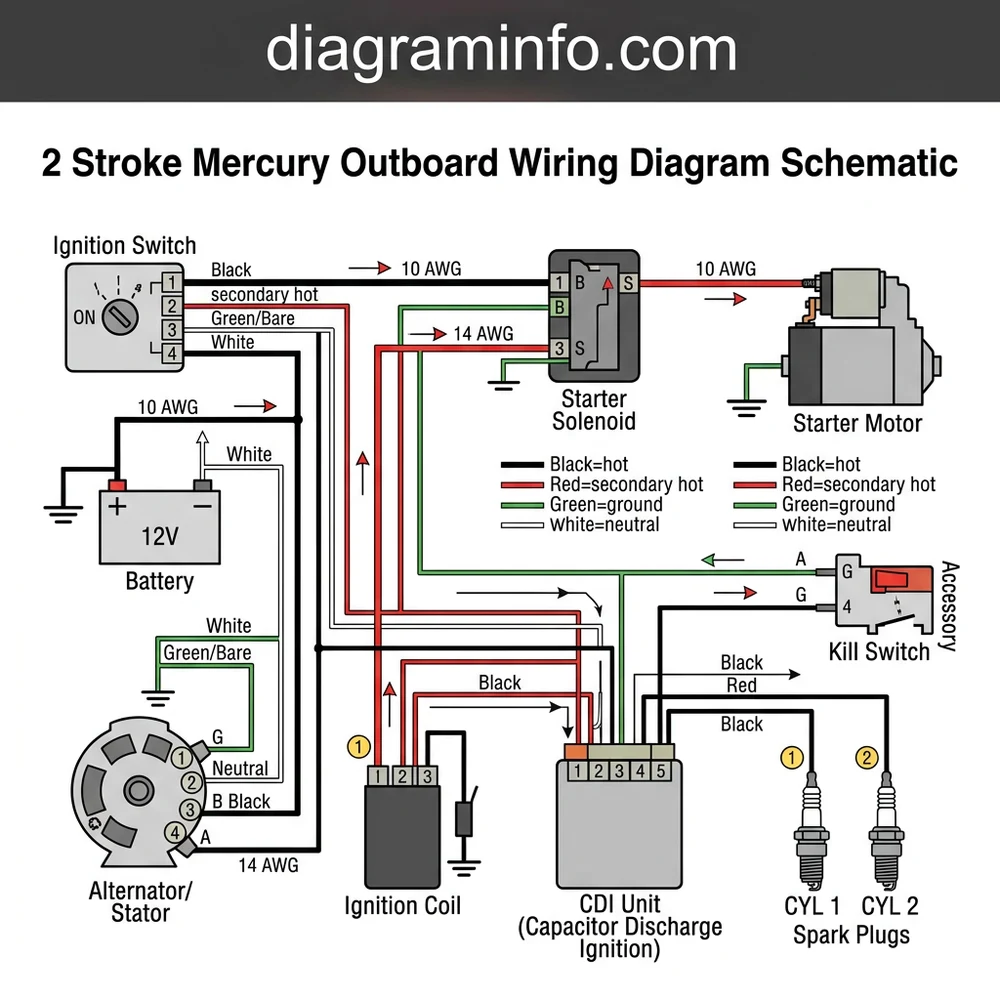

Mercury 2-Stroke Outboard Wiring Diagram: Routing & Troubleshooting 2026
On Mercury 2-stroke outboards, common ground wires are black, while hot wires vary (e.g., red for battery, purple for ignition). Key components like rectifiers and solenoids have specific pin assignments. Always reference your exact model’s wiring diagram for precise wire color code and connections.
📌 Key Takeaways
- Most Mercury 2-stroke outboards use black for ground wires and red for battery positive, with purple often indicating ignition switched power.
- Always verify the wire color code against your specific model’s wiring diagram schematic, as variations exist even within the same brand.
- Ensure all electrical connections are clean, corrosion-free, and secured with the correct crimps or torque specifications to prevent intermittent faults.
- The most common wiring mistakes include incorrect pin assignment, reversed polarity on accessories, or chafed insulation leading to shorts.
- For persistent electrical issues or high-voltage component repairs (e.g., CDI units), seek professional Mercury-certified technician assistance to ensure safety and prevent damage.
Understanding the intricate wiring of a 2-stroke Mercury outboard is paramount for reliable operation, accurate diagnostics, and safe maintenance. This comprehensive guide, complemented by a detailed 2 stroke mercury outboard wiring diagram schematic, provides experienced technicians and dedicated marine enthusiasts with the precise information needed to correctly interpret and manipulate the electrical systems. From identifying critical wire color code standards to deciphering specific pin assignment configurations on multi-pin connectors, mastery of this schematic ensures proper functionality and prevents costly electrical failures. Precision in every connection is not merely recommended; it is essential for the longevity and performance of your Mercury powerhead.
WIRE COLOR REFERENCE TABLE
The following table outlines standard wire color code conventions commonly found in Mercury 2-stroke outboard motor harnesses. While specific models and years may exhibit minor variations, these codes represent the foundational electrical language for most Mercury systems. Always consult your specific engine’s service manual for the most accurate and year-specific information.
| Wire Color | Function | Pin/Terminal | Notes | |
|---|---|---|---|---|
| Red (Heavy Gauge) | Main Battery Positive (Hot Wire) | Battery (+) Post, Main Power Stud | Unswitched +12V DC, typically 8 or 6 gauge. | |
| Black (Heavy Gauge) | Main Battery Negative (Ground Wire) | Battery (-) Post, Engine Block | Main system ground, essential for all circuits. | |
| Purple (Red/Purple) | Ignition Switch (Key ON, Switched +12V) | “IGN” or “A” Terminal on Switch | Powers gauges, CDI, and accessory circuits. | |
| Yellow/Red | Start Circuit (Ignition Switch to Solenoid) | “START” or “S” Terminal on Switch | Momentary +12V for starter solenoid activation. | |
| Orange | Tachometer Signal | “TACH” Terminal on Gauge/Rectifier | AC pulse signal for RPM reading. | |
| Brown | Trim/Tilt Motor (UP) | Relay/Switch Output, Motor Input | Reverses polarity with Blue wire for DOWN. | |
| Blue | Trim/Tilt Motor (DOWN) | Relay/Switch Output, Motor Input | Reverses polarity with Brown wire for UP. | |
| Gray | Temperature Sender Input | Gauge Input, Sender Output | Varies resistance with temperature. | |
| Tan | Oil Pressure/Level Sender | Gauge Input, Sender Output | Typically a low-oil warning (ground signal). | |
| White | Kill Switch / Stop Circuit | CDI input, Kill Switch output | Grounds ignition to kill spark (often Black/Yellow too). | |
| Yellow (or Brown/Yellow) | Stator AC Output to Rectifier/Regulator | Rectifier Input (AC) | Generates unregulated AC voltage for charging. | |
| Red/White | Choke Solenoid Power | “CHOKE” or “C” Terminal on Switch | Momentary +12V for choke activation. |
STEP-BY-STEP CONNECTION GUIDE
Properly connecting the various components of your 2-stroke Mercury outboard’s electrical system requires meticulous attention to the 2 stroke mercury outboard wiring diagram schematic and precise identification of each wire’s function. This guide details the critical steps for establishing a robust and functional electrical network, focusing on correct wire color code adherence and terminal identification.
Always disconnect the battery’s negative terminal before performing any electrical work to prevent accidental shorts and potential injury. Verify all connections with a multimeter before applying power.
- Battery & Main Power Distribution:
- Connect the heavy-gauge Red (hot wire) cable from the battery’s positive (+) post to the main power stud on the engine’s starter solenoid. Ensure a clean, secure connection.
- Attach the heavy-gauge Black (ground wire) cable from the battery’s negative (-) post to a designated engine block ground point. Confirm continuity to other engine components using a multimeter.
- From the main power stud, the Red wire typically branches to the ignition switch’s “BAT” terminal and often to a main circuit breaker or fuse block.
- Ignition Switch Wiring:
- Connect the Red wire from the main power feed to the “BAT” (Battery) terminal of your ignition switch. This provides constant +12V.
- Connect the Purple (or Red/Purple) wire from the ignition switch’s “IGN” (Ignition) or “A” (Accessory) terminal. This wire will provide switched +12V to the CDI, gauges, and other accessories when the key is in the ON position.
- Attach the Yellow/Red wire from the ignition switch’s “START” or “S” terminal to the small activation terminal on the starter solenoid. This momentary connection energizes the solenoid to engage the starter motor.
- If your system includes a choke, connect the Red/White wire to the “CHOKE” or “C” terminal on the ignition switch.
- Ensure all pin assignments on the multi-pin connector at the ignition switch match your specific schematic, as variations exist between generations.
- Starter Solenoid & Motor:
- The heavy-gauge Red wire from the battery connects to one large post of the solenoid.
- A second heavy-gauge cable (often Black or Red) connects the other large post of the solenoid to the starter motor’s input terminal.
- The Yellow/Red wire from the ignition switch connects to the small trigger terminal of the solenoid. The other small terminal is typically grounded (Black wire).
- Charging System (Stator & Rectifier/Regulator):
- Locate the Yellow wires (typically two or three) emanating from the stator under the flywheel. These carry unregulated AC voltage.
- Connect these Yellow wires to the corresponding AC input terminals on the rectifier/regulator. Refer to the 2 stroke mercury outboard wiring diagram schematic for exact pin assignment.
- The Red wire from the rectifier/regulator’s output will connect to the main Red power distribution circuit (e.g., the starter solenoid’s battery post), providing regulated DC voltage to recharge the battery.
- The Black wire from the rectifier/regulator connects to a solid ground wire point on the engine block.
- CDI/ECM & Ignition Components:
- The CDI unit receives its primary power from the Purple wire (switched +12V).
- Ground wire connections (Black) are critical for the CDI.
- Trigger wires (various colors, e.g., Green/White, Blue/White, Yellow/Black depending on model) from the trigger coil connect to specific input pin assignments on the CDI.
- The White or Black/Yellow kill switch wire connects to the CDI to provide a ground signal for engine shutdown.
- Ignition coil primary wires (e.g., Red or Green depending on cylinder) connect from the CDI outputs to the individual ignition coils.
- Gauges & Accessories:
- For each gauge (tachometer, trim, fuel, temp):
- Power (+12V): Connect a Purple wire (switched +12V) to the gauge’s “IGN” or “Power” terminal.
- Ground Wire: Connect a Black wire to the gauge’s “GND” terminal.
- Sender Wire: Connect the specific sender wire (e.g., Orange for tachometer signal, Gray for temperature, Pink for fuel, Tan for oil) to the corresponding gauge input.
- Ensure proper connections at the main engine terminal block and helm harness connectors.
- For each gauge (tachometer, trim, fuel, temp):
Each connection must be clean, tight, and corrosion-free. Consider dielectric grease for weather-exposed terminals. Refer to our detailed guide on Mercury ignition systems for more in-depth troubleshooting of CDI units.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even with a detailed 2 stroke mercury outboard wiring diagram schematic, certain common mistakes can lead to significant operational issues. Understanding these pitfalls and their corrective actions is crucial for any technician or DIY enthusiast. Incorrect electrical connections can not only cause performance problems but also create safety hazards or damage expensive components.
- Incorrect Wire Gauge for Main Power:
- Consequence: Using an undersized gauge wire (e.g., 10-gauge instead of 6-gauge) for the main battery power can lead to excessive voltage drop during cranking, causing the starter motor to turn slowly or not at all. This also generates heat, posing a fire risk.
- Fix: Always adhere to manufacturer specifications for main battery cables. For most Mercury 2-strokes, this means 6 AWG or 8 AWG for runs under 20 feet, and heavier for longer runs. Ensure connections are crimped securely with appropriate terminals.
- Poor Ground Connections (Ground Wire Issues):
- Consequence: A corroded, loose, or inadequate ground wire connection is a prevalent cause of intermittent electrical problems. Symptoms include dim lights, erratic gauge readings, misfiring, or a complete lack of spark.
- Fix: Inspect all Black ground wires, especially the main engine ground strap. Clean all contact surfaces thoroughly, removing paint, rust, and corrosion. Apply dielectric grease to protect the connection. Verify continuity from the battery negative post to various engine components using a multimeter.
- Reversed Polarity (Especially for Accessories):
- Consequence: While main battery connections are often physically impossible to reverse due to different terminal sizes, reversing polarity for certain accessories (e.g., electronic fuel pumps, trim/tilt motors if not using relays, or some gauges) can immediately blow fuses, damage the component, or even the boat’s electrical system.
- Fix: Always double-check Red (hot wire) and Black (ground wire) connections with a multimeter before energizing a circuit. The Red wire always connects to the positive side of the component, and Black to the negative/ground.
- Improper Kill Switch Wiring:
- Consequence: An incorrectly wired kill switch (often White or Black/Yellow) can prevent the engine from starting or cause it to unexpectedly shut down. If the wire is shorted to ground permanently, the engine will never spark. If it’s open-circuited when it should be grounded, the engine won’t shut off.
- Fix: Verify the kill switch’s operation by checking for continuity. When the kill switch is activated (lanyard removed or button pressed), the kill wire should show continuity to ground. When deactivated, it should be open (no continuity to ground). Refer to the specific pin assignment for the CDI on your model.
- Corroded or Loose Connections at Terminal Blocks/Connectors:
- Consequence: Over time, exposure to the marine environment causes corrosion. Loose connections increase resistance, leading to voltage drop, heat buildup, and intermittent faults that are notoriously difficult to diagnose.
- Fix: Periodically inspect all multi-pin connectors and terminal blocks for corrosion. Use electrical contact cleaner to remove buildup and a small pick to ensure proper pin assignment tension. Apply marine-grade dielectric grease to prevent future corrosion. Consider replacing severely corroded terminals or connectors. For more insights on preventing corrosion, see our guide on marine electrical corrosion prevention.
FAQ
Q: How do I test the voltage output of my rectifier/regulator?
A: To test the rectifier/regulator, connect a multimeter set to DC voltage across the battery terminals with the engine running at approximately 1500-2000 RPM. A healthy system should show a reading between 13.5V and 14.5V DC. If the voltage is significantly lower (below 12.5V) or higher (above 15V), the rectifier/regulator may be faulty. Remember to also check the AC voltage input from the stator to the rectifier; it should be unregulated AC voltage, typically 15-30V AC at idle and rising with RPM, but consult your specific 2 stroke mercury outboard wiring diagram schematic for exact values.
Typical Rectifier/Regulator Output (Engine Running): 13.5V – 14.5V DC at 1500-2000 RPM. Input from Stator: Variable AC voltage, typically 20V+ AC at higher RPMs.
Q: What is the purpose of the neutral wire or neutral safety switch in the wiring?
A: The neutral wire, or more accurately, the neutral safety switch, is a crucial safety interlock that prevents the engine from starting when it is in gear. This switch is typically located in the shift mechanism of the control box or on the engine itself. It completes a circuit (usually the Yellow/Red start circuit) only when the engine is in neutral. If this switch is faulty or bypassed, the engine could inadvertently start in gear, posing a significant safety risk. The 2 stroke mercury outboard wiring diagram schematic will show this switch in series with the start solenoid activation wire.
Q: Can I upgrade the wire gauge on my older Mercury outboard?
A: Yes, in many cases, upgrading the wire gauge, especially for main battery and ground connections, can improve electrical system performance, particularly for longer runs or if you’ve added accessories. Using a slightly heavier gauge wire (e.g., upgrading from 8 AWG to 6 AWG for main battery cables) reduces voltage drop and increases current carrying capacity. However, ensure that the new wire fits securely into existing terminals or use appropriate adapters. Never downsize the wire gauge, as this can lead to overheating and potential hazards. Consult the load requirements and wire length chart for your application. This concept is further explored in our article on marine wiring best practices.
Q: My outboard has no spark. Where should I start troubleshooting the wiring?
A: Begin by checking the kill switch circuit. Ensure the kill switch lanyard is correctly installed and that the switch itself is not stuck in the “off” position, grounding the CDI. Test the White or Black/Yellow kill wire for continuity to ground; it should NOT be grounded when attempting to start. Next, verify that the CDI unit is receiving switched +12V (Purple wire) and a solid ground wire connection (Black). Then, test the trigger coil and stator outputs for AC voltage pulses as per your 2 stroke mercury outboard wiring diagram schematic. A multimeter with a DVA adapter is often required for trigger/stator testing. Finally, check the ignition coils for primary and secondary resistance values.
Mercury 2-stroke outboards can exhibit specific wiring variations depending on the model year (e.g., early vs. late 80s, 90s carbureted vs. EFI models). Always cross-reference the universal color codes with your engine’s specific service manual to confirm correct pin assignment and circuit function.
Q: What is a terminal block and how is it used in outboard wiring?
A: A terminal block (or barrier strip) is an insulated modular mechanism that secures two or more wires together. It typically consists of a series of individual terminals, each with a screw or clamp to secure a wire. In outboard wiring, terminal blocks are commonly used to provide centralized connection points for multiple circuits, such as accessory feeds, gauge wiring, or grounding points. They facilitate organized wiring, make troubleshooting easier, and allow for easy addition or removal of components without having to cut and splice wires. Ensure all connections to the terminal block are tight and use appropriately sized ring or spade terminals for durability and conductivity.
Step-by-Step Guide to Understanding the Mercury 2-Stroke Outboard Wiring Diagram: Routing & Troubleshooting 2026
Identify – Clearly identify your specific Mercury 2-stroke outboard model and year to ensure you have the correct wiring diagram schematic.
Locate – Pinpoint the component or circuit you need to work on (e.g., starter solenoid, ignition coil, rectifier) on the physical motor.
Reference – Consult your wiring diagram schematic to understand the wire color code, pin assignment, and routing for the target components.
Connect/Route – Carefully connect wires, ensuring correct pin assignment and polarity for hot wire and ground wire connections, following proper routing to prevent chafing.
Verify – Use a multimeter to check for continuity, proper voltage, and correct resistance across circuits before applying full power.
Troubleshoot – If issues arise, re-check all connections, consult the diagram for common wiring mistakes, and test individual components as outlined in the troubleshooting section.
Frequently Asked Questions
What wire color is ignition power on 2 stroke mercury outboard wiring diagram schematic?
On most 2-stroke Mercury outboards, the ignition switched power (hot wire) is commonly purple. This wire energizes components when the key is turned to the ‘ON’ position. However, always confirm this specific wire color code and its pin assignment by referring to your exact model’s wiring diagram schematic to avoid misconnections.
What do the pin numbers mean on 2 stroke mercury outboard wiring diagram schematic?
Pin numbers on a 2-stroke Mercury outboard wiring diagram schematic denote specific terminals on multi-pin connectors or components. They establish a precise pin assignment, ensuring correct wire connections for various functions like power, ground wire, sensor inputs, or control signals. Always match the diagram’s pin numbers to the physical connector.
How many wires does 2 stroke mercury outboard wiring diagram schematic have?
The number of wires in a 2-stroke Mercury outboard wiring diagram schematic varies significantly by model and features (e.g., electric start, power trim). Basic models might have fewer than 10 wires for ignition and charging, while more complex systems can involve dozens for instrumentation, lighting, and advanced controls. Consult your specific diagram.
What are common wiring mistakes with 2 stroke mercury outboard wiring diagram schematic?
Common wiring mistakes include incorrect wire color code identification, leading to reversed polarity or wrong pin assignment. Improper crimping, inadequate insulation causing short circuits, and failure to use correct gauge wire for amperage are frequent issues. Always double-check ground wire and hot wire connections and ensure secure routing to prevent chafing.
Can I use automotive wire for my 2 stroke mercury outboard wiring diagram schematic?
While automotive wire might seem similar, marine-grade wire is crucial for your 2 stroke Mercury outboard wiring diagram schematic. Marine wire features tinned copper strands for superior corrosion resistance against saltwater and humidity, along with thicker, UV-resistant insulation. Using incorrect wire type can lead to premature failure and safety hazards.
What gauge wire does 2 stroke mercury outboard wiring diagram schematic require?
Wire gauge requirements for a 2-stroke Mercury outboard wiring diagram schematic depend on the specific circuit’s amperage draw and wire run length. For battery cables and starter circuits, heavy gauges (e.g., 4 AWG to 0 AWG) are typical. Accessory and ignition circuits usually require smaller gauges like 16 AWG or 14 AWG. Always follow the manufacturer’s specs.
