GM 3.6 Diagram GM 3.6 Timing Chain Marks: Proper Routing 2026
On the GM 3.6L High Feature V6 (LY7/LLT/LFX), timing alignment requires setting two stages. First, set the crankshaft sprocket mark to Stage 1 (approx. 4 o’clock) to align the primary chain colored links with the lower crank and upper intermediate sprocket marks. Stage 2 requires rotating the crank to align secondary chains to camshaft actuators.
📌 Key Takeaways
- GM 3.6L High Feature V6 uses a three-chain layout requiring two distinct alignment stages.
- Stage 1 timing places the crankshaft keyway/dot at approximately the 4 o’clock position.
- Primary and secondary chains rely on bright/colored copper links matching stamped sprocket marks.
- Camshaft retaining tools (EN-48383 or equivalent) are mandatory to lock camshafts during alignment.
- Stretched timing chains cause diagnostic trouble codes P0008, P0009, P0016, or P0017.
The GM 3.6-liter High Feature V6 engine family—encompassing popular codes such as the LY7, LLT, LFX, and LGX—utilizes a complex dual-stage, three-chain timing system structure. Precision alignment during timing chain maintenance is required to maintain correct dynamic valve timing, prevent mechanical valve-to-piston contact, and eliminate correlation fault codes. Reading the alignment indicators on both the primary and secondary drive loops requires strict adherence to double-stage orientation protocols. This comprehensive technical guide details how to correctly read the timing indicators, index the camshaft actuators, align intermediate sprockets, and position the crankshaft keyway.

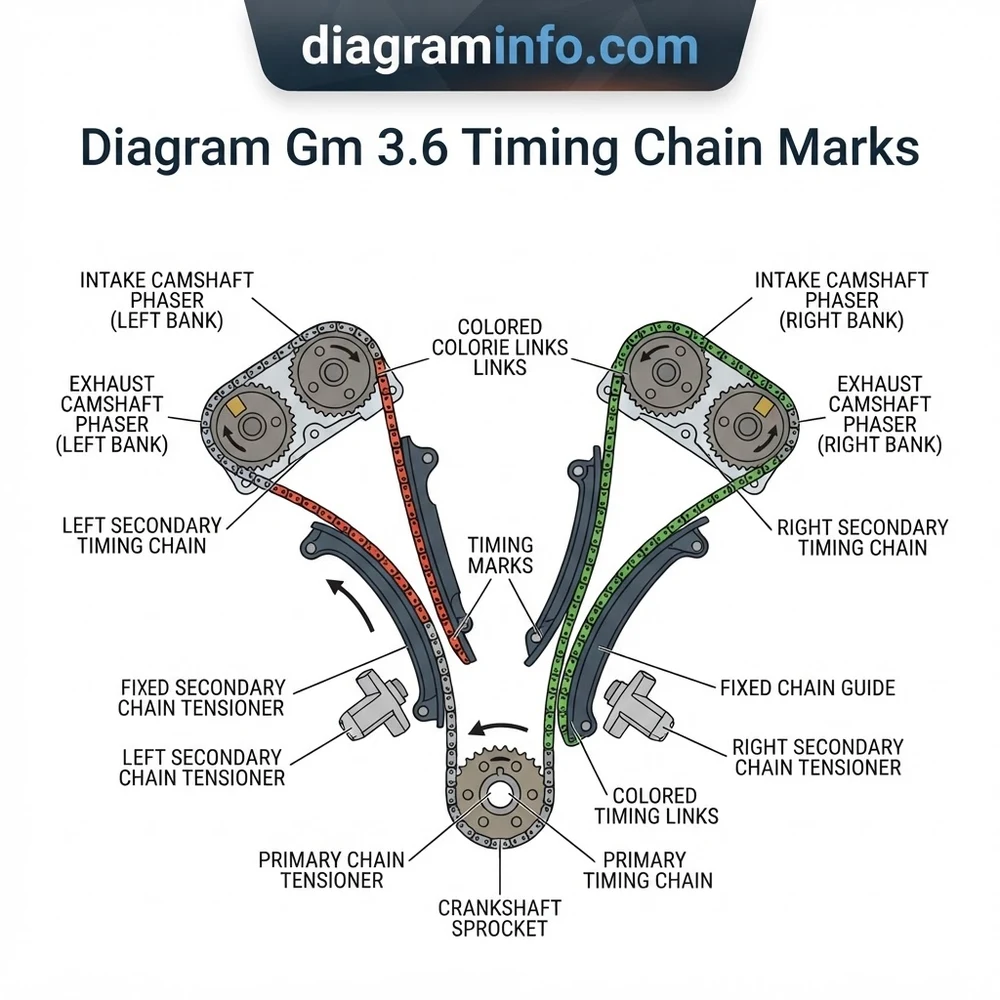

GM 3.6 Timing Chain Layout and Component Identification
The layout of the GM 3.6L High Feature V6 timing drive system relies on a dual-stage setup driven by three separate roller chains. The lower primary chain transfers rotational force directly from the crankshaft sprocket to two intermediate secondary drive sprockets. These intermediate sprockets then drive two independent secondary chains. The Bank 1 secondary chain drives the passenger-side intake and exhaust camshaft phasers (Cylinders 1, 3, and 5), while the Bank 2 secondary chain drives the driver-side intake and exhaust camshaft phasers (Cylinders 2, 4, and 6).
Recommended Best Deal Products
Every active component in this configuration plays a structural role in keeping dynamic tension and synchronization within factory limits:
- Crankshaft Sprocket: Contains distinct stamped alignment marks for both Stage 1 and Stage 2 engine positions along with an indexed keyway slot.
- Stage 1 Intermediate Sprocket: Mounted on the lower right side of the engine block, featuring dual sprockets for primary chain input and Bank 1 secondary chain output.
- Stage 2 Intermediate Sprocket: Positioned on the lower left side, transferring primary rotational drive to the Bank 2 secondary chain.
- Variable Valve Timing (VVT) Actuators: Four total phasers mounted to the front of each camshaft, stamped with triangles, circles, or dash indicators designed to match specific link colors on the secondary timing chains.
- Hydraulic Tensioners: Three spring-loaded, oil-pressure-assisted tensioners featuring internal ratchet mechanisms that maintain constant chain shoe force.
Bank 1 is located on the right side (passenger side) of the engine bay containing cylinders 1-3-5, while Bank 2 is on the left side (driver side) containing cylinders 2-4-6. Always confirm cylinder head numbering on the engine casting prior to tear-down, as referenced in our GM VVT Actuator and Solenoid Service Manual.
Reading the Diagram GM 3.6 Timing Chain Marks for Alignment
Correctly setting up the engine timing blueprint requires understanding the dual-stage alignment system. Unlike traditional single-chain overhead cam engines, the GM HFV6 engine cannot be timed in a single crankshaft rotation. The procedure requires positioning the engine into Stage 1 to set the primary chain and Bank 1 components, followed by rotating the crankshaft to Stage 2 to align the Bank 2 components.
The timing chains utilize specially coated or plated links—typically colored copper, dark steel, or bright chrome—that line up directly with stamped dots, triangles, or lines on the sprockets. When inspecting the blueprint of the primary chain, locate the single plated link at one end and the two plated links spaced closely together at the opposite end.
Primary Chain Indexing Marks
The single dark or plated link on the primary chain aligns directly with the dot stamped above the tooth root on the crankshaft sprocket when the crank keyway is placed in the Stage 1 orientation. The opposing two plated links on the primary chain fit over the marked teeth on the left and right intermediate sprockets. For detailed engine block specifications, review our GM 3.6L Engine Rebuild Reference Sheet.
Secondary Chain Indexing Marks
Each secondary chain features three distinct colored links. Two links match the alignment marks stamped on the face of the camshaft variable valve timing actuators (usually circular marks for intake phasers and triangular marks for exhaust phasers). The third colored link aligns with the single stamped mark on the outer ring of the respective intermediate sprocket.
Factory link colors vary by kit manufacturer (OEM AC Delco vs. Cloyes/Melling aftermarket). Always verify the link spacing by folding the chain in half: two alignment links must sit directly opposite the single alignment link on the secondary chains.
Step-by-Step Diagram GM 3.6 Timing Chain Marks Installation
To successfully execute a complete timing system overhaul, you must follow the precise rotational sequence mandated by General Motors factory service procedures. Deviating from the two-stage process will lead to bent valves upon manual rotation.
Stage 1 Setup Protocol
Begin by rotating the crankshaft clockwise until the keyway on the snout points down and to the right, approximately at the 4 o’clock position (roughly 45 degrees past bottom dead center). At this position, the Stage 1 dot mark on the crankshaft sprocket points straight down toward the 6 o’clock position.
Next, install the primary timing chain. Match the single dark/colored link to the dot mark on the crankshaft sprocket. Route the chain upward and align the remaining two colored links with the stamped timing marks on the primary teeth of both the Stage 1 and Stage 2 intermediate sprockets. Bolt the lower primary chain guides into position and install the primary hydraulic tensioner, removing the retaining pin once installed.
With the primary chain locked in Stage 1, turn your attention to Bank 1 (passenger side cylinder head). Lock the Bank 1 camshafts using the OEM alignment tool EN-46105. Position the Bank 1 secondary chain so that the two upper colored links align with the triangle/circle marks on the intake and exhaust camshaft actuators. Position the lower colored link over the stamped mark on the Stage 1 intermediate sprocket secondary ring. Mount the stationary guides, install the tensioner, and pull the locking pin.
Do NOT attempt to align Bank 2 components while the engine is still in the Stage 1 position. Pistons on Bank 2 are positioned near top dead center and valve contact will occur if camshafts are turned independently without transitioning to Stage 2.
Stage 2 Setup Protocol
Remove the camshaft holding tools from Bank 1. Rotate the crankshaft clockwise by 115 degrees until the crankshaft keyway moves from the 4 o’clock position up to the 1:30 position. In this position, the Stage 2 alignment mark on the crankshaft sprocket now points to the 12 o’clock position.
Lock the Bank 2 camshafts using the appropriate holding fixture. Take the Bank 2 secondary timing chain and align the lower colored link with the stamped alignment dot on the Stage 2 intermediate sprocket. Wrap the chain over the Bank 2 camshaft phasers, ensuring the upper two colored links match the stamped timing symbols on the intake and exhaust VVT actuators. Fasten the Bank 2 chain guides, torque all mounting hardware to factory specifications, install the Bank 2 secondary tensioner, and remove the pin.
Troubleshooting Diagram GM 3.6 Timing Chain Marks Alignment Errors
Improper installation or mechanical wear within the GM 3.6 V6 timing assembly reveals itself quickly through specific diagnostic trouble codes, engine performance issues, or mechanical noise. Diagnosing these errors requires evaluating both physical component condition and ECM signal correlation.
Diagnostic Trouble Codes (DTCs) Related to Timing
When the engine control module detects a mismatch between the crankshaft position sensor (CKP) and camshaft position sensors (CMP), specific fault codes are stored. Diagnostic procedures for these codes are outlined in our detailed P0008 and P0009 Diagnostic Troubleshooting Guide.
- P0008: Engine Position System Performance (Bank 1) — Indicates the mechanical alignment between Bank 1 camshafts and the crankshaft is advanced or retarded beyond acceptable limits.
- P0009: Engine Position System Performance (Bank 2) — Indicates phase offset on Bank 2 cylinder head components.
- P0016 / P0017: Crankshaft Position to Camshaft Position Correlation (Bank 1 Intake / Exhaust).
- P0018 / P0019: Crankshaft Position to Camshaft Position Correlation (Bank 2 Intake / Exhaust).
Root Causes of Timing Misalignment and Chain Failure
If timing alignment marks do not match up after manual engine rotation, or if performance codes appear following a rebuild, evaluate these three core failure modes:
1. Timing Chain Stretch: Extended oil drain intervals cause micro-abrasions in the chain pins and bushings. A cumulative pitch expansion of as little as 2mm across the length of the chain alters valve timing relative to crank angle, illuminating check engine light codes without jumping teeth.
2. Tensioner Ratchet Failure: Cold start chain rattle often stems from worn internal ratchet teeth or collapsed oil passages within the hydraulic tensioners. Without proper hydraulic pressure, the chain slaps against the guide, causing wear on the tensioner shoe and causing dynamic timing shifts.
3. Single Tooth Alignment Error: Placing the chain on a camshaft phaser off by just one tooth causes severe rough idling, reduced low-end torque, and immediate correlation codes. Always rotate the engine manually two full revolutions post-installation to re-verify that all chain links return to their designated marks at Stage 1 and Stage 2 positions.
GM 3.6L Timing System Fastener and Component Specifications
When installing timing components, torque specs must be strictly followed. Aluminum engine block threads and hollow camshaft actuator bolts are sensitive to over-torquing.
| Component Description | Thread Size / Type | Torque Specification |
|---|---|---|
| Camshaft Actuator Center Bolts (VVT) | M12 x 1.5 (Yield Fastener) | 65 N·m (48 lb-ft) + 45 to 60 degrees |
| Primary Timing Chain Tensioner Bolts | M6 x 1.0 | 10 N·m (89 lb-in) |
| Secondary Timing Chain Tensioner Bolts | M6 x 1.0 | 10 N·m (89 lb-in) |
| Timing Chain Guide Bolts (Fixed Rails) | M8 x 1.25 | 23 N·m (17 lb-ft) |
| Intermediate Sprocket Mounting Bolts | M10 x 1.5 | 50 N·m (37 lb-ft) + 45 degrees |
| Engine Timing Front Cover Bolts | M8 x 1.25 / M10 | 25 N·m (18 lb-ft) / 50 N·m (37 lb-ft) |
Diagram GM 3.6 Timing Chain Marks Technical FAQ
Why does the GM 3.6L engine require a two-stage timing alignment process?
The dual-stage process is necessary due to the narrow 60-degree V-angle layout combined with double overhead camshafts and four valves per cylinder. If all four camshafts were rotated into timing positions simultaneously while the crankshaft was held at top dead center (TDC), open valves on Bank 2 would collide with the pistons. The Stage 1 (4 o’clock crank position) and Stage 2 (1:30 o’clock crank position) sequence lowers all pistons sufficiently into their bores during setup to clear the valve sweep area, preventing physical contact during assembly.
Can I install GM 3.6 timing chains without special camshaft holding tools?
It is strongly advised not to perform this service without locking tools (GM tool number EN-46105 or equivalent). The valve spring tension on the double overhead camshafts forces the phasers to snap out of position when off-lobe. Attempting to hold the phasers with wrenches while routing the secondary chains often leads to misaligned timing by one or two teeth, damaged phaser pin slots, or physical damage to the timing cover sealing surfaces.
Are the timing chain marks different between LY7, LLT, and LFX engine codes?
While the overall physical setup and three-chain configuration remain identical across the High Feature V6 engine family, the stamped physical markers on the camshaft actuators changed between generation groups. Earlier LY7 engines frequently use circle and triangle stampings, while newer LLT and LFX direct-injection engines may use stamped lines or numerical indicators on the outer actuator faces. However, the fundamental rule remains standard: Stage 1 controls Bank 1 (right/passenger side), and Stage 2 controls Bank 2 (left/driver side).
What should I do if the colored links on my new replacement chain do not align after rotating the engine manually?
This is normal operation. Once the engine is rotated manually, the colored links on the timing chains will not re-align with the sprocket marks on every revolution. Because the number of teeth on the sprockets is not a direct multiple of the total chain links, it requires dozens of complete crankshaft rotations for the marked links to re-index back to their original installation positions. As long as the mechanical alignment marks (dots, lines, triangles) point to their proper geometric clock angles relative to the engine block when the crank is set to Stage 1 or Stage 2, your engine timing is physically correct.
How do I identify if my timing issue is caused by worn chains or bad VVT actuators?
To distinguish between chain stretch and actuator failure, use a high-level diagnostic scan tool to monitor real-time command vs. actual camshaft angle parameters. If the actual cam angle fluctuates wildly at idle or fails to return to zero base position, the variable valve timing actuator or oil control valve (OCV) solenoid is likely sticking or clogged. Conversely, if the cam angle remains steadily offset by a fixed number of degrees (e.g., -12 to -18 degrees off target across all operating ranges) and is accompanied by rattle on cold start, the timing chain has stretched or a guide shoe has worn down.
Final Technical Verification Protocols
Before reinstalling the timing cover with fresh RTV sealant, complete a final manual rotation check to ensure the installation is correct. Remove all locking pins from the three hydraulic tensioners and reinstall the main harmonic balancer bolt loosely into the crankshaft snout.
Using a breaker bar, slowly turn the crankshaft clockwise through two full 360-degree rotations (720 degrees total engine rotation). Pay close attention to turning resistance. If you feel hard mechanical binding at any point during rotation, STOP IMMEDIATELY. Do not force the crankshaft past binding points, as this indicates valve-to-piston contact caused by incorrect stage selection or displaced sprocket alignment.
Bring the engine back around to the Stage 1 position (crankshaft keyway pointing at 4 o’clock). Confirm that the Bank 1 camshaft phaser reference marks line up parallel across the cylinder head surface and that the primary chain tensioner plunger remains within its factory stroke limits. Shift the engine to Stage 2 (crankshaft keyway pointing to 1:30) and perform the same geometric check on the Bank 2 head. Once verified, clean all timing cover mating surfaces with solvent, install fresh front crankshaft oil seals, torque all cover fasteners in a spiral sequence from the center outward, and allow full RTV cure time prior to filling the crankcase with fresh fluid.
