Standard 12V LED Light Wiring Diagram: Complete Connection Guide 2026

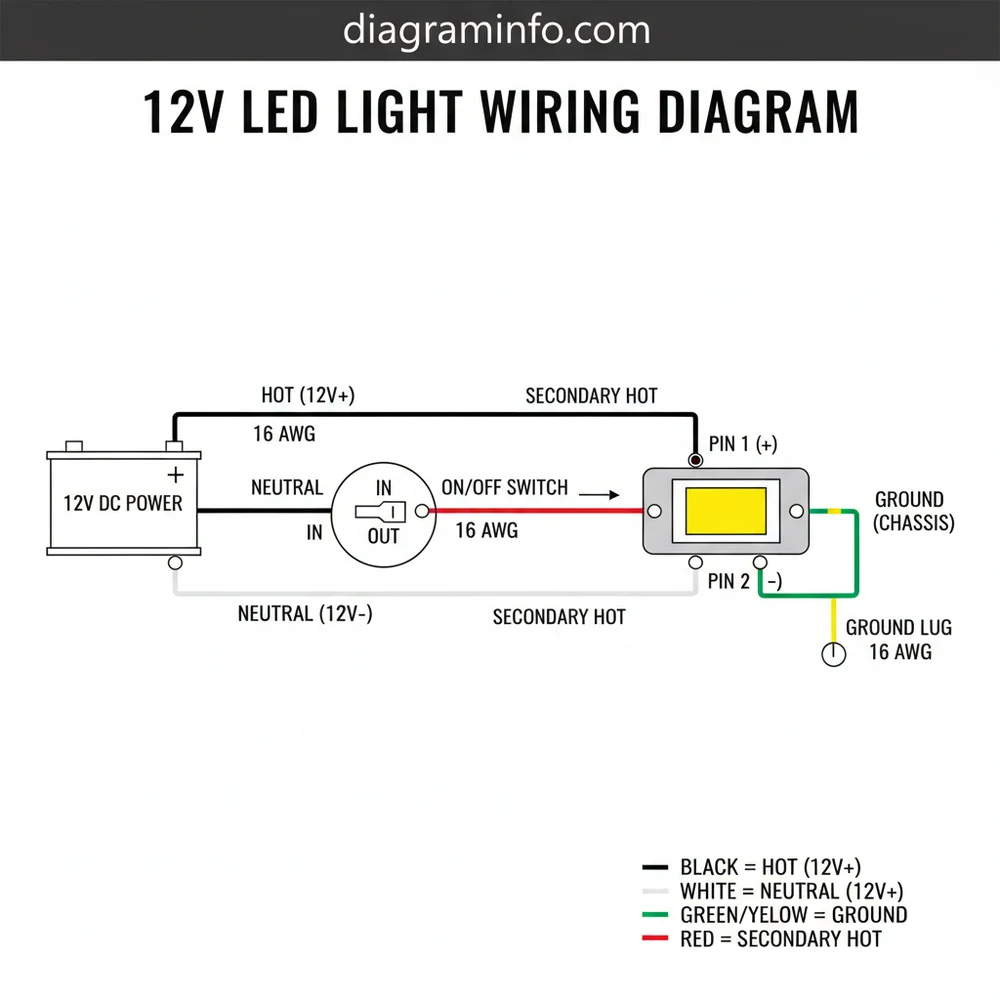

A basic 12V LED light wiring diagram typically shows two connections. The positive lead (often red wire) connects to a fused 12V DC power source, usually through a switch. The negative lead (commonly black wire) connects directly to the vehicle or battery’s ground wire. Ensure correct polarity to prevent damage and ensure proper function.
📌 Key Takeaways
- Always verify polarity: 12V LEDs are polarity sensitive (+ to + and – to -) for correct operation.
- Proper wire gauge (e.g., 18-22 AWG for small LEDs) is crucial to prevent overheating and voltage drop on long runs.
- A fuse, rated slightly above the LED’s current draw (e.g., 1-5A), is essential for circuit protection against shorts.
- Incorrect ground wire connection or a poor ground point is a leading cause of non-functional or dim LEDs.
- Consult a qualified auto electrician if unable to identify power sources, safely route wiring, or resolve persistent issues.
This comprehensive guide provides a detailed “12V LED light wiring diagram” and associated instructions critical for robust and reliable installation in automotive and equipment applications. Precision in wiring is paramount, ensuring both the longevity of your LED components and, more importantly, the safety of the entire electrical system. This article, tailored for experienced mechanics and advanced DIYers, focuses on precise wire color identification, correct pin assignments, and proper connection sequencing to avoid common failures and ensure optimal performance across various 12-volt systems.
Wire Color Reference Table
The following table outlines the typical wire color codes and their corresponding functions for 12V LED lighting installations. While industry standards exist, always cross-reference with the specific LED manufacturer’s documentation for absolute confirmation.
| Wire Color (Typical) | Function | Pin/Terminal Identification | Notes |
|---|---|---|---|
| Red | +12V Switched Power (Hot Wire) | ACC, IGN, Pin 86 (Relay Coil), Pin 30 (Relay Common) | Connects to a fused 12V source that activates with ignition or a specific switch. |
| Black | Ground / Return Path | GND, Pin 85 (Relay Coil), Vehicle Chassis | Secure connection to a clean, unpainted chassis ground point or battery negative terminal. |
| White | Dimmer/Trigger (Input) | DIM, SENS | For systems with dimming capabilities or a low-current trigger from another circuit. |
| Yellow | Constant +12V Power (Optional) | BATT, Pin 30 (Relay Common) | Typically for memory functions or applications requiring continuous power, fused. |
| Blue | Output to LED (Relay Switched) | Pin 87 (Relay Output) | Delivers switched power from the relay to the positive terminal of the LED light. |
| Green | Secondary Function / Auxiliary | AUX, REV | May indicate a reverse light trigger, separate low-beam/high-beam, or accent lighting. |
Step-by-Step Connection Guide
Adhering to a meticulous installation sequence is critical for a safe and functional 12V LED light system. This guide provides a standard wiring methodology; however, always consult the specific documentation for your LED fixture and vehicle’s service manual, particularly for year-specific electrical schematics.
- Disconnect Power Source: Before commencing any electrical work, always disconnect the negative terminal of the vehicle’s battery. This eliminates the risk of accidental shorts or electrical shock, a fundamental safety protocol.
- Mount LED Fixture: Securely mount your LED light fixture in its intended location. Ensure the mounting hardware provides a robust, vibration-resistant attachment suitable for the operating environment. Verify that the fixture’s wiring harness can reach the intended connection points without excessive tension or abrasion.
- Prepare Power Source (Hot Wire – Red): Identify a suitable 12V switched power source. This can be an accessory circuit (ACC) that activates with the ignition or a specific switch in the cabin. According to SAE standards, this circuit must be protected by an inline fuse or connected to a fuse block with the correct amperage rating. For typical LED light bars drawing up to 20-30 amps, a 12-gauge primary wire connected to a 30-amp ATC blade fuse is often appropriate. For lower current applications (e.g., marker lights), a 16-18 gauge wire with a 5-10 amp fuse may suffice. Refer to our detailed guide on wire gauge selection for automotive applications for more information.
- Relay Installation (Recommended for High-Current LEDs): For LED lights drawing significant current (typically >5A), a 12V automotive relay is highly recommended to protect the vehicle’s original wiring.
- Pin 30 (Common): Connect this terminal directly to the fused, constant +12V power source (Yellow wire, if present, or a dedicated fused battery connection).
- Pin 86 (Coil Positive): Connect this terminal to the switched +12V source (Red wire) identified in Step 3. This activates the relay coil when the switch is engaged.
- Pin 85 (Coil Ground): Connect this terminal to a robust, clean chassis ground point (Black wire). Ensure this ground connection is solid and free of paint or corrosion.
- Pin 87 (Normally Open Output): This is the power output for your LED light. Connect this terminal to the positive input (Red wire) of your LED fixture.
For advanced relay configurations, consult our comprehensive guide on automotive relay wiring configurations.
- Ground Connection (Black Wire): Route the ground wire from the LED fixture (or Pin 85 of the relay) to a suitable ground point on the vehicle’s chassis. Manufacturer specifications typically recommend using existing factory ground points or preparing a new ground point by scraping away paint to expose bare metal and securing the terminal with a self-tapping screw or bolt. Ensure a star washer is used for optimal conductivity and vibration resistance. The gauge of the ground wire must match or exceed the gauge of the hot wire.
- Auxiliary/Dimmer Connections (White/Green Wires – Optional): If your LED light includes additional functionalities like dimming or separate accent lighting, connect these wires according to the manufacturer’s instructions. A White wire often denotes a low-current trigger for dimming or integration with another lighting circuit, while a Green wire might indicate a reverse light trigger or a different color output.
- Secure and Insulate Connections: Utilize heat-shrink tubing, waterproof connectors, or quality electrical tape to insulate all exposed wire connections. For critical connections in high-moisture or high-vibration environments, marine-grade heat-shrink with adhesive lining is recommended to prevent corrosion and short circuits. Secure all wiring runs with cable ties to prevent chafing, crushing, or interference with moving parts.
- Test System: Before fully reassembling, reconnect the vehicle’s battery. Activate the switch controlling the LED light to verify proper operation. Check for correct illumination, and if applicable, test any dimming or auxiliary functions. Ensure no smoke, excessive heat, or abnormal smells are present.
- Final Assembly: Once all connections are confirmed functional and secure, reassemble any removed panels or trim. Double-check all wiring for proper routing and strain relief.
Common Wiring Mistakes & Troubleshooting
Even experienced technicians can encounter issues. Understanding common wiring pitfalls can save significant diagnostic time and prevent component damage or safety hazards.
Improper wiring can lead to short circuits, fires, or damage to vehicle electronics. Always exercise extreme caution and disconnect the battery before working on electrical systems.
- Incorrect Polarity:
- Consequence: Most LEDs are polarity-sensitive. Reversing the positive (hot wire) and negative (ground wire) connections will typically result in the LED not illuminating at all or, in some cases, immediate damage to the LED driver circuit.
- Fix: Using a multimeter, verify the voltage and polarity at the LED’s input terminals. Ensure the Red wire connects to +12V and the Black wire connects to ground. Always refer to the LED manufacturer’s specifications for exact polarity.
- Insufficient Wire Gauge:
- Consequence: Using a wire gauge that is too small for the LED’s current draw over a given distance can lead to excessive voltage drop. This results in the LED operating dimly, generating excessive heat in the wire (fire hazard), or damaging the LED driver.
- Fix: Calculate the total amperage draw of your LED fixture and measure the wire run length. Consult an AWG (American Wire Gauge) chart to select the appropriate gauge to minimize voltage drop below 3%. Manufacturer specifications often provide current draw; for example, a 100W LED light bar at 12V draws approximately 8.3A (P=VxI).
- Poor Ground Connection:
- Consequence: A corroded, loose, or painted ground connection creates high resistance in the circuit. This manifests as flickering lights, dim operation, or intermittent functionality, similar to symptoms of insufficient voltage.
- Fix: Inspect all ground points. Ensure bare metal contact, free of paint, rust, or corrosion. Use a wire brush to clean the surface, and apply dielectric grease after securing the connection. A multimeter can be used to test resistance between the ground wire and the battery negative terminal; ideal resistance is below 0.1 ohms.
- Absence or Incorrect Fuse Rating:
- Consequence: Wiring an LED light without a fuse is a significant fire hazard. In the event of a short circuit, an unfused wire can overheat, melt insulation, and ignite surrounding materials. An incorrect fuse (too high a rating) offers inadequate protection, while a fuse that is too low will blow prematurely.
- Fix: Always install an inline fuse as close to the power source as possible. The fuse rating should be approximately 125% of the LED’s maximum continuous current draw. For instance, an 8A draw would typically use a 10A fuse. Always use the specified fuse type (e.g., ATC, Mini, Maxi).
- Loose or Uninsulated Connections:
- Consequence: Loose connections can lead to intermittent power, increased resistance, arcing, and heat generation. Uninsulated connections risk short circuits against the chassis or other wires, potentially damaging components or causing fires.
- Fix: Ensure all crimped terminals are properly secured and pass a pull test. Solder connections, if used, should be strong and clean. Apply heat-shrink tubing or high-quality electrical tape to insulate all bare wire connections. For critical exposed connections, use waterproof, adhesive-lined heat shrink.
FAQ
What wire gauge should I use for a 12V LED light bar?
The appropriate wire gauge depends primarily on the LED light bar’s current draw (amperage) and the length of the wire run. For typical automotive applications with runs under 15 feet, a 16 AWG wire is suitable for currents up to 10 amps, 14 AWG for up to 15 amps, and 12 AWG for up to 20 amps. Always consult an AWG chart for precise recommendations, aiming for less than a 3% voltage drop to ensure optimal LED performance and prevent overheating.
Is a relay always necessary for wiring a 12V LED light?
For lower-power LED lights (e.g., small accent lights, interior LEDs) drawing less than 3-5 amps, a relay might not be strictly necessary if connecting directly to an existing, appropriately fused circuit. However, for higher-power LED light bars or auxiliary lights that draw significant current, a 12V relay is strongly recommended. It protects the vehicle’s sensitive electrical systems by allowing a low-current switch to activate a high-current circuit directly from the battery, reducing the load on factory wiring and switches.
What is the difference between a “hot wire” and a “ground wire” in 12V DC circuits?
In a 12V DC automotive circuit, the “hot wire” (typically Red) carries the positive voltage (+12V) from the power source (battery) to the electrical component. The “ground wire” (typically Black) provides the return path for current back to the negative terminal of the battery or the vehicle’s chassis, completing the circuit. Unlike AC systems with a “neutral wire,” DC systems rely on a clear positive and negative polarity for current flow. Proper connection of both is essential for LED operation.
Can I connect multiple 12V LED lights to a single switch?
Yes, you can connect multiple 12V LED lights to a single switch, but careful planning is required. You must calculate the total current draw of all lights combined. If the combined current exceeds the switch’s rating or the capacity of the original circuit, you must use a relay. The switch would then activate the relay’s coil, and the relay would handle the high current flow to all the LED lights. For larger lighting arrays, explore advanced lighting control modules that offer more sophisticated control and protection.
How can I test my 12V LED wiring for faults?
A digital multimeter is indispensable for testing 12V LED wiring. You can test for voltage at various points in the circuit (e.g., at the fuse, the switch, the relay output, and the LED input) to ensure +12V is present when the circuit is active. Use the continuity function to check for breaks in the wire or proper ground connections. Check for excessive resistance at connections, which indicates corrosion or loose terminals. If an LED isn’t working, systematically check voltage and ground at each component, working backward from the LED to the power source.
Frequently Asked Questions
What wire color is positive/negative on 12v led light wiring diagram?
On most 12V LED light wiring diagrams, the positive connection is typically represented by a red wire, serving as the ‘hot wire’ for the circuit. The negative or ground wire is usually black. Always refer to the specific LED light’s documentation or test with a multimeter to confirm the correct wire color code, as manufacturers can vary on pin assignment.
What do the pin numbers mean on 12v led light wiring diagram?
For simple 12V LED lights, there typically aren’t ‘pin numbers’ in the complex sense, but rather two terminals: one for positive (12V) and one for negative (ground). If a multi-function LED or array is used, pin assignment might designate functions like running light, brake light, or turn signal. Always check the specific product’s manual for its pinout details.
How many wires does 12v led light wiring diagram have?
A basic 12v led light wiring diagram typically illustrates two wires: one for the 12V positive supply and one for the ground wire. However, multi-function LED lights, like those for automotive tail lights, can have three or more wires to control different modes (e.g., running, brake, turn signal). A neutral wire is not applicable for DC systems. Always count wires based on your specific LED unit.
What are common wiring mistakes with 12v led light wiring diagram?
Common wiring mistakes include incorrect polarity, leading to non-functional or damaged LEDs. Using an insufficient wire gauge can cause voltage drop and overheating. Failing to install an appropriate fuse is a major safety hazard. Poor or loose connections to the ground wire or power source also frequently lead to intermittent or no light operation. Always double-check all connections.
Do I need a brake controller for 12v led light wiring diagram?
You do not need a brake controller for a standard 12v led light wiring diagram used for general illumination or indicator purposes. Brake controllers are specifically for activating electric trailer brakes. If your LED light is part of a trailer’s brake light system, it connects to the trailer wiring harness, which may be managed by a brake controller for the *brakes*, not the light itself.
What gauge wire does 12v led light wiring diagram require?
The required wire gauge for a 12v led light wiring diagram depends on the LED’s current draw and the length of the wire run. For most small single LEDs or short runs, 20-22 AWG is sufficient. For larger LED arrays or longer distances, 16-18 AWG might be necessary to prevent voltage drop and ensure optimal brightness. Always consult a wire gauge chart or the LED’s specifications.
