2011 Honda Pilot Fuse Box Diagram: 2026 Repair Guide
The 2011 Honda Pilot features two fuse panels: the under-hood box beside the battery and the interior box under the driver-side dashboard. The diagram details circuit assignments, including the 7.5A OBD-II port fuse and ECU power relays. Always match mini-blade fuse amp ratings (7.5A–30A) during replacement to prevent electrical damage.
📌 Key Takeaways
- Under-hood primary panel sits adjacent to the battery, housing high-amp multi-fuses (40A-120A).
- Interior fuse box resides beneath the lower driver-side dashboard, protecting interior accessories and ECU logic.
- OBD-II diagnostic port and ECU power share low-amperage mini-fuses requiring exact amp replacements.
- Torque spec for main battery multi-fuse terminal bolts is 7.2 lb-ft (9.8 Nm) to prevent loose high-draw connections.
- A persistent blown fuse triggers a check engine light or diagnostic code and indicates an active circuit short.
Diagnosing complex electrical faults in the second-generation (2009–2015) YF3/YF4 chassis requires an exact understanding of power distribution. Equipping the 3.5L J35Z4 V6 engine, the 2011 Honda Pilot utilizes a multi-panel architecture consisting of an under-hood primary fuse/relay box and two auxiliary interior fuse panels. This comprehensive technical guide details the 2011 Honda Pilot fuse box diagram to assist professional technicians and advanced DIYers in isolating circuit failures, tracking current flow to critical control modules like the Engine Control Unit (ECU), and performing precise diagnostic checks. Whether resolving an inoperative On-Board Diagnostics (OBD-II) port, investigating a check engine light, or testing sensor power rails, the schematics and pinouts below provide OEM-level guidance.

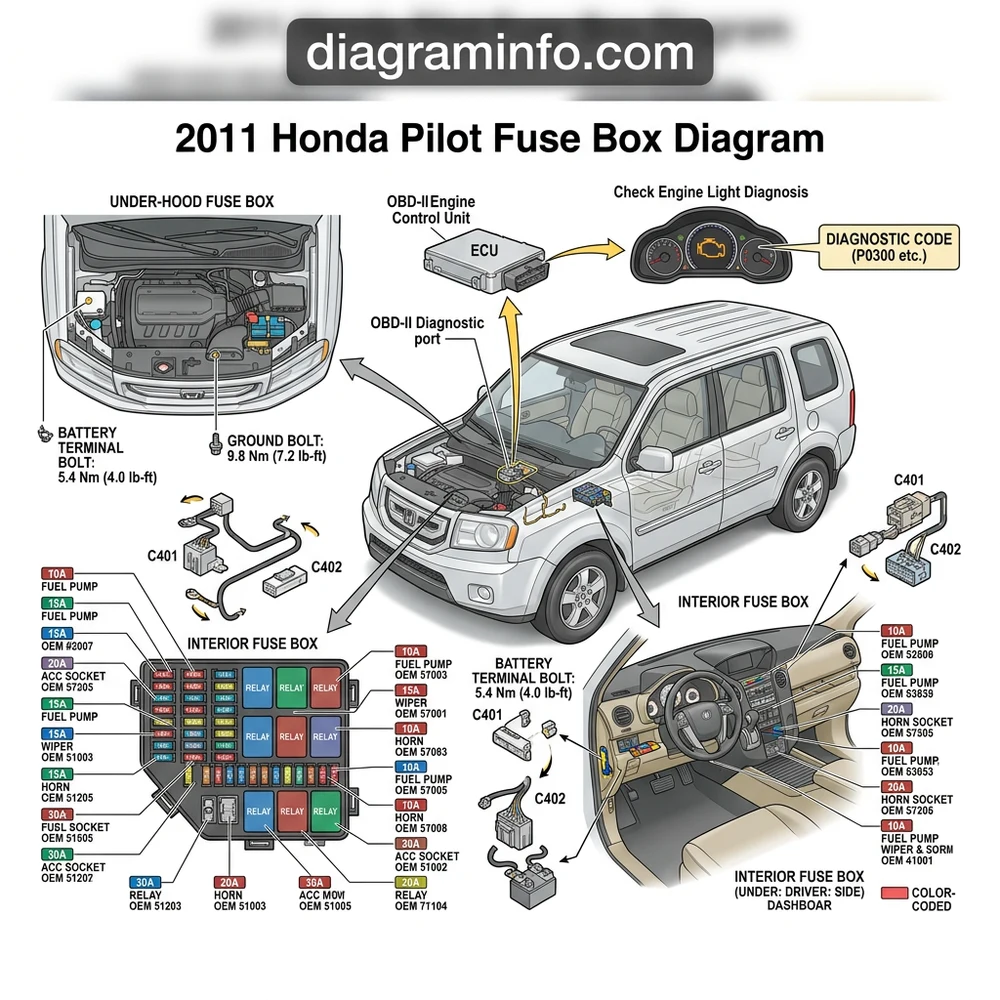

2011 Honda Pilot Fuse Box Diagram Layout and Component Mapping
The electrical architecture of the 2011 Honda Pilot splits high-amp primary circuit protection and delicate electronic module logic across three principal locations. According to factory manual schematics, understanding the physical location and terminal assignment of each fuse block is essential before conducting pinout testing or component isolation.
The primary under-hood fuse/relay box sits on the driver’s side of the engine compartment, positioned directly adjacent to the air cleaner assembly and 12V battery. This box houses the main battery fuse block, cooling fan high-amp fuses, fuel pump relays, and primary ignition power distribution routes. In contrast, the interior power system uses two fuse panels: the driver’s side interior fuse box (located under the lower dashboard near the kick panel) and the passenger’s side interior fuse box (located on the lower right side wall). The driver’s side panel feeds the multiplex control unit (MICU), body electronics, and the DLC/OBD-II power line. For related body module service procedures, refer to our Honda Pilot MICU Body Control Module Diagnostics Guide.
| Fuse # | Amperage (A) | Protected Circuit / Component | Wire Color / Terminal Output |
|---|---|---|---|
| Main 1 | 120A | Primary Battery / Alternator Feed | WHT (Direct Busbar) |
| Main 2 | 70A | Passenger Interior Fuse Box Sub-Feed | RED (Pin 1 Connector A) |
| 1-1 | 30A | ABS/VSA Motor Module | WHT/RED |
| 1-2 | 40A | 4WD Differential Control Module | GRN/YEL |
| 1-3 | 30A | Cooling Fan Motor (Radiator Flow) | BLU/BLK |
| 1-4 | 30A | Condenser Fan Motor | BLK/RED |
| 2 | 15A | PGM-FI Sub Relay / ECU Logic Feed | YEL/BLK |
| 3 | 15A | Ignition Coil Power Supply | BLK/YEL |
| 4 | 7.5A | A/C Compressor Clutch Relay Coil | RED/BLU |
| 5 | 15A | DBW (Drive-By-Wire) Electronic Throttle Body | BLU/YEL |
In addition to the primary under-hood block, the driver’s side under-dash panel safeguards logic-level inputs that feed vital cabin systems and engine management sub-routines.
| Fuse # | Amperage (A) | Interior Circuit Protected | Diagnostic Terminal Notes |
|---|---|---|---|
| 13 | 7.5A | OBD-II Data Link Connector (DLC) / Starter Cut | 12V Constant to DLC Pin 16 |
| 14 | 10A | SRS Airbag Control Unit Logic Feed | Ignition ON Switched Feed |
| 19 | 15A | Fuel Pump Module / PGM-FI Main Relay 2 | Feeds Fuel Tank Sender Unit |
| 21 | 7.5A | ECU Signal / Gauge Control Module Logic | CAN-Bus Wake-Up Signal |
Troubleshooting ECU, OBD-II, and Check Engine Light Fuse Circuit Failures
When executing electrical diagnostic protocols on a 2011 Honda Pilot, a blown fuse or burnt relay terminal frequently manifests as a no-start condition, loss of serial communication, or intermittent fault flags. Below are specific technical failure modes linked directly to the primary power distribution network.
If a scan tool fails to communicate with the vehicle network and receives no power at DLC Pin 16, check Driver’s Interior Fuse #13 (7.5A) before replacing the ECU module or condemning scan equipment. Operating with a shorted DLC power supply prevents standard diagnostic session initialization.
When troubleshooting a non-communicating Powertrain Control Module or an extinguished malfunction indicator lamp (MIL) during key-on engine-off (KOEO) bulb checks, verify voltage at Under-Hood Fuse #2 (15A) and Driver’s Interior Fuse #21 (7.5A). Manufacturer specs indicate that a voltage drop exceeding 0.2V across the PGM-FI main relay terminals indicates internal contact pitting or terminal corrosion within the under-hood block. This starvation deprives the ECU of battery voltage, preventing the ECU from asserting ground logic to trigger the check engine light or emit diagnostic code data over the CAN lines (Pins 6 and 14 on the DLC).
Another prevalent failure pattern involves Variable Cylinder Management (VCM) and oil pressure circuit supply lines. The 3.5L J35Z4 engine uses spool valves and rocker arm oil control solenoids activated by the ECU to alter valve timing. Voltage drops originating from micro-fuse degradation in the under-hood block can lead to unstable voltage feeds at the front and rear VVT solenoids. This situation triggers premature check engine light illumination accompanied by diagnostic code P3400 (VPTS System Performance) or code P0522 (Engine Oil Pressure Sensor Circuit Low Voltage). Always verify that terminal tension at the solenoid relay block meets OEM retention force standards (minimum 3.5 N extraction force per terminal blade).
Thermal regulation relies directly on high-current pathways through the under-hood fuse box. A blown Fuse 1-3 (30A) or Fuse 1-4 (30A) disrupts radiator coolant flow dynamics by disabling low- and high-speed fan relay functions. During low-speed operational demands, the ECU switches ground to the fan control relay coil. If the primary fused supply drops below 11.5V under load, coolant temperatures quickly exceed the secondary threshold (208°F / 98°C), resulting in thermal stress to the engine and eventual timing chain thermal expansion code triggers. If your engine exhibits mechanical valve train noise alongside sensor codes, consult our manual on Honda J35 V6 Timing Chain Replacement Specifications.
When testing the PGM-FI Main Relay sockets within the under-hood fuse box, never insert standard DMM test leads directly into female spade connectors. Use micro-blade back-probe pins to prevent terminal spread. Pin opening distortion results in high contact resistance and intermittent ignition coil dropouts (DTC P0300–P0306).
Step-by-Step Electrical Diagnosis Using the 2011 Honda Pilot Fuse Box Schema
To accurately isolate short circuits, open grounds, or parasitic battery draws using the 2011 Honda Pilot fuse box diagram, execute the following technical diagnostic steps:
Step 1: In-Circuit Voltage Drop Measurement
Set your Digital Multimeter (DMM) to DC Volts (millivolt auto-range). Turn the ignition switch to the ON (II) position. Place the DMM probes across the two exposed metallic test points located on the top back of each mini-fuse in the driver’s interior panel and under-hood panel. A healthy fuse under load will display a millivolt drop near 0.0 mV (typically 0.1 mV to 1.5 mV depending on amp rating and circuit load). A reading equal to full battery voltage (12.6V) indicates a blown, open-circuit fuse.
Step 2: Relay Coil and Contact Integrity Testing
Remove the target relay (e.g., A/C Clutch Relay or Fuel Pump PGM-FI Relay) from the under-hood block. Using a bench power supply, apply 12V across coil terminals 1 and 2. Using a DMM set to Ohms ($\Omega$), verify contact resistance across switched terminals 3 and 4:
- Coil Resistance (Terminals 1 to 2): 60 $\Omega$ to 120 $\Omega$ at 68°F (20°C).
- De-energized Contact Resistance (Terminals 3 to 4): Open Circuit ($\infty \Omega$).
- Energized Contact Resistance (Terminals 3 to 4): Resistance must measure below 0.2 $\Omega$.
Step 3: Parasitic Current Draw Trace
If the vehicle experiences battery drain over 24 to 48 hours, perform a sleep-mode parasitic draw test. Connect a high-amp inductive amp clamp or inline DMM set to 10A scale on the negative battery cable. Lock all doors and manually latch the hood switch to allow the vehicle’s multiplex control system (MICU) to enter sleep mode (wait 15 to 20 minutes). Parasitic current draw should drop below 35 mA (0.035 A). If draw exceeds 50 mA, pull fuses individually from the driver’s interior panel while monitoring current drop. When the draw drops to acceptable levels, cross-reference the removed fuse number with the 2011 Honda Pilot fuse box diagram to isolate the misbehaving module.
• Under-Hood Main Battery Fuse Terminal Bolt Torque Spec: 9.4 N·m (96 kgf·cm, 83 lb-in)
• Fuse Block Terminal Post Assembly Torque Spec: 9.8 N·m (100 kgf·cm, 87 lb-in)
• Engine Oil Pressure Switch Installation Torque Spec: 18 N·m (1.8 kgf·m, 13 lb-ft)
• System Voltage Tolerance Band (Engine Running): 13.8V to 14.6V DC at 25°C
• Max Allowable Terminal Contact Resistance: 0.05 $\Omega$
Engine Sensor Fused Circuits: Oil Pressure, Coolant Flow, and Timing Chain Diagnostics
The 2011 Honda Pilot engine management array relies directly on clean, transient-free power routed through the under-hood fuse block. The Engine Control Unit uses this reference voltage to correlate readings from critical powertrain sensors.
The VVT rocker arm oil pressure switch receives power through the fused PGM-FI main circuit. Adequate oil pressure operates mechanical control spools, while the sensor sends continuous feedback to the ECU. If voltage sags due to oxidized fuse spade terminals in the under-hood box, the ECU misinterprets sensor signal output as inadequate oil pressure, generating a diagnostic code and placing the vehicle into limp mode. When replacing damaged oil pressure sender units on the rear cylinder head, always apply thread sealant according to factory procedures and tighten the sensor to the recommended torque spec of 18 N·m (13 lb-ft). If troubleshooting VVT spool faults on this engine, refer to our detailed technical teardown: Honda VVT Oil Control Solenoid Repair Manual.
Similarly, coolant flow management relies on dual Engine Coolant Temperature (ECT) sensors. ECT Sensor 1 (located on the water passage housing) monitors core engine temperature, while ECT Sensor 2 (bottom tank of the radiator) tracks thermal radiator efficiency. The ECU evaluates these analog inputs to ground the radiator fan relays located in the under-hood fuse box. A failure at Fuse 1-3 or relay contact failure disrupts this logic loop, preventing secondary cooling fan engagement even when coolant flow reaches maximum thermal threshold, eventually causing severe engine overheating.
Finally, timing chain synchronization logic uses 12V fused ignition power (Under-hood Fuse #3, 15A) to supply the Hall-effect Camshaft Position (CMP) and Crankshaft Position (CKP) sensors. If this fuse experiences intermittent voltage drop due to thermal stress or hairline crack fractures, the CMP/CKP signals lose amplitude. This leads to engine stalling, hard starting, or false check engine light diagnostic codes such as P0339 (CKP Sensor Circuit Intermittent) or P0344 (CMP Sensor Phase Error).
2011 Honda Pilot Fuse Box Diagram Frequently Asked Questions
Why is my OBD-II scanner not turning on when plugged into the 2011 Honda Pilot port?
The DLC OBD-II port (Pin 16) receives constant 12V battery power directly from Driver’s Interior Fuse #13 (7.5A). If your diagnostic scan tool remains unpowered when connected, inspect Fuse #13 for an open circuit. Replacing a blown fuse will restore power to the port and allow communication with the vehicle network.
Which fuse controls the Honda Pilot engine control unit (ECU) and fuel pump?
The ECU primary system logic and fuel pump module rely on Under-Hood Fuse #2 (15A, PGM-FI Sub Feed) alongside Driver’s Interior Fuse #19 (15A, Fuel Pump). Furthermore, power switching is gated through the PGM-FI Main Relays 1 & 2 located inside the under-hood fuse box assembly.
What causes the check engine light to illuminate with oil pressure codes after changing fuses?
If oil pressure diagnostic code P0522 or VVT code P3400 surfaces immediately after performing electrical repairs, verify that Under-Hood Fuse #2 and the associated relay pins are fully seated. Intermittent contact resistance drops voltage to the rocker arm oil pressure switch below the 4.5V logic minimum threshold required by the ECU.
What is the torque spec for the main battery fuse terminal bolt in the under-hood box?
The primary high-amp multi-fuse block inside the under-hood fuse box uses M6 retaining bolts. Tighten these terminal bolts to an exact torque spec of 9.4 N·m (96 kgf·cm / 83 lb-in). Loose hardware causes high contact resistance, arc pitting, and localized thermal destruction of the fuse box housing.
How do I identify if a relay in the 2011 Honda Pilot fuse box is failing?
Remove the suspected relay from the block and test resistance across the control coil terminals (Pins 1 and 2). Resistance should read between 60 $\Omega$ and 120 $\Omega$. Next, apply 12V DC power to the coil pins and measure terminal contact resistance across Pins 3 and 4 using a DMM; resistance must read under 0.2 $\Omega$. Any value above 0.5 $\Omega$ indicates pitted contacts that require relay replacement.
