The Hayward DE filter parts diagram illustrates the internal and external configuration of ProGrid and Perflex filtration systems. Key internal components include the top manifold, eight DE grid assemblies (7 full, 1 partial), diffuser, and center pipe, while external structure hardware features the heavy-duty clamp assembly, high-flow air relief valve, and drain plug.
📌 Key Takeaways
- Full DE grid clusters require 24 lbs of DE powder per 100 sq. ft. of filter area for optimal pre-coating.
- The clamp assembly nut must be torqued until spring coils touch to maintain high-pressure sealing safely.
- A cracked top manifold or torn grid fabric is the primary cause of DE powder blowing back into the pool.
- Always inspect and lubricate tank belly band O-rings with silicone-based lubricant during annual teardowns.
- Replace cracked pressure tanks or damaged valve bodies immediately using professional technicians for high-pressure safety.
Understanding the Hayward DE filter parts diagram is essential for maintaining optimal hydrodynamic performance and structural integrity in residential and commercial pool filtration systems. Hayward ProGrid and Perflex series diatomaceous earth (DE) filters operate under high hydrostatic pressure, requiring precise alignment of internal grids, manifolds, and tank seals. Utilizing OEM technical schematics enables service technicians to systematically diagnose pressure drops, trace bypass paths, and perform accurate component teardowns. This guide details the structural layout, part identification specs, and maintenance protocols required for servicing Hayward DE filtration equipment.

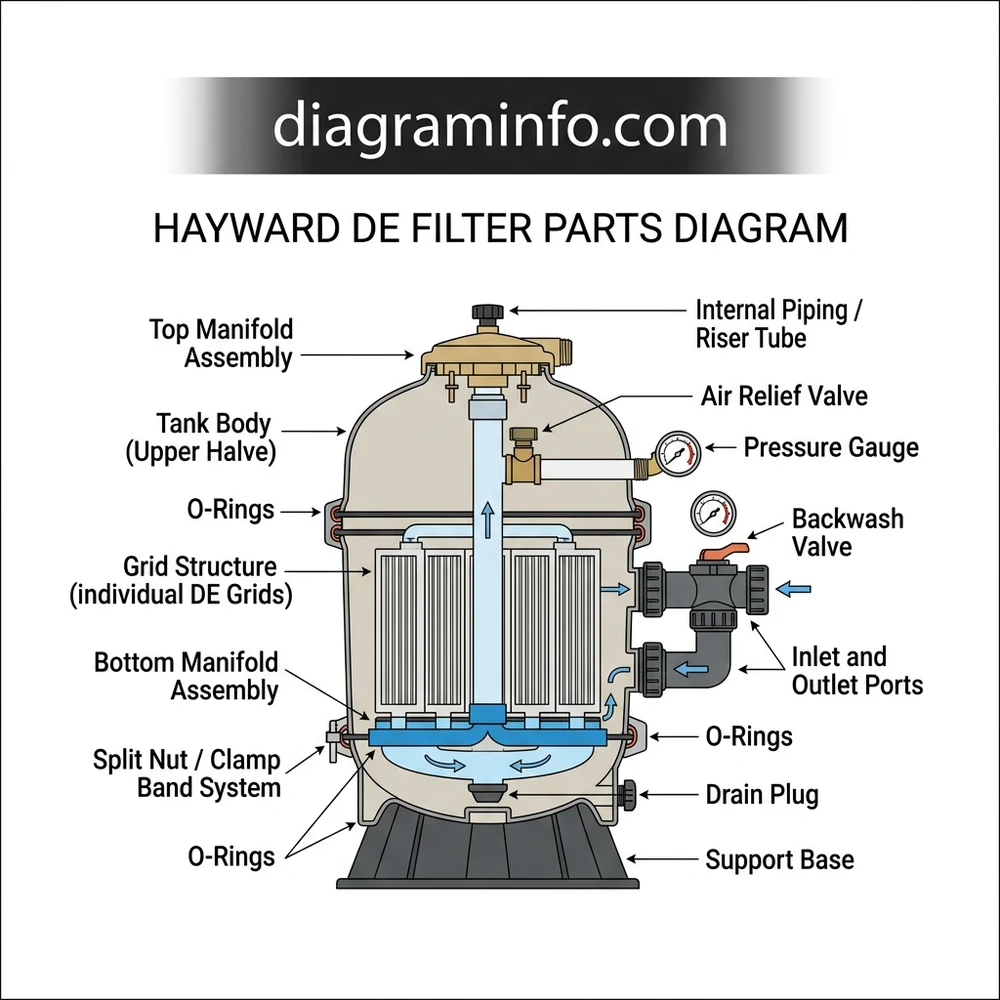

Hayward DE Filter Parts Diagram: Complete Component and Structural Breakdown
Reading the Hayward DE filter parts diagram requires an understanding of how pressure-vessel components integrate with internal hydraulic paths. The outer shell consists of heavy-duty, glass-reinforced copolymer tank halves (top and bottom) joined by a stainless steel belly-band clamp assembly. Inside, the filtration engine relies on a grid nest system supported by a center pipe assembly.
Recommended Best Deal Products
The structural core contains eight vertical grid elements—typically seven full grids and one shorter partial grid designed to accommodate the internal air relief piping. Diatomaceous earth coats these grids to trap particulates down to 5 microns. At the top of the grid cluster, the top manifold (part DEX2400S) holds the grids in rigid position while channeling filtered water into the outlet elbow.
| Component Name | OEM Part Number | Technical Function & Torque Spec |
|---|---|---|
| Tank Clamp Assembly | DEX2421JK | Secures upper/lower shell; Torque spec: 150 in-lbs (12.5 ft-lbs) |
| Top Manifold Assembly | DEX2400S | Captures filtered water, secures grid tops, holds air relief screen |
| DE Grid Set (48 sq. ft.) | DEX4800DA / DE2420 | 7 full grids, 1 partial grid; high-density polypropylene fabric mesh |
| Manual Air Relief Valve | DEX2420MAR2 | Vents trapped air from upper dome; 1/4″ NPT threaded body |
| Main Body Tank O-Ring | DEX2420Z8 | EPDM elastomeric seal between upper and lower tank flanges |
According to OEM specifications, always inspect the tank O-ring (DEX2420Z8) for degradation or physical swell when servicing the tank layout. Never apply petroleum-based lubricants to EPDM seals, as petroleum causes rapid elastomeric breakdown; use 100% silicone lubricant exclusively.
How to Read the Hayward DE Filter Blueprint for Systematic Teardown
To perform a complete overhaul using the Hayward DE filter schematic, technicians must follow a structured disassembly procedure to prevent structural fatigue, thread stripping, and seal distortion.
First, depressurize the system completely. Shut down the pump motor and open the manual air relief valve on top of the dome until the pressure gauge reads 0 PSI. Remove the bottom drain plug (SPX1105Z4) to evacuate residual water and slurry from the lower tank shell.
Next, loosen the clamp bolt using a 9/16-inch deep-well socket. Remove the spring-loaded brass nut, washer, and clamp segments, then carefully lift the top tank half upward. Inspect the upper dome interior for structural stress cracking. Grasp the top manifold handle firmly and lift the entire grid assembly straight up to disengage the center pipe from the lower return elbow connection.
High-Pressure Vessel Hazard: Never attempt to loosen the belly-band clamp assembly until the pressure gauge reads zero and the air relief valve is open. Disassembling a pressurized tank can result in violent component separation and severe equipment damage.
During reassembly, clean all seal grooves along the tank lip. Position the body O-ring properly without twisting. Lower the grid nest onto the center pipe, ensuring the internal air relief strainer sits above the top manifold. Reinstall the clamp band and tighten the nut until the compression spring coils touch coil-to-coil, achieving exactly 150 in-lbs of torque. For valve routing details and backwash configuration, consult our Hayward Vari-Flo valve diagram guide.
Common Hayward DE Filter Diagram Problems and System Diagnostics
Isolating mechanical failures in a DE filtration configuration requires evaluating specific symptoms against the component schematic to target damaged parts efficiently.
1. DE Powder Returning to the Pool: If diatomaceous earth bypasses the filter beds and enters the pool return line, the schematic points to three primary failure nodes: a cracked top manifold (DEX2400S), a torn grid fabric mesh, or a missing/damaged O-ring on the internal air relief pipe assembly. Remove the grid cluster and inspect the plastic manifold bridge under high light for micro-fractures.
2. Rapid Pressure Spike Post-Backwash: When operating pressure rises above normal baseline shortly after backwashing, media short-circuiting or calcification has occurred within the grid fabric structure. Oil accumulation or mineral scale locks the cloth pores, requiring an acid-wash bath rather than simple mechanical flushing.
3. Perimeter Leaks at Tank Base: Fluid escaping along the mid-tank seam indicates improper bolt torque or a pinched body O-ring. Verify that suction lines are unrestricted by referencing our pool pump suction line configuration article, and re-torque the clamp bolt evenly until spring coils sit flush.
Persistent high operating pressures across the grid assembly despite clean media indicate hydraulic restrictions in the multi-port valve or return line fittings. Maintain system integrity according to established commercial pool water balance standards to prevent rapid mineral scaling on inner grids.
Hayward DE Filter Parts Diagram Questions Answered
How do I identify the exact grid size from my Hayward ProGrid DE filter diagram?
Hayward ProGrid model numbers correspond directly to total filtration surface area (e.g., DE2420 = 24 sq. ft., DE3620 = 36 sq. ft., DE4820 = 48 sq. ft., DE6020 = 60 sq. ft., DE7220 = 72 sq. ft.). You can verify grid size on the diagram by measuring vertical height: 24 sq. ft. grids measure 12 inches, 48 sq. ft. grids measure 24 inches, and 60 sq. ft. grids measure 30 inches in height.
What is the correct torque specification for the Hayward DE filter clamp nut?
The standard OEM torque specification for the spring-loaded clamp bolt on Hayward ProGrid DE filters is 150 in-lbs (12.5 ft-lbs). Tighten the locknut using a 9/16-inch deep socket until the coils on the heavy-duty tension spring stack compress solid, touching coil-to-coil.
Why does my Hayward DE filter schematic show one grid shorter than the rest?
The grid nest uses seven full-size grids and one partial (shorter) grid to create functional clearance for the internal air relief tube assembly. This partial grid allows the vertical air bleed pipe to pass from the lower collector up through the top manifold, venting trapped air automatically from the top vessel dome.
Where is the manual air relief mesh screen located in the filter structure?
The air relief mesh screen (part DEX2420MAR2) sits at the highest vertical point inside the filter dome, fitted onto the top manifold assembly. It prevents DE media from blowing back into the pool return lines while allowing trapped air to pass freely out through the valve assembly.
How often should the main tank body O-ring be replaced?
The main body tank O-ring (DEX2420Z8) should be inspected during every annual grid overhaul and replaced every 2 to 3 years, or immediately if flattening, dry rot, swelling, or cracking is observed. Always coat the seal with silicone-based lubricant prior to re-assembly.
Step-by-Step Guide to Understanding the Hayward De Filter Parts Diagram
Identify – Locate the model number on the filter tank label to match the exact Hayward DE filter parts diagram layout.
Locate – Position the high-flow air relief valve, pressure gauge, top manifold, and clamp band on the diagram before opening the system.
Reference – Review the exploded grid cluster configuration to understand how the 8 DE grids seat into the top manifold hub.
Connect/Route – Align the center pipe into the bottom collector hub and press the top manifold firmly onto the grid structure.
Verify – Reinstall the tank clamp assembly, torque the spring nut until coil spring coils touch, and inspect O-ring seating.
Troubleshoot – Bleed air through the manual valve upon pump restart; if DE returns to the pool, re-check manifold placement for cracks.
