Chevy 350 TBI Vacuum Line Diagram: Routing & Repair 2026
The Chevy 350 TBI vacuum system primarily uses manifold vacuum for the PCV valve, brake booster, and HVAC controls, while ported vacuum typically feeds the EGR valve and canister purge solenoid. Check lines for dry rot, cracks, or loose connections, especially around the TBI unit and vacuum tree.
📌 Key Takeaways
- Manifold vacuum primarily supports the brake booster and PCV valve, ensuring critical functions and proper engine breathing.
- Identify the vacuum tree on the intake manifold as the central distribution point for most accessory vacuum lines and components.
- Always use appropriately sized, high-quality vacuum hose (e.g., silicone) for replacements to ensure a tight, long-lasting seal.
- The most common failure points are brittle lines near heat sources and dried-out rubber elbows at component connections, such as the EGR vacuum solenoid or purge valve.
- If persistent idle issues, multiple lean codes, or complex vacuum system interactions occur, consult a professional mechanic for accurate diagnosis.
The vacuum system on a Chevy 350 TBI engine is an often-overlooked yet critical network responsible for powering a multitude of engine accessories and ensuring optimal engine performance and emissions control. Understanding the intricate pathways of the chevy 350 tbi vacuum line diagram is essential for accurate diagnostics, maintenance, and repair. This comprehensive guide will dissect the typical vacuum system, providing mechanics and experienced DIYers with the precise information needed to identify components, interpret routing, and effectively troubleshoot vacuum-related issues that can plague these robust powertrains. Proper vacuum integrity directly impacts everything from fuel economy to brake performance and exhaust gas recirculation efficiency.

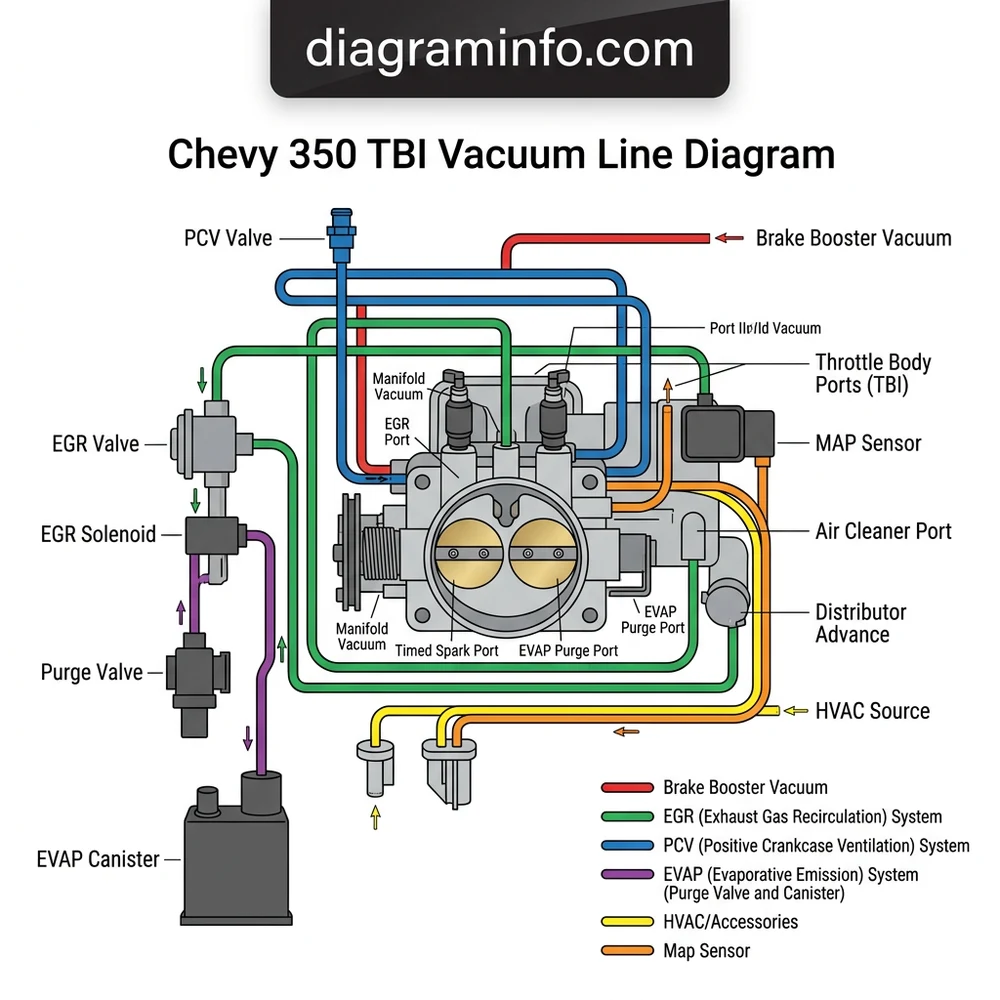

Vacuum Line Color & Routing Table
Interpreting a chevy 350 tbi vacuum line diagram requires not only component identification but also understanding the typical color-coding and routing logic employed by GM. While specific colors can vary slightly by model year and specific vehicle options, the following table outlines common routings and functions for a typical 350 TBI setup. Always consult your vehicle-specific service manual for the most accurate diagram, as Manufacturer specs indicate these diagrams can vary significantly based on vehicle platform (truck vs. car), specific option packages, and production year.
| Line Color (Typical) / Identifier | Routing From → To | Function |
|---|---|---|
| Large Black Hose | Intake Manifold (large vacuum port) → Brake Booster | Provides manifold vacuum for power brake assist. Often includes a one-way check valve. |
| Larger Diameter (often Black/Grey) | Valve Cover (PCV valve) → Intake Manifold (dedicated large PCV vacuum port) | Positive Crankcase Ventilation. Draws crankcase vapors into the intake for combustion, preventing sludge buildup and emissions. The PCV valve regulates flow. |
| Light Green / Yellow | EGR Vacuum Solenoid → EGR valve | Transmits vacuum, controlled by the ECM via the solenoid, to open the EGR valve for exhaust gas recirculation. |
| Red / Orange | Intake Manifold (vacuum source) → EGR Vacuum Solenoid | Provides source vacuum for the EGR solenoid. Often routed through a thermal vacuum switch or ported vacuum source. |
| White / Black (smaller diameter) | Charcoal Canister → Purge Valve Solenoid | Transports fuel vapors from the charcoal canister to the purge solenoid. |
| Dark Green / Blue | Purge Valve Solenoid → Intake Manifold Vacuum (throttle body base or specific port) | Allows metered fuel vapors from the canister to enter the intake manifold for combustion, controlled by the ECM via the solenoid. This is the canister purge line. |
| Small Red/Yellow/White | Intake Manifold Vacuum Port → MAP Sensor | Provides manifold absolute pressure (MAP) signal to the engine control module (ECM) for fuel and spark timing calculations. |
| Various Colors (small) | Intake Manifold / Vacuum Reservoir → HVAC Controls, Cruise Control Servo | Supplies vacuum to operate interior ventilation blend doors, recirculate functions, and the vacuum-actuated cruise control servo. Often includes a check valve and reservoir. |
For TBI systems, vacuum sources are typically derived from the throttle body or directly from the intake manifold. Ports above the throttle blades provide “ported vacuum” (vacuum only when the throttle is open), while ports below provide “manifold vacuum” (vacuum present at idle). The ECM utilizes different vacuum signals for various functions, requiring precise routing as shown in the chevy 350 tbi vacuum line diagram.
Common Vacuum Leak Symptoms
A compromised vacuum system can manifest a wide range of driveability and performance issues. For a chevy 350 tbi vacuum line diagram, identifying these symptoms early can prevent more significant engine damage or emissions failures. Common symptoms often arise from unmetered air entering the intake manifold, disrupting the carefully calibrated air-fuel ratio. The ECM (Engine Control Module) will attempt to compensate, but its corrective range is limited.
- Rough Idle: This is one of the most prevalent symptoms. Excess air entering the engine bypasses the throttle body and mass airflow sensor (if equipped, though TBI primarily uses MAP), causing the engine to run lean at idle, leading to an unstable RPM and vibration.
- Stalling: Particularly when coming to a stop or under light load, a significant vacuum leak can cause the engine to stall as the idle speed drops too low, and the ECM cannot maintain proper combustion.
- Hesitation or Poor Acceleration: Under acceleration, the vacuum level changes. A leak can cause a momentary lean condition, leading to hesitation or a noticeable lack of power.
- Check Engine Light (CEL): The ECM will often trigger a P0171 (System Too Lean) or P0174 fault code, indicating an excessive amount of oxygen in the exhaust, detected by the oxygen sensors. Other codes related to specific vacuum-controlled components (e.g., EGR, EVAP) may also appear.
- Increased Fuel Consumption: The engine will run lean, causing the ECM to add more fuel in an attempt to correct the air-fuel ratio, leading to noticeably poorer fuel economy.
- Hissing or Whistling Noises: A distinct auditory cue of a vacuum leak, often heard around the intake manifold, throttle body base, or vacuum hose connections.
- Hard Pedal or Reduced Brake Assist: If the large vacuum hose to the brake booster vacuum is compromised, the power assist for braking will be diminished, requiring significantly more pedal effort.
- HVAC System Malfunctions: Inoperative or misdirected vent controls for the heating and air conditioning system.
Locating a vacuum leak involves systematic inspection and diagnostic tools. Begin with a visual inspection of all visible hoses and connections for cracks, hardening, or disconnections. Listen for abnormal noises, and consider using a professional smoke machine, which introduces smoke into the intake system, revealing leaks by visible plumes. Alternatively, a carb cleaner or propane spray can be used judiciously to momentarily affect engine idle when sprayed near a leak, but this method carries inherent fire risks and should be approached with extreme caution.
Diagnosis & Repair Steps
Diagnosing and repairing vacuum leaks on a chevy 350 tbi vacuum line diagram requires a methodical approach to ensure all potential points of failure are addressed. Always refer to your vehicle’s specific service manual for component locations and routing unique to your year and model.
- Initial Visual Inspection and Auditory Check:
- With the engine off and cold, visually inspect all rubber and plastic vacuum lines. Look for obvious cracks, hardening, frayed ends, or signs of rodent damage. Pay close attention to connections at the intake manifold, throttle body, EGR valve, PCV valve, and brake booster.
- With the engine running at idle, listen carefully for any hissing, sucking, or whistling sounds around the engine bay. These noises often pinpoint the location of a significant leak.
- Vacuum Gauge Test:
- Connect a vacuum gauge to a reliable manifold vacuum source (e.g., a spare port on the intake manifold or TBI unit, or using a T-fitting in the PCV hose).
- Start the engine and observe the gauge at idle. A healthy engine should typically show a steady reading of 17-21 inches Hg (Mercury).
- An unsteady needle, low reading, or rapidly fluctuating needle can indicate various engine issues, including vacuum leaks, valve problems, or incorrect timing. A very low, steady reading often points to a major vacuum leak or a significant restriction.
🔧 SpecificationAccording to OEM specifications for a healthy Chevy 350 TBI engine at operating temperature, manifold vacuum at idle should typically range between 18-22 inches Hg (61-75 kPa) with a steady needle.
- Smoke Test (Recommended Method):
- A professional smoke machine is the safest and most effective tool for locating elusive vacuum leaks.
- Introduce smoke into the intake system (e.g., through a vacuum port, brake booster line, or directly into the throttle body with the engine off).
- Observe where smoke escapes. This method can reveal leaks in hoses, gaskets (intake manifold, TBI base), and internal cracks in plastic components.
- Propane/Carb Cleaner Test (Use with Extreme Caution):
- With the engine idling, carefully spray unlit propane or a small amount of carburetor cleaner around suspected leak areas.
- If the engine RPM momentarily increases or smooths out, you’ve likely found a vacuum leak. The engine is “sucking in” the combustible substance, causing a temporary richer mixture.
⚠️ WarningUsing flammable sprays near a hot engine carries significant fire risk. Ensure adequate ventilation and have a fire extinguisher readily available. Avoid spraying directly onto hot exhaust components.
- Component Inspection:
- PCV Valve: Remove and shake the PCV valve. A working valve should rattle. If it’s stuck open or closed, replace it. Check the hose for cracks.
- EGR Valve: With the engine running, apply vacuum directly to the EGR vacuum port using a hand-held vacuum pump. The engine should stumble or stall if the valve is functioning. If not, inspect the valve itself and its control solenoid. Further details on EGR system operation are available.
- Check Valves: Test any check valve in the system (e.g., brake booster, HVAC reservoir line) by applying vacuum/pressure to one side and ensuring it holds/blocks correctly.
- Gaskets: Inspect the intake manifold gasket and TBI unit base gasket. These are common leak points as they age and harden.
- Repair and Verification:
- Replace any cracked, hardened, or collapsed vacuum hoses with new, high-quality vacuum tubing of the correct diameter. For critical lines like the brake booster vacuum, ensure the replacement is reinforced.
- Replace faulty vacuum components (PCV valve, EGR valve, purge valve, solenoids).
- Tighten hose clamps where applicable, but avoid overtightening which can damage plastic fittings.
- After repairs, clear any stored diagnostic trouble codes (DTCs) with a scan tool.
- Perform a test drive and re-verify vacuum readings and engine performance. Ensure the check engine light does not return.
FAQ
Q: My HVAC system’s vent controls aren’t working correctly. Could this be related to the chevy 350 tbi vacuum line diagram?
A: Absolutely. Most older GM vehicles, including those with the Chevy 350 TBI engine, utilize engine vacuum to operate the blend doors and mode actuators within the HVAC system. If your vents are stuck on defrost or don’t switch modes, it’s highly likely a vacuum leak in the lines leading to the HVAC controls, a faulty vacuum reservoir, or a malfunctioning check valve in that circuit. Check the small vacuum lines originating from the intake manifold and leading to the firewall for cracks or disconnections. Inspect the dedicated HVAC vacuum reservoir, often found under the hood, and its one-way check valve for integrity.
Q: What is the difference between a “ported vacuum source” and “manifold vacuum” on a TBI system?
A: This is a fundamental distinction when interpreting a chevy 350 tbi vacuum line diagram. Intake manifold vacuum refers to vacuum drawn directly from the intake manifold or the throttle body base below the throttle blades. This vacuum is present at idle and increases with throttle closure. It’s used for components requiring constant vacuum at idle, such as the brake booster and PCV system. Ported vacuum, in contrast, is drawn from a port above the throttle blades. This vacuum is negligible at idle and only becomes significant as the throttle opens. It’s typically used for components that should not operate at idle, such as the EGR vacuum solenoid or some canister purge systems, allowing them to activate under specific driving conditions (e.g., cruising).
Q: My check engine light is on with a “lean” code (e.g., P0171). Can a vacuum leak cause this?
A: Yes, a vacuum leak is one of the most common causes for a “System Too Lean” diagnostic trouble code (DTC) like P0171 on a Chevy 350 TBI. A vacuum leak allows unmetered air to enter the engine after the throttle body, disrupting the air-fuel ratio. The oxygen sensors detect this excess oxygen, signaling to the ECM that the engine is running lean. The ECM then tries to compensate by adding more fuel, but if the leak is significant, it reaches its compensation limit and sets a lean code. A thorough inspection of your chevy 350 tbi vacuum line diagram and system components is crucial for diagnosis, potentially including a detailed emissions systems diagnosis.
Q: How do I check the canister purge valve if I suspect it’s leaking?
A: To check the canister purge valve (or solenoid) for leaks or proper function on your Chevy 350 TBI, you’ll need a hand-held vacuum pump and potentially a multimeter. First, disconnect the vacuum lines from the valve. Apply vacuum to the port that typically connects to the charcoal canister. The valve should hold vacuum if it’s closed. Next, if it’s an electrically operated solenoid, you can apply 12 volts and ground to the solenoid terminals (refer to your vehicle’s wiring diagram for correct pin-out and voltage). When energized, the valve should click open, and vacuum applied to the canister port should now pass through to the intake manifold port. A leaky valve will not hold vacuum when closed, or it may not open/close fully when commanded. This component is integral to the EVAP system, and a malfunction can trigger a CEL and affect emissions.
Step-by-Step Guide to Understanding the Chevy 350 Tbi Vacuum Line Diagram: Routing & Repair 2026
Identify – Locate the vacuum tree and all major vacuum-controlled components on your Chevy 350 TBI engine, such as the PCV valve, brake booster, EGR solenoid, and canister purge valve.
Locate – Find the factory vacuum diagram sticker, usually on the radiator support or under the hood, to reference original line routing and color codes if present.
Reference – Compare your engine’s current vacuum line setup with the provided diagram and the factory sticker, noting any disconnected hoses, incorrect routing, or brittle lines.
Connect/Route – Reconnect or properly route any misconnected or damaged vacuum lines according to the diagram, ensuring snug fits and using correct hose diameters and types.
Verify – Start the engine and listen for hissing sounds. Use a vacuum gauge to confirm manifold vacuum is within specifications (typically 17-21 in. Hg at idle) and that components like the brake booster hold vacuum.
Troubleshoot – If issues persist, conduct a smoke test or use a spray test (carb cleaner/propane) to pinpoint hard-to-find vacuum leaks in hoses, elbows, or fittings that may not be visually obvious.
Frequently Asked Questions
What are the symptoms of a vacuum leak in chevy 350 tbi vacuum line diagram?
Symptoms of a Chevy 350 TBI vacuum leak include rough idle, stalling, poor acceleration, decreased fuel economy, and potential ‘Check Engine’ light with lean codes. You might also hear a distinct hissing sound from the engine bay, especially when revving the engine or at idle from components like the brake booster or PCV valve.
How do I find a vacuum leak in chevy 350 tbi vacuum line diagram?
To find a Chevy 350 TBI vacuum leak, use a smoke machine to identify vapor escaping from lines or connections. Alternatively, spray carb cleaner or unlit propane near suspected areas; a change in idle RPM indicates a leak. Always inspect all rubber elbows, vacuum caps, and connections around the TBI unit and vacuum tree.
What color are the vacuum lines on chevy 350 tbi vacuum line diagram?
Chevy 350 TBI vacuum lines are typically black or uncolored rubber. However, some factory systems might use color-coded plastic lines for specific functions like the EGR vacuum solenoid (e.g., white, green, red) or the canister purge valve. Always refer to the specific year’s diagram as colors and routing can vary.
What does the chevy 350 tbi vacuum line diagram EVAP system do?
The Chevy 350 TBI EVAP (Evaporative Emission Control) system captures fuel tank vapors, preventing their release into the atmosphere. The purge valve, controlled by the PCM, routes these vapors from the charcoal canister into the engine’s intake manifold for combustion, improving emissions and fuel efficiency and reducing air pollution.
How do I replace vacuum lines on chevy 350 tbi vacuum line diagram?
To replace Chevy 350 TBI vacuum lines, first identify the correct routing using a diagram. Carefully remove old lines, noting their connections. Cut new vacuum hose to length, ensuring snug fits without excessive tension or kinks. Use heat-resistant, OEM-spec hose, especially near the exhaust or engine heat sources, to prevent premature failure.
What tools do I need to diagnose chevy 350 tbi vacuum line diagram vacuum issues?
Essential tools for diagnosing Chevy 350 TBI vacuum issues include a vacuum gauge to test manifold vacuum and component function (e.g., brake booster), a smoke machine for leak detection, and a spray bottle of carb cleaner or propane for identifying leaks by RPM change. A factory diagram is crucial for correct routing identification.
