Fuel System: Fuel Pressure Regulator Vacuum Line Diagram Troubleshooting 2026

The vacuum line typically connects the fuel pressure regulator (FPR) to the intake manifold, sensing engine vacuum to modulate fuel pressure. Its routing is usually short and direct from the manifold vacuum port to the diaphragm on the regulator. It ensures proper differential pressure between the fuel rail and manifold for consistent fuel injection.

📌 Key Takeaways

  • The vacuum line ensures fuel pressure maintains a constant differential pressure relative to manifold vacuum, typically 43-58 PSI above manifold pressure.
  • Identify the fuel pressure regulator (FPR) by its location on the fuel rail or fuel return line, with a small vacuum port connection.
  • Always relieve fuel system pressure before disconnecting any fuel lines or vacuum lines to prevent fuel spray and fire hazards.
  • Vacuum line cracks, disconnections, or blockages are the most common causes of incorrect fuel pressure readings and drivability issues.
  • While vacuum line replacement is often a DIY task, comprehensive fuel pressure diagnosis requires specialized gauges and can indicate complex issues needing professional help.

Understanding the intricate diesel fuel injection systems present in modern equipment is paramount for accurate diagnostics and efficient repairs. This article provides a detailed examination of the fuel pressure regulation system, specifically focusing on the fuel pressure regulator vacuum line diagram for a hypothetical common rail diesel (CRD) engine, such as the XYZ-CRD Series. This diagram illustrates the critical interplay between vacuum, fuel pressure, and the engine control module (ECM) to maintain optimal fuel delivery, directly impacting engine performance and emissions compliance.

💡 Technical Note

While this article references a generic XYZ-CRD engine, the principles and component functions discussed apply broadly to many modern diesel and gasoline direct injection (GDI) systems utilizing vacuum-referenced fuel pressure regulators. Always consult your specific equipment’s OEM service manual for exact diagrams, specifications, and procedures.

Fuel System: Fuel Pressure Regulator Vacuum Line Diagram Troubleshooting 2026
Fuel System: Fuel Pressure Regulator Vacuum Line Diagram Troubleshooting 2026

FUEL SYSTEM COMPONENTS BREAKDOWN

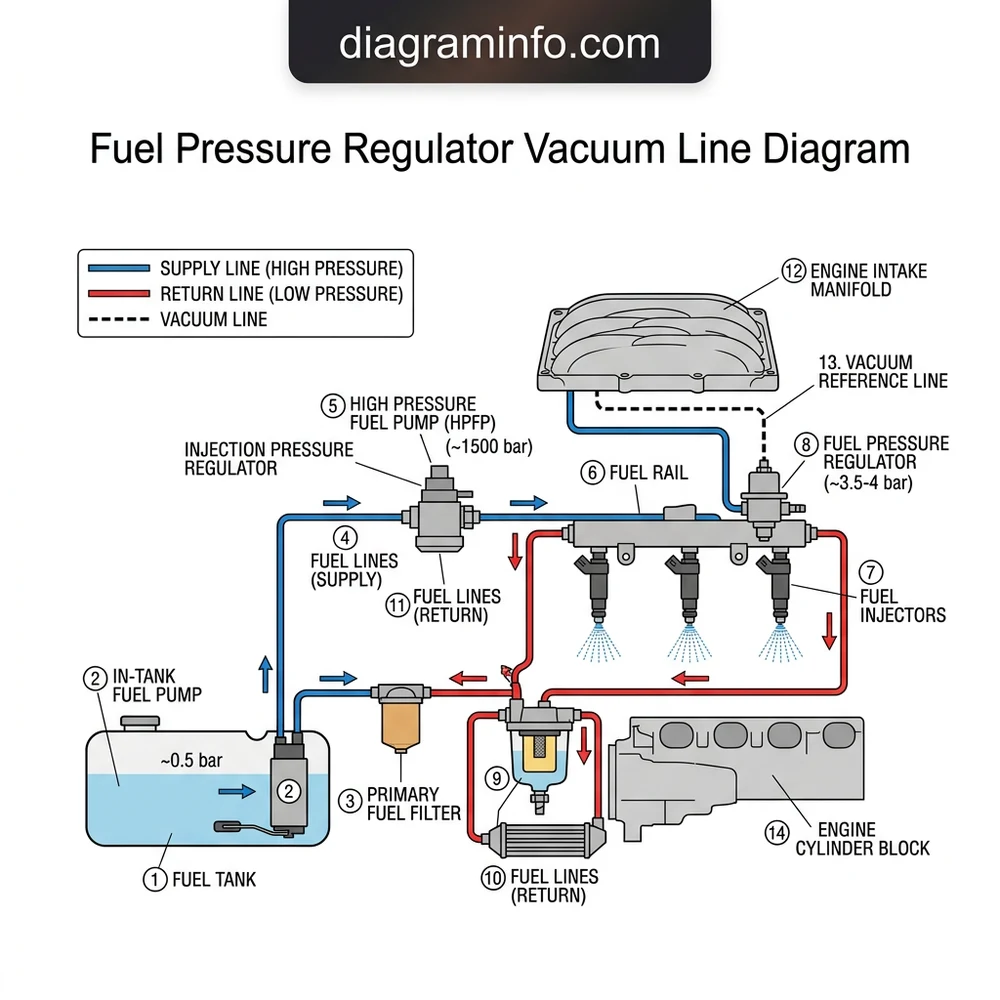

As depicted in the above fuel pressure regulator vacuum line diagram, the fuel system is a complex network designed to deliver fuel precisely and efficiently. Each component plays a vital role in ensuring the engine receives the correct fuel pressure and volume under varying operating conditions.

Component Function
1. Fuel Tank Stores the primary fuel supply for the engine. Includes an in-tank or frame-mounted fuel sender and sometimes an integrated lift pump.
2. Fuel Filter/Water Separator Removes contaminants and water from the fuel supply before it reaches sensitive components. Often includes a fuel heater for cold weather operation and a primer pump for bleeding air.
3. Low-Pressure Fuel Pump (Lift Pump) Draws fuel from the tank and delivers it to the high-pressure fuel pump at a consistent low pressure (typically 40-90 PSI).
4. High Pressure Fuel Pump (HPFP) Raises fuel pressure to extremely high levels (e.g., 2,500-30,000 PSI or more) for common rail injection. Often features an integrated metering unit or injection pressure regulator (IPR) to control output volume.
5. Fuel Rail (Common Rail) Acts as a high-pressure reservoir, distributing fuel evenly to all injectors. Contains a pressure sensor for ECM feedback.
6. Fuel Injectors Electronically controlled nozzles that atomize and spray fuel directly into the combustion chamber or intake manifold.
7. Fuel Pressure Regulator (FPR) Maintains a consistent differential pressure between the fuel rail (or supply line) and the intake manifold vacuum. It typically has a diaphragm that reacts to vacuum changes, modulating the fuel return line flow to the tank.
8. Vacuum Line to FPR Connects the FPR to a port on the intake manifold, providing a vacuum reference to the regulator. This allows the FPR to adjust fuel pressure relative to manifold pressure, crucial for maintaining optimal air/fuel ratio during varying engine loads.
9. Fuel Return Line Carries excess fuel from the fuel rail, injectors, and FPR back to the fuel tank. This line can sometimes incorporate a fuel cooler, especially in high-performance or common rail diesel applications, to dissipate heat generated during pressurization.

In some systems, a “fuel bowl” might be used, which is a reservoir for the fuel filter, often found in older diesel systems. Modern common rail systems integrate fuel heating and priming more directly into the filtration module or pump assembly.

COMMON FAILURE POINTS & SYMPTOMS

Related: fuel pressure regulator vacuum line diagram

Malfunctions within the fuel pressure regulation system, particularly concerning the fuel pressure regulator vacuum line diagram, can lead to a variety of drivability issues. Diagnosing these problems requires a systematic approach, understanding the typical failure modes and their resultant symptoms.

  1. Fuel Pressure Regulator (FPR) Diaphragm Failure:
    • Symptoms: Engine hard starting (especially when warm), rough idle, poor fuel economy, black or white smoke from exhaust, reduced power, or stalling. Fuel smell in the engine bay.
    • Diagnosis: Visually inspect the vacuum line for signs of fuel (indicating a ruptured diaphragm). Connect a fuel pressure gauge to the rail and a vacuum gauge to the intake manifold. Compare actual fuel pressure against specifications, varying engine vacuum. A faulty FPR will often fail to hold consistent pressure or show evidence of fuel in the vacuum port. Check for diagnostic trouble codes (DTCs) related to fuel pressure or mixture.
  2. Clogged or Leaking Fuel Pressure Regulator Vacuum Line:
    • Symptoms: If clogged, the FPR will incorrectly assume constant manifold vacuum, leading to excessively high fuel pressure at idle (rich condition) or low pressure at higher loads (lean condition). If leaking, manifold vacuum will be lost, causing a lean condition, rough idle, and potential misfires.
    • Diagnosis: Disconnect the vacuum line from the FPR and the intake manifold. Inspect for cracks, kinks, or obstructions. Apply a small amount of vacuum manually with a hand pump and observe if it holds. Check the intake manifold port for blockages.
  3. Faulty High-Pressure Fuel Pump (HPFP) / Metering Unit:
    • Symptoms: Engine non-start or extended crank, severe loss of power, engine surging or stumbling under load, persistent low rail pressure DTCs.
    • Diagnosis: Monitor desired vs. actual fuel rail pressure using a diagnostic scanner. Perform a volume test if applicable. While not directly part of the FPR vacuum circuit, an HPFP failure can mimic FPR issues by preventing the system from achieving target pressures, regardless of FPR function.
  4. Clogged Fuel Filter:
    • Symptoms: Reduced engine power, hesitation during acceleration, engine stalling at high loads, or an illuminated “check engine” light with fuel pressure-related DTCs.
    • Diagnosis: Check fuel pressure before and after the filter. A significant pressure drop across the filter indicates a blockage.
⚠️ Warning

Working with pressurized fuel systems is dangerous. Always depressurize the fuel system according to OEM specifications before performing any service. Wear appropriate personal protective equipment (PPE), including eye protection and fuel-resistant gloves. Fuel is highly flammable and under extreme pressure in common rail systems.

REPAIR & REPLACEMENT STEPS: FUEL PRESSURE REGULATOR VACUUM LINE INSPECTION AND REPLACEMENT

fuel pressure regulator vacuum line diagram - related image
Related: fuel pressure regulator vacuum line diagram

The most common repair directly related to the fuel pressure regulator vacuum line diagram involves the inspection and potential replacement of the vacuum line itself or the fuel pressure regulator. This procedure focuses on these components, assuming preliminary diagnostics have indicated a fault in this area.

  1. System Depressurization:
    • Locate the fuel pump fuse or relay (refer to your service manual). Remove it.
    • Attempt to start the engine. It will crank and likely start briefly, then stall as fuel pressure dissipates. Crank for approximately 5-10 seconds to ensure complete depressurization.
    • Disconnect the battery’s negative terminal to prevent accidental starting or electrical shorts.
  2. Access the Fuel Pressure Regulator (FPR):
    • Identify the FPR location as shown in your specific OEM service manual and the generalized diagram above. It’s typically mounted on the fuel rail, near the HPFP, or on the return side of the system.
    • Remove any necessary covers, air intake components, or other obstructions to gain clear access to the FPR and its vacuum line.
  3. Inspect and Disconnect the Vacuum Line:
    • Visually inspect the entire length of the vacuum line connecting the FPR to the intake manifold for cracks, brittleness, kinks, or signs of fuel contamination.
    • Gently pull to remove the vacuum line from both the FPR and the intake manifold port. Use a small pick tool if the line is stubborn or if there are retaining clips. Be careful not to damage the FPR’s vacuum port or the intake manifold’s port.
    • Inspect both ports for blockages or damage.
  4. Test the Vacuum Line and FPR Vacuum Port:
    • Using a hand-held vacuum pump, apply 15-20 inHg (50-67 kPa) of vacuum to the disconnected vacuum line. It should hold vacuum without bleeding down. If not, the line is compromised and requires replacement.
    • Apply the same vacuum to the FPR’s vacuum port (with the line disconnected). The FPR diaphragm should move, and vacuum should hold. If vacuum immediately bleeds off and no internal fuel is evident, the diaphragm may be compromised internally or the seal is faulty, warranting FPR replacement. If fuel is observed at the vacuum port, the FPR diaphragm is ruptured, necessitating replacement.
  5. Replacement of Components (if necessary):
    • If replacing the vacuum line: Obtain a new, OEM-grade vacuum hose of the correct internal diameter and length. Ensure it is rated for fuel exposure if there’s any chance of fuel contamination. Connect the new line securely to both the intake manifold and the FPR.
    • If replacing the FPR: Carefully disconnect any electrical connectors and fuel lines (supply and return) from the FPR. Have a catch pan ready for residual fuel. Unbolt the FPR from its mounting point.
  6. FPR Replacement Specifics:

    When replacing the FPR, ensure the mounting surface is clean. Apply a thin coat of clean diesel fuel or assembly lube to new O-rings for proper sealing. Install new mounting bolts if specified by the OEM or reuse existing ones, applying thread locker if required.

    🔧 Specification

    FPR Mounting Bolt Torque: 10-12 Nm (7-9 ft-lbs)
    Vacuum Line Material: EPDM or Silicone, 3.5mm ID (or OEM specific)
    Typical FPR Electrical Connector: 3-pin connector; Pin 1 (Red/Yellow) +5V Reference, Pin 2 (Black) Sensor Ground, Pin 3 (Blue/White) Signal Return. Ensure connector snaps securely.

  7. Reassembly and Post-Service Checks:
    • Reconnect all fuel lines, electrical connectors, and the vacuum line (if not replaced).
    • Reinstall any removed components or covers.
    • Reconnect the battery negative terminal.
    • Reinstall the fuel pump fuse/relay.
    • Prime the fuel system according to OEM procedures (e.g., cycling the key, using a hand primer pump).
    • Start the engine and check for any fuel leaks around the FPR and fuel lines. Monitor fuel pressure with a diagnostic scanner or gauge at idle and under light load.
    • Clear any stored DTCs and perform a road test to verify proper operation.

FAQ

What is the primary function of a fuel pressure regulator’s vacuum line?

The primary function of a fuel pressure regulator’s vacuum line is to provide a reference point for intake manifold pressure to the regulator. This allows the FPR to adjust fuel pressure relative to the engine’s manifold pressure, rather than maintaining a fixed pressure. By doing so, it ensures a constant differential pressure across the fuel injectors, regardless of engine load, which is critical for precise fuel delivery and maintaining the correct air/fuel ratio.

How does a faulty fuel pressure regulator affect engine performance?

A faulty fuel pressure regulator can significantly impact engine performance. If it fails to maintain adequate pressure, the engine may experience hard starting, hesitation, loss of power, and misfires due to a lean condition. Conversely, if it maintains excessively high pressure, it can lead to a rich condition, causing poor fuel economy, black smoke, rough idle, and potentially catalytic converter damage. A ruptured diaphragm often introduces fuel into the vacuum system, leading to drivability issues and a strong fuel odor.

Can a cracked fuel pressure regulator vacuum line cause a vacuum leak?

Yes, a cracked or disconnected fuel pressure regulator vacuum line will absolutely cause a vacuum leak. This leak will allow unmetered air into the intake manifold, leading to a lean condition. Symptoms can include a rough idle, engine hesitation, reduced power, and an illuminated Check Engine Light with related diagnostic trouble codes (DTCs) such as P0171 (System Too Lean Bank 1) or P0174 (System Too Lean Bank 2).

What tools are essential for diagnosing fuel pressure regulation issues?

Essential tools for diagnosing fuel pressure regulation issues include a fuel pressure gauge kit capable of handling the specific pressures of your system (low or high pressure), a hand-held vacuum pump with a gauge, a multi-meter for electrical circuit testing, and a professional diagnostic scanner for monitoring live data (e.g., fuel rail pressure, fuel trims) and reading/clearing DTCs. A detailed OEM service manual is also indispensable for accurate specifications and wiring diagrams.

Step-by-Step Guide to Understanding the Fuel System: Fuel Pressure Regulator Vacuum Line Diagram Troubleshooting 2026

1

Identify – Identify the fuel pressure regulator (FPR) on the fuel rail or fuel return line, noting its vacuum port connection.

2

Locate – Locate the vacuum line extending from the FPR’s vacuum port to a dedicated vacuum source on the intake manifold, often near the throttle body.

3

Reference – Reference the vehicle’s service manual or a specific diagram to confirm the correct routing and vacuum port location for your specific make and model.

4

Connect/Route – Carefully disconnect the existing vacuum line, if applicable, and connect the new or inspected vacuum line, ensuring a tight, unkinked, and secure fit at both ends.

5

Verify – After connection, start the engine and verify proper idle and acceleration; use a fuel pressure gauge to confirm correct fuel pressure readings under varying vacuum conditions.

6

Troubleshoot – If incorrect fuel pressure or drivability issues persist, troubleshoot by re-checking the vacuum line for leaks, blockages, or disconnections, and test the FPR functionality itself.

Frequently Asked Questions

What are the main components of the fuel pressure regulator vacuum line diagram?

The diagram primarily shows the fuel pressure regulator (FPR), its vacuum port, the vacuum line itself, and its connection point on the engine’s intake manifold. It also implicitly includes the fuel rail, fuel return line, and the high pressure fuel pump delivering pressure to the system, all working in conjunction to maintain precise fuel delivery.

What are symptoms of a failing fuel pressure regulator vacuum line?

Symptoms include rich or lean running conditions, poor fuel economy, hard starting, rough idle, and stalling. A disconnected or cracked vacuum line can lead to excessively high or low fuel pressure, causing these performance problems and potentially triggering check engine light codes. Early detection prevents further engine issues.

How do I diagnose a fuel leak in the fuel pressure regulator vacuum line area?

Visually inspect the vacuum line and FPR for signs of fuel seepage, especially at connection points. Perform a fuel pressure test with a gauge; if pressure drops rapidly after the pump primes, and fuel is present within the vacuum line itself, the FPR diaphragm might be leaking internally. This is a critical diagnostic step.

What is the fuel pressure spec for a system using a fuel pressure regulator vacuum line?

Typically, fuel pressure should be 30-45 PSI with the vacuum line disconnected and plugged, or 35-50 PSI at idle, varying with engine vacuum. Consult your vehicle’s service manual for exact specifications, as values can differ significantly between makes and models for consistent fuel injection and optimal engine operation.

How long does a fuel pressure regulator vacuum line typically last?

The vacuum line itself is usually made of rubber or plastic and can last 100,000 miles or more, but it’s prone to cracking or hardening due to heat and age. The FPR, including its internal diaphragm, also degrades over time. Regular inspection during maintenance is recommended to catch issues early and prevent future problems.

Can I replace the fuel pressure regulator vacuum line myself?

Yes, replacing the vacuum line is generally a straightforward DIY task. It typically involves disconnecting the old line from the FPR and intake manifold, then routing and connecting a new, correctly sized hose. Always relieve fuel pressure first, and use appropriate hose clamps for a secure, vacuum-tight seal to ensure proper function.
