Universal Hydraulic Log Splitter Parts Diagram: 2026 Guide
A standard hydraulic log splitter system configuration consists of a gas engine driving a two-stage gear pump (typically 11-16 GPM), high-pressure hoses rated at 3,000+ PSI, an auto-return control valve, a hydraulic cylinder ram, and a fluid reservoir equipped with a 10-micron return line filter.
📌 Key Takeaways
- Hydraulic systems operate between 2,500 and 3,500 PSI; all high-pressure hoses must be rated accordingly.
- The auto-return detent valve and 2-stage pump layout are critical for proper pressure cycling.
- Always relieve residual hydraulic pressure and torque hose fittings to 15-20 ft-lbs before maintenance.
- Clogged 10-micron return filters and contaminated fluid account for over 70% of pump cavitation failures.
- Rebuilding valves or replacing seals is manageable DIY, but cracked cylinder walls require professional replacement.
Understanding a high-tonnage wood splitter requires a complete grasp of fluid power dynamics and structural assembly. The standard hydraulic log splitter parts diagram illustrates the functional layout between mechanical force generation and fluid routing components. Whether maintaining a 22-ton residential unit or a 35-ton commercial industrial machine, analyzing the structural blueprint ensures precise diagnosis, efficient component replacement, and optimal cycle times. This technical guide examines every core component, traces fluid circuit mechanics, outlines system schematic reading protocols, and provides pressure diagnostic specs according to original equipment manufacturer (OEM) operational standards.

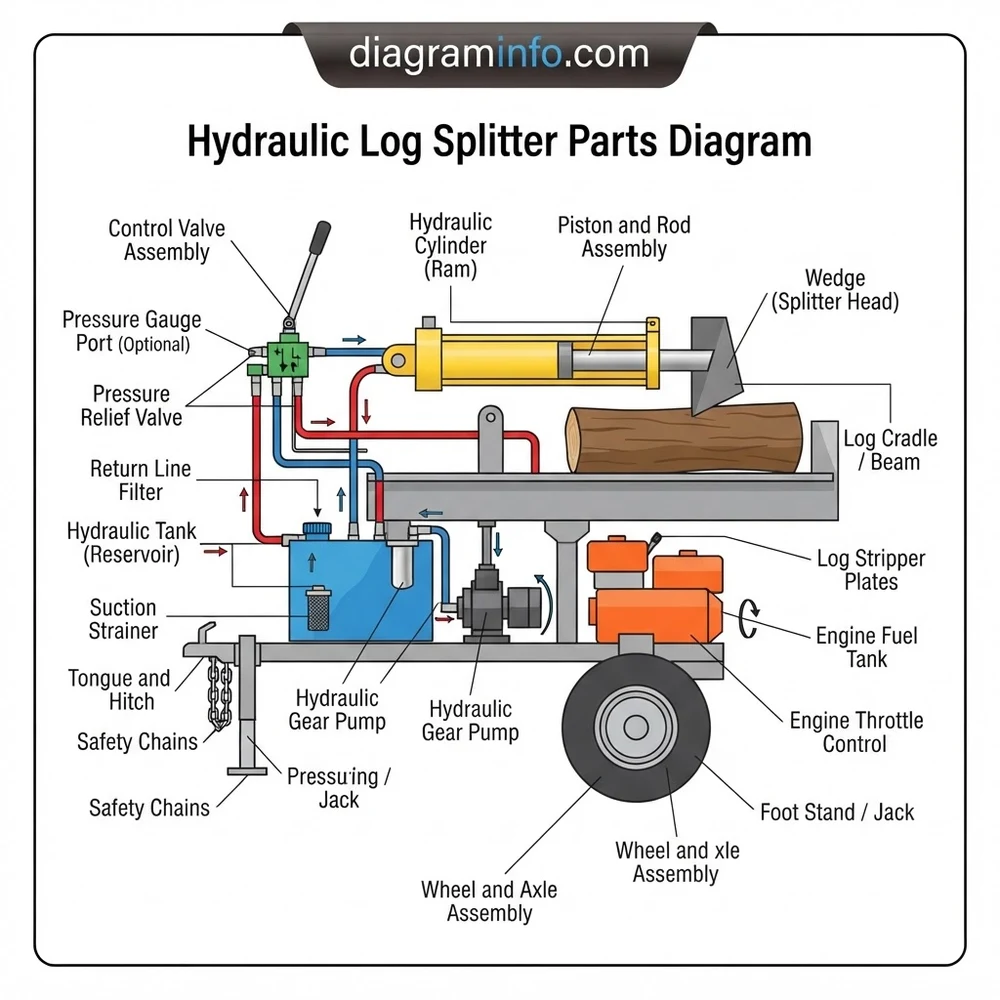

Hydraulic Log Splitter Parts Diagram: Core Component Breakdown
Every hydraulic log splitter system relies on a closed-loop fluid circuit to convert engine horsepower into linear mechanical tonnage. A standard blueprint categorizes the system into mechanical structural members and hydraulic fluid power elements. Evaluating an exploded view layout reveals how primary components interact under operating pressures ranging from 650 PSI to 3,500 PSI.
| Component | Standard OEM Specification | System Diagnostic Function |
|---|---|---|
| Two-Stage Gear Pump | 11 to 16 GPM; 3,000 max PSI; 1/2″ NPT inlet | Converts engine RPM to fluid velocity; unloads to stage two at ~650 PSI for high-torque splitting. |
| Control Valve Assembly | Auto-return detent; relief preset to 3,150 PSI; 3/4″ NPT ports | Directs oil flow to cap end or rod end; regulates maximum system pressure safety threshold. |
| Double-Acting Cylinder | 4.0″ to 5.0″ Bore; 24″ Stroke; 1.75″ to 2.0″ Chrome Rod | Converts fluid pressure into mechanical tonnage force via internal piston and cup seals. |
| Suction Strainer & Filter | 100-mesh suction screen; 10-micron spin-on return filter | Prevents pump cavitation and protects spool valves from particulate contamination. |
The structural beam acts as the main spine, taking the full bending moment when the wedge forces through hardwood logs. The engine (typically 6.5 HP to 13 HP) directly drives the two-stage hydraulic gear pump via a flexible lovejoy jaw coupling. High-pressure fluid travels from the pump outlet port through double-wire braided hoses (SAE 100R2AT rating) to the directional control valve. You can consult our hydraulic cylinder re-seal procedure for internal seal replacement protocols when fluid bypass is detected during servicing.
Most log splitter configurations utilize a 2-stage pump structure containing an internal unloading valve. The large displacement gear delivers fast wedge movement at low pressure (<650 PSI). Upon encountering resistance, the check valve shifts displacement to the small gear, building up to 3,500 PSI for maximum tonnage output.
How to Read the Hydraulic Log Splitter System Layout Schematic
Reading a hydraulic log splitter parts diagram schematic requires understanding standardized fluid power symbols and directional flow paths. Hydraulic schematics represent fluid flow using continuous lines for pressure feeds, dashed lines for pilot/drain lines, and block symbols for mechanical valves.
Tracing the operational layout follows a logical sequence from reservoir storage through force multiplication and back to filtration:
- Suction Stage: Hydraulic oil (ISO VG 32 or ISO VG 46) is drawn from the bottom reservoir port through a 100-mesh suction strainer by the two-stage pump. The suction line uses clear or wire-reinforced low-pressure hose clamped with heavy-duty T-bolt bands.
- Pressure Delivery Stage: The pump forces pressurized oil out of the high-pressure port directly into Port P (Pressure) of the auto-detent control valve.
- Actuation & Extension: When the control lever is pushed forward, the internal spool connects Port P to Port A (Cap End of Cylinder). Fluid enters behind the cylinder piston, pushing the rod forward. Simultaneously, fluid in the rod end exits via Port B and routes through Port T (Tank) to the return line.
- Auto-Detent Retraction: Pulling the lever backward shifts the spool to connect Port P to Port B (Rod End). The sleeve detent locks the lever in place until the cylinder fully retracts. A spike in pressure (~1,400 PSI) unseats the detent ball, automatically returning the spool to neutral.
- Filtration & Cooling Stage: Return fluid flows through a 10-micron spin-on filter housing before re-entering the fluid reservoir to dissipate heat.
Hydraulic oil escaping under 3,000+ PSI can easily penetrate skin and cause severe tissue necrosis. Never use hands to check for leaks on high-pressure lines. Always use cardboard or wood to trace pinhole leaks on a running machine.
Troubleshooting Common Failures via the Log Splitter Blueprint
System failures usually manifest as reduced splitting force, slow cycle times, or jerky cylinder motion. Cross-referencing symptom diagnostics with the hydraulic log splitter parts diagram allows technicians to isolate hardware failures rapidly.
Low splitting force typically stems from a misadjusted or bypass-failing main relief valve located on the directional control valve block. If pressure drops below 2,500 PSI under heavy load, check the spring tension adjustment screw or inspect the valve cone for foreign debris seat contamination. If system pressure remains within spec, inspect the cylinder piston packing seal for high-pressure fluid bypass. Refer to our two-stage hydraulic pump troubleshooting guide for detailed gear housing tolerances.
Pump aeration and hydraulic fluid foaming indicate a leak on the suction side of the system layout. Loose hose clamps on the suction line or degraded O-rings at the pump inlet fitting allow air to mix with fluid, causing spongy operation and excessive pump noise. Heat buildup exceeding 180°F (82°C) indicates continuous fluid bypass, undersized hydraulic tank volume, or severe thermal breakdown of the ISO oil grade.
When replacing high-pressure hoses on log splitters manufactured after 2015, verify thread standards carefully. Older models primarily use standard NPTF male pipe threads, whereas newer commercial splitters frequently utilize Male JIC (37° flare) or ORB (O-Ring Boss) fittings to eliminate fluid weeping caused by frame vibration.
Hydraulic Log Splitter Configuration and Parts Diagram FAQ
What hydraulic fluid ISO grade is recommended in standard splitter blueprints?
Most manufacturers specify ISO VG 32 hydraulic oil for general operating conditions down to 20°F (-7°C). For operation in hot ambient climates consistently exceeding 85°F (29°C), ISO VG 46 provides higher fluid viscosity to maintain film strength and prevent internal pump cavitation. Multi-viscosity Universal Tractor Hydraulic Fluid (UTF) is also commonly approved for all-season operation.
How does a two-stage hydraulic pump function in the system circuit?
A two-stage gear pump combines two sets of gears within a single housing fed by a shared inlet. At low operational pressure (advancing the wedge toward the log), both gear sets supply maximum oil flow (e.g., 11–16 GPM) for fast travel speed. When wedge contact generates backpressure exceeding approximately 650 PSI, an internal unloading valve vents the high-volume gear back to the suction side. The smaller gear continues to deliver low volume under high pressure (up to 3,500 PSI) to complete the split.
Why is my control valve detent failing to auto-return to the neutral position?
Failure of the auto-return detent mechanism is usually caused by incorrect kick-off pressure adjustment, mechanical binding in the slide wedge linkage, or excess return line backpressure (>100 PSI). The detent pressure kick-off setting screw located on the back end of the spool valve can be adjusted using an Allen wrench to fine-tune the pressure release threshold, usually factory preset between 1,000 and 1,400 PSI.
How do I test for internal cylinder blow-by using the blueprint schematic?
To perform a cylinder bypass test, fully extend the cylinder rod to its limit and stop the engine. Safely relieve residual circuit pressure by moving the valve lever back and forth. Disconnect the return line hose from the rod end port (Port B) of the cylinder and cap the open hose. Restart the engine and actuate the valve to supply pressure to the cap end (Port A). Continuous, heavy fluid discharge from the open rod-end cylinder port indicates blown internal piston seals requiring full cylinder rebuilding.
What torque spec should be applied to structural beam frame bolts?
Structural beam fasteners, motor mount brackets, and trunions take extreme mechanical shock during tough logs splits. Grade 5 1/2-13 zinc-plated frame bolts should be torqued to 75 ft-lbs, while Grade 8 fasteners of the same size require 105 ft-lbs. Always consult your specific machine manual and use medium-strength threadlocker on high-vibration engine mounting hardware.
Step-by-Step Guide to Understanding the Hydraulic Log Splitter Parts Diagram
Identify – Identify the specific motor, pump GPM, and valve layout on your hydraulic log splitter parts diagram.
Locate – Locate the fluid tank, suction line, pump inlet, and control valve ports on the physical frame.
Reference – Reference line thickness in the diagram to distinguish high-pressure lines from low-pressure return hoses.
Connect/Route – Route hydraulic lines according to schematic ports (Pump to In, Out to Filter, A/B to Cylinder).
Verify – Verify all fitting torques and check hydraulic fluid level before bleeding air from the cylinder.
Troubleshoot – Troubleshoot slow extension or pressure drops using a 5,000 PSI inline hydraulic test gauge.
