5.9L Cummins Engine Diagram: Component Identification 2026

The Cummins 5.9L engine stands as a legendary powerplant in the automotive and heavy equipment sectors, renowned for its unparalleled durability, straightforward design, and significant power potential. Primarily found in Dodge Ram pickup trucks from 1989 through 2007, this inline-six diesel engine evolved through several iterations, each distinguished by critical design changes impacting performance, emissions, and maintenance. Understanding the intricate details of a Cummins 5.9 engine diagram is essential for technicians and enthusiasts alike, providing a foundational visual guide to its complex yet robust internal architecture.

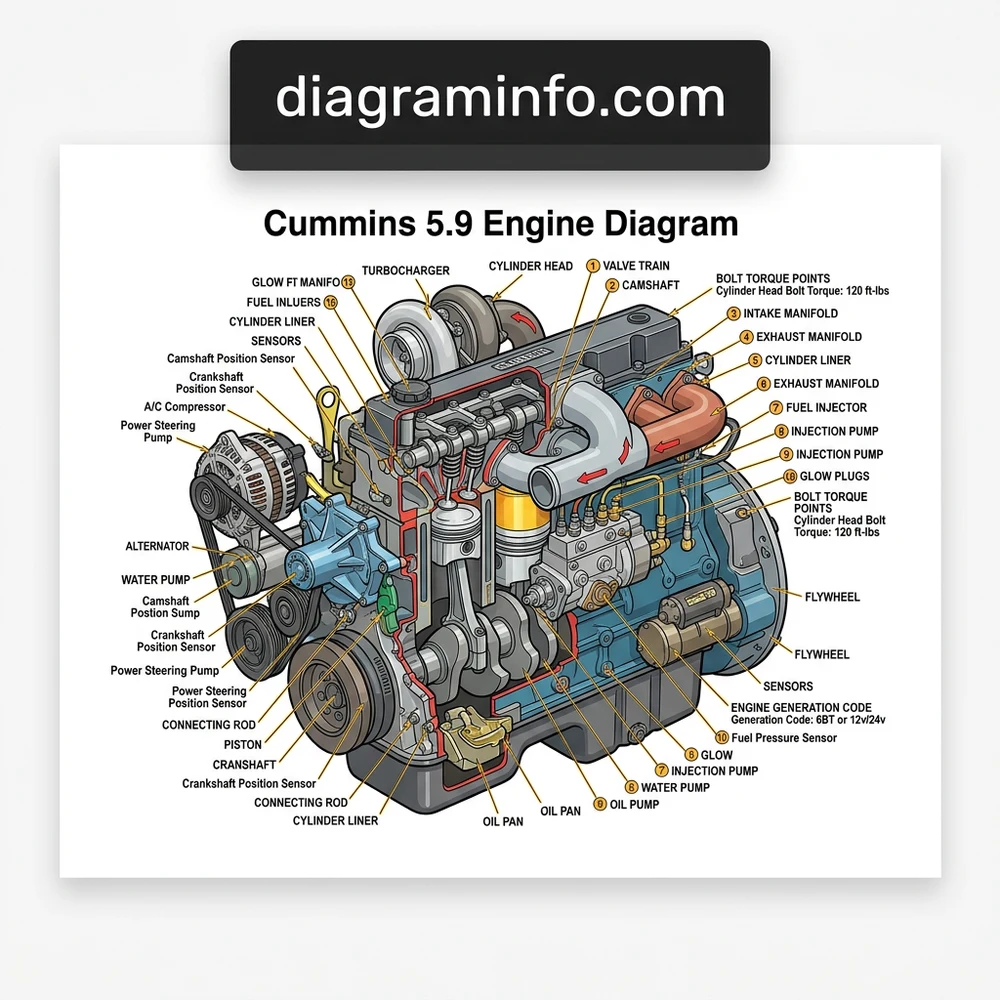

[INSERT CUMMINS 5.9 ENGINE DIAGRAM HERE – WITH LABELS]

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Engine Component Breakdown

A detailed examination of the Cummins 5.9 engine diagram reveals a robust, inline-six cylinder architecture, designed for heavy-duty applications. Each component plays a critical role in the engine’s operation, and understanding their function is paramount for accurate diagnosis and repair.

1. Cylinder Block (Engine Block): This foundational cast-iron structure houses the engine’s primary rotating and reciprocating components. On a Cummins 5.9 engine diagram, the block often shows provisions for coolant passages, oil galleries, and cylinder liners. It provides rigid support for the crankshaft, connecting rod assemblies, and the cylinder head.

2. Cylinder Head: Mounted atop the engine block, the cast-iron cylinder head contains the intake and exhaust valves, rocker arms, and fuel injectors. Its design is crucial for combustion efficiency and dictates airflow characteristics. Early 12-valve models feature a simpler, cross-flow design, while 24-valve versions employ a more complex multi-valve arrangement, which significantly improves air intake and exhaust scavenging.

3. Piston: Reciprocating within the cylinder liners, the pistons convert the energy from combustion into mechanical motion. Cummins 5.9 pistons are typically aluminum alloy, designed to withstand extreme temperatures and pressures. Each piston is connected to a connecting rod.

4. Connecting Rod: This forged steel component links the piston to the crankshaft, transmitting the piston’s linear motion into the crankshaft’s rotational motion. The integrity of the connecting rod is vital, especially under high boost or elevated power outputs.

5. Crankshaft: The heart of the rotating assembly, the forged steel crankshaft converts the reciprocating motion of the pistons and connecting rods into rotational energy. Main bearings support the crankshaft within the engine block, and it features counterweights for balance and journals for connecting rods.

6. Camshaft: Located within the engine block (or sometimes in the head for overhead cam designs, though not for the 5.9L), the camshaft controls the timing and lift of the intake and exhaust valves. It is driven by the crankshaft via a gear train. The camshaft also drives the fuel lift pump and power steering pump on some generations.

7. Valve Train: Comprising the camshaft, lifters (tappets), pushrods, rocker arms, and valves, the valve train precisely controls the opening and closing of the intake and exhaust ports. The 12-valve and 24-valve designs have distinct valve train configurations, with the latter featuring more components per cylinder to actuate four valves.

8. Oil Pan: Bolted to the bottom of the engine block, the oil pan serves as a reservoir for the engine’s lubricating oil. It often incorporates baffling to prevent oil starvation during aggressive maneuvers and a drain plug for oil changes.

9. Turbocharger: Located on the exhaust manifold, the turbocharger uses exhaust gases to spin a turbine, which in turn spins a compressor. This forces more air into the engine, significantly increasing power output and efficiency. Various turbochargers were used across the 5.9L generations, including Holset HX35W, HY35W, and HE341/HE351 models.

10. Injection Pump (e.g., VE, P7100, VP44, CP3): This critical component is responsible for delivering pressurized fuel to the injectors at precise timings. Its type varies significantly across generations and is often a defining characteristic of each 5.9L engine variant. The P7100 and CP3 are known for their mechanical and electronic reliability, respectively.

11. Fuel Injectors: Situated in the cylinder head, the injectors spray atomized fuel directly into the combustion chamber. Their design and spray pattern are critical for efficient combustion and emissions control.

Understanding the interplay of these components from a comprehensive Cummins 5.9 engine diagram empowers technicians to accurately diagnose and repair issues, from a faulty valve train component to a compromised crankshaft bearing.

Year & Generation Coverage Table

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Common Failure Points

Despite its legendary reliability, the Cummins 5.9L engine, across its various generations, exhibits several well-documented failure points that technicians should be acutely aware of. Identifying these issues early can prevent catastrophic engine damage and ensure longevity.

1. Killer Dowel Pin (KDP) – 12-Valve Engines (1989-1998):

The KDP is a small steel alignment dowel located behind the timing gear case on 12-valve engines. Over time, engine vibrations can cause this dowel pin to back out, falling into the timing gears. This can lead to severe damage to the timing gears, camshaft, and even the engine block. Symptoms often include sudden engine noise, loss of timing, or complete engine failure. A common preventative measure involves removing the timing cover and securing the dowel pin with a KDP retainer kit.

2. Bosch VP44 Injection Pump Failure – 24-Valve (1998.5-2002):

The VP44 pump is a notoriously sensitive component. Its internal electronics and the lubrication system are highly susceptible to damage from low fuel pressure, often caused by a failing factory lift pump. Symptoms include sudden power loss, erratic idle, hard starting, or a “dead pedal” condition. Diagnosing this often involves checking fuel pressure at the VP44 inlet (manufacturer specifications typically require 10-15 PSI at idle) and scanning for diagnostic trouble codes (DTCs) related to the fuel system.

3. “53 Block” Cracking – 24-Valve (1998.5-2002):

Certain 24-valve engine blocks cast by TUPY during a specific production period (identifiable by a “53” casting number on the block skirt) are prone to developing cracks in the water jacket, typically on the passenger side. This is attributed to thinner casting in that area. Symptoms include persistent coolant leaks, unexplained coolant loss, or overheating. While a crack may not immediately cause failure, it will worsen over time. Repair often involves welding or block replacement.

4. Lift Pump Failure – 24-Valve (1998.5-2007):

The electric lift pump, responsible for supplying low-pressure fuel to the injection pump (VP44 or CP3), is a common weak point. On VP44-equipped engines, its failure often leads to VP44 pump damage due to fuel starvation. On common rail engines, a failing lift pump can strain the CP3 pump and lead to hard starting or reduced power. Upgrading to a more robust aftermarket lift pump is a popular and recommended preventative modification.

5. Fuel Injector Issues – Common Rail (2003-2007):

Common rail injectors operate at extremely high pressures and are precise components. They can develop issues such as sticking, leakage, or poor spray patterns due to fuel contamination, wear, or excessive heat. Symptoms include rough idle, excessive smoke (black or white), poor fuel economy, or misfires. Diagnosis often requires injector return flow testing and advanced scan tool diagnostics.

6. Exhaust Manifold Warping – All Generations:

The cast-iron exhaust manifold is prone to warping and cracking due to extreme heat cycles. This can lead to exhaust leaks, noticeable as a ticking sound, reduced turbocharger efficiency, and even damage to turbocharger studs. Regular inspection and replacement with a high-quality aftermarket manifold (often a 3-piece design) can mitigate this issue.

FAQ

What are the primary differences between the 12-valve and 24-valve Cummins 5.9L engines?

The primary difference lies in the cylinder head design and fuel injection system. The 12-valve engine (produced from 1989-1998) features two valves per cylinder (one intake, one exhaust) and utilizes either a mechanical Bosch VE rotary pump or a Bosch P7100 inline injection pump. In contrast, the 24-valve engine (1998.5-2007) has four valves per cylinder (two intake, two exhaust) for improved airflow and uses an electronically controlled Bosch VP44 rotary pump (1998.5-2002) or a high-pressure common rail (HPCR) Bosch CP3 injection pump (2003-2007). The 24-valve engines generally offer higher horsepower and better emissions control, while the 12-valve engines are revered for their mechanical simplicity and robust nature.

How can I verify the specific generation of my Cummins 5.9L engine?

You can verify the generation by checking the engine’s build date and the cylinder head design. For 12-valve engines, look for the visible fuel lines running from the injection pump to the injectors on the driver’s side and the valve cover with six bolts. For 24-valve engines, you’ll see a single fuel rail (common rail models) or multiple fuel lines leading to the VP44 pump and valve covers with more bolts. The Vehicle Identification Number (VIN) decoder or the engine’s serial number (ESN) plate on the timing cover can also provide definitive information on the year and specific engine build. For comprehensive details on VIN decoding for Cummins engines, refer to our detailed guide on VIN decoding.

What are the typical operating oil pressure specifications for a Cummins 5.9L?

While variations exist between generations, a healthy Cummins 5.9L typically exhibits oil pressure ranging from 10-20 PSI at idle (engine warm) and 40-60 PSI at 2000 RPM. Lower pressures, especially at RPM, can indicate issues with the oil pump, worn main or rod bearings, or a faulty pressure relief valve. Conversely, excessively high pressure can point to a restricted oil passage or a stuck relief valve. Always use a reliable mechanical oil pressure gauge for accurate diagnosis if a dashboard gauge is suspected of inaccuracy.

What torque specifications are critical when reassembling the cylinder head?

The cylinder head bolt torque sequence and values are paramount for preventing head gasket failure and maintaining structural integrity, especially under boosted conditions. For 12-valve engines, the head bolts are typically torqued in three stages, often reaching 125-135 ft-lbs with factory bolts (check service manual for exact values). For 24-valve engines, the sequence is also multi-stage, often including an angle-torque step after initial ft-lb settings, reaching final values that can be 125 ft-lbs or more depending on the year and whether studs are used. Always replace head bolts with new ones or use ARP head studs when increasing power, and strictly adhere to the manufacturer’s specified torque sequence and values to ensure even clamping force across the cylinder head gasket.

What are common signs of a failing turbocharger on a 5.9L Cummins?

Common indicators of a failing turbocharger include excessive blue or black smoke from the exhaust, indicating oil consumption or incomplete combustion; a noticeable whine or siren-like sound during acceleration, suggesting worn bearings; decreased boost pressure or power loss; and oil leaking from the turbocharger’s compressor or turbine housing. Inspecting the compressor wheel for damage or excessive shaft play is a critical diagnostic step. A properly functioning turbocharger is vital for the 5.9L’s performance and efficiency, and addressing issues promptly can prevent more extensive engine damage.
