120V Water Pump Switch Wiring Diagram: 2026 Connection Guide
A standard 120V or 240V water pump switch wiring diagram uses Line (power in) terminals 1 and 3, and Load (pump out) terminals 2 and 4. Black hot wire and white/red hot wire connect to Line terminals, while motor leads attach to Load. Always attach bare or green ground wire to switch enclosure screws.
📌 Key Takeaways
- Line terminals (L1/L2 or pins 1/3) accept incoming hot wire power from the circuit breaker.
- Load terminals (T1/T2 or pins 2/4) route power out to the well or surface water pump motor.
- Always securely terminate the green ground wire to metal ground screws on the switch frame.
- Swapping line and load wires bypasses auto-shutoff and can permanently damage the pressure switch.
- Use 12 AWG copper wire for standard 20A 120V/240V pump circuits up to 100 feet in length.
Wiring a mechanical or electronic pressure switch to an AC well pump or 12V DC demand pump requires precise terminal identification and strict adherence to electrical safety standards. Utilizing an accurate water pump switch wiring diagram eliminates common installation hazards such as inverted line and load connections, thermal overload, premature contact pitting, and motor burnouts. Whether servicing standard 2-pole electromechanical switches (such as the Square D PumpTrol series) or low-voltage 12V marine and RV automatic pressure cut-offs, correct terminal routing ensures optimal motor duty cycles and prevents severe voltage drop across long wire runs. This technical guide breaks down terminal block pin assignments, conductor gauge selection, ground bonding protocols, and wire color codes across single-phase AC and DC pumping circuits.

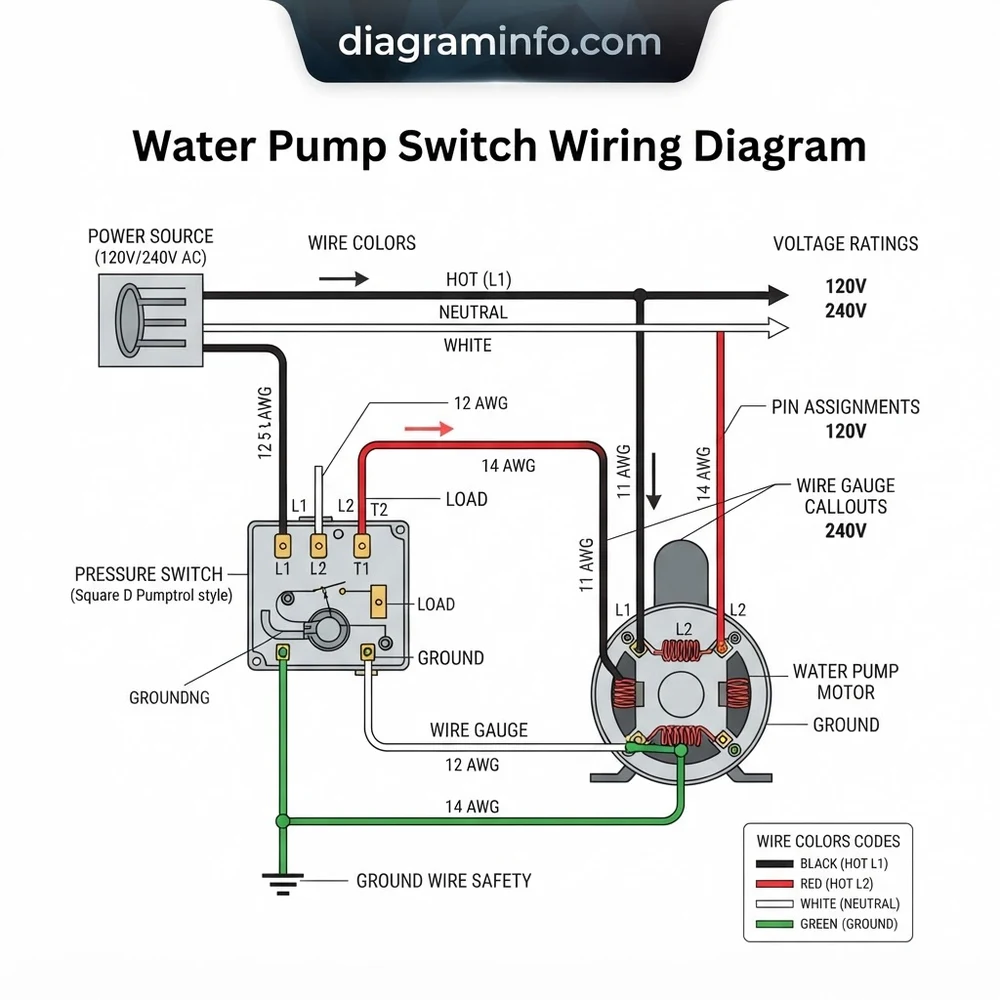

Understanding Water Pump Switch Wiring Diagram Terminal Configurations
Most residential well pump pressure switches utilize a 2-pole, single-phase contactor layout featuring four main electrical screw terminals plus dedicated grounding locations. In standard 120V/240V electromechanical switches, terminals are paired to open or close both legs of the power circuit simultaneously. When pressure drops below the cut-in threshold (typically 30 PSI or 40 PSI), internal spring tension closes the contacts, bridging the incoming line power to the pump load terminals.
According to OEM manufacturer specifications, line terminals (often stamped as L1 and L2) accept incoming power directly from the electrical panel breaker or control box. The load terminals (stamped as T1 and T2, or M1 and M2) feed power out directly to the submerged pump motor or external jet pump assembly. Misinterpreting this layout on a water pump switch wiring diagram by cross-connecting line and load terminals on the same pole creates a direct dead short, immediately tripping circuit breakers or destroying internal switch contacts. For complex control systems incorporating liquid level controls, technicians should cross-reference our guide on float switch wiring diagrams to ensure proper safety cutoff integration.
On standard double-pole pressure switches, terminals 1 and 4 represent the Line connections (incoming power from the panel), while terminals 2 and 3 represent Load connections (outgoing power to the pump motor). Terminal layout numbering can vary slightly between manufacturers; always verify stamped markings on the switch base housing prior to energizing.
Wire Color Code and Pin Assignment Reference Guide
Proper conductor identification is vital when installing or troubleshooting pump controls. Wiring conventions differ significantly depending on operating voltage (120V AC single-hot vs. 240V AC dual-hot vs. 12V DC direct current). The reference table below details standard wire color code assignments, pin connections, and circuit functions for industrial and residential water pump pressure switch assemblies.
| Wire Color | Circuit Function | Pin / Terminal Assignment | Technical Notes |
|---|---|---|---|
| Black (120V/240V AC) | Hot Line 1 (Incoming AC Power) | Terminal L1 (Pin 1) | Originates from main service panel dedicated breaker. |
| White (120V AC System) | Neutral Wire (AC Return) | Terminal L2 (Pin 3 or Direct Pass-through) | Functions as current return path in 120V configurations. |
| Red or White with Red Tape (240V AC) | Hot Line 2 (Incoming AC Power) | Terminal L2 (Pin 3) | Carries second 120V leg in 240V split-phase systems. |
| Black (Motor Feed Side) | Switched Hot Load 1 | Terminal T1 / Load 1 (Pin 2) | Energized only when switch contact points close. |
| Red or White (Motor Feed Side) | Switched Hot Load 2 or Switched Neutral | Terminal T2 / Load 2 (Pin 4) | Feeds motor terminal block or submersible cable splice. |
| Green / Bare Copper | Equipment Ground Wire | Green Ground Screws on Switch Frame | Must bond switch chassis, panel ground, and pump casing. |
| Red (12V DC Demand Pump) | Positive DC Supply (+12V) | Pressure Switch Terminal A (In) | Must be fused inline near the DC battery power source. |
| Black (12V DC Demand Pump) | Negative DC Ground (-12V) | Direct to Motor Negative Lead | Bypasses mechanical switch; connects directly to pump. |
How to Read the Water Pump Switch Wiring Diagram and Wire Terminals
Completing a field installation using a water pump switch wiring diagram requires strict sequential execution to guarantee mechanical stability and electrical safety. Before making any connections, shut off circuit power at the breaker panel and test with a calibrated non-contact voltage tester or digital multimeter.
- Prepare Conduit and Enclosure Intakes: Strip back approximately 4 to 6 inches of the outer non-metallic sheath (NM-B or UF-B cable) or pull conductors through liquid-tight flexible conduit. Secure the cables to the pressure switch frame using UL-listed strain relief clamps to prevent physical stress on the internal terminal block.
- Identify Terminal Screw Assignments: Observe the internal layout of the switch block. Standard electromechanical switches possess four distinct screw terminals arranged in two parallel sets, plus two green grounding screws embedded into the metal mounting base. The outer terminals generally represent Line inputs, while the inner terminals represent Load outputs (or vice versa depending on brand—verify via stamped housing marks).
- Connect Incoming Power (Line Side): Strip 1/2 inch of insulation from the incoming power conductors. Insert the black hot wire under the binder head screw labeled Line 1 (L1) and tighten to 15–20 inch-pounds of torque. For 240V circuits, connect the second hot wire (red or re-identified white wire) to Line 2 (L2). For 120V circuits, wire the white neutral wire to the L2 line terminal.
- Connect Outgoing Motor Leads (Load Side): Connect the black conductor heading to the pump motor to Load 1 (T1). Attach the remaining motor lead (red for 240V systems, or white neutral for 120V systems) to Load 2 (T2). Ensure no stray wire strands bridge across adjacent terminals.
- Establish Continuous Grounding Bonding: Secure the bare equipment ground wire from the incoming feeder supply to one of the green grounding screws on the metallic baseplate. Connect the green ground wire leading to the pump assembly to the second grounding screw on the switch chassis. Ground continuity must be verified using an ohmmeter prior to energizing.
- Integrate Control Devices (Optional): If your installation incorporates low-water cut-off safety devices or manual override switches, route control wires in series with the Line 1 supply path. For deeper insights into complete well head pump drop-pipe controls, refer to our comprehensive well pump control box wiring diagram guide.
Voltage Ratings, Wire Gauge Selection, and Terminal Block Specs
Selecting the correct wire gauge (AWG) is critical to suppress excessive voltage drop during motor locked-rotor startup (inrush current). Electric motors pull up to 3 to 6 times their rated running amperage upon startup. If wire gauge is undersized relative to circuit distance, the resulting line drop starves the motor, causing continuous contact arcing, thermal overload trips, and premature pump failure.
Standard 15A circuits up to 80 feet require 14 AWG copper conductor. Continuous 20A circuits or runs between 80 and 150 feet require minimum 12 AWG copper. Submersible pumps operating at 240V single-phase over 200 feet from the control head must utilize 10 AWG or 8 AWG copper conductors to limit line voltage drop to under 3% operating under full load (FLA).
Standard pressure switches are rated for direct motor control up to 1.5 HP at 120V single-phase, or 2.0 HP to 3.0 HP at 240V single-phase. Motors exceeding these horsepower ratings must not be wired directly through the pressure switch contacts. Instead, the pressure switch terminal block should be wired as a pilot device controlling a high-amp magnetic motor starter coil. Technicians working on motor starter integration can review our magnetic starter wiring diagram to properly isolate control pilot circuits from heavy motor loads.
Common Water Pump Switch Wiring Diagram Faults and Diagnoses
Faulty pressure switch wiring accounts for a high percentage of field service calls in water supply and fluid transfer systems. Recognizing physical symptoms and using systematic diagnostic routines isolates issues quickly.
Line voltage present on exposed screw terminals inside pressure switch housings poses an immediate electrocution hazard. Never operate or adjust contact spring pressure with protective plastic terminal covers removed while power is applied to the circuit panel.
- Swapped Line and Load Terminals on Same Pole: Connecting the incoming hot wire to L1 and the outgoing motor wire to L1 creates a bypassed circuit where the motor runs continuously regardless of switch pressure cut-out state. Conversely, connecting line and load to adjacent terminals across opposite poles causes a direct line-to-line dead short when contacts close, immediately tripping the circuit breaker.
- Loose Screw Clamps on Terminal Block: High current draw through loose terminal screws causes localized electrical resistance heating. Over time, heat melts the plastic base structure, deforms contact levers, and welds contacts together. Always torque terminal screws to OEM specs (15–20 in-lbs) during routine maintenance.
- Omitted Frame Grounding (Floating Ground): Failing to attach ground conductors to the green chassis ground screws creates severe shock hazards, particularly in wet environments or near steel pressure tanks. Floating grounds can energize the pipe infrastructure if an internal coil or motor winding insulation breaks down.
- Inadequate Contact Gap or Pitted Contacts: Excessive cycling (rapid clicking/chattering) causes rapid electrical arcing across copper contacts, burning carbon buildup into contact faces. This oxidation causes high voltage resistance across the switch. Check line vs. load voltage across closed contacts with a multimeter; a difference exceeding 1V AC across closed contact points indicates severe pitting requiring switch replacement.
Water Pump Switch Wiring Diagram Questions Answered
How do you identify Line vs. Load terminals on a water pump pressure switch?
Line terminals (stamped L1 and L2 or numbered 1 and 3) accept incoming power from the circuit breaker panel. Load terminals (stamped T1 and T2 or numbered 2 and 4) connect to conductors feeding the pump motor. Standard switches route power vertically across separate poles—terminals 1 and 2 form Pole 1, while terminals 3 and 4 form Pole 2.
Can a 240V water pump switch wiring diagram be used for a 120V pump circuit?
Yes, standard 2-pole switches can control 120V single-phase systems. To wire a 120V pump using a 2-pole switch, route the single hot conductor through Line 1 and Load 1, and route the incoming neutral conductor through Line 2 and Load 2. Switching both the hot wire and neutral wire simultaneously provides double-pole breaking isolation for enhanced system safety.
What conductor wire gauge is required for wiring a 1.5 HP well pump switch?
A 1.5 HP motor operating at 120V draws approximately 20 Amps full-load current (FLA), requiring 10 AWG copper wire on a 30A circuit breaker. If operating at 240V single-phase, a 1.5 HP motor draws approximately 10 Amps FLA, allowing the use of 14 AWG or 12 AWG copper wire for branch circuit runs up to 100 feet.
Why does the pressure switch chatter or rapidly click on and off?
Rapid contact chattering usually indicates a waterlogged pressure tank (loss of air bladder charge) or severe restriction in the sensing nipple beneath the switch housing. Electrically, chattering can also occur if severe voltage drop occurs when the motor starts, dropping circuit voltage below threshold and causing the internal spring mechanism to stutter.
How is a float switch wired in series with a pressure switch terminal block?
To implement high-tank shut-off or low-well protection, cut the incoming Line 1 (hot) conductor prior to reaching the pressure switch terminal block. Connect the two leads of the float switch contacts in series with this Line 1 conductor. This ensures the float switch acts as a master break switch, de-energizing the pressure switch whenever liquid levels fall below safe operating thresholds.
Step-by-Step Guide to Understanding the Water Pump Switch Wiring Diagram
Identify – Turn off circuit breaker power and verify zero voltage across incoming lines using a reliable digital multimeter.
Locate – Find terminals L1 (pin 1), L2 (pin 3), T1 (pin 2), and T2 (pin 4) on the pressure switch housing.
Reference – Match line supply hot wire and load motor wire colors to the corresponding pressure switch pin assignment schematic.
Connect/Route – Connect incoming line power wires to terminals 1/3 and outgoing motor wires to terminals 2/4, securing chassis ground wire.
Verify – Inspect all screw terminal connections for proper 20 in-lb torque and ensure no exposed wire strands touch nearby housing components.
Troubleshoot – Restore circuit breaker power and test pump cut-in/cut-out activation pressures using an accurate pressure gauge.
