6 Pin DC CDI Wiring Diagram: 2026 Trailer Guide
A standard 6-pin trailer connector uses Pin GD for ground (10 AWG white wire), Pin TM for tail/running lights (brown), Pin LT for left turn/brake (yellow), Pin RT for right turn/brake (green), Pin A for 12V auxiliary power (black), and Pin S for the electric brake controller line (blue).
📌 Key Takeaways
- Standard 6-pin setups carry ground, tail lights, left turn/brake, right turn/brake, 12V DC auxiliary, and electric brake power.
- A 10 AWG white wire serves as the main ground conductor and must be secured to bare metal on the trailer frame.
- The blue wire manages electric brake actuation using a 0-12V signal directly from the brake controller.
- Center pin function varies between auxiliary power and brake control depending on round plug vs RV blade standards.
- Always install a 30A inline circuit breaker on the auxiliary power feed to prevent thermal overload.
Wiring standard 6-pin electrical connectors requires precise attention to pinout mapping and voltage constraints, whether you are wiring a heavy-duty commercial utility trailer or integrating custom engine ignition circuits that reference a 6 pin DC CDI wiring diagram harness. Operating on a standardized 12V direct-current chassis loop, 6-pin connectors bridge essential high-amperage tow vehicle outputs—including electric brake controllers, tail running lights, and auxiliary battery charging circuits—to the towed frame or equipment module. Because factory pinout standards vary between vintage round plugs and modern blade configurations, mapping out terminal pin assignments correctly prevents short circuits, blown fuses, and dangerous equipment failures during transit.

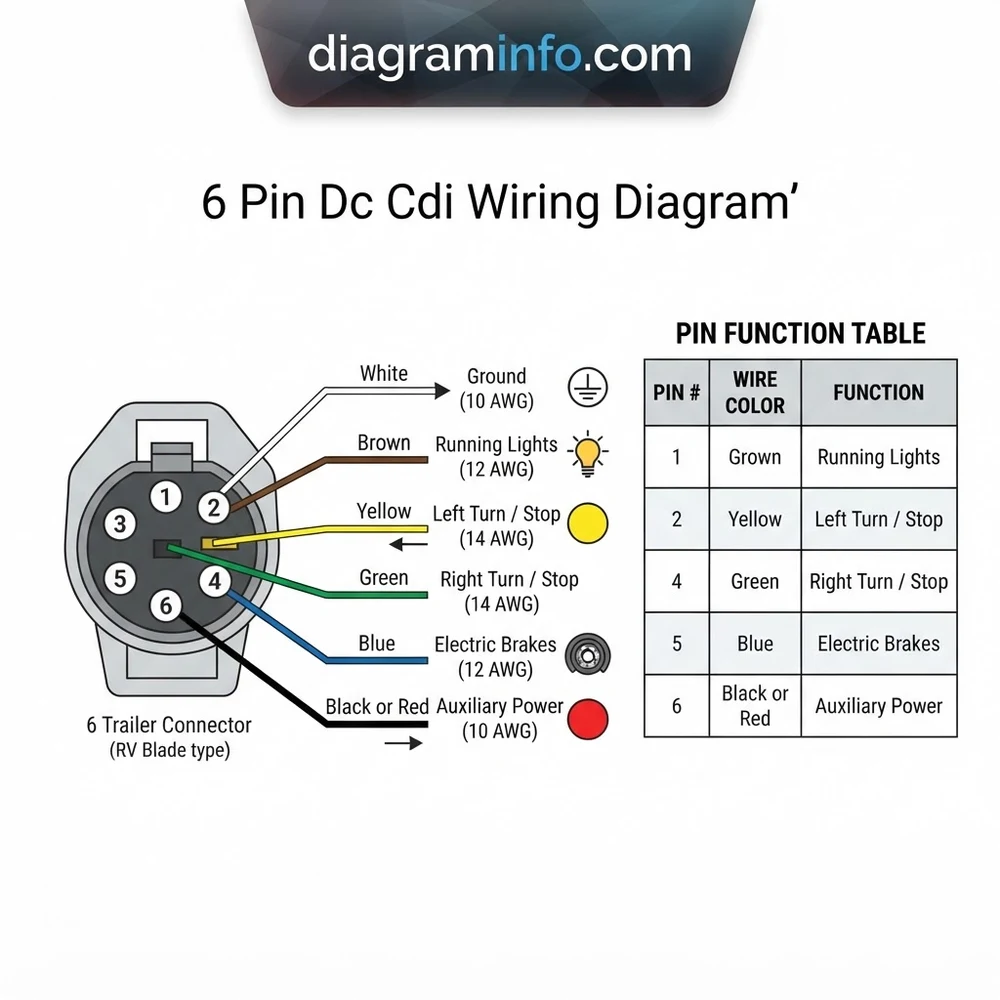

Pin Assignments and Colors in the 6 Pin DC CDI Wiring Diagram Layout
To ensure reliable signal delivery and avoid reverse-polarity damage, pin positions must be wired according to standard SAE J560 guidelines or OEM-specific vehicle schematics. Standard 6-pin round connectors use a center pin surrounded by five outer pins. In traditional configurations, the center pin is designated for electric brakes or auxiliary power, making physical pin verification mandatory prior to powering the vehicle.
| Pin ID | Wire Color | Terminal Function | Wire Gauge & Specification |
|---|---|---|---|
| GD | White | Main Ground Pin | 10 AWG Chassis Ground Return |
| TM | Brown | Running Lights & Tail Lamps | 14 AWG (10-15A Fused Circuit) |
| LT | Yellow | Left Turn Signal & Stop Light | 14 AWG (10A Fused Circuit) |
| RT | Green | Right Turn Signal & Stop Light | 14 AWG (10A Fused Circuit) |
| S | Blue | Electric Brake Controller Output | 12 AWG (30A Breaker Controlled) |
| A | Black / Red | Auxiliary Power (+12V Battery Feed) | 10-12 AWG (30A Auto-Reset Fuse) |
Standard 6-pin automotive connectors operate on 12V DC nominal system voltage (13.8V to 14.4V under alternator charge). The auxiliary power pin supports up to 30 Amps continuous load when matched with 10 AWG primary wire. Set terminal set-screws to 15-20 in-lbs torque during assembly.
When interfacing with specialized equipment mounted on towed frames, such as a generator, winch, or auxiliary engine running a 6 pin DC CDI ignition system, direct current is pulled directly from the auxiliary power wire (Pin A) or an onboard breakaway battery. The direct-current CDI unit requires a stable direct-current power source across its power input terminals to produce reliable high-voltage spark output. Grounding for both the vehicle lighting and auxiliary engine circuits must route back to the single primary ground pin (Pin GD) to eliminate ground-loop interference.
Step-by-Step Installation of the 6 Pin DC CDI Wiring Diagram Harness
Installing a 6-pin harness requires systematically routing conductors, terminating leads at designated connector sockets, and verifying current capacities. Follow these technical procedures to wire a vehicle harness or equipment interface correctly.
1. Isolate the Vehicle Battery and Prepare the Wiring Harness
Before cutting or stripping wires, disconnect the negative battery terminal on the tow vehicle to prevent accidental short circuits across the auxiliary power or electric brake channels. Measure the wiring run from the vehicle frame junction box to the bumper plug location. Strip away 2 inches of outer protective PVC jacket from primary cross-linked polyethylene (XLPE) automotive wire harness.
2. Strip Wire Ends and Slide Protective Boot Sleeves
Strip 3/8 inch of insulation from each wire lead using a precision wire stripper, taking care not to nick the interior copper strands. Slide the rubber strain-relief boot and waterproof sealing grommet over the wire bundle before attaching terminals. Slip dual-wall adhesive-lined heat shrink tubing over each individual wire for superior moisture isolation.
3. Secure Primary Wire Terminals to Specified Pin Sockets
Locate the terminal markings embossed into the rear casting of the 6-pin connector body:
1. Insert the 10 AWG white wire into the socket labeled GD (Ground Pin) and tighten the terminal set-screw securely.
2. Insert the 12 AWG blue wire into socket S (Electric Brake output signal).
3. Connect the 10-12 AWG black or red wire to socket A (Auxiliary Power +12V feed).
4. Connect the 14 AWG brown wire to socket TM (Running Lights & tail lamps).
5. Attach the 14 AWG yellow wire to socket LT (Left Turn Signal / Stop) and the green wire to socket RT (Right Turn Signal / Stop).
4. Assemble Connector Shell and Seal Wire Entrance
Tighten all brass terminal set-screws to 18 in-lbs. Slide the rubber boot over the rear terminal housing. Fill the boot cavity around wire entrances with electrical-grade silicone dielectric grease to mitigate corrosion caused by moisture, road salt, and atmospheric oxidation. Fasten the connector housing strain-relief clamp to lock the cable in place.
5. Conduct Static Continuity and Voltage Drop Diagnostics
Reconnect the vehicle negative battery terminal. Set a digital multimeter to direct-current voltage (20V scale). Measure potential across Pin GD (Ground) and Pin A (Auxiliary Power) to verify continuous +12V supply. Engage the vehicle brake controller manual lever to verify variable voltage output across Pin S and Pin GD. Turn on tail running lights to verify 12V continuous potential on Pin TM.
Proportional electric brake controllers detect the presence of electric brake magnets through low-current sensing pulses. If the controller indicates an open circuit despite correct wiring, inspect the ground connection point at the trailer frame for paint, rust, or loose ring terminals.
Avoiding Common Electric Brake and Ground Pin Wiring Mistakes
Wiring errors in high-amperage tow harnesses lead to component damage, blown fuses, and intermittent electrical faults. Mechanics and technicians frequently encounter issues rooted in misidentified pin layouts or inadequate wire sizing.
Undersized Ground Conductors and Excessive Resistance
A common mistake is using 14 AWG or 16 AWG wire for the main chassis ground return (Pin GD). While running lights pull minimal current, electric brakes and auxiliary charging circuits combined can draw in excess of 25 Amps. An undersized ground wire creates high resistance, leading to severe voltage drops, dim running lights, and compromised electric brake actuation force. Always utilize a minimum of 10 AWG copper conductor for the ground pin connection.
Center Pin Transposition Faults
Industry configurations for 6-pin round connectors exist in two standard variants: “Auxiliary Power Center Pin” and “Electric Brake Center Pin.” Reversing these two terminals causes the brake controller to energize the battery charge line or applies continuous +12V direct current directly to the trailer brake magnets whenever the ignition key is switched on.
Swapping the electric brake terminal (Pin S) with the auxiliary power line (Pin A) sends continuous +12V current directly to trailer brake magnets. This causes immediate magnet coil overheating, brake drum damage, and severe harness insulation melting.
Corrosion in Unsealed Wire Junctions
Exposed copper conductors suffer rapid galvano-chemical corrosion when exposed to moisture and road de-icing chemicals. Non-weatherproof butt splices or loose set-screws create micro-arcs that burn housing plastics and cause intermittent open-circuit faults across turn signal and running light pins.
Adapting 6 Pin Systems to RV Blade and Flat Connector Standards
Modern vehicles frequently utilize a 7-way RV blade socket, while lighter trailers rely on 4-way or 5-way flat connector plugs. Interfacing a 6-pin harness with these alternative formats requires dedicated pin mapping or commercial adapter harnesses.
Interfacing 6-Pin Round to 7-Way RV Blade Connectors
A 7-way RV blade connector incorporates an extra contact dedicated to reverse backup lights. When translating signals from a 7-way RV blade socket to a 6-pin plug, align the primary signals directly:
RV Blade Terminal 1 (White) maps to 6-Pin Ground Pin (GD).
RV Blade Terminal 2 (Blue) maps to 6-Pin Brake Controller (S).
RV Blade Terminal 3 (Green) maps to 6-Pin Tail / Running Lights (TM).
RV Blade Terminal 4 (Black) maps to 6-Pin Auxiliary Power (A).
RV Blade Terminal 5 (Red/Yellow) maps to 6-Pin Left Turn Signal (LT).
RV Blade Terminal 6 (Brown/Green) maps to 6-Pin Right Turn Signal (RT).
* RV Blade Center Terminal (Yellow) remains unused unless connected to reverse lock-out solenoids.
Converting 4-Way or 5-Way Flat Connector Assemblies
A standard 4-way flat connector carries ground, running lights, left turn/stop, and right turn/stop. When upgrading a utility chassis from a 4-way flat connector to a full 6-pin connector plug, run dedicated 10 AWG auxiliary power and 12 AWG electric brake wires from the tow vehicle dash controller and engine compartment battery fuse box to populate Pins A and S on the new 6-pin socket.
Frequently Asked 6 Pin DC CDI Wiring Diagram Setup Questions
How do I identify whether my 6-pin plug uses the center pin for auxiliary power or electric brakes?
Use a digital multimeter set to DC Volts with the vehicle ignition ON and brake pedal released. Test the center pin against ground pin (GD). If the meter reads constant +12V to +14V direct current, the center pin is wired for auxiliary power (Pin A). If voltage is zero and only responds when the cab brake controller manual lever is pressed, the center pin is wired for electric brakes (Pin S).
Can I run an auxiliary equipment engine ignition system directly off the trailer auxiliary power wire?
Yes. The auxiliary power pin (Pin A) supplies continuous direct current from the tow vehicle charging system. Ensure the engine module or 6 pin DC CDI ignition system receives power through a dedicated 10A inline fuse and local 12V breakaway/equipment battery to prevent ignition drop-outs during high starter draw or towing disconnects.
Why do trailer running lights flicker or turn off when the electric brake controller engages?
Flickering or dimming lights during brake application indicate high electrical resistance on the main ground pin (Pin GD). When high current flows to the electric brake magnets, an undersized or corroded chassis ground connection cannot return the total load, causing systemic voltage drop across low-current running light circuits.
What is the minimum recommended wire gauge for a 6-pin trailer harness conversion?
Standard specifications require 10 AWG copper primary wire for the main ground pin (GD) and auxiliary power line (A). Use 12 AWG copper wire for the electric brake controller signal line (S). The running lights (TM), left turn signal (LT), and right turn signal (RT) circuits require a minimum of 14 AWG wire.
How does a 6-pin connector differ from a standard 5-way flat connector?
A 5-way flat connector provides connections for ground, tail running lights, left turn/stop, right turn/stop, and a hydraulic surge brake bypass solenoid (reverse lights). A 6-pin connector replaces the flat interface with a durable round shell, accommodating high-amperage 10-12 AWG conductors for full electric brake controllers and continuous +12V direct-current auxiliary battery charging.
