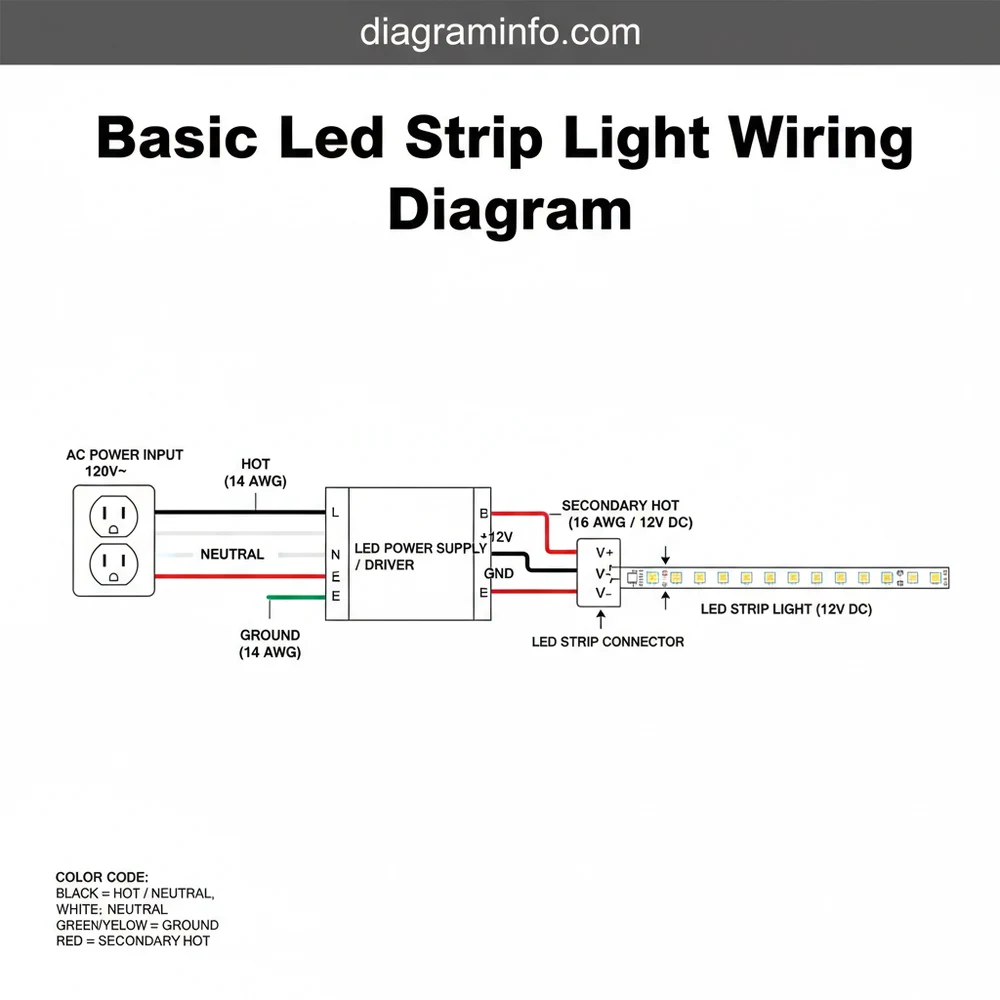

LED Strip Light Wiring Diagram: Mapping Guide 2026
Basic LED strip lights typically connect to a DC power supply. Identify the positive (+) wire (often red or marked) and negative (-) wire (often black or white). Connect positive to the power supply’s positive output and negative to its negative. Ensure correct voltage (e.g., 12V or 24V DC) to avoid damage.
📌 Key Takeaways
- Always match the LED strip’s voltage (e.g., 12V or 24V DC) with the power supply’s output to prevent damage.
- Crucially identify positive (+) and negative (-) terminals using wire color codes (e.g., red for + and black/white for -) before connecting.
- Ensure the power supply’s amperage rating is sufficient for the total length and power consumption of the connected LED strip(s).
- The most common wiring mistake is reversed polarity or using an incompatible voltage, leading to non-functionality or strip damage.
- For complex multi-zone installations, high-power setups, or persistent issues after troubleshooting, consult a qualified electrician or lighting professional.
The proper installation of ancillary electrical components in automotive and heavy equipment applications demands meticulous attention to detail, particularly concerning power supply and control. This article provides a comprehensive guide for interpreting and executing a basic LED strip light wiring diagram, a common upgrade for accent lighting, utility illumination, or visual signaling. Understanding the precise `wire color code`, `pin assignment`, and `terminal block` connections is critical for ensuring operational reliability, preventing electrical shorts, and adhering to safety standards. Incorrect `voltage` or `gauge` selection can lead to component failure or, more critically, fire hazards within complex vehicle electrical systems.
Before commencing any electrical work on a vehicle or equipment, always disconnect the negative terminal of the battery to prevent accidental short circuits and electrical shock. Verify power is off using a multimeter.
WIRE COLOR REFERENCE TABLE
| Wire Color | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Red | Positive (+12V DC `Hot Wire`) | Battery Positive, Fuse Input, Switch Input | Main power supply line, always fused. |
| Black | Negative (Ground `Ground Wire`) | Battery Negative, Chassis Ground, LED Strip Negative Input | Common return path for the circuit. |
| Blue / White (common for output) | Switched Positive Output | Switch Output, LED Strip Positive Input | Power supplied only when switch is engaged. |
| Yellow / Green (less common, for data/control) | Data Line (for addressable LEDs) | Controller Data Pin | Only applicable for advanced RGB or addressable LED strips requiring a controller. Not part of basic wiring. |
While Red and Black are universally accepted for positive and negative respectively in DC automotive applications, always consult the specific manufacturer’s `wire color code` documentation for any advanced LED strip functionality (e.g., RGB, dimming) to avoid misapplication of `voltage` to control lines.
STEP-BY-STEP CONNECTION GUIDE
Executing a robust electrical connection for your LED strip requires precision, component selection, and adherence to established automotive electrical practices. The following steps detail the proper wiring sequence for a basic, switched LED strip light system, ensuring functional reliability and circuit protection. Refer to the `basic led strip light wiring diagram` provided for visual confirmation of each connection.
1. Identify Power Source and Determine `Wire Gauge`:
Locate a suitable +12V DC power source within the vehicle or equipment. This can be directly from the battery (for constant power), an accessory circuit (switched with ignition), or an existing `terminal block` supplying sufficient current. Calculate the total current draw of your LED strip(s) (Amps = Watts / Volts). For typical automotive 12V DC applications, a single meter of standard 5050 LED strip draws approximately 1.2-1.5 Amps. Based on this current and the length of your wire run, select the appropriate `wire gauge` to minimize `voltage` drop. For runs under 10 feet and total current under 5 Amps, 18 AWG is generally adequate, but consult an AWG chart for precise requirements. Larger gauges (smaller AWG number) are required for higher current or longer runs.
2. Install the Inline Fuse Holder:
A fuse is paramount for circuit protection. Connect the `hot wire` (Red) from your +12V DC power source to one side of an inline fuse holder. Ensure the fuse holder is rated for the environment (e.g., weather-sealed for outdoor or under-hood applications) and uses the appropriate fuse type (e.g., ATO/ATC blade fuse). Crimp or solder the connection securely, utilizing heat-shrink tubing for insulation and strain relief.
3. Select and Install Fuse:
Insert a fuse into the fuse holder. The fuse rating should be slightly higher than the maximum expected current draw of the LED strip but significantly lower than the maximum current capacity of your chosen `wire gauge`. A common practice is to select a fuse that is 1.5 to 2 times the normal operating current of the device. For example, if your LED strip draws 1.5 Amps, a 2-3 Amp fuse is suitable. Never exceed the `wire gauge`’s current rating or the manufacturer’s recommended fuse size for the LED strip.
4. Wire the Control Switch:
Connect the `hot wire` (Red) from the output side of the fuse holder to the input `pin assignment` of your control switch. For a standard SPST (Single Pole, Single Throw) rocker or toggle switch, this would typically be one of the input terminals. Connect a separate wire (e.g., Blue or White, as per the `wire color code` table) from the output `pin assignment` of the switch. This will be your switched positive line to the LED strip. For illuminated switches, an additional `ground wire` connection (Black) may be required from the switch to the chassis or battery negative for the internal light to function; consult the switch manufacturer’s specific `wiring diagram`.
5. Connect to the LED Strip Positive Input:
Route the switched positive wire (Blue/White) from the switch output to the positive input terminal of your LED strip. Most LED strips are clearly marked with “+” and “-” or a Red wire for positive. Ensure the connection is robust, whether through a dedicated connector, soldered joint, or `terminal block` if using multiple strips.
6. Establish `Ground Wire` Connection:
Connect the `ground wire` (Black) from the negative input terminal of the LED strip to a reliable chassis ground point or directly to the vehicle battery’s negative terminal. A good chassis ground connection involves scraping away paint to expose bare metal and using a self-tapping screw or an existing bolt. Ensure the connection is clean and tight to prevent intermittent operation or `voltage` drop.
7. Verify and Test:
Before reconnecting the battery, perform a thorough visual inspection of all connections, ensuring proper insulation, crimp integrity, and correct `pin assignment`. Once satisfied, reconnect the battery’s negative terminal. Activate the control switch to confirm the LED strip illuminates correctly. Use a multimeter to verify `voltage` at various points in the circuit if troubleshooting.
For critical automotive installations or high-current applications, consider using a relay to switch the LED strip. This allows a low-current switch to activate a higher-current circuit, protecting the switch and distributing the load more effectively. Refer to our guide on “Automotive Relay Wiring Diagrams” for detailed instructions.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even with a clear `basic led strip light wiring diagram`, installation errors can occur, leading to non-functional components or, more severely, electrical damage. Understanding these common mistakes and their resolutions is crucial for efficient troubleshooting.
1. Reverse Polarity:
Consequence: LED strips are DC devices and are polarity-sensitive. Connecting the `hot wire` to the negative terminal and the `ground wire` to the positive will typically prevent the LEDs from illuminating. Some LED strips may incorporate reverse polarity protection, but many will simply not work. In severe cases with no protection, it can damage the LED strip or its integrated driver components.
Fix: Immediately disconnect power. Carefully review the `wire color code` (Red for +, Black for -) and the markings on the LED strip. Correct the positive and negative connections at the strip’s input. Always verify `pin assignment` before re-applying power.
2. Incorrect `Wire Gauge` for Current Draw:
Consequence: Using wire that is too thin (high AWG number) for the current flowing through it can lead to excessive `voltage` drop, causing the LEDs to appear dim or not light up at all, especially over longer runs. More critically, undersized wires generate heat, posing a significant fire risk due as the wire insulation melts and exposes bare conductors.
Fix: Calculate the total current draw of your LED strip and measure the length of your wire run. Consult an automotive `wire gauge` chart (e.g., AWG to Amperage ratings) to select the appropriate `gauge`. Replace any undersized wiring with the correct `gauge` wire, ensuring all connections are robust.
3. Improper Fuse Rating or No Fuse:
Consequence: An undersized fuse will blow prematurely, leading to intermittent or no operation of the LED strip. An oversized fuse, or the complete absence of a fuse, provides inadequate protection. In the event of a short circuit in the LED strip or wiring, an oversized fuse will not blow, allowing excessive current to flow, potentially melting wiring, damaging other vehicle components, or starting an electrical fire.
Fix: Always install an inline fuse as close to the power source as practical. Calculate the appropriate fuse rating (1.5-2x the operating current) and ensure it’s installed. Never bypass a blown fuse with a higher-rated one without first identifying and rectifying the underlying short circuit or overload. For further information, consider reading our guide on “Automotive Fuse Box Diagnostics.”
4. Loose or Corroded Connections:
Consequence: Loose crimps, poorly soldered joints, or corroded terminals introduce resistance into the circuit. This results in `voltage` drop, intermittent operation of the LEDs, flickering, or complete failure. It can also generate localized heat at the point of high resistance.
Fix: Inspect all connections. Ensure crimps are tight and wires are properly seated in their terminals. If soldering, ensure a clean, shiny, and mechanically strong joint. Clean any corroded terminals with a wire brush and apply dielectric grease to prevent future corrosion, especially in high-moisture environments. Ensure chassis `ground wire` connections are to bare, clean metal.
5. Exceeding `Voltage` or Current Limits of LED Strip:
Consequence: While most automotive LED strips are designed for 12V DC, some specialized strips might require different `voltage` levels. Applying too high a `voltage` will instantly burn out the LEDs or their internal resistors/drivers. Drawing too much current through a `terminal block` or specific connector can overheat and damage it.
Fix: Always verify the operating `voltage` and current requirements of your specific LED strip from the manufacturer’s specifications. If using a `voltage` higher than 12V, a step-down converter or regulator is required. If integrating multiple strips, ensure the combined current draw does not exceed the ratings of any connectors, switches, or power supplies. For complex lighting systems, consult our article on “Advanced Vehicle Electrical System Design.”
FAQ
Q: Can I connect multiple LED strips to a single power source?
A: Yes, you can. However, it’s crucial to calculate the total current draw of all connected LED strips combined. Ensure that your power source, `wire gauge`, fuse, and switch are all rated to safely handle this cumulative current. If the total current exceeds typically 5-10 amps, it is highly recommended to use a relay to switch the main power to the LED strips, protecting your control switch from high current. Distribute power via a dedicated `terminal block` if connecting many individual strips.
Q: Do I need a resistor for a 12V LED strip in an automotive application?
A: Most commercially available 12V LED strips have current-limiting resistors already integrated into their design, typically on the PCB at regular intervals (e.g., every 3 LEDs). Therefore, for a standard 12V DC automotive application, you typically do not need to add an external resistor. Always check the manufacturer’s specifications to confirm. Attempting to run a 5V LED strip directly on 12V without an appropriate step-down converter and current limiting will immediately destroy it.
Q: What is the significance of the `neutral wire` in automotive wiring for LEDs?
A: In DC (Direct Current) automotive circuits, the terms `hot wire` (positive +12V) and `ground wire` (negative) are used. The concept of a `neutral wire` is specific to AC (Alternating Current) household wiring and does not apply to vehicle electrical systems. The `ground wire` in a DC circuit serves a similar function to the `neutral wire` in AC in completing the circuit back to the power source, but it carries current rather than remaining at zero potential relative to ground.
Q: How do I ensure my LED strip wiring is waterproof for external use?
A: For external or marine applications, all connections must be thoroughly sealed against moisture ingress. Use marine-grade heat-shrink tubing with adhesive lining over all crimped or soldered joints. Consider using waterproof connectors (e.g., Deutsch connectors) or potting compounds for exposed components. Route wires in protective conduit and ensure all wire entry points into housings or the vehicle interior are properly sealed with grommets or silicone sealant. Even if the LED strip itself is rated IP67 or IP68, the wiring connections are often the weakest link against environmental factors.
Step-by-Step Guide to Understanding the Led Strip Light Wiring Diagram: Mapping Guide 2026
Identify – Locate your LED strip, DC power supply, and any necessary connectors (e.g., barrel jack adapter). Confirm the LED strip’s voltage (12V or 24V DC).
Locate – Identify the positive (+) and negative (-) terminals on both your LED strip (often marked or indicated by wire color) and your DC power supply’s output.
Reference – Consult the basic led strip light wiring diagram to confirm correct wire color code and polarity for your specific strip and power source.
Connect/Route – Connect the positive (+) wire from the LED strip to the positive (+) output of the DC power supply. Similarly, connect the negative (-) wire from the LED strip to the negative (-) output.
Verify – Plug in the DC power supply. The LED strip should illuminate correctly. Check for even brightness across the strip and ensure no flickering or unusual heat.
Troubleshoot – If the strip does not light up, immediately disconnect power. Re-check all connections for correct polarity, confirm the power supply matches the strip’s voltage, and ensure secure physical connections.
Frequently Asked Questions
What wire color is positive on basic led strip light wiring diagram?
On basic LED strip light wiring diagrams, red often indicates the positive (+) wire, supplying power. The negative (-) or ground wire is typically black or white. For multi-color (RGB) strips, there are additional wires for each color channel, usually corresponding to red, green, and blue, alongside a common power line.
What do the connection points mean on basic led strip light wiring diagram?
Basic LED strip light wiring diagrams show connection points for power input, not traditional ‘pin numbers’. These points are typically labeled for positive (+) and negative (-) current. For RGB strips, you’ll see additional connection points for Red, Green, Blue, and a common positive or negative, allowing for color control.
How many wires does basic led strip light wiring diagram have?
A basic single-color LED strip light wiring diagram typically shows two wires: one for positive (+) voltage and one for negative (-) ground. Multi-color (RGB) strips will usually have four wires: one common power wire and individual wires for red, green, and blue control to achieve various colors.
What are common wiring mistakes with basic led strip light wiring diagram?
Common wiring mistakes include reversed polarity (connecting positive to negative and vice-versa), using an incorrect voltage power supply (e.g., 24V on a 12V strip), and under-powering the strip with an insufficient amperage power adapter. Poorly secured connections can also lead to intermittent operation or failure.
Do I need a controller for basic led strip light wiring diagram?
For basic single-color LED strips, a controller is not strictly necessary; they can connect directly to a compatible DC power supply. However, if you desire dimming capabilities or color-changing effects for RGB strips, a dedicated LED dimmer or RGB/RGBW controller is essential for managing brightness and color output.
What gauge wire does basic led strip light wiring diagram require?
The required wire gauge for basic LED strip lights depends on the strip’s total current draw (amperage) and the length of the wire run. For typical home installations, 18-22 AWG wire is often sufficient for short runs, but consult a wire gauge chart for longer distances or higher power strips to prevent voltage drop and overheating.
