Swisher 60 Pull Behind Mower Parts Diagram: 2026 Guide
The Swisher 60 pull behind mower parts diagram details the 60-inch cutting deck system, mapping the engine pulley, idle arm, and triple blade mandrel shafts. It illustrates the primary V-belt routing configuration across three 20-inch blades and defines critical torque specs (45-50 ft-lbs for blade bolts) and hardware assembly order.
📌 Key Takeaways
- Blade spindle housing bolts must be torqued to 45-50 ft-lbs during deck reassembly.
- The primary deck drive belt utilizes a specific double-V layout around three 20-inch cutting blades.
- Engine coupler engagement requires a 1/2-inch free-play gap on the engagement control rod.
- Worn blade spindle bearings are the primary cause of uneven cutting deck structure vibration.
- Always disconnect the spark plug wire prior to referencing or servicing components on the deck.
Maintaining high-capacity finish mowers like the Swisher 60-inch tow-behind series (such as the FC14560BS, T14560, or T60 models) requires a clear understanding of its structural layout and drive mechanics. Manufacturer specifications indicate that proper servicing relies on understanding how the engine PTO drives the triple-blade cutting deck through a system of idler pulleys, tension springs, and deep-groove spindles. Utilizing a dedicated swisher 60 pull behind mower parts diagram allows technicians and equipment owners to accurately isolate worn components, trace belt routing geometry, order precise original equipment manufacturer (OEM) replacement parts, and maintain factory assembly tolerances.

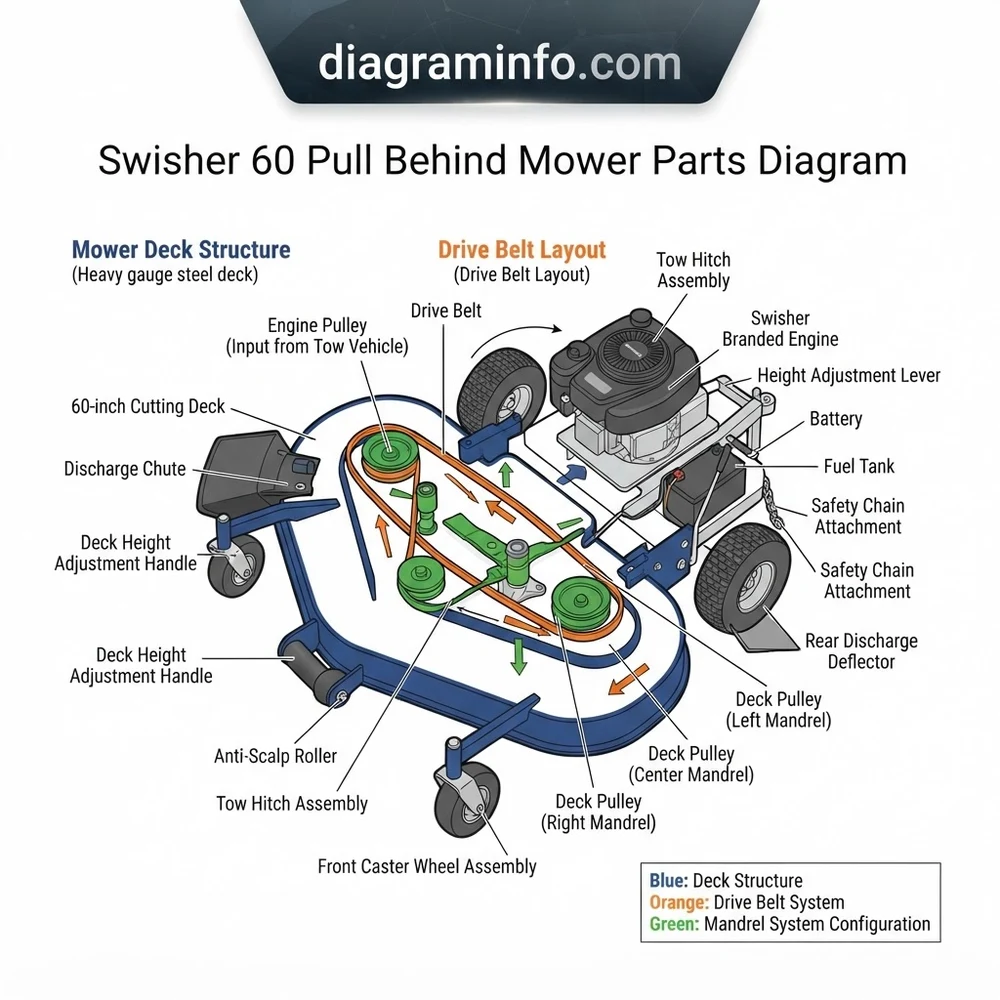

Swisher 60 Pull Behind Mower Parts Diagram: Deck & Drive Layout
The core framework of the Swisher 60-inch trail mower consists of four integrated primary subsystems: the heavy-gauge fabricated steel deck hull, the mechanical blade spindle assemblies, the primary drive system, and the articulated hitch frame structure. Analyzing these systems via an exploded schematic reveals how mechanical force transfers efficiently from the top-mounted engine crank to the cutting hardware.
The primary belt drive system utilizes a single or dual-belt system (depending on whether it is a trail cutter or finish mower series) wrapped around three commercial blade spindles and a mechanical engagement idler pulley. According to OEM technical documentation, maintaining precise pulley alignment within this configuration prevents accelerated belt edge wear and premature spindle bearing failure. When ordering maintenance items, cross-referencing your machine’s exact serial number against the schematic prevents installation errors caused by minor production line updates.
| Component Description | OEM Part Number Ref. | Fastener / Torque Specification |
|---|---|---|
| Commercial Deck Blade (20.5″) | 10263 / 20186 | 3/8-24 x 1.25″ Grade 8 (45–55 ft-lbs) |
| Blade Spindle Housing Assembly | 9058 / 20651 | 5/16-18 Flange Bolts (18–22 ft-lbs) |
| Deck Main Drive Belt (V-Belt) | 10260 / 3809 | Factory Tension Spring Setup (~7.5″ installed) |
| Idler Pulley (Flat/V-Groove) | B98 / 18603 | 3/8-16 Nyloc Retaining Nut (30–35 ft-lbs) |
| Cast Iron Blade Driver Pulley | 10255 / 10258 | 3/4-16 Center Shaft Nut (75–85 ft-lbs) |
Swisher 60-inch finish deck models utilize high-grade 6205-2RS sealed ball bearings within the spindle housing. Always replace both upper and lower spindle bearings simultaneously to preserve shaft runout specifications (< 0.003 inches total indicator reading).
When conducting major repairs, referencing dedicated schematics for blade spindle maintenance guides, reviewing tow-behind belt routing procedures, or checking articulated hitch adjustments ensures the equipment performs safely under maximum load conditions.
How to Interpret the Swisher 60 Schematic and Assembly Blueprint
Deciphering a swisher 60 pull behind mower parts diagram requires a methodical approach to tracking index callouts, hardware stack-ups, and exploded assembly lines. Exploded views illustrate components displaced along visual axis lines, showing exactly how internal components nest inside structural housings.
Tracing the Belt Configuration and Tensioner Assembly Routing
To read the drive system schematic properly, locate the engine output pulley (center rear of the deck structure). Follow the directional line indicating belt path travel. The primary drive belt wraps around the outer grooved pulleys on the left and right spindles, traverses the center spindle pulley, and routes past the dynamic engagement idler arm. Pay strict attention to the mechanical belt keepers shown in the blueprint; installing the drive belt outside of these wire forms or bracket guides will result in rapid belt fraying upon clutch disengagement.
Locating Fastener Reference Callouts and Spindle Bearing Stack-Ups
Understanding the exact order of internal washers, dust covers, and spacers within the spindle stack is critical. On the technical blueprint, the spindle shaft passes upward through the lower dust cap, lower 6205 bearing, cast aluminum housing, upper 6205 bearing, spacer, deck pulley, lock washer, and securing nut. Interchanging the position of the spacer washer will alter pulley height relative to the deck plane, causing severe belt alignment offset and premature fatigue on the dynamic idler bracket.
Always cross-reference index key numbers with the OEM bill of materials (BOM) list below the exploded graphic. Standard hardware is typically listed with thread pitch, diameter, and length (e.g., 3/8-16 x 1″ GR5), allowing quick hardware store sourcing if factory bolts strip during teardown.
Common Swisher 60 Pull Behind Mower Parts Diagram Problems and Fixes
Field technicians frequently encounter performance failures that can be traced back to incorrect structural assembly or missing hardware visible in the system overview schematic. Diagnosing these symptoms with the schematic saves labor time and prevents unnecessary part replacement.
Symptom 1: Excessive Drive Belt Rollover or Throwing
If the main drive belt rolls off the pulleys during engagement, examine the idler pulley arm pivot bushing in the structural configuration view. Over time, the internal bronze or plastic sleeve wears down, causing the idler pulley to cant at an angle relative to the deck plane. Replace the pivot bushing (OEM #10243) and verify that the belt engagement return spring is stretched to the correct factory length of approximately 7.5 inches under tension.
Symptom 2: Deck Vibration and Spindle Shaft Play
Vibration across the 60-inch cutting deck usually originates from bent blade shafts or worn spindle bearings. Remove the blade and check shaft endplay. If vertical or axial play exceeds 0.005 inches, disassemble the housing using the exploded blueprint as a stack-up guide. Inspect the shaft for scoring where the inner bearing race rests; replacing bearings on a worn shaft will lead to immediate repeat failure.
Disconnect the spark plug wire and clear all debris from the deck hull before servicing spindle components or adjusting belt routing. Unintentional engine turnover during blade removal can cause severe mechanical injury.
Swisher 60 Pull Behind Mower Parts Diagram Questions Answered
Where can OEM replacement belts for Swisher 60-inch mowers be identified?
OEM replacement belts are identified on the deck drive layout page of the manual under the main deck assembly section. For standard 60-inch Swisher finish mowers, the drive belt is typically part number 10260 (or 3809 for specific model years). Always verify whether your unit uses a single continuous drive belt or a dual engine-to-deck configuration based on engine horsepower and model series.
What are the critical torque specs for Swisher blade spindle mounting bolts?
The 5/16-18 flange bolts securing the aluminum spindle housing to the steel deck deck weldment must be torqued in a cross-pattern to 18–22 ft-lbs. The center blade retaining bolt (3/8-24 Grade 8) requires 45–55 ft-lbs, while the top spindle shaft retaining nut securing the drive pulley requires 75–85 ft-lbs to prevent lock washer loosening.
How does the drive engagement system idler arm align in the diagram?
The drive engagement idler arm pivots on a fixed shoulder bolt mounted directly to the deck weldment. In the blueprint breakdown, the return spring hooks into the anchor hole on the idler lever and extends to a fixed bracket on the deck hull. Ensure the flat tension pulley aligns directly in the plane of the belt’s slack side when the control cable is pulled into the active position.
How do model year variations impact the Swisher 60 frame configuration?
Earlier Swisher 60-inch mowers utilized a three-point height adjustment mechanism, whereas newer production runs feature a single-point commercial height adjuster system. Furthermore, hitch offset bracket configurations changed around 2012 to improve turning radius tolerances. Always check the model year and exact model number tag on the rear frame rail before ordering frame weldments or height adjustment links from the parts schematic.
Step-by-Step Guide to Understanding the Swisher 60 Pull Behind Mower Parts Diagram
Identify – Match your specific Swisher 60 model number with the parts diagram header to confirm component compatibility.
Locate – Find the specific subsystem on the diagram, such as the blade mandrel assemblies or belt routing pathway.
Reference – Cross-check indexed item numbers on the exploded schematic with the manufacturer part numbers list.
Connect/Route – Route the drive belt around the engine pulley, idler pulleys, and outer mandrel sheaves following the diagram arrow path.
Verify – Check spindle rotation manually and torque all deck hardware and blade retention bolts to 45-50 ft-lbs.
Troubleshoot – Inspect belt tensioner spring play and pulley alignment if abnormal belt slippage or deck vibration occurs.
