Hayward The Pool Cleaner Parts Diagram: 2026 Breakdown
The pool cleaner parts diagram maps the mechanical layout of the internal drive turbine, steering gears, drive axle, skirt flappers, and swivel hose connections. Hydraulic flow rotates the turbine, transferring torque to drive gears (1.5-inch clearance). Identifying seal positions and hose float configurations prevents power loss and erratic wall climbing.
📌 Key Takeaways
- Turbine bearings require inspection every 12 months for axial play exceeding 0.5 mm.
- Drive shaft gears utilize reverse-threaded retaining screws rated at 12-15 in-lbs torque.
- Skirt flappers and throat seals control pressure differential; check for visible tearing.
- Most propulsion failures stem from clogged drive turbines or stripped gear teeth.
- DIY gear replacements save up to 70% in costs compared to replacing complete assemblies.
Maintaining automatic pool cleaning equipment—whether suction-side, pressure-side, or robotic configurations—requires an exact understanding of internal hydraulic flow routes, mechanical gear trains, and drive assemblies. Referencing a comprehensive pool cleaner parts diagram provides field technicians and equipment operators with the exact structural mapping needed for routine maintenance, teardowns, and part replacements. This technical guide breaks down the standard blueprint architecture of modern pool cleaners, explaining how to interpret schematic callouts, evaluate exploded assembly views, reference precise OEM specifications, and systematically isolate mechanical or hydraulic operational faults.

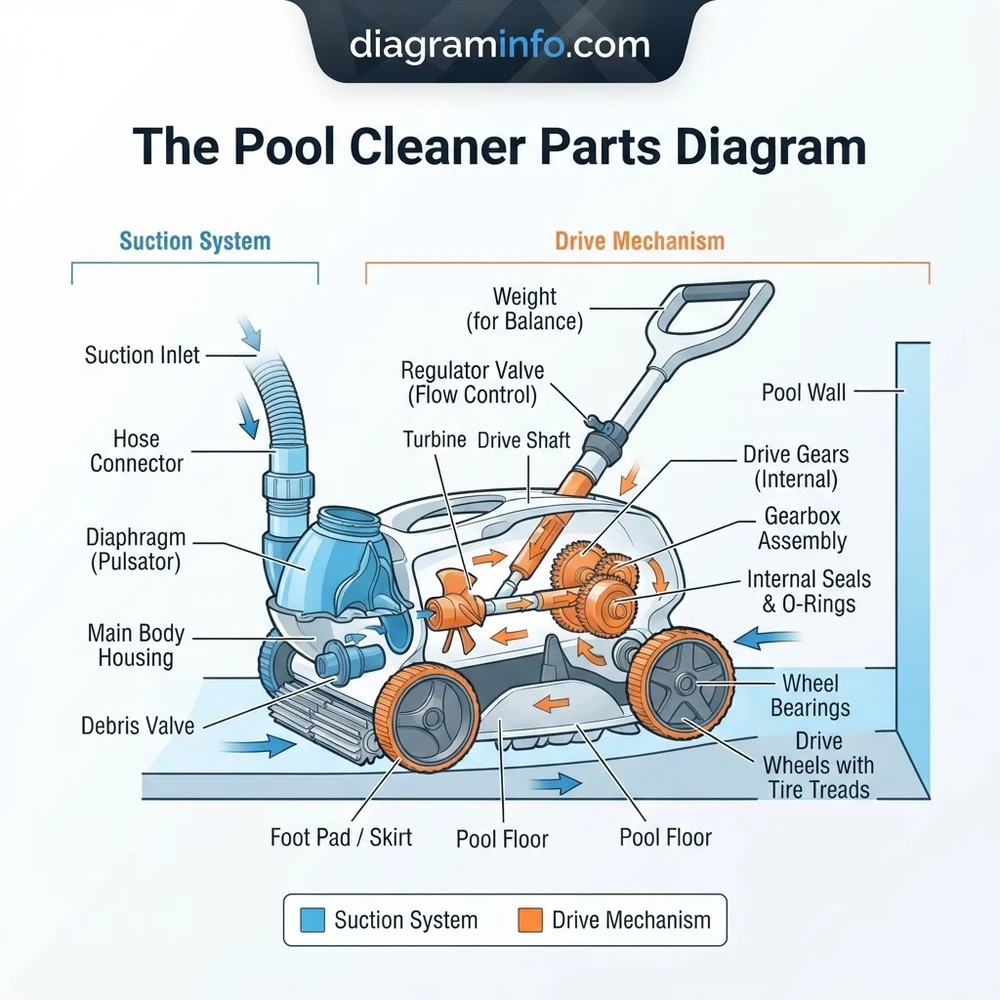

The Pool Cleaner Parts Diagram: Core System Assembly Layout
Analyzing the pool cleaner parts diagram reveals how fluid dynamics and mechanical linkages combine to deliver autonomous navigation and debris extraction. Depending on whether the unit operates under positive pressure or suction, key drive and housing components occupy specific structural positions within the chassis. Understanding the spatial relationship between drive axles, turbine vanes, and directional control valves is essential prior to performing field overhauls.
Manufacturer schematics systematically index parts using standardized callout numbers mapped to detailed bill-of-materials (BOM) tables. Below is a structural reference breakdown commonly found across commercial and residential automatic pool cleaner schematics:
| Ref # | Component Name | System Function | Service & Torque Spec |
|---|---|---|---|
| 101 | Swivel Head & Hose Tower | 360-degree fluid coupling; prevents hose tangling | Check O-rings; apply PTFE grease |
| 104 | Drive Turbine / Runner | Converts water flow torque into mechanical wheel rotation | Inspect shaft play (< 0.5 mm) |
| 108 | Reduction Gearbox Assembly | Steps down turbine RPM to high-torque wheel output | Torque housing screws to 1.8 N·m |
| 112 | A-Frame & Drive Vane Assemblies | Oscillating bypass shuttle for suction-style drive strokes | Replace on 1.0 mm wear ridge |
| 119 | Polyurethane Wheel Tracks / Tires | Provides tactile surface grip along gunite/vinyl walls | Replace when tread depth < 1.5 mm |
When performing major component service, cross-referencing your specific model with our pool cleaner seal replacement kits ensures watertight integrity across all internal pressure chambers. Modern units utilize high-grade molded plastic housings lined with localized fluorosilicone seals to prevent internal pressure leakage across secondary fluid bypass chambers.
When servicing drive axle bushings or roller bearings, ensure the component registration numbers match the revision series specified on the exploded diagram. Revision A and Revision B drive shafts often feature non-interchangeable spline counts (e.g., 12-spline versus 14-spline drives).
Reading the Pool Cleaner Parts Diagram Blueprint Step-by-Step
Interpreting an exploded engineering diagram requires a methodical approach, beginning at the external structural shell and navigating inward along mechanical connection vectors. Broken dashed lines indicate assembly orientation, showing exactly how fasteners, seals, thrust washers, and internal gears slide onto their respective shafts.
First, locate the central reference spine on the diagram layout. In pressure-side machines, this vector usually begins at the main sweep hose wall fitting, passes through the thrust jet array, and terminates at the central drive turbine. For suction-side devices, trace the path starting from the throat intake assembly up to the main vacuum swivel joint. Comparing physical flow measurements to our suction pump hydraulic flow reference helps confirm whether internal pressure drops stem from component misalignment or upstream pump restrictions.
Standard operating parameters for pressure-side automatic cleaners: 28 to 32 PSI operating pressure at the dedicated wall fitting; turbine shaft torque spec: 1.8 to 2.2 N·m (16 to 19 in-lbs); maximum internal hydraulic flow: 30 to 35 GPM.
Pay close attention to key index symbols inside the drawing. Solid black arrows typically denote water flow direction, while open triangle callouts designate grease packing zones or specialized thread-locking fluid requirements. Ensure that all thrust washers are installed in the precise orientation indicated by the detailed inset views; installing a concave Belleville washer backward will cause excessive drag on the gear train, binding the drive wheels within hours of operation.
Diagnosing Hydraulic & System Failures via the Schematic
A structured blueprint serves as an indispensable diagnostic tool when troubleshooting loss of movement, inadequate suction, or irregular steering patterns. By tracing fluid flow through the mechanical layout, you can quickly isolate whether a problem is caused by localized mechanical friction or internal hydraulic pressure losses.
Follow this systematic diagnostic routing procedure using the schematic reference:
- Loss of Drive Rotation: Locate the turbine drive chamber (Ref #104) on the schematic. Inspect the drive pinions and reduction gears for sheared teeth or embedded debris. If gears turn freely by hand, check the upstream bypass valve for a broken spring or stuck flapper door.
- Intermittent Directional Switching: Refer to the auto-reverse timer or gear-driven reverse valve block. Verify that the inner backing plate seals are intact and that the secondary drive timing gear engages the trip arm without slipping.
- Loss of Wall Climbing Ability: Trace the drive output axles to the wheel track assemblies (Ref #119). Measure tire wear against OEM baseline profiles and verify that the drive chain/belt tensioner maintains specified deflection (3 to 5 mm).
- Tail Sweep Inactivity (Pressure Cleaners): Trace the tail sweep adjustment valve off the rear manifold block. Check for calcification or worn orifice wear rings that bleed off water pressure before reaching the tail orifice. Refer to our booster pump pressure testing guide to verify that dynamic pressure meets minimum operating thresholds.
Never apply petroleum-based lubricants to EPDM or silicone O-rings within the swivel mast or turbine housing. Petroleum derivatives cause elastomer swelling and premature seal failure. Use exclusively 100% pure PTFE or silicone-based lubricant.
The Pool Cleaner Parts Diagram Frequently Asked Technical Questions
How do you identify wear on drive tracks versus drive gears in the layout?
Visual inspection on the layout shows drive tracks wrapping around outer drive pulleys, whereas drive gears reside inside the sealed gearbox housing. Track wear appears as rounded drive lugs or exterior tread loss under 1.5 mm. Gear wear exhibits asymmetric tooth profiles, localized plastic shaving build-up, or total tooth stripping at high-torque junction points.
What operating pressure (PSI) should be verified according to system specs?
Pressure-side automatic pool cleaners typically require a dedicated booster pump delivering 28 to 32 PSI at the quick-disconnect wall fitting. Suction-side pool cleaners operate on vacuum pressure, requiring 17 to 21 inches of Mercury (Hg) or a water flow rate between 25 and 38 GPM measured at the skimmer vacuum plate.
How do suction-side and pressure-side pool cleaner configuration schematics differ?
Suction-side schematics show a simplified, direct fluid path where debris-laden water passes straight through an oscillating throat valve or turbine directly into the filtration plumbing. Pressure-side diagrams detail a dual-chamber configuration: clean, high-pressure water drives an internal drive turbine and venturi jet, while debris bypasses internal gears into an external filtration bag.
When should the diaphragm or A-frame assembly be replaced during overhaul?
Diaphragms in suction-style cleaners require immediate replacement if micro-tears, severe elastic fatigue, or holes larger than 0.5 mm develop along the flex seams. A-frame assemblies and drive vanes should be replaced when pivot-pin alignment slop exceeds 1.5 mm or when molded wear indicators on the footpad surface become flush with the main frame housing.
