1 Lamp Ballast Wiring Diagram: 2026 Connection Guide
A standard 1 lamp ballast wiring diagram connects the black hot wire and white neutral wire to primary AC power, with a green ground wire attached to the fixture frame. Two red (or blue) secondary wires route directly to opposite ends of the tombstone socket to supply high-voltage starting current to the single bulb.
📌 Key Takeaways
- Primary input operates at 120V/277V AC using 18 AWG solid copper wire rated for 600V secondary output.
- Primary wire color code requires black for hot wire, white for neutral wire, and bare green for ground wire.
- The green ground wire must bond firmly to bare metal on the fixture chassis to ensure proper electronic ballast operation.
- Incorrect pin assignment at tombstone lamp holders is the leading cause of non-starting or rapid tube burnouts.
- Always isolate circuit breaker power before installation; consult a certified electrician if panel wiring modifications are required.
Executing a single-lamp gas-discharge or solid-state driver retrofitting project requires precise adherence to proper electrical schematics, line potential matching, and terminal routing. Whether you are servicing commercial fluorescent fixtures, high-intensity discharge (HID) luminaires, UV sterilization systems, or industrial machinery lighting, understanding the 1 lamp ballast wiring diagram ensures reliable ignition, optimal lumen maintenance, and compliance with National Electrical Code (NEC) standards. Ballasts act as high-frequency current regulators and ignitors; improper lead connection risks thermal overload, premature lamp cathode failure, high-voltage arc flashover, or total destruction of the internal solid-state components.
This technical wiring guide details line-side AC inputs, secondary socket pin connections, wire insulation ratings, open-circuit voltage testing, and systematic circuit diagnostics for single-lamp ballast configurations across standard 120V, 277V, and multi-tap voltage systems.

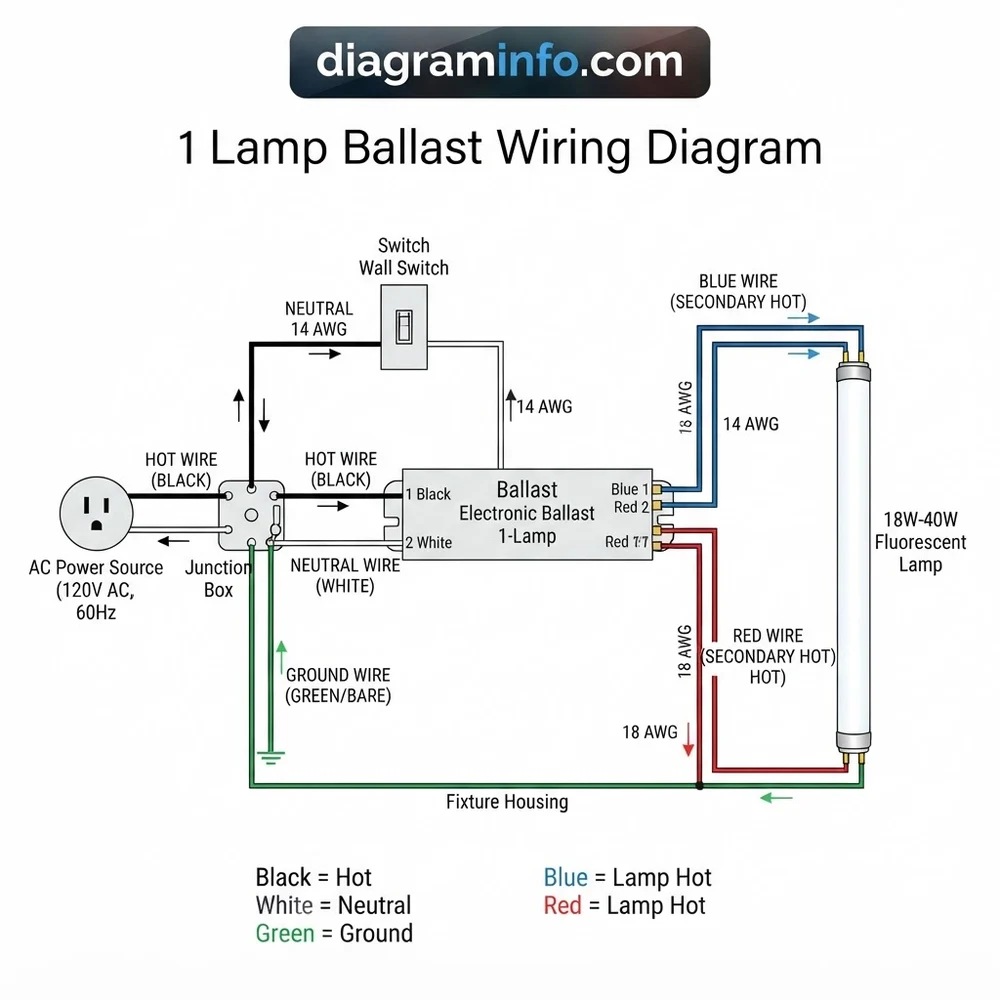

1 Lamp Ballast Wiring Diagram: Wire Color Codes and Pin Assignments
Modern electronic and magnetic single-lamp ballasts use a standardized wire color code to isolate high-voltage secondary output leads from primary AC supply power. Misidentifying input hot wire leads with secondary socket connections will instantly damage internal transformer windings or solid-state driver circuitry. Always refer to the schematic printed on the ballast housing, as pin assignments and color conventions can vary slightly based on ballast design (Instant Start vs. Rapid Start / Programmed Start).
For standard electronic 1-lamp T8/T12 or specialized gas-discharge ballasts, primary power enters via dedicated line-side conductors, while secondary leads connect directly to the lampholder (tombstone) contacts or terminal block assembly. The table below outlines standard conductor functions, color designations, and socket terminal connections per ANSI C82 specifications.
| Wire Color Code | Circuit Function | Terminal / Pin Assignment | Electrical Specs & Notes |
|---|---|---|---|
| Black | Primary AC Hot Wire (Line L1) | Primary Input Terminal L | 120V, 277V, or 347V nominal input; fused supply line connection. |
| White | Primary AC Neutral Wire (Line L2/N) | Primary Input Terminal N | Common AC neutral return path; must never be connected to ground wire. |
| Green / Bare Copper | Equipment Ground Wire | Fixture / Ballast Case Stud Ground | Critical for EMI filtering, internal surge protection, and safety ground return. |
| Red | Secondary Output Lead (Lamp End A) | Primary Socket Pin Terminal | High-voltage ignition output lead; produces 300V to 600V open-circuit voltage during strike. |
| Blue | Secondary Output Lead (Lamp End B) | Opposite Socket Pin Terminal | Secondary return/cathode winding lead; completes high-frequency arc circuit across lamp length. |
| Yellow (Dual Lead) | Filament Heater Lead (Rapid Start) | Non-Shunted Lampholder Contacts | Provides low-voltage cathode filament preheating potential (approx. 3.5V–5.0V AC). |
Instant-start electronic ballasts require shunted lampholders (tombstones where the two contact pins are internally jumpered together). Conversely, rapid-start or programmed-start single-lamp ballasts require non-shunted lampholders where separate yellow or blue conductors energize individual cathode pins. Connecting a rapid-start ballast lead to a shunted lampholder causes an immediate short circuit across the filament transformer section.
How to Wire a 1 Lamp Ballast Circuit Step-by-Step
Completing a single-lamp ballast replacement or installation requires methodical execution to maintain safety, prevent electromagnetic interference, and protect internal circuit boards. Follow this standardized step-by-step wiring sequence when configuring a single-lamp lighting circuit.
High open-circuit voltage (OCV) is present on secondary ballast output leads during ignition strikes. Always isolate incoming primary line power at the circuit breaker and test with a calibrated digital multimeter (DMM) before touching terminal block connections or handling uninsulated lead wires.
Step 1: Power Isolation and Lockout/Tagout Verification
Disconnect primary power at the distribution panel supplying the lighting fixture. Verify zero AC voltage between the line hot wire (black) and neutral wire (white) using a True-RMS multimeter set to AC volts. Check line-to-ground voltage as well to ensure no stray phantom voltage is present on the supply line.
Step 2: Ballast Enclosure Mounting and Case Grounding
Mount the single-lamp ballast enclosure to the grounded sheet metal fixture frame using star washers and self-tapping machine screws. The physical metal-to-metal contact acts as the secondary high-frequency ground path and heat sink. Attach the green equipment ground wire directly to the terminal block ground lug or chassis ground bolt. Ensure ground path resistance measures below 0.1 ohms to prevent floating ground electrical noise.
Step 3: Secondary Output Socket Lead Routing
Route the secondary high-voltage output wires from the ballast to the respective lampholder sockets:
- Instant-Start Ballast Topologies: Run the single red lead to one side of the fixture, terminating into a shunted tombstone socket terminal block. Connect the single blue lead to the opposite shunted socket terminal block.
- Rapid/Programmed-Start Ballast Topologies: Run the red lead pair to the primary non-shunted socket, connecting one wire to each isolated pin assignment. Route the blue/yellow lead pair to the opposite non-shunted socket, maintaining strict polarity across the isolated cathode terminals.
When routing secondary wiring, trim excess conductor lengths to prevent capacitive coupling loss and keep conductors away from sharp metal edges. Secure wire runs using 105°C-rated wire clips.
Step 4: Primary Line Input Termination
Connect incoming supply lines to the primary ballast terminal block or wire leads using twist-on wire connectors or spring-cage terminal blocks:
- Strip 18 AWG solid copper supply conductors back 3/8 inch (9.5 mm).
- Connect the incoming AC hot wire (black) to the ballast black line input lead.
- Connect the incoming AC neutral wire (white) to the ballast white neutral lead.
- Tighten screw-clamp terminal blocks to the manufacturer’s recommended torque specification (typically 4.4 to 7.0 in-lbs / 0.5 to 0.8 Nm).
Conductor Specification: Use solid or 18-strand copper wire rated for 600V insulation and 105°C (221°F) minimum temperature class (UL Type AWM or THHN/THWN). Maximum lead length from ballast secondary output to lampholder socket terminal block must not exceed 18 feet (5.5 meters) for instant start or 8 feet (2.4 meters) for rapid start units to avoid excessive voltage drop.
Step 5: Circuit Continuity and Insulation Resistance Check
Before installing the lamp tube or energizing the branch circuit, perform an insulation resistance test (megohmmeter check) between line input terminals and the fixture frame ground wire at 500V DC. Resistance must measure above 50 Megohms. Inspect all wire nut splices and terminal block connections for exposed conductor strands.
Step 6: Lamp Installation and Operational Testing
Seat the correct wattage and type lamp into the tombstones, rotating 90 degrees until dual pin contacts engage lock positions (or sliding fully into single-pin spring sockets). Re-energize the AC supply breaker and check for immediate, flash-free lamp ignition and steady current draw using an inline clamp meter.
Common 1 Lamp Ballast Wiring Diagram Errors and Voltage Troubleshooting
Diagnostic field inspections frequently reveal lighting system failures caused by improper wiring practices, thermal overloading, or incorrect component pairing rather than internal ballast component failure. Reviewing these standard failure modes allows technicians to quickly isolate root causes using diagnostic electrical testing tools.
Consulting our reference guides on fluorescent tombstone wiring configurations, calculating allowable limits using our line voltage drop calculator, and understanding electronic vs magnetic ballast specifications will assist during fixture overhauls.
1. Incorrect Socket-to-Ballast Type Pairing (Shunted vs. Non-Shunted Sockets)
Installing an instant-start 1 lamp ballast onto non-shunted lampholders without jumpering the contact pins creates an open circuit across one cathode pin, preventing the arc stream from striking. Conversely, installing a rapid-start ballast on shunted tombstones shorts the low-voltage filament winding, tripping internal thermal protection fuses or causing permanent transformer burn-out.
Fix: Verify tombstone internal resistance using a digital multimeter on the ohms scale. Continuous zero ohms between the two pin slots indicates a shunted socket. Infinite resistance indicates a non-shunted socket. Match the socket configuration to the 1 lamp ballast wiring diagram specification.
2. Floating or Incomplete Equipment Ground Wire Connection
Modern high-frequency electronic ballasts (operating between 20 kHz and 60 kHz) rely on the metallic chassis ground wire connection to establish a capacitive reference plane for gas ionization inside the lamp envelope. If the ground wire is floating, disconnected, or attached to painted sheet metal without an anti-oxidant star washer, the lamp may flicker, hum, or fail to ignite completely under cool ambient temperatures.
Fix: Measure AC ground-to-neutral voltage at the fixture. Voltage must measure less than 0.5V AC. Clean fixture mounting points down to bare metal, apply conductive anti-corrosion compound, and tighten ground lug screws securely.
3. Neutral Wire / Line Hot Wire Phase Reversal
Reversing the hot wire (black) and neutral wire (white) at the primary terminal block leaves high line potential present at internal circuit nodes even when primary control switches are off. While an AC electronic ballast may appear to operate normally with reversed phase polarity, it poses a severe electrical shock hazard to maintenance personnel during lamp changes and causes high electro-magnetic field (EMF) noise emissions.
Fix: Test incoming voltage across input terminals. Black (Hot) to Green (Ground) should read nominal supply voltage (e.g., 120V AC); White (Neutral) to Green (Ground) should read 0V AC.
4. Conductor Gauge and Output Lead Extension Over-Length
Extending secondary blue or red output wires beyond manufacturer tolerances using light wire gauge (e.g., 22 AWG instead of 18 AWG) introduces excessive capacitive coupling loss to ground. High-frequency ignition voltage bleeds off through wire insulation into structural raceways before reaching the lamp cathodes, preventing the gas discharge arc from establishing.
Fix: Replace secondary extended wiring with 18 AWG solid copper 600V-rated wire. Limit total secondary wire run length to under 8 feet (2.4 meters) for rapid-start ballasts and under 18 feet (5.5 meters) for instant-start configurations.
1 Lamp Ballast Wiring Diagram Frequently Asked Questions
Can a 2-lamp ballast be used in a 1 lamp ballast wiring diagram configuration?
Generally, no—unless the ballast label explicitly states it is a multi-lamp universal ballast rated for single-lamp operation (e.g., “Operates 1 or 2 Lamps”). Standard non-universal 2-lamp ballasts regulate current based on the total electrical load impedance of two lamps in series or parallel. Wiring only one lamp to a dedicated 2-lamp ballast will overdrive the single lamp’s cathode filaments, leading to rapid blackening of the lamp ends, extreme thermal buildup, and premature lamp failure within hours of operation.
What voltage should be measured across the red wire and neutral wire on a 1 lamp ballast?
You should not measure secondary output leads (red or blue) relative to line neutral using a standard multimeter. The open-circuit voltage (OCV) across secondary output terminals ranges between 300V AC and 600V AC at high frequencies (20 kHz to 60 kHz). Standard commercial multimeters lack the frequency response and voltage range to accurately read high-frequency secondary output without risking meter overload or damage. Measure input line voltage (black to white) to verify power supply delivery instead.
How does wire gauge impact voltage drop in long 1 lamp ballast circuit runs?
Wire gauge determines current density and internal conductor resistance. On the primary input side (black/white wires), using undersized supply wire (such as 20 AWG instead of 14 AWG or 12 AWG branch conductors) over long distances results in line voltage drop. When input AC line potential drops below 108V AC on a 120V nominal circuit, ballast input current increases proportionally to compensate, driving internal thermal cutouts open. On secondary output leads, incorrect wire gauge alters circuit capacitance, suppressing ignition strikes.
Why does a newly wired 1 lamp ballast flicker or fail to ignite?
Early flickering or failed ignition typically stems from four distinct wiring or installation issues: an ungrounded or poorly grounded ballast frame, miswired pin assignments on non-shunted sockets, loose wire connections within push-in terminal blocks, or an incorrect input line voltage (e.g., supplying 120V AC to a ballast fixed-rated for 277V AC input). Re-check grounded frame continuity, confirm solid connection seating into terminal block ports, and verify primary line voltage matching using a calibrated multimeter.
What is the difference between instant start and rapid start 1 lamp ballast pin assignments?
Instant start ballasts strike an arc across the lamp tube using a high initial voltage pulse (approx. 600V) without preheating the filaments. Consequently, they require only one wire lead connected to each lamp end via shunted tombstones (where both pins inside the socket are jumpered). Rapid start ballasts preheat filaments prior to ignition, requiring two distinct leads at each lamp end running into non-shunted tombstones to maintain separate positive and return paths across individual filament pins.
