Sun Joe Pressure Washer Parts Diagram: Component Breakdown 2026
The Sun Joe pressure washer parts diagram details the axial cam pump layout, motor armature structure, unloader valve assembly, high-pressure manifold, and GFCI electrical connections. It provides exact spatial positioning for internal piston seals, water inlet filters, spray wand quick-connect fittings, and bypass valve seats to assist in mechanical teardown and repair.
📌 Key Takeaways
- The axial pump assembly operates with 3 high-pressure stainless steel pistons and rubber O-ring water seals.
- The Total Stop System (TSS) switch automatically shuts off the pump when the trigger is disengaged to preserve motor life.
- Standard aluminum pump manifold bolts require torque specs between 8 to 12 Nm to prevent housing cracks.
- Stuck unloader valves and degraded pump seal rings account for over 70% of system pressure loss failure points.
- Use parts schematics for seal, hose, and valve replacements, but consult professionals for internal motor armature rewiring.
Navigating the internal architecture of a Sun Joe electric pressure washer requires an accurate schematic to ensure precise teardown, component replacement, and system maintenance. Whether servicing standard homeowner units or high-output models in the SPX line, understanding the sun joe pressure washer parts diagram is critical for identifying structural failures, electrical continuity issues, and hydraulic leaks. OEM specifications dictate strict assembly sequences, torque tolerances, and sealing parameters. The following reference breaks down the complete mechanical and electrical configuration, providing technical guidance for reading schematics, executing component-level diagnostics, and sourcing accurate replacement parts.
Sun Joe Pressure Washer Parts Diagram: Structural Layout
The mechanical core of a Sun Joe electric pressure washer relies on a integrated motor-pump unit housed within an impact-resistant polymer casing. An exploded view blueprint separates the assembly into three primary sub-systems: the high-voltage electrical driver, the wobble plate axial piston pump, and the fluid delivery manifold. Understanding how these assemblies interlock prevents structural damage during teardown.
Standard Sun Joe SPX-Series Pump Torques & Ratings: Pump Head Bolts: 8.5–9.5 Nm | Swash Plate Retainer: 12 Nm | Electrical Rating: 120V AC, 60 Hz, 14.5A–15A | Max Fluid Temperature: 104°F (40°C) | Burst Pressure Threshold: 2300 PSI.
The electric motor assembly uses either a universal brush motor or a brushless induction drive connected directly to an eccentric wobble (swash) plate. As the motor shaft rotates at approximately 3,450 RPM, the angled wobble plate drives three spring-loaded stainless steel pistons in an alternating linear sequence. This action draws fluid through the low-pressure suction valves and forces it out through the high-pressure discharge valves. The integrated Total Stop System (TSS) microswitch monitors hydraulic line pressure to automatically cut power when the trigger gun is released.
| Component ID | System Function | Technical Specifications | Common Failure Mode |
|---|---|---|---|
| Axial Piston Pump | Converts rotary shaft power into hydraulic pressure | Tri-piston, stainless steel construction | Pitted pistons, seal blowouts from dry running |
| Total Stop System (TSS) Switch | Senses trigger pressure to engage/disengage motor power | 125V/250V AC, 16A microswitch with internal piston activation | Microswitch contacts weld closed or leak fluid internally |
| Unloader Valve Assembly | Diverts fluid flow during bypass to prevent over-pressurization | Spring-loaded brass plunger with dual nitrile O-rings | Stuck bypass plunger leading to pressure loss or motor stalling |
| Thermal Relief Valve | Discharges overheated fluid when running in extended bypass | Opens at 140°F (60°C); 1/8-inch NPT thread connection | Wax element degradation causing continuous water weeping |

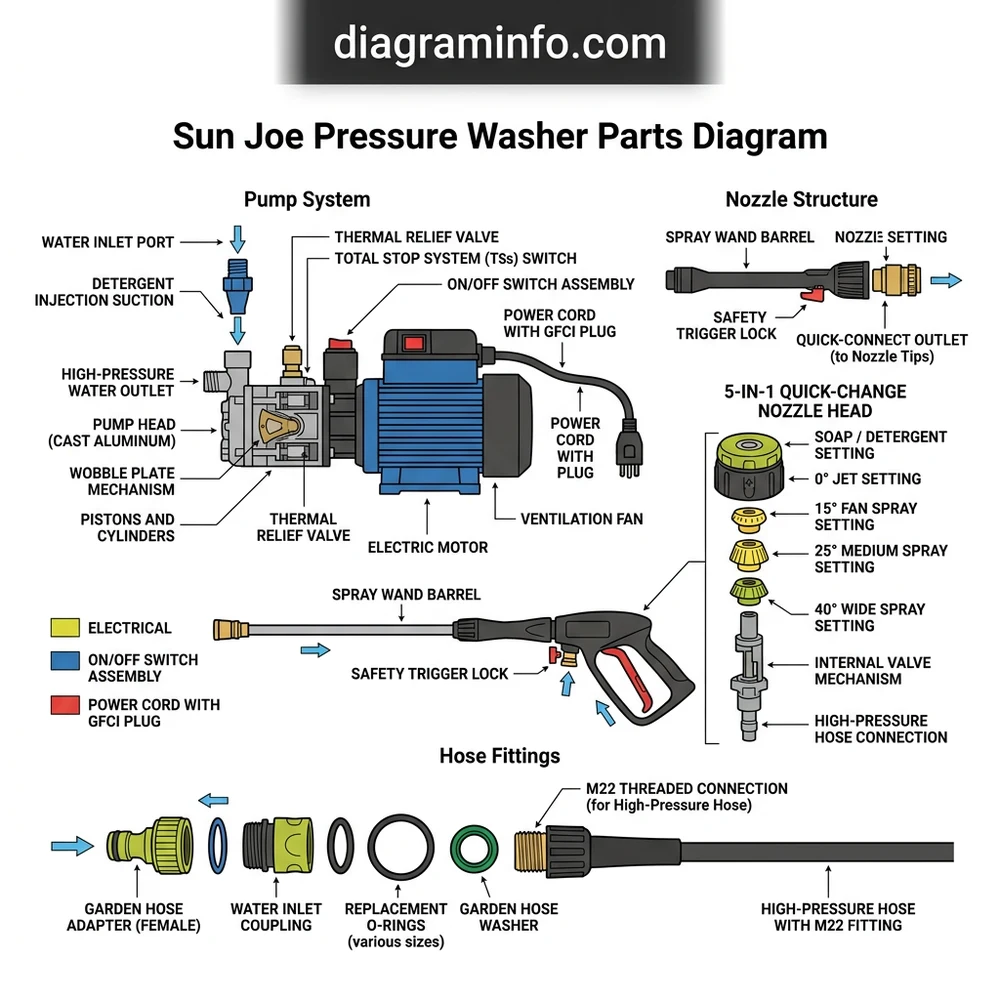

How to Read the Sun Joe Schematic and Assembly Blueprint
Interpreting a technical sun joe pressure washer parts diagram requires tracing both the fluid hydraulic path and the electrical current path. Exploded view blueprints use numerical callouts indexed to detailed master parts lists. When analyzing the layout, pay close attention to seal orientations, mechanical fastening sequences, and internal electrical routing within the control box.
When reassembling pump manifolds according to the manufacturer blueprint, always apply a light coating of food-grade silicone grease (NLGI Grade 2) to all high-pressure O-rings and V-seals. Never use petroleum-based lubricants, which cause EPDM and Nitrile rubber compounds to swell and fail prematurely.
The hydraulic trace begins at the garden hose water inlet housing, which incorporates a stainless steel mesh filter screen. The water flows into the lower intake manifold, split into three individual intake valve ports. As each piston retracts, negative pressure pulls the plastic check valve cone against its internal spring, filling the cylinder cavity. When the piston advances driven by the swash plate, the intake valve seals shut, forcing high-pressure water through the outlet check valve into the discharge header.
The electrical schematic displays a linear safety loop. Power originates from the 3-prong NEMA 5-15 plug equipped with an inline Ground Fault Circuit Interrupter (GFCI). Hot (Black) and Neutral (White) conductors pass into the main rocker switch box. From the switch, the active leg passes through the mechanical TSS microswitch before terminating at the motor field windings or brush cards. For deeper diagnostic procedures on electric motors, consult detailed technical references like our comprehensive electric motor maintenance guides.
Diagnosing Faults Using the Sun Joe Pressure Washer Parts Diagram
Using a blueprint for troubleshooting allows you to map operational symptoms directly to specific failing components. Systematic isolation cuts down on guesswork and prevents replacing functional sub-assemblies.
Always depressurize the system before servicing any hydraulic component on your Sun Joe pressure washer. Turn off the main unit, shut off the water supply, and squeeze the spray gun trigger until water stops flowing. Never attempt to loosen pump casing bolts while under line pressure.
When experiencing a complete loss of working pressure despite the motor running, cross-reference the intake valve section on your diagram. Stuck valve seats caused by mineral deposits prevent proper cylinder sealing. Dismark the head, remove the intake valve caps, and inspect the plastic valve cones and stainless springs for debris. If pressure surges violently (pulsating delivery hose), inspect the high-pressure outlet seals or check for air intrusion at the suction inlet assembly. If you suspect pump assembly issues, refer to our specialized pressure washer pump repair guides.
If the electric motor fails to start when toggling the main switch, consult the electrical switch housing layout on the blueprint. Use a digital multimeter to test voltage across the GFCI plug, the master power switch, and the TSS microswitch assembly. A failed TSS microswitch often remains trapped in the “open” position due to a seized actuator pin, breaking the circuit to the motor even when the spray trigger is pulled.
Sun Joe Pressure Washer Configuration and Component FAQs
Where Can You Locate the Serial Number for OEM Schematic Matching?
The serial number and full model designation are printed on the silver safety certification label located on the rear polymer frame or bottom skid plate. Always match the model number (e.g., SPX3000-MAX vs SPX3001) against the exact schematic edition, as internal pump block revisions and microswitch configurations vary between manufacturing years.
How Do You Replace the Total Stop System (TSS) Microswitch?
To replace the TSS switch, remove the housing shell to expose the aluminum pump module. Locate the black plastic box mounted directly above the unloader valve housing. Disconnect the dual spade terminals, remove the two retaining screws, and lift out the switch module. Inspect the mechanical pin protruding from the unloader cavity; ensure it moves freely before installing the new switch assembly.
What Thermal Relief Valve Specs Apply to Sun Joe Pressure Pumps?
Sun Joe electric pumps utilize a 1/8-inch NPT thermal relief valve preset to open when internal pump fluid temperature reaches 140°F (60°C). If the unit runs in bypass mode (motor idling with trigger released) for extended periods, this valve releases hot water to prevent thermal damage to the internal high-pressure seals.
Are Sun Joe Electric Motor Assemblies Interchangeable Across Models?
Motor assemblies are generally not interchangeable across different series. While the SPX3000 and SPX3001 share similar 14.5-amp motor cores, differences in swash plate offset angles (which determine piston stroke length and working pressure) prevent swapping pumps between models without risking motor overload or reduced PSI performance.
What Thread Pitch Is Used on Sun Joe High-Pressure Hose Connectors?
Standard Sun Joe outlet connections utilize an M22-15mm male metric thread connection rather than the standard commercial M22-14mm fitting. Installing an incorrect fitting pinches the internal O-ring seal, resulting in immediate high-pressure fluid leaks. For more details on plumbing compatibility, check our guide on universal hose adapter specifications.
Step-by-Step Guide to Understanding the Sun Joe Pressure Washer Parts Diagram
Identify – Isolate the specific subsystem needing service on the Sun Joe parts diagram, such as the pump head or spray wand assembly.
Locate – Find part callout numbers and exact spatial positioning of seals, valves, and hardware on the exploded view schematic.
Reference – Cross-check component callout numbers against the manufacturer replacement part list for exact part numbers and specifications.
Connect/Route – Reassemble internal pump valves, O-rings, and electrical TSS wiring following the sequential layout indicated in the diagram.
Verify – Inspect all brass fittings, torque bolts evenly to manufacturer specifications, and check seal seating prior to pressurization.
Troubleshoot – Test system operation under low pressure; if leaks or pulse issues occur, reference the diagram to verify unloader valve orientation.
