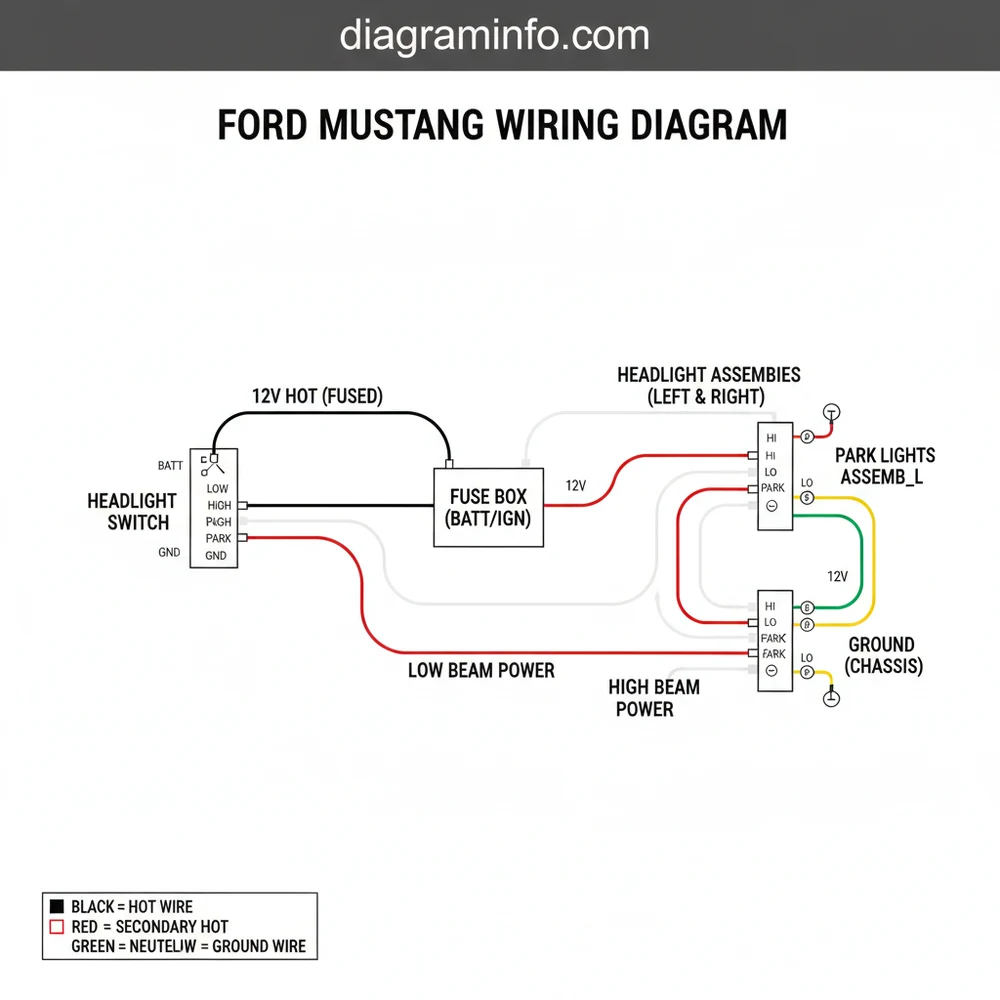

Ford Mustang Wiring Diagram 2026: Connection Mapping
A Ford Mustang wiring diagram illustrates the electrical connections for specific components or systems. Key elements include wire color codes, indicating function and polarity, and pin assignments on connectors. Ground wires are typically black, while hot wires vary by circuit, often red or orange. Always consult the diagram for your specific model year to ensure accurate connections and prevent electrical damage.
📌 Key Takeaways
- Always refer to the specific Ford Mustang model year diagram as wire color codes and pin assignments vary significantly.
- Identify ground wires (typically black) and hot wires (varying colors, often red/orange for constant power) to prevent short circuits.
- Ensure all connections are secure and corrosion-free; improper contact is a leading cause of electrical failures.
- Incorrect fuse sizing or bypassing safety components are common mistakes that can lead to severe electrical damage or fire.
- For complex issues or safety-critical systems (e.g., airbags, ABS), professional assistance should be sought over DIY repairs.
Navigating the intricate electrical architecture of a Ford Mustang demands precise understanding and careful execution. Whether you are performing a component upgrade, troubleshooting an electrical fault, or undertaking a full restoration, a comprehensive Ford Mustang wiring diagram is an indispensable tool. This article delves into the critical details required for working with Mustang electrical systems, focusing on accurate wire color code identification, proper pin assignment, and correct wiring sequences for a common application: the S197 Mustang (2005-2014) headlight circuit. Adhering to manufacturer specifications ensures system integrity, functionality, and most importantly, safety.
Always disconnect the vehicle’s battery before performing any electrical work to prevent short circuits, component damage, or personal injury. Incorrect wiring can lead to severe electrical fires or system failures. Consult your specific model year’s Official Ford Service Manual for exact wiring diagrams and procedures.
WIRE COLOR REFERENCE TABLE
The following table provides typical wire color codes and their corresponding functions and pin assignments for the S197 Ford Mustang headlight assembly connector (e.g., C2045 or similar). Note that specific pin numbers and wire colors can vary slightly by trim level, optional equipment, and production year. Always cross-reference with your vehicle’s specific service manual.
| Wire Color | Function | Pin/Terminal | Notes |
|---|---|---|---|
| Black (BK) | Ground (Chassis) | Pin 1 | Essential for circuit completion. Connects to chassis ground wire. |
| Light Blue/Black (LB/BK) | Low Beam (Left Headlight) | Pin 2 | Receives switched 12V hot wire for low beam operation. |
| Dark Green/Orange (DG/OG) | High Beam (Left Headlight) | Pin 3 | Receives switched 12V hot wire for high beam operation. |
| Brown (BN) | Parking Light / DRL (Left) | Pin 4 | Provides 12V for parking lamps and/or DRLs. |
| White/Black (WH/BK) | Low Beam (Right Headlight) | Pin 2 | Corresponds to Pin 2 on the right headlight assembly. |
| Yellow/Red (YE/RD) | High Beam (Right Headlight) | Pin 3 | Corresponds to Pin 3 on the right headlight assembly. |
| Violet/White (VT/WH) | Parking Light / DRL (Right) | Pin 4 | Corresponds to Pin 4 on the right headlight assembly. |
Ford wiring diagrams often use a standard abbreviation system for wire colors. For example, ‘BK’ for Black, ‘RD’ for Red, ‘WH’ for White, ‘YE’ for Yellow, ‘BN’ for Brown, ‘LB’ for Light Blue, ‘DG’ for Dark Green, ‘OG’ for Orange, ‘VT’ for Violet. A two-letter code (e.g., LB/BK) indicates the primary color followed by the stripe color.
STEP-BY-STEP CONNECTION GUIDE
This guide outlines the proper sequence for connecting the headlight assembly to your Ford Mustang, ensuring each wire color code is correctly matched to its respective function and pin assignment. This procedure assumes you are connecting an OEM-style headlight unit to the vehicle’s existing harness. For detailed instructions on Mustang ECU pinouts, refer to our dedicated guide on powertrain diagnostics.
- Battery Disconnection: Before beginning any work, always disconnect the negative terminal of the vehicle’s battery. This critical step prevents accidental shorts or activation of electrical circuits, safeguarding both you and the vehicle’s components.
- Access Headlight Connector: Locate the main electrical connector for the headlight assembly you are working on. This is typically located behind the headlight unit, often secured to the headlight housing or within the engine bay.
- Inspect Existing Wiring: Carefully inspect the vehicle’s existing wiring harness connector. Look for any signs of corrosion, melted insulation, or damaged terminals. Ensure all pins are clean and seated securely within the connector housing. A proper visual inspection can prevent future intermittent issues.
- Identify Ground Wire: Using a multimeter set to continuity mode, identify the main ground wire (typically Black, BK) on the vehicle’s harness connector. Confirm continuity to a known chassis ground point. This wire provides the return path for the electrical current and is crucial for all functions.
- Identify Hot Wires: With the battery temporarily reconnected (and extreme caution exercised), use a multimeter set to voltage DC to identify the hot wires for the low beam, high beam, and parking/DRL functions. Activate each function via the headlight switch and verify approximately 12V present at the corresponding pins. For the S197 Mustang, the Light Blue/Black (LB/BK) for low beam, Dark Green/Orange (DG/OG) for high beam, and Brown (BN) for parking/DRL are primary candidates. Disconnect the battery again immediately after testing.
- Match Wire Colors and Pin Assignments: Compare the wire color codes on the new headlight assembly’s connector (if applicable) with the functions identified in the reference table and confirmed by your multimeter tests. Ensure each wire from the new component aligns perfectly with its intended pin assignment on the vehicle’s harness. For instance, the low beam hot wire (LB/BK) from the vehicle harness must connect to the low beam input terminal on the headlight assembly.
- Secure Connections: If you are installing a new headlight assembly that uses the factory connector, simply plug it in, ensuring a firm, audible click to confirm engagement. If you are modifying the wiring (e.g., installing aftermarket components), use high-quality, heat-shrink-sealed crimp connectors or solder connections for robust, weather-resistant joints. Pay close attention to wire gauge; ensure replacement wires match or exceed the original gauge to handle the specified current draw without overheating. Manufacturer specifications indicate a typical 16-18 gauge for headlight power circuits.
- Test System Functionality: Reconnect the vehicle battery. Before fully reassembling, test all headlight functions: low beam, high beam, and parking/DRL lights. Verify that each function activates correctly and that there are no flickering lights or blown fuses.
- Final Assembly: Secure the headlight assembly back into its mounting points. Ensure all wiring is routed away from hot engine components, sharp edges, and moving parts. Use zip ties or factory retainers to keep the harness neat and protected.
For S197 Mustang (2005-2014) headlight circuits, typical operating voltage is 12.6V – 14.4V DC when the engine is running. Current draw for a standard halogen low beam is approximately 4.5A, and for high beam, it’s around 5.5A. Always verify actual current draw with an inline ammeter if troubleshooting an overload condition. Recommended wire gauge for primary power feeds is 16 AWG; signal wires can be 18-20 AWG.
COMMON WIRING MISTAKES & TROUBLESHOOTING
Even for experienced technicians, automotive wiring presents challenges. Understanding common pitfalls and their diagnostic solutions is crucial for efficient and reliable repairs, especially when referencing a Ford Mustang wiring diagram. To correctly interpret voltage drops and circuit integrity, consult our resource on Automotive Multimeter Usage.
- Incorrect Pin Assignment / Wire Swapping:
Consequence: Lights may not illuminate, incorrect functions (e.g., high beam activates parking lights), or component damage due to incorrect voltage application. Blown fuses are also a common symptom if a load is applied to an unpowered circuit or vice-versa.
Fix: Double-check the wire color code against the OEM Ford Mustang wiring diagram for your specific year. Use a continuity tester or multimeter to verify the electrical path from the switch to the connector and from the connector to the component. Re-pin the connector or re-splice wires as necessary, ensuring proper insulation. - Poor Ground Wire Connection:
Consequence: Intermittent operation, dim lights, flickering, or complete non-functionality, as the circuit cannot be completed effectively. This is a very common source of elusive electrical problems.
Fix: Inspect the ground wire connection point. Ensure it is clean, free of corrosion, and securely fastened to a bare metal chassis point. Loose or corroded ground connections introduce resistance, leading to significant voltage drop. Clean the terminal and mounting surface with a wire brush, apply dielectric grease, and re-secure. - Incorrect Wire Gauge for Current Load:
Consequence: Overheating of the wire, insulation melting, significant voltage drop causing dim lights, and potential fire hazard. This is particularly critical when upgrading to higher-wattage bulbs or aftermarket components without upgrading the associated wiring.
Fix: Always refer to the manufacturer’s specifications for the required wire gauge. If an aftermarket component draws more current than the OEM part, the wire gauge must be increased proportionally to prevent overheating. Consult an AWG (American Wire Gauge) chart to select the appropriate gauge for the expected current draw and circuit length. - Damaged Insulation / Short Circuits:
Consequence: Repeatedly blown fuses, immediate power loss to the circuit, or even melting wires if the fuse is bypassed or incorrect gauge. A short occurs when a hot wire directly contacts a ground source or another opposing circuit.
Fix: Visually inspect the entire length of the suspect harness for chafed, pinched, or melted insulation. Use a multimeter in continuity mode (with the battery disconnected) to check for continuity between the hot wire and ground at various points. Repair damaged sections with heat-shrink tubing or automotive-grade electrical tape. Replace severely damaged sections of the harness.
FAQ
Why do Ford Mustang wiring diagrams vary by year and trim?
Ford, like all automotive manufacturers, continually refines its vehicle designs. Each model year, and often within different trim levels (e.g., V6, GT, Shelby), specific features, technologies, and options are added or modified. These changes necessitate alterations to the electrical system, resulting in variations in wire color codes, pin assignments, component locations, and overall circuit architecture. Always consult the diagram specific to your Mustang’s exact year and trim for accurate information.
What do typical wire color codes indicate in a Mustang electrical system?
While some conventions exist across the industry, such as black often indicating a ground wire, Ford employs a comprehensive system of primary colors and stripe colors to denote specific circuit functions. For instance, a red wire (RD) often signifies a constant 12V hot wire, while a red/yellow (RD/YE) might be a switched 12V hot. These codes are not universally interchangeable between manufacturers or even different Ford models, emphasizing the need for a specific Ford Mustang wiring diagram. Understanding the Ford Mustang’s electrical system is crucial; explore our article on Mustang Alternator Wiring for more insights.
How do I correctly identify a hot wire versus a ground wire?
The most accurate method to identify a hot wire (power supply) from a ground wire (return path) is by using a digital multimeter. To find a hot wire, connect the multimeter’s negative lead to a known chassis ground and probe the suspect wire with the positive lead. If the circuit is active, it will show a voltage reading, typically around 12V-14V. To verify a ground wire, connect the multimeter’s positive lead to a known 12V power source and probe the suspect wire with the negative lead; a voltage reading near battery voltage indicates a good ground. Alternatively, using a continuity test between the suspect wire and chassis can confirm a ground connection.
What is wire gauge and why is it important in Mustang wiring?
Wire gauge refers to the physical thickness or diameter of the electrical conductor within the wire. It’s measured using the American Wire Gauge (AWG) system, where a lower AWG number indicates a thicker wire (e.g., 10 AWG is thicker than 18 AWG). The importance lies in its current-carrying capacity: thicker wires can safely carry more electrical current without overheating. Using an incorrect (too thin) wire gauge for a high-current circuit can lead to excessive resistance, voltage drop, overheating, fire hazards, and component damage. Always match or exceed the OEM specified gauge for any replacement or modification.
Where can I find official OEM Ford Mustang wiring diagrams?
Official OEM Ford Mustang wiring diagrams are typically found in the factory service manuals. These manuals are available through authorized Ford dealerships, or increasingly, via online subscription services provided by Ford or third-party automotive data providers. These resources offer comprehensive, year-specific diagrams for every system in your vehicle, including detailed wire color codes, pin assignments, connector views, and component locations. Generic diagrams found online should always be cross-referenced with these official sources for critical work.
Step-by-Step Guide to Understanding the Ford Mustang Wiring Diagram 2026: Connection Mapping
Identify – Locate the specific Ford Mustang wiring diagram relevant to your model year and the component/system you are working on.
Locate – Find the specific component or connector on the diagram and identify its corresponding wire color code and pin assignment.
Reference – Use the Wire Color Reference Table within the diagram to understand the function of each hot wire, ground wire, and signal wire.
Connect/Route – Carefully route and connect wires according to the diagram’s pin assignments, ensuring all connections are secure and properly insulated.
Verify – Before applying full power, use a multimeter to verify continuity, voltage, and proper ground wire connections against the diagram’s specifications.
Troubleshoot – If issues arise, re-check connections, examine for shorts or open circuits, and consult the troubleshooting section for common wiring mistakes.
Frequently Asked Questions
What wire color is for constant power on a Ford Mustang wiring diagram?
On a Ford Mustang wiring diagram, constant 12V power (B+) is often indicated by red or orange wires, though this can vary by specific circuit and model year. It’s crucial to always cross-reference with the particular diagram you are using for your vehicle to confirm the exact wire color code for the component you are working with to ensure proper pin assignment.
What do the pin numbers mean on a Ford Mustang wiring diagram?
Pin numbers on a Ford Mustang wiring diagram identify specific terminals within a connector, ensuring precise connections. These numbers correlate directly to the physical pins on the component’s harness connector. Understanding pin assignment is vital for accurate troubleshooting, as it helps trace individual hot wires or ground wires to their respective functions without guesswork, preventing potential miswirings.
How many wires does a Ford Mustang wiring diagram have?
A Ford Mustang wiring diagram doesn’t represent a single fixed number of wires for the entire vehicle, as it’s typically broken down by system (e.g., engine control, lighting, audio). Each specific diagram illustrates numerous wire color codes, hot wires, and ground wire connections pertinent to that particular system. The total can be in the hundreds across all vehicle functions.
What are common wiring mistakes with a Ford Mustang wiring diagram?
Common wiring mistakes include misinterpreting wire color codes, incorrect pin assignment, using under-gauge wire, and failing to secure ground wire connections properly. Not testing circuits with a multimeter before making final connections is another frequent error. These can lead to non-functional components, blown fuses, or even electrical fires, highlighting the need for careful attention to detail.
When should I use a multimeter with a Ford Mustang wiring diagram?
You should use a multimeter with a Ford Mustang wiring diagram whenever you need to verify voltage, continuity, or resistance. This is crucial for confirming wire color code functions, identifying hot wires, checking proper ground wire connections, and troubleshooting open or short circuits. It ensures the circuit matches the diagram before applying power, preventing damage from incorrect pin assignment.
What gauge wire does a Ford Mustang wiring diagram require?
The required wire gauge on a Ford Mustang wiring diagram varies significantly based on the circuit’s current draw. Higher current circuits (e.g., starter, headlights) demand thicker wires (lower gauge numbers like 8-12 AWG), while low-current circuits (e.g., sensors, signal wires) use thinner wires (higher gauge numbers like 18-22 AWG). Always adhere to the diagram’s specified gauge for safety and optimal performance.
