Zoeller Sump Pump Check Valve Diagram: Setup Guide 2026
A sump pump check valve diagram illustrates the 1.5-inch or 2-inch vertical discharge pipe configuration, placing the check valve above the pit cover. The internal flapper or spring mechanism points arrow-up toward the sewer main, preventing water backflow. Position it 12–18 inches above the pump outlet with stainless steel hose clamps tightened to 35 in-lbs.
📌 Key Takeaways
- Position the check valve 12 to 18 inches above the sump pump discharge outlet for optimal system performance.
- Ensure the flow direction arrow on the valve body points vertically away from the pump toward the discharge line.
- Tighten stainless steel worm-gear hose clamps to 35 in-lbs to prevent high-pressure water leaks.
- A failed internal flapper or trapped debris causes pump short-cycling and continuous motor operation.
- Replacing a standard check valve structure is a DIY task, but main sewer tie-ins require a licensed plumber.
In high-performance dewatering and wastewater management systems, a precision-engineered unidirectional check valve prevents fluid backflow into the pit upon pump cycle termination. Understanding a technical sump pump check valve diagram is vital for fluid dynamics engineering, calculated dynamic head loss management, and the suppression of severe hydraulic water hammer shockwaves. Industrial-grade configurations typically incorporate 1.5-inch or 2-inch NPT threaded connections and are rated for continuous hydrostatic head pressures up to 150 PSI. Proper schematic analysis ensures mechanical integrity, prevents impeller back-spinning, and eliminates thermal overload tripping on motor windings.
Sump Pump Check Valve Diagram: Component Breakdown and Assembly Structure
A comprehensive mechanical blueprint isolates the fluid isolation valve into precise internal and external sub-assemblies. According to manufacturer specifications, each structural component plays a specific role in maintaining a hermetic seal against static head pressure while maintaining low flow friction during active discharge cycles.
| Component Part | Material Specification | Technical Function | Torque / Pressure Specs |
|---|---|---|---|
| Valve Body Housing | Schedule 80 PVC / Cast Iron / Clear ABS | Houses internal flapper assembly and provides inline pressure containment | Max 150 PSI @ 73°F |
| Flapper / Swing Disc | EPDM Elastomer over 304 Stainless Steel core | Pivots to allow forward flow; seals against seat to block reverse fluid columns | 0.5 PSI Cracking Pressure |
| Compression Sleeves & Clamps | Neoprene Couplings with 301 Stainless Worm Bands | Isolates motor vibration and secures valve body to Schedule 40 discharge pipe | 35–45 in-lbs Clamp Torque |
| Seating O-Ring Interface | Buna-N (NBR) / Fluorocarbon Elastomer | Ensures zero-leakage perimeter contact when dynamic pressure drops to zero | 180°F Max Continuous Temp |
| Anti-Airlock Weep Hole | 3/16-inch Machined Relief Orifice | Vents trapped air pocket between pump discharge scroll and valve seat | Location: 1–2″ below valve |
When plumbing a commercial dewatering system, ensure the standard discharge pipe diameter matches the pump volute exit dimensions (typically 1.5-inch NPT for 1/3 HP to 1/2 HP residential units, and 2-inch to 3-inch NPT for commercial effluent solids-handling pumps). For complete piping design specs, refer to our discharge pipe head pressure calculations resource.
The internal geometry relies on a spring-loaded shaft or gravity-assisted swing hinge. In high-head applications exceeding 15 feet of vertical lift, spring-assisted mechanisms are specified to force the closing element shut before fluid momentum reverses, effectively counteracting hydraulic shock energy.
How to Read the Sump Pump Check Valve System Layout and Piping Schematic

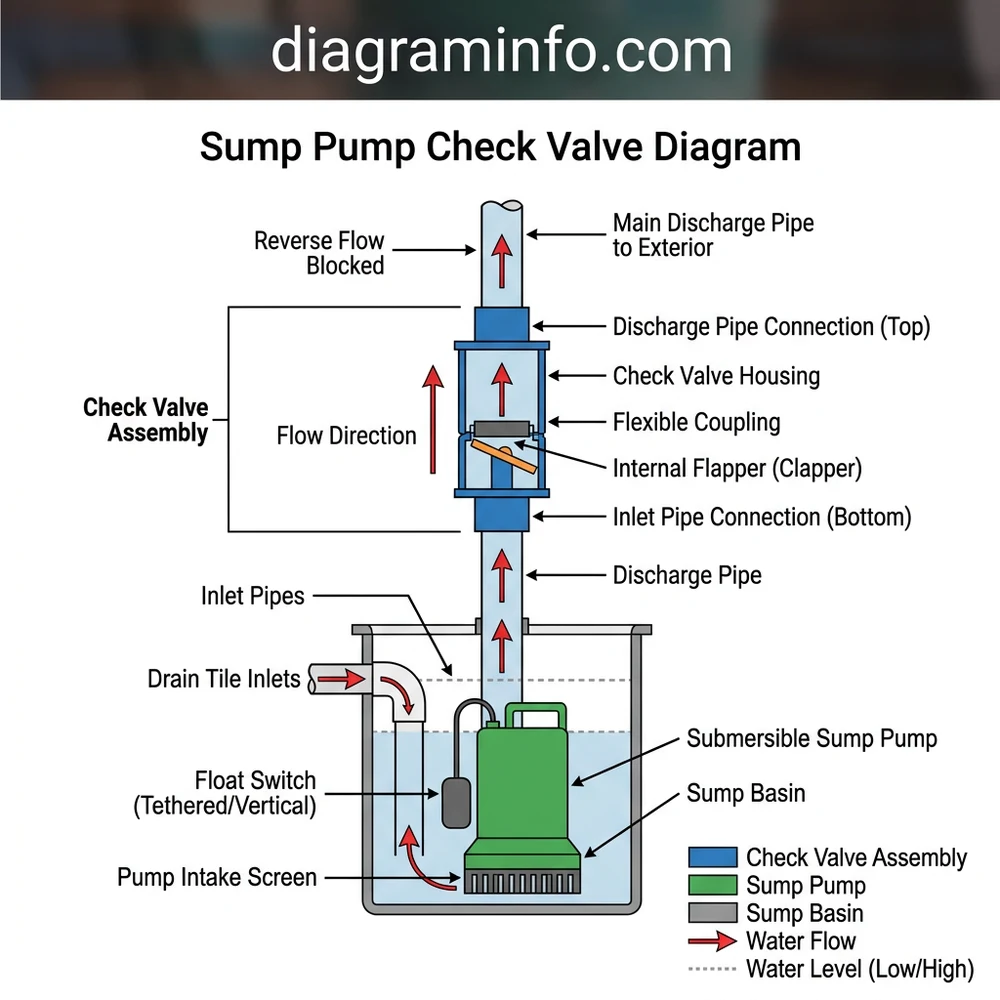

Reading a technical assembly layout requires tracing the directional fluid path from the pump volute scroll casing up through the vertical discharge stack. Modern equipment engineering schematics utilize standardized symbols to define pressure boundaries, direction of flow, and connection interfaces.
First, identify the directional flow arrow molded directly into the exterior wall of the valve body housing. This arrow must point strictly in the direction of fluid discharge (away from the basin bottom and toward the exterior gravity drain line). Installing the valve inverted blocks fluid flow entirely, dead-heading the pump motor and causing immediate switch tripping or thermal winding failure.
Second, locate the weep hole position on the schematic blueprint. OEM installation specs mandate drilling a 1/8-inch to 3/16-inch air relief orifice into the PVC discharge pipe, located strictly between the pump discharge nozzle and the lower coupler of the check valve assembly. This hole prevents “air-locking”—a mechanical phenomenon where trapped air in the scroll casing prevents the impeller from contacting liquid water during basin refill cycles.
Always position the check valve assembly 12 to 24 inches above the pump discharge outlet. Mounting the valve directly onto the pump volute threads makes service accessibility difficult and increases mechanical vibration fatigue on the threaded plastic fittings.
Finally, examine the rubber boot vibration dampener couplers. Fastened with 300-series stainless steel worm gear bands, these full-flow flexible sleeves isolate structural motor hum from transmitting through the building structure. For complete system design guidelines, consult our detailed sump pump basin sizing guide.
Diagnosing Sump Pump Check Valve Diagram Failure Modes and Pressure Issues
When analyzing a malfunctioning pumping system, mechanical diagnostic routines should match the structural components depicted in the technical diagram. Equipment operators frequently encounter three primary mechanical failure modes related to check valve performance.
Depressurize and disconnect power from the pump motor before loosening hose clamps. Vertical discharge pipes higher than 15 feet hold significant static water head weight; sudden unclamping can burst high-velocity fluid into the maintenance pit.
Technicians can isolate physical symptoms using standard diagnostic procedures:
1. Severe Water Hammer (Hydraulic Shock Noise): A loud “thump” upon pump shutdown indicates high dynamic head fluid column collapsing before the flapper seats. Fix: Replace standard gravity swing valves with a spring-loaded silent check valve featuring a spring constant rated to snap the disc shut at zero fluid velocity.
2. Pump Short-Cycling: If the pump cycles on and off rapidly without new water entering the pit, the check valve rubber disc or sealing seat is held open by debris (gravel, stringy effluent, scale build-up) or suffers from physical elastomeric tear. Re-evaluate the internal flapper assembly against the maintenance specifications found in the submersible effluent pump maintenance manual.
3. Motor Runs Continuous with No Water Elevation: Indicates an air lock beneath the valve seat due to a clogged or omitted weep hole, or a reverse-installed valve body where static line pressure seals the gate against the flow path.
Sump Pump Check Valve Configuration and Installation Questions Answered
What vertical height above the pump basin should the check valve be installed?
According to mechanical standards, the optimal installation elevation is 12 to 24 inches above the top of the pump discharge outlet port. Positioning the valve within this zone ensures adequate fluid volume remains above the pump scroll casing to purge air through the bleed hole while leaving the check valve easily accessible above the basin pit liquid level for inspection and maintenance.
Why is an anti-airlock weep hole required in the valve piping configuration layout?
When a sump pump empties the basin and shuts off, air enters the lower volute housing. As the pit refills, water rises around the pump exterior, trapping air inside the discharge casing beneath the closed check valve seat. An angled 3/16-inch weep hole drilled below the check valve provides an escape orifice for trapped air, allowing fluid to contact the impeller vanes and establish prime instantly upon motor activation.
What is the structural difference between a swing check valve and a spring-loaded check valve?
A swing check valve utilizes a free-pivoting gravity flapper that relies on reverse fluid velocity to push the seal closed, making it prone to high shock-wave noise (water hammer) under high vertical lift conditions. A spring-loaded check valve integrates a stainless steel compression spring behind the poppet mechanism, forcing the seal closed the exact millisecond forward fluid velocity drops to zero, eliminating dynamic shock waves.
Can a standard check valve structure be installed in a horizontal piping run?
Yes, provided you select a spring-assisted valve model or a horizontal-rated swing valve where gravity allows the internal flapper hinge pin to drop naturally into the seating groove. Standard gravity swing valves designed exclusively for vertical risers will fail to seat reliably in horizontal runs, leading to backflow leakage and shortened equipment service life.
Step-by-Step Guide to Understanding the Sump Pump Check Valve Diagram
Identify – Identify the discharge pipe diameter (1.5-inch or 2-inch) and inspect the replacement check valve orientation.
Locate – Locate the valve positioning spot 12 to 18 inches above the pump discharge outlet on the vertical pipe.
Reference – Reference the diagram to align the directional flow arrow on the valve body pointing away from the pit.
Connect/Route – Route the vertical PVC pipe through the rubber couplers and tighten stainless steel clamps to 35 in-lbs.
Verify – Verify system operation by filling the pit with water and testing for backflow or leaks when the pump stops.
Troubleshoot – Troubleshoot water hammer or cycling by clearing debris from the flapper or replacing with a silent spring valve.
