Split AC How Does an Air Conditioner Work Diagram: 2026

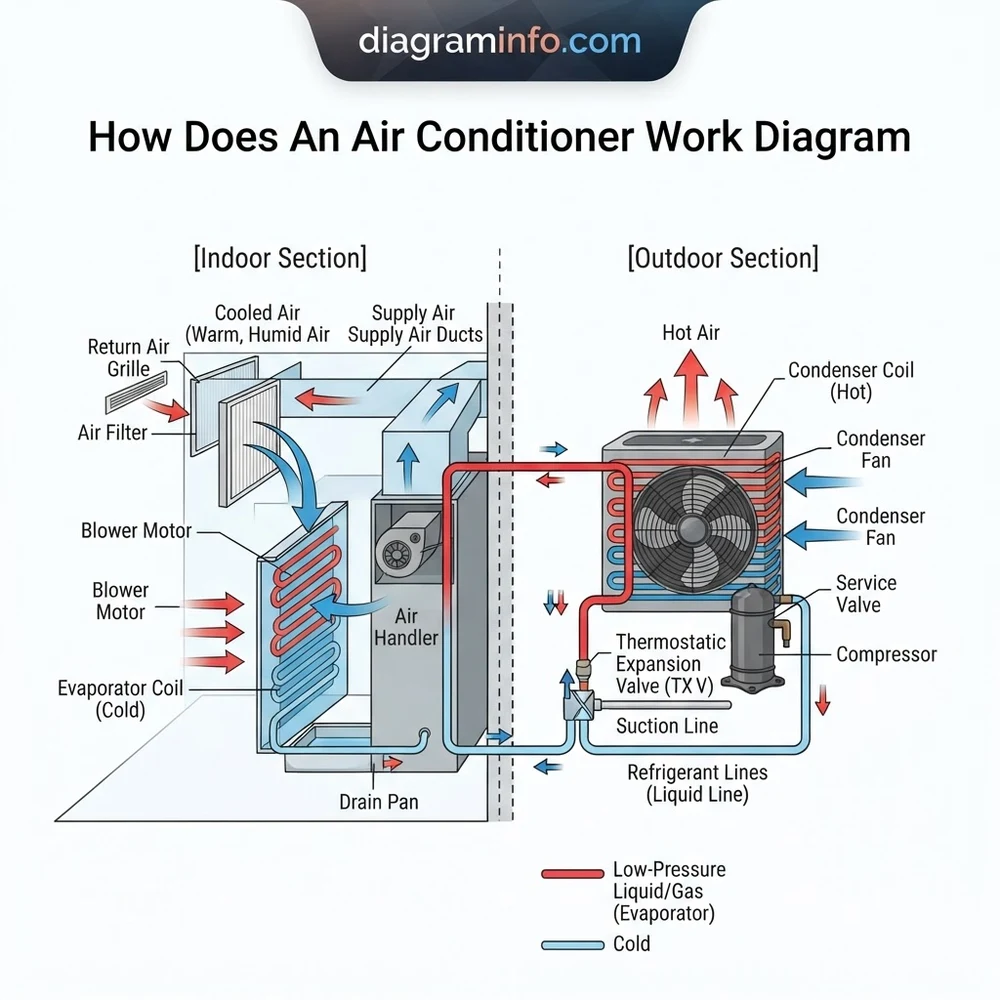

An air conditioner diagram illustrates a closed-loop thermodynamic cycle. The compressor pressurizes vapor refrigerant into a high-temp gas, sending it to the outdoor condenser coil where heat dissipates. The thermal expansion valve drops pressure, cooling refrigerant before it enters the indoor evaporator coil, where the blower motor forces air across for cooling.
📌 Key Takeaways
- The compressor pressurizes R-410A or R-32 refrigerant to high-pressure gas state at 300+ PSI before condenser discharge.
- The outdoor condenser coil converts hot refrigerant gas to high-pressure liquid by shedding heat via fan airflow.
- Always disconnect 240V main power at the outdoor disconnect box before servicing electrical AC components.
- A failed dual-run capacitor is the single most common cause of compressor and outdoor fan startup failure.
- DIY tasks include filter replacements and coil cleaning, while refrigerant recovery requires EPA Section 608 certification.
Modern vapor-compression HVAC systems rely on thermodynamic state changes to transfer thermal energy out of conditioned spaces. Whether servicing heavy equipment cabs, automotive climate systems, or stationary commercial air handlers, reading a clear air conditioning schematic is essential for precise diagnostic work. This technical guide breaks down the fluid dynamic and mechanical sequences illustrated in a typical system layout. By analyzing pressure differentials, phase transitions, and electrical control signals across major components, service technicians can systematically diagnose cooling performance drops, trace electrical faults, and restore factory specification performance across all major equipment lines.
Understanding the How Does an Air Conditioner Work Diagram Components
To properly interpret a how does an air conditioner work diagram, technicians must understand the two distinct operational sub-systems: the closed-loop refrigerant circuit and the forced-air distribution loop. The closed refrigerant loop utilizes a compressor, condenser, metering device, and evaporator to manipulate chemical boiling points, while the air handler, blower motor, and return duct execute the indoor air change cycle.
Refrigerant Loop: Compressor and Condenser Assembly
The compressor serves as the mechanical heart of the system, drawing low-pressure, superheated refrigerant vapor from the suction line and compressing it into a high-pressure, high-temperature gas. OEM specifications require tight tolerance shaft seals and internal reed or scroll sets to maintain compression ratios ranging from 3:1 to 5:1 under high heat loads. From the compressor discharge port, hot gas flows into the condenser coil. Positioned in the external airstream or equipment radiator stack, the condenser functions as a high-side heat exchanger, shedding sensible and latent heat to convert the vapor into a subcooled liquid state.
Air Handling System: Air Handler, Blower Motor, and Return Duct
The indoor mechanical sub-assembly centers around the air handler housing. Warm air from the cabin or interior space enters through the return duct under negative static pressure generated by the blower motor. Modern multi-speed or ECM (Electronically Commutated Motor) blower assemblies maintain specified CFM ratings against static pressures ranging from 0.2 to 0.8 in. w.g. This return air passes across the cold evaporator coil, where latent moisture condenses onto the aluminum fins and sensible heat transfers into the low-pressure boiling refrigerant inside the copper tubes.
System operating parameters under standard ambient testing conditions (80°F indoor DB / 67°F WB and 95°F outdoor ambient using R-134a or R-410A refrigerant):
| Component / Section | Fluid / Electrical State | Operating Range (R-134a) | Operating Range (R-410A) |
|---|---|---|---|
| Compressor Suction Line | Low Pressure / Superheated Gas | 28 – 45 PSI (35°F – 50°F) | 110 – 135 PSI (36°F – 48°F) |
| Compressor Discharge Line | High Pressure / Superheated Gas | 150 – 225 PSI (140°F – 180°F) | 275 – 400 PSI (160°F – 210°F) |
| Condenser Coil Outlet | High Pressure / Subcooled Liquid | 10°F – 15°F Subcooling | 8°F – 12°F Subcooling |
| Evaporator Coil Outlet | Low Pressure / Superheated Gas | 8°F – 12°F Superheat | 10°F – 14°F Superheat |
| Blower Motor Circuit | 12V/24V DC or 120/240V AC | 10 – 25 Amps (DC Mobile) | 2.5 – 6.5 Amps (AC Stationary) |
Tracing Mechanical Flow in an Air Conditioner Work Diagram
Following the schematic fluid and electrical pathways step-by-step allows service technicians to execute precise pressure-temperature (P-T) analysis and pinpoint system bottlenecks.
Service Procedure Specifications:
- Estimated Time: 45 – 60 minutes
- Required Tools: Digital manifold gauge set with micron gauge, clamp-on thermistor probes, CAT III digital multimeter, refrigerant recovery station, wire lead probes.
- Safety Precautions: Wear ANSI-approved eye protection and thermal/nitrile gloves. Verify EPA Section 608/609 certification compliance. Ensure main circuit breakers or equipment battery disconnects are engaged before servicing wiring terminals.
Step 1: High-Pressure Compression and Phase Change
The electronic control module or thermostat energizes the compressor clutch coil (12V DC in mobile equipment) or magnetic contactor coil (24V AC in stationary air handlers). The compressor draws low-pressure refrigerant gas from the suction line, rapidly reducing volume inside the cylinders or scroll pockets. This raises gas pressure and temperature significantly above ambient levels before forcing it out through the discharge check valve.
Step 2: Heat Rejection Through the Condenser Heat Exchanger
High-pressure, superheated vapor enters the top header of the condenser heat exchanger. As forced air passes across the external aluminum fins, sensible heat drops until the refrigerant reaches its saturation dew point. Latent thermal energy releases into the outside air, condensing the gas into a liquid. The liquid refrigerant continues through the lower passes of the coil, losing additional temperature to achieve liquid subcooling.
Step 3: Metering Expansion and Evaporator Heat Absorption
High-pressure liquid travels through the liquid line to the Thermal Expansion Valve (TXV) or fixed orifice tube. This metering device creates a calibrated pressure drop. As pressure drops abruptly across the orifice, a small fraction of the liquid flashes into gas, instantly chilling the remaining mixture down to approximately 35°F to 42°F as it enters the evaporator coil distribution tubes.
Step 4: Air Distribution via Air Handler and Blower Motor
The blower motor draws warm air out of the room or equipment cab via the return duct. Forced air streams through the cold fins of the evaporator heat exchanger. Thermal energy transfers from the warm air into the low-pressure liquid refrigerant, causing the liquid to boil at a constant temperature. Dehumidified, chilled air (18°F–22°F cooler than return air) discharges into the supply ducting, while fully vaporized refrigerant exits the evaporator to repeat the cycle.
Always verify superheat at the evaporator suction line outlet to ensure liquid refrigerant does not reach the compressor. For comprehensive control board wiring specs, refer to our detailed guides on HVAC compressor wiring diagrams, expansion valve calibration procedures, and electrical schematic diagnostic procedures.
Diagnosing Compressor, Evaporator, and Condenser Failures
When system performance deviates from the parameters outlined in a standard how does an air conditioner work diagram, technicians must analyze pressure gauge reactions alongside electrical resistance values to identify faulty components.
Low Low-Side Pressure and Evaporator Freezing
If low-side suction pressure drops below 28 PSI on R-134a systems, saturated refrigerant temperatures drop below 32°F, freezing ambient condensation on the evaporator fins. Common mechanical causes include an internally restricted expansion valve, clogged liquid line filter-drier, or low refrigerant charge from a system leak. Airside causes include blocked air handler filters, collapsed return duct lining, or a failing blower motor operating below rated RPM.
Excessive High-Side Pressure at the Condenser Coil
Abnormally elevated head pressure (exceeding 250 PSI on R-134a or 450 PSI on R-410A) points to insufficient thermal transfer at the condenser heat exchanger. Inspect the condenser core face for road debris, dirt buildup, or bent fins. Electrical issues such as a burned-out condenser fan relay, degraded fan motor run capacitor, or reversed fan motor rotation will also prevent adequate heat rejection, triggering high-pressure cutout switches.
Electrical Diagnostics for Air Handler Blower Motor Circuits
When the air handler fails to push air across the evaporator coil, isolate the blower motor electrical circuit. Measure line voltage across motor power input leads using a multimeter. For ECM motors, confirm presence of both constant high-voltage main power and low-voltage control signals (typically 24V AC or 0-10V DC). Resistance checks across motor windings should read balanced (typically 1.5 to 12 ohms depending on horsepower rating); a reading of zero indicates a short circuit, while infinite ohms confirms an open winding.
Never charge liquid-phase refrigerant into the low-pressure service port while the compressor is operating. Liquids are non-compressible; introducing liquid refrigerant into the suction port will destroy compressor valves, snap connecting rods, or blow out internal scroll seals. Charge liquid only into the high side with the engine or system turned completely off.
How Does an Air Conditioner Work Diagram Questions Answered
What visual cues on an air conditioner schematic indicate a failed expansion valve?
On a diagnostic flow schematic, a thermal expansion valve (TXV) stuck in the closed position appears as an abrupt point where high liquid pressure meets extremely low suction pressure without corresponding cooling down-stream. Mechanically, the low-side gauge drops into a deep vacuum or near-zero reading while high-side pressure remains normal or slightly low due to refrigerant being trapped inside the condenser.
How does refrigerant pressure transition between the high and low sides?
Pressure state transitions occur at two opposing points in the closed system. The compressor acts as the high-pressure creator, taking low-pressure suction gas and compressing it up to high-side pressure. On the opposite side of the loop, the thermal expansion valve or fixed orifice tube acts as the pressure reducer, forcing high-pressure liquid through a tight orifice into the low-pressure evaporator zone.
Why does a failing blower motor cause the evaporator coil to freeze up?
The evaporator coil relies on constant warm air moving from the return duct across its fins to supply thermal energy to the boiling refrigerant inside. If the blower motor fails or loses speed, heat transfer drops to zero. Liquid refrigerant inside the coil continues boiling at sub-freezing temperatures, causing moisture from trapped air to rapidly freeze into solid ice across the aluminum fin pack.
What multimeter readings confirm a compromised compressor clutch coil?
Disconnect the compressor clutch wiring harness connector and measure coil resistance in ohms using a calibrated digital multimeter. A standard 12-volt equipment compressor clutch coil should read between 3.0 and 4.8 ohms at room temperature. A reading below 2.0 ohms indicates an internal short circuit that will repeatedly blow fuses, while an “OL” or infinite ohm reading indicates an open circuit broken winding.
Step-by-Step Guide to Understanding the How Does An Air Conditioner Work Diagram
Identify – Identify the primary high-pressure liquid and low-pressure suction lines on the system diagram.
Locate – Locate the outdoor compressor, condenser unit, and indoor evaporator coil connections.
Reference – Reference the electrical schematic side to verify 240V high-voltage and 24V control wiring paths.
Connect/Route – Route gauge manifold hoses to high-side (liquid) and low-side (suction) service valves safely.
Verify – Verify voltage across contactor terminals and measure temperature differential across evaporator coil.
Troubleshoot – Troubleshoot pressure cut-outs, faulty capacitors, or blown fuses if components fail to energize.
