2016 Ford Edge Fuse Box Diagram: Repair 2026
The 2016 Ford Edge features two main fuse panels: the Power Distribution Box located under the hood on the driver side, and the Smart Junction Box under the dashboard to the left of the steering wheel. Use the diagram to identify mini-fuses, JCase fuses, and ECU or OBD-II power circuits.
📌 Key Takeaways
- The engine compartment power distribution box houses high-amp JCase fuses (30A-60A) and critical system relays.
- The passenger compartment fuse box protects lower amperage (5A-30A) body control modules and OBD-II power circuits.
- Always disconnect the 12V battery negative terminal before servicing high-current fuses to prevent ECU damage.
- A blown fuel pump fuse or faulty relay is a frequent cause of no-crank and no-start engine conditions.
- DIY fuse replacement is straightforward with a plastic puller, but recurring shorts require complete diagnostic tracing.
Navigating the complex electrical architecture of the second-generation 2016 Ford Edge requires precise reference documentation and exact circuit identification. Whether servicing the 2.0L EcoBoost, 3.5L Ti-VCT V6, or 2.7L EcoBoost Twin Turbo engine, understanding the distribution of power between the engine compartment Power Distribution Box (PDB) and the cabin Smart Junction Box (SJB) is essential for diagnosing unexpected electrical faults. This guide breaks down the complete electrical configuration, pinouts, relay positions, and circuit assignments required to execute advanced circuit tracing, isolate system failures, and restore factory operational parameters efficiently.
2016 Ford Edge Fuse Box Diagram Layout and Component Identification
The 2016 Ford Edge utilizes a split-bus electrical architecture split between the engine bay and the passenger cabin. According to OEM technical specifications, proper diagnosis requires identifying both high-current primary fuses and low-amp secondary logic circuits that supply key control modules throughout the vehicle.
Underhood Power Distribution Box (PDB) Circuit Assignments
The engine compartment Power Distribution Box (PDB) is positioned adjacent to the battery assembly on the driver-side inner fender panel. This panel serves as the central switching hub for high-amperage components, including the Powertrain Control Module / ECU, starter motor solenoid, electric cooling fans, and high-pressure fuel pumps. It utilizes a combination of Micro2 blade fuses, Micro3 dual-circuit fuses, M-Case slotted fuses, and high-current JCase cartridge fuses alongside standardized mini-ISO relays.
Passenger Compartment Smart Junction Box (SJB) Layout
The interior fuse panel, integrated within the Smart Junction Box (SJB) / Body Control Module (BCM), is mounted below the instrument panel on the driver side, situated to the lower left of the steering column behind a removable access cover. The SJB manages interior lighting, keyless entry modules, power window lifts, diagnostic communication circuits, and low-current vehicle sensors.
| Fuse / Relay ID | Amperage Rating | Protected Circuit / Component | Wire Color / Signal Description |
|---|---|---|---|
| Fuse 11 (PDB) | 10A Micro2 | ECU / PCM Power Feed & Keep-Alive Memory | Yellow / Violet (12V B+) |
| Fuse 12 (SJB) | 15A Micro2 | OBD-II Data Link Connector (DLC) Pin 16 Power | Blue / White (Constant 12V) |
| Fuse 36 (PDB) | 15A Micro2 | ECU Solenoids, VCT Actuators & Timing Chain Sensors | Violet / Grey (Switched 12V) |
| Fuse 42 (PDB) | 10A Micro2 | Electronic Coolant Flow Control Valve & Oil Pressure Switch | Green / Blue (Ignition Run/Start) |
| Fuse 62 (PDB) | 50A JCase | Engine Cooling Fan Control Module Assembly | Red / Yellow (High-Current Feed) |
| Relay R8 (PDB) | 4-Pin Mini Relay | Powertrain Control Module (PCM) / ECU System Power | Switched Battery Output |
Underhood Power Distribution Box B+ Main Feed Cable Stud Torque Spec: 9 Nm (80 lb-in). Interior SJB Mounting Bracket Bolts: 4.5 Nm (40 lb-in). Battery Terminal Cable Clamps: 9 Nm (80 lb-in). Always maintain correct torque to prevent localized thermal resistance spikes.
Diagnosing ECU, OBD-II, and Engine Diagnostic Code Failures
Diagnosing modern vehicular electrical systems requires correlating active fault conditions back to specific power pathways shown in the 2016 ford edge fuse box diagram. When an electrical fault occurs within the engine management loop, symptoms frequently manifest across multiple sub-systems simultaneously due to shared power buses.
Check Engine Light and Diagnostic Code P0606 Circuit Tracing

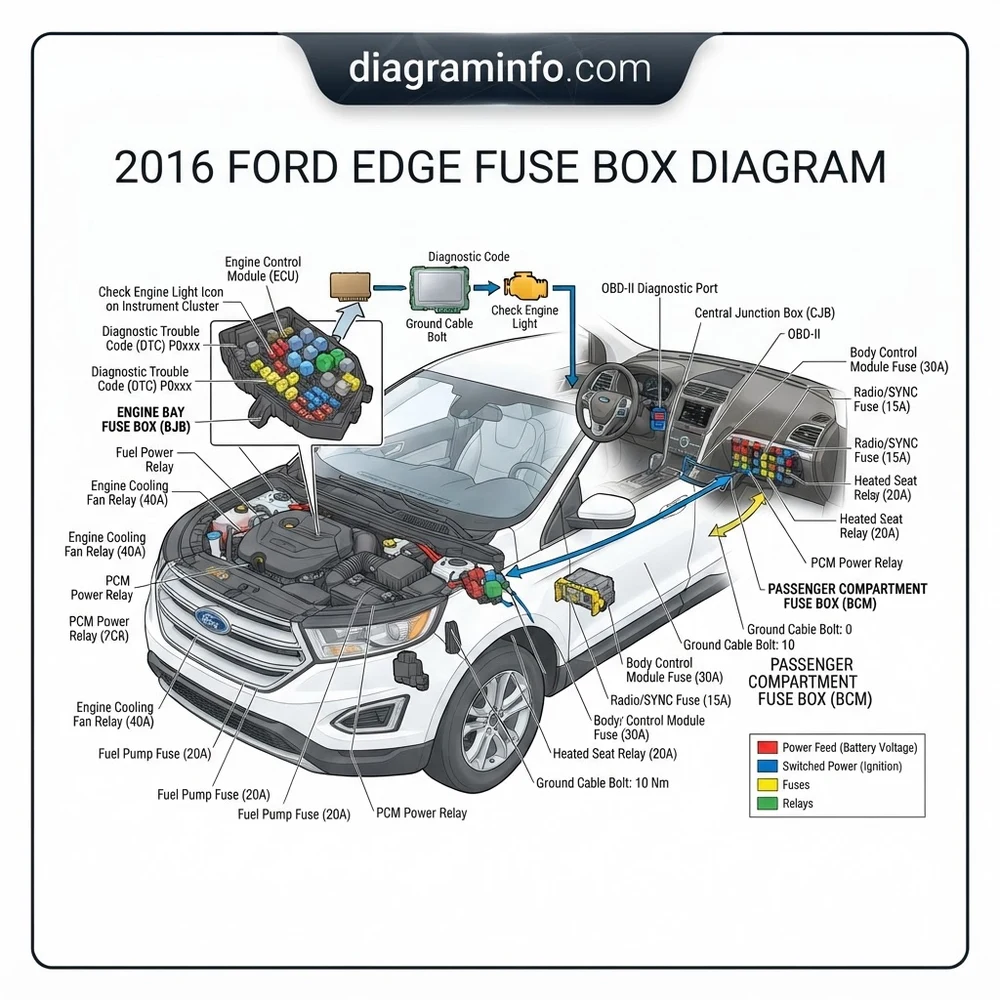

When an illuminated check engine light stores a diagnostic code such as P0606 (PCM Processor Fault) or P0685 (ECM/PCM Power Relay Control Circuit Open), circuit troubleshooting must begin at the underhood PDB. As shown in the diagram above, Fuse 11 (10A) maintains constant voltage to the ECU internal microprocessor, while Relay R8 controls primary power delivery when the ignition key is cycled. Oxidation or pin spread inside the Relay R8 terminal socket creates voltage drops exceeding 0.5V DC, forcing the ECU to trigger internal processor error codes despite no internal computer failure existing.
Coolant Flow Sensor and Oil Pressure Switch Power Loss
The EcoBoost engine series utilizes electronically regulated variable thermal and lubrication management. Fuse 42 (10A) inside the engine compartment panel provides key-on power directly to the electronic coolant flow control valve, as well as the dual-stage engine oil pressure switch assembly. If Fuse 42 opens, the ECU immediately logs diagnostic codes P0115 (Engine Coolant Temperature Circuit Malfunction) and P0520 (Engine Oil Pressure Sensor/Switch Circuit Malfunction). For detailed thermal sensor testing protocols, consult our dedicated Ford engine coolant flow sensor troubleshooting guide.
Timing Chain Variable Cam Timing Solenoid Fuse Tripping
Variable valve timing mechanisms mounted near the timing chain relies on pulse-width modulated (PWM) power routed through Fuse 36 (15A) in the engine bay fuse box. Physical wear, varnish buildup, or internal shorting within the VCT solenoids raises amperage draw beyond nominal limits, causing Fuse 36 to trip repeatedly. This condition triggers diagnostic code fault suites ranging from P0010 through P0013. If replacement fuses trip immediately upon starting the engine, perform an isolation test by disconnecting all four timing chain VCT solenoids prior to inserting a new fuse. Further details on mechanical timing component failure modes can be found in our comprehensive Ford EcoBoost timing chain replacement guide.
Never bridge a blown fuse with copper wire or substitute a higher amperage rating fuse. The 2016 Ford Edge Smart Junction Box utilizes delicate solid-state drivers; over-fusing will result in permanent damage to the internal BCM trace layer, necessitating an expensive module replacement and dealer reprogram.
How to Troubleshoot Using the 2016 Ford Edge Fuse Box Diagram
Executing accurate electrical diagnosis on a 2016 Ford Edge demands systematic testing procedures using calibrated equipment rather than simple visual inspection of fuse elements.
Multimeter Voltage Drop and Continuity Testing Procedures
To accurately isolate open circuits or excessive resistance within the power distribution grid, perform the following test sequence:
- Step 1: Access the Target Box: Open either the engine compartment PDB or cabin SJB access door as illustrated in the 2016 ford edge fuse box diagram.
- Step 2: Set Diagnostic Equipment: Set a high-impedance Digital Multimeter (DMM) to DC Volts scale (20V range). Ground the negative (black) meter probe to frame ground terminal post G101 near the battery tray.
- Step 3: Test Voltage on Fuse Test Tabs: With the ignition turned to RUN, probe both small metal test points on the top exposed face of each blade fuse using the red probe tip.
- A functional circuit shows battery voltage (~12.6V to 14.2V) on both test tabs.
- A blown fuse displays full battery voltage on the line-side tab, but 0V on the load-side tab.
- A reading of 0V on both tabs indicates an upstream relay open or lost main feed breaker.
- Step 4: Verify Ground Integrity: Measure voltage drop between the ECU housing metal body and frame ground G101. Any reading exceeding 0.100V DC indicates high ground circuit resistance requiring cleaning and retorquing.
OBD-II Data Link Connector Diagnostic Verification
If an OBD-II scanner displays a “No Communication” error message when connected to the diagnostic port, or if the check engine light fails to illuminate during the bulb-test phase at initial key-on, verify Fuse 12 (15A) inside the passenger compartment SJB. Fuse 12 supplies constant battery positive (B+) voltage to Pin 16 of the DLC connector. If Pin 16 lacks voltage, check for pin push-out behind the diagnostic connector housing. For detailed DLC pinouts and CAN-bus signal parameters, view our Ford OBD-II diagnostic codes and protocol manual.
Ground Lug Torque Specs and Terminal Corrosion Removal
Corrosion or loose grounding hardware at primary body ground studs (specifically G101 on the left frame rail and G102 near the dashboard cowl) causes phantom voltage drops across the entire vehicle electrical network. Unbolt eyelet terminals, clean contact surfaces down to bare metal using a brass wire brush, apply dielectric grease, and re-torque the M6 ground fasteners to the mandatory factory torque spec of 9 Nm (80 lb-in).
When experiencing intermittent engine stall conditions traced to PCM main relay R8, conduct a pin drag test using an OEM relay test blade. If the socket female terminal exhibits poor drag retention force, pin collapse has occurred. De-pin the connector shell and gently tension the female spring terminal using a micro-pick tool to re-establish 12V conductivity.
2016 Ford Edge Fuse Box Diagram Frequently Asked Questions
Where is the interior 2016 Ford Edge fuse box located?
The interior fuse panel (Smart Junction Box / BCM) is located beneath the driver-side instrument panel, to the lower left of the steering column. Access it by reaching under the dash overhang and pulling down on the plastic trim panel hinged door situated right under the main headlight switch control assembly.
Which fuse controls the OBD-II diagnostic port and check engine light power?
Fuse 12 (15A) located in the interior passenger compartment Smart Junction Box directly powers Pin 16 of the OBD-II diagnostic port. Power for the check engine light logic and ECU memory retention is supplied separately by Fuse 11 (10A) in the engine compartment Power Distribution Box.
What causes the ECU fuse to repeatedly blow on the 2016 Ford Edge?
Repeated tripping of the ECU power fuse (Fuse 36 or Fuse 11 in the underhood panel) is typically caused by a shorted wire harness contacting the hot exhaust manifold shield, a internally shorted variable valve timing solenoid along the timing chain cover, or an internal short circuit inside the active grille shutter actuator motor on the front bumper core support.
Are the relay and fuse ratings identical between the 2.0L EcoBoost and 3.5L V6 engine options?
While the overall physical layout shown in the 2016 ford edge fuse box diagram remains consistent across model lines, specific circuit fuse amperage varies by engine configuration. For example, 2.0L EcoBoost models use a single 50A JCase fuse (Fuse 62) for a single cooling fan motor, whereas 3.5L V6 vehicles utilize dual 50A fuses (Fuse 62 and Fuse 63) to supply independent power paths for dual high-draw electric cooling fan assemblies.
What is the correct torque spec for the primary power terminal stud on the underhood fuse box?
According to Ford factory repair specifications, the primary positive battery feed cable nut attached to the B+ input stud on the underhood Power Distribution Box must be torqued to exactly 9 Nm (80 lb-in). Tightening beyond this torque spec risks cracking the internal plastic busbar insulator, while undertightening causes extreme electrical resistance, overheating, and intermittent loss of main vehicle power.
Step-by-Step Guide to Understanding the 2016 Ford Edge Fuse Box Diagram
Identify – Determine whether the faulty electrical circuit is located in the engine bay or cabin panel.
Locate – Access the under-hood power box or lower dashboard panel on the driver side.
Reference – Cross-check the 2016 Ford Edge fuse box diagram slot number with the listed amperage rating.
Connect/Route – Use a plastic fuse puller to extract the suspect fuse and insert an identical rating replacement.
Verify – Switch the ignition on and verify component function or test OBD-II scanner connectivity.
Troubleshoot – If the new fuse blows immediately, scan for diagnostic codes and check the wiring harness for grounded shorts.
