GY6 150cc Scooter GY6 150cc Wiring Diagram: 2026 Pinout
A standard 150cc scooter GY6 150cc wiring diagram uses a green ground wire, red hot wire, black switched ignition wire, and yellow/white stator charging lines. The 6-pin CDI pin assignment controls ignition timing, splitting connections between the stator trigger coil, AC power supply, ignition coil output, and main kill switch circuit.
📌 Key Takeaways
- Green is always main frame ground; Red is constant 12V hot wire directly from battery fuse
- AC-fired GY6 CDIs require 2-plug connections (4-pin + 2-pin) fed directly from stator power coil
- Rectifier/regulator utilizes 4 pins: Yellow/White AC input, Red 14.5V DC output, Green ground wire
- Reversing stator trigger or ignition coil wires results in no-start or severe backfiring
- Always use 16 AWG for main chassis harness and 10-12 AWG for battery-to-starter solenoid cables
Diagnosing electrical faults or executing a complete harness replacement on a 157QMJ or 152QMI engine requires a precise understanding of circuit routing and component pinouts. The standard 150cc scooter GY6 150cc wiring diagram governs all critical subsystems, including the AC or DC ignition module, single-phase charging system, automatic byproduct choke (bystarter), and chassis lighting circuits. Because Asian OEM manufacturers frequently substitute wire jacket colors between production years, relying on visual inspection alone often results in blown fuses, dead stator coils, or damaged ignition modules. This technical guide establishes the exact circuit paths, terminal identities, operating voltages, and pinouts necessary to correctly install, test, and repair your engine harness.

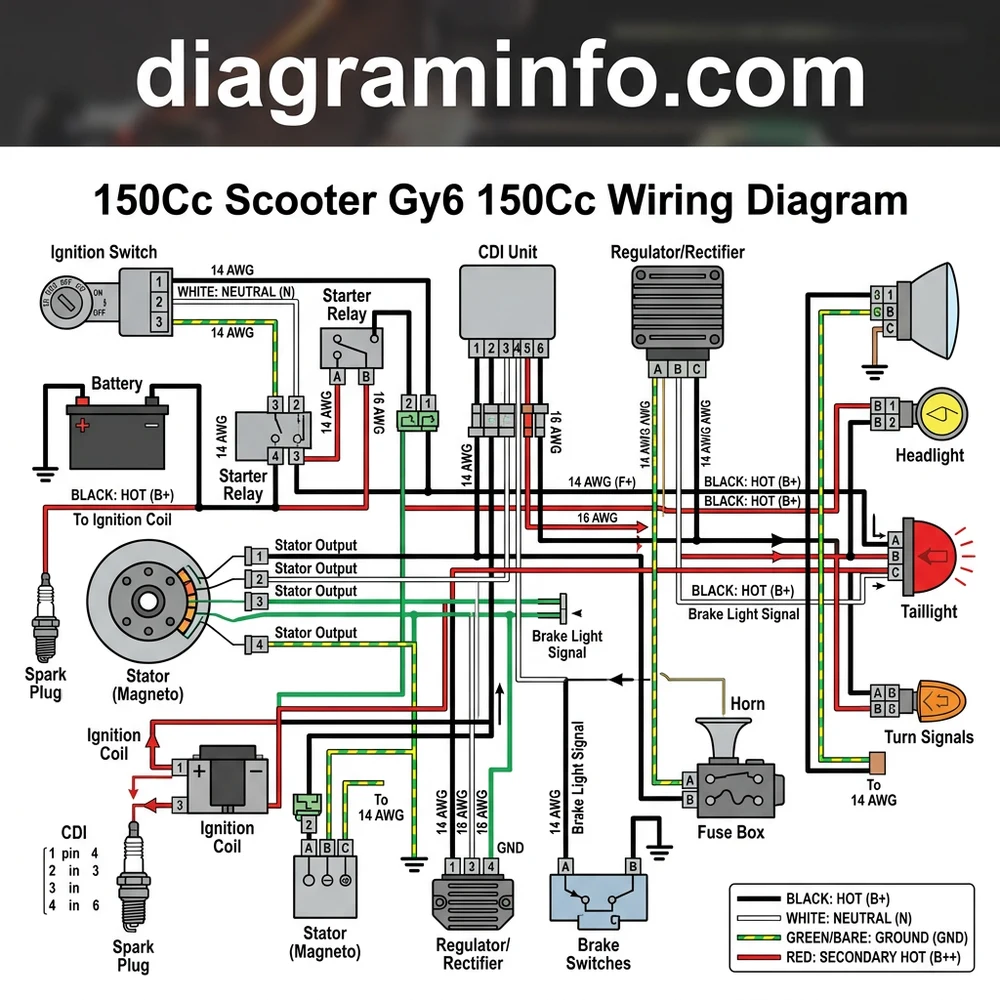

Decoding the 150cc Scooter GY6 150cc Wiring Diagram Color Codes
According to OEM factory standards, GY6 electrical systems follow a standardized color distribution pattern, though variations occur across different chassis manufacturers. Interpreting your 150cc scooter GY6 150cc wiring diagram requires identifying whether a conductor serves as a continuous hot wire, a switched 12V DC line, an AC source feed from the stator, or a dedicated ground wire link. The table below delineates the primary factory color conventions, circuit functions, and typical voltage parameters found across standard 11-pole and 8-pole GY6 harnesses.
Recommended Best Deal Products
| Wire Color | Circuit Function | Terminal / Pin Connection | Electrical Spec & Gauge |
|---|---|---|---|
| Green | Main Frame Ground Wire | Engine Crankcase / Frame Lug / All Components | 0V DC Reference (14–16 AWG) |
| Red | Unswitched Main Hot Wire | Battery (+) to Solenoid & Key Switch Terminal Block | 12.6V DC Constant (14 AWG) |
| Black | Switched Accessories Hot Wire | Key Switch Output to Flasher, Horn, Meter & DC CDI | 12V DC (Key ON) (16–18 AWG) |
| Yellow | AC Lighting Supply Coil | Stator Output to Regulator Pin 4 & Headlight Switch | 20–80V AC (Unregulated) (16 AWG) |
| White | AC Charging Supply Coil | Stator Output to Regulator Pin 2 (Rectifier Input) | 20–90V AC (Unregulated) (16 AWG) |
| Blue / Yellow | Pick-up / Trigger Pulse Coil | Flywheel Sensor to CDI Pin 1 (Signal) | 1.5–3.0V AC Pulse (18–20 AWG) |
| Black / Red | AC Ignition Exciter Coil | Stator Source Coil to AC-CDI Power Pin | 50–100V AC Output (18 AWG) |
| Black / Yellow | CDI Output Pulse | CDI Primary Terminal to High Voltage Coil (+) | 100–300V Peak Pulse (18 AWG) |
| Black / White | Ignition Kill Switch Circuit | CDI Pin 3 to Handlebar Switch & Key Switch | Grounded to Kill Engine (18 AWG) |
| Green / Yellow | Brake Safety Interlock | Brake Lever Switches to Solenoid Relay Signal Terminal | 12V DC (Brake Depressed) (18 AWG) |
When working on vintage or non-standard models, verify conductor connectivity with a digital multimeter rather than relying strictly on sleeve colors. For complete charging circuit isolation testing, cross-reference this color index with our detailed scooter battery charging diagnostic reference to prevent misdiagnosing rectifiers or stator windings.
Pin Assignment for GY6 Stator, CDI Module, and Voltage Regulator
Subsystem failure on GY6 equipment commonly traces back to incorrect pin arrangement inside male and female terminal block connectors. Standard 150cc engines deploy either a 5-pin dual-plug AC CDI or a 6-pin DC CDI. Understanding pin configuration prevents cross-feeding high-voltage AC lines into 12V DC logic ports.
5-Pin AC CDI Terminal Identification:
• Top 2-Pin Plug: Pin 1 = Pickup Coil (Blue/Yellow), Pin 2 = Ignition Coil Output (Black/Yellow).
• Bottom 4-Pin Plug: Pin 3 = Engine Kill (Black/White), Pin 4 = Ground Wire (Green), Pin 5 = AC Stator Exciter (Black/Red). Pin 6 is Unused.
4-Pin Voltage Regulator Terminal Block Layout (Tab Facing UP):
• Top-Left: DC Output / Battery Hot Wire (Red, 14.5V DC Max).
• Top-Right: AC Lighting Input / Bypass (Yellow).
• Bottom-Left: Frame Ground Wire (Green).
• Bottom-Right: AC Charging Input from Stator (White).
Stator Resistance Reference Specs (Engine OFF, 20°C):
• Pickup Pulser Coil (Blue/Yellow to Ground): 100 Ω – 150 Ω.
• AC Exciter Coil (Black/Red to Ground): 450 Ω – 550 Ω.
• Charging Coils (Yellow to White): 0.2 Ω – 1.2 Ω.
If you encounter ignition system modifications or custom engine swaps, review our companion GY6 stator testing procedures manual to verify phase balance across stator poles prior to attaching active terminal plugs.
Wiring a 150cc Scooter GY6 150cc Wiring Diagram Harness Step by Step
Installing or re-terminating an OEM wire harness demands a systematic approach to prevent short circuits, voltage drops, or thermal damage to primary conductors. Follow these numbered technical steps to ensure proper connection sequences and terminal seating across all sub-assemblies.
Step 1: Primary Power and Frame Ground Installation
Begin by securing the heavy-gauge main ground wire directly from the negative battery post to the rear crankcase mounting bolt. Do not rely exclusively on frame contacts for engine grounding. Next, connect a secondary 16 AWG green ground wire from the engine block to the main chassis terminal block junction. Install the main red hot wire from the battery positive terminal directly to the primary post of the starter solenoid relay, linking a secondary fused 15A red line to the ignition switch input terminal block.
Step 2: Stator to Regulator and CDI Interface Integration
Route the stator wire loom along the frame, ensuring isolation from exhaust piping. Connect the yellow and white AC output wires directly into the matching terminal block of the 4-pin full-wave or half-wave rectifier. Plug the blue/yellow trigger wire and black/red exciter wire into the CDI harness plug. Secure the ground wire (green) of the CDI directly to the frame lug. Route the black/yellow pulse output wire directly to the positive spade terminal on the ignition primary coil, verifying that the coil body maintains a solid mechanical ground to the chassis.
Applying 12V DC battery voltage directly to the AC exciter pin (Black/Red) of a standard 5-pin AC CDI will cause immediate internal diode breakdown and permanently destroy the module. Always verify stator output voltage with a multimeter before plugging in unknown replacement CDIs.
Step 3: Handlebar Switchgear and Starter Safety Interlock Connections
Connect the switched black hot wire output from the key switch to the handlebar control harness terminal block. Route the green/yellow wire from the front and rear hydraulic brake light switches to the starter solenoid relay trigger coil input. The opposite side of the relay trigger coil connects to the starter button (Yellow/Red wire). This configuration ensures the starter solenoid can only energize when a brake lever is depressed, providing positive 12V DC to the relay coil while the starter button grounds or completes the control circuit.
Step 4: Bystarter Automatic Choke Circuit Route
The automatic choke (bystarter) requires AC voltage directly from the yellow stator circuit to regulate its internal PTC heating element. Connect one lead of the choke terminal block to the yellow AC line (upstream of or integrated at the voltage regulator) and the second lead directly to the main system ground wire. This permits current to flow to the choke element only when the flywheel is rotating and generating power.
Operating a GY6 engine without the automatic choke connected—or with an open-circuit choke element—causes the voltage regulator to shunt excess lighting AC current to ground, increasing operating temperatures within the rectifier. Always maintain a functional thermal choke or equivalent fixed load resistor in the yellow circuit.
Terminal Block Wire Gauge and Operating Voltage Specifications
Operating reliability depends on keeping system voltage drops below 0.5V DC across all switched circuits. Using undersized wiring causes thermal resistance degradation, melted insulation, and component failure. The 150cc scooter GY6 150cc wiring diagram relies on three distinct wire gauge tiers based on continuous amperage loads.
The starter circuit requires high-current flexibility. The feed cable running from the positive battery terminal to the starter solenoid, and from the solenoid output terminal to the electric starter motor pin, must utilize 10 AWG copper conductor wire rated for 80–100 Amps transient cranking load. The main ground wire connecting the battery negative terminal to the engine case must also match this 10 AWG specification.
General distribution circuits—such as the primary red hot wire, yellow AC lighting feed, white charging feed, and green frame ground distribution harness—must utilize 14 AWG to 16 AWG wire. These lines carry continuous loads ranging from 4 to 12 Amps. Signal-level connections, including the blue/yellow pulse pickup line, black/white kill switch line, instrument cluster indicators, and turn signal circuits, operate safely on 18 AWG to 20 AWG multi-strand conductors.
System operating voltages must fall within narrow engineered bands. With the engine off, battery resting voltage across the red and green terminal points must measure 12.6V DC to 12.8V DC. Under active idle (1500 RPM), the charging circuit across the battery terminals must produce 13.2V DC minimum, stabilizing at 14.2V–14.6V DC at 5000 RPM. Direct AC output from the yellow and white stator terminals (unplugged from the regulator) must measure 20V to 25V AC at idle, scaling linearly up to 80V AC or higher as engine speed increases.
Troubleshooting Common 150cc Scooter GY6 150cc Wiring Diagram Faults
Systematic diagnostic procedures shorten repair times and prevent premature part replacement. Below are four highly frequent electrical failures documented on GY6 150cc platforms, along with root causes, technical symptoms, and resolution protocols.
1. High-Speed Engine Mis-Fire or Total Ignition Loss (Burnt Stator Exciter)
Symptom: Engine cranks normally and exhibits low-speed idle, but stutters under load or loses spark completely when warm.
Cause: High thermal stress degrades the fine copper windings of the AC ignition exciter coil inside the stator housing.
Fix: Disconnect the 3-pin stator plug. Measure resistance between the black/red wire and engine ground. If resistance reads outside the 450 Ω – 550 Ω window (or displays open circuit “OL”), replace the stator assembly. If resistance is correct, measure output voltage while cranking; a healthy coil must
2. Blown Main Fuse Upon Key Ignition Activation
Symptom: Inserting the key and turning the ignition switch to “ON” instantly blows the main 15A glass/blade fuse on the main red hot wire.
Cause: Internal short to ground within the switched black wire network, or inverted terminal pin placement at the ignition switch terminal block.
Fix: Disconnect the key switch 4-pin connector. Inspect the switch block: verify continuity exists between Red and Black ONLY when the switch is set to ON. If switch logic is correct, inspect the black wire branch where it routes through the steering neck for pinched or bare insulation making contact with the steel chassis frame.
3. Melted Harness Insulation Near Engine Case
Symptom: Green ground wires melt or smoke when activating the electric starter button.
Cause: The primary 10 AWG engine-to-battery ground wire is loose, corroded, or missing. The heavy starter motor current (60+ Amps) seeks an alternate path to ground, flowing through the thin 18 AWG chassis ground lines.
Fix: Immediately cease cranking. Install a heavy-gauge 10 AWG copper ground strap directly from the battery negative terminal to the starter mounting bolt on the crankcase. Replace damaged small-gauge ground harness segments.
4. Dead Battery Despite Normal Engine Running (Failed Rectifier/Regulator)
Symptom: Battery drains completely after several miles of operation; headlights flicker or burn out rapidly.
Cause: Diodes within the 4-pin voltage regulator have shorted or opened, preventing conversion of AC charging voltage to DC power.
Fix: Start the engine and measure DC voltage across the battery posts. If voltage remains at or below resting battery voltage (12.4V DC) when revving the engine, test the white wire AC voltage coming from the stator. If stator AC voltage exceeds 30V AC, replace the 4-pin voltage regulator. Ensure the regulator body is coated with thermal grease and bolted flush to the aluminum frame tab for heat dissipation.
For additional structural diagnostic procedures related to smaller-displacement variants, consult our GY6 50cc electrical troubleshooting guide, which covers shared single-phase rectifier architectures and control logic.
150cc Scooter GY6 150cc Wiring Diagram Technical FAQ
How can I differentiate an AC-fired CDI from a DC-fired CDI on a GY6 150cc engine?
Physically, DC-fired CDI boxes are generally larger (approx. 80mm x 55mm) compared to AC-fired modules (approx. 60mm x 35mm). Electrically, turn the key switch ON with the engine stopped. Measure DC voltage at the power input pin (Black/Red or Black wire terminal) of the CDI harness plug. If you read 12V DC with the key ON and engine off, the system is DC-fired. If 0V DC is present, but 50V–100V AC appears while cranking the starter, the system is AC-fired.
What is the correct way to bypass a damaged ignition key switch in an emergency diagnostic scenario?
To hotwire or bypass the main ignition key switch terminal block on an AC-CDI system, jump the solid Red wire (12V hot wire) directly to the solid Black wire (switched accessory line) to provide power to the brake switches and indicators. Unplug or sever the Black/White wire; on AC systems, the Black/White line must be disconnected (open circuit) from ground to allow the CDI to
Why do my headlights only function when the engine is actively running?
Standard GY6 150cc scooters run headlights directly off the yellow AC output circuit of the stator, bypassing the battery entirely. This prevents lighting loads from draining the small 7Ah lead-acid battery. Because the AC lighting circuit depends directly on flywheel rotation, headlights will illuminate only when the engine spins and the stator produces active AC voltage.
Can I convert an 8-pole GY6 stator harness to an 11-pole stator setup using the existing diagram?
Yes, but you must replace the standard 4-pin regulator/rectifier with a 5-pin or 6-pin full-wave regulator designed for 11-pole three-phase or high-output single-phase stators. The wire color codes generally remain identical: yellow and white lines carry AC input to the new regulator, while the red hot wire and green ground wire route output to the battery terminal block and frame ground points respectively.
What causes a GY6 starter solenoid to click repeatedly without turning the starter motor?
A rapid clicking solenoid indicates that control circuit voltage drops below 10V DC when the relay load engages. Primary causes include a discharged or sulfated battery, high resistance across corroded battery terminal blocks, or a degraded green/yellow brake safety line that fails to deliver full current to the relay trigger coil. Measure voltage directly at the solenoid control terminals while pressing the start switch to isolate the fault.
Step-by-Step Guide to Understanding the 150Cc Scooter Gy6 150Cc Wiring Diagram
Identify – Map out all components including stator, voltage regulator, 6-pin CDI, starter solenoid, and ignition switch on your bench or frame.
Locate – Find the primary ground wire grounding point on the engine crankcase and main chassis frame to establish clean negative continuity.
Reference – Consult the wire color code chart to match stator leads (yellow, white, blue/yellow) to the regulator and ignition pickup.
Connect/Route – Route the main harness along frame tubes, securing harness plugs into the CDI pin assignment ports without tension.
Verify – Probe switched hot wire connections with a multimeter in Key-ON position to ensure 12V DC reaches accessories and starter relay.
Troubleshoot – Test for bright blue spark at plug gap; if absent, trace kill switch wire continuity to ground to ensure circuit isn’t grounded.
