8-Pin RJ45 Ethernet Wall Jack Wiring Diagram: 2026 Pinout Guide
Ethernet wall jacks use standard 8-pin RJ45 keystone modules following T568A or T568B standards. T568B is standard for residential installs: Pin 1 (White/Orange), Pin 2 (Orange), Pin 3 (White/Green), Pin 4 (Blue), Pin 5 (White/Blue), Pin 6 (Green), Pin 7 (White/Brown), and Pin 8 (Brown). Ensure matching standards on both cable ends.
📌 Key Takeaways
- T568B is the standard pin assignment for modern residential Cat5e, Cat6, and Cat6A Ethernet wall jacks.
- An 8-pin RJ45 keystone jack requires four twisted pairs (8 individual solid copper wires).
- Unshielded Twisted Pair (UTP) does not require a ground wire, but Shielded (STP) keystone jacks require grounding connection.
- Split pairs are the most common cause of speed drop-offs, limiting Gigabit connections to 100 Mbps.
- Always test finished terminations with an RJ45 continuity cable tester before snapping the wall plate into place.
Terminating structured twisted-pair copper cabling into an RJ45 keystone module requires absolute precision to maintain signal integrity and ensure full gigabit or 10-gigabit throughput. Referencing an accurate ethernet wall jack wiring diagram ensures that signal conductors align correctly with internal insulation displacement contact (IDC) terminals. Whether retrofitting commercial facilities, building industrial control panels, or setting up automotive diagnostic bays, following exact pin assignments prevents near-end crosstalk (NEXT), split pairs, and severe packet loss. This technical guide outlines color codes, wire gauge standards, power line voltages, and step-by-step punch-down procedures for professional networking installations.

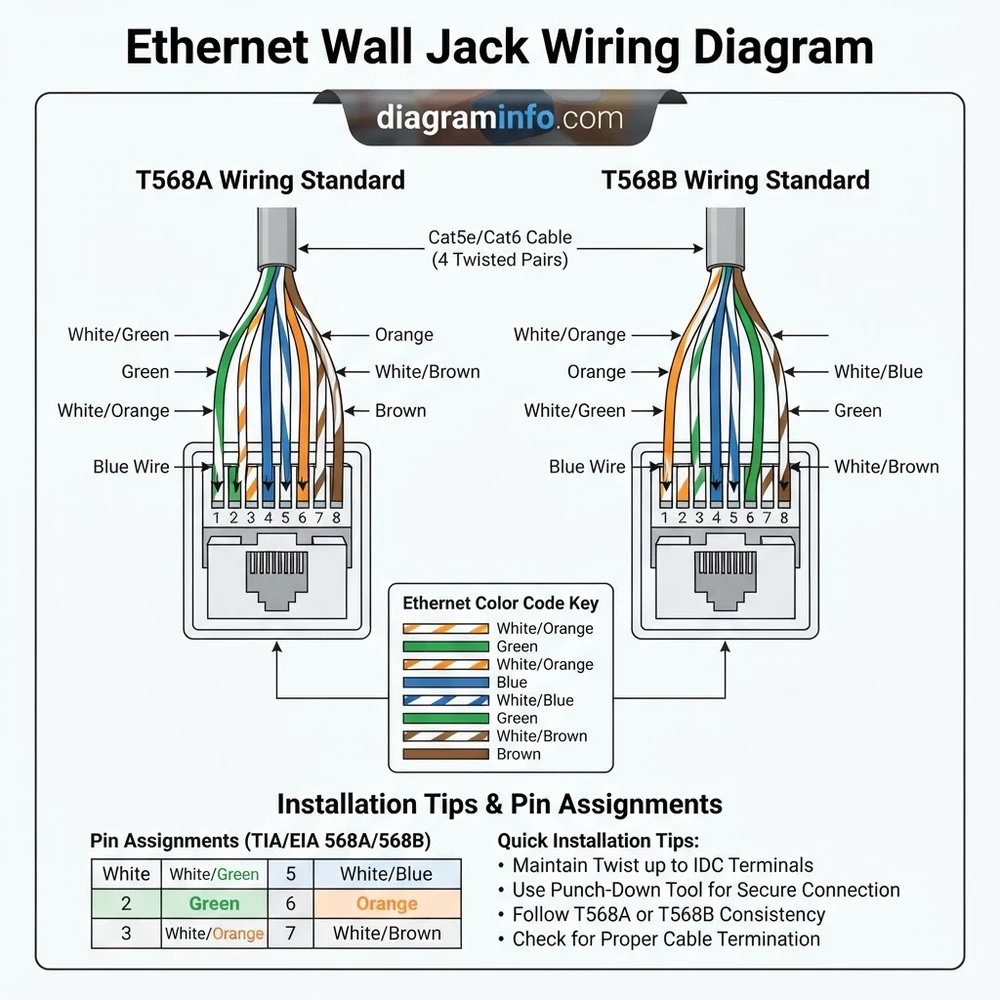

Ethernet Wall Jack Wiring Diagram: Pin Assignment Standards Explained
Every standard RJ45 keystone jack features an eight-position, eight-contact (8P8C) interface mapped directly to an internal 110-type insulation displacement contact (IDC) terminal block. The Telecommunications Industry Association (TIA) defines two distinct wiring standards under ANSI/TIA-568.2-D: T568A and T568B. Both standards organize four twisted copper pairs to carry differential low-voltage data signals, but they differ in the physical position of the green and orange wire pairs.
Recommended Best Deal Products
![Verbex (10-Pack) Cat6 Keystone Jack - [UL Listed] - Ethernet Wall Jack…](https://m.media-amazon.com/images/I/31mSCVKKdLL._SS500_.jpg)
Understanding pin assignment choices is critical when interpreting an ethernet wall jack wiring diagram:
- T568B Wiring Standard: This is the dominant standard used in modern commercial and residential installations throughout North America. In T568B, Pin 1 is White/Orange, Pin 2 is Solid Orange, Pin 3 is White/Green, and Pin 6 is Solid Green. Pins 4, 5, 7, and 8 remain identical across both standards (Blue, White/Blue, White/Brown, and Solid Brown).
- T568A Wiring Standard: Primarily specified in legacy installations, government buildings, and federal infrastructure contracts. T568A transposes the orange and green pairs, making Pin 1 White/Green, Pin 2 Solid Green, Pin 3 White/Orange, and Pin 6 Solid Orange.
For standard straight-through network runs, both ends of the horizontal cable must use the exact same wiring standard. Pin assignments must match between the patch panel IDC block and the female wall jack terminal block. Mixing T568A on one end and T568B on the other creates an unwanted crossover connection, which modern auto-MDIX network switches can sometimes correct, but legacy physical-layer equipment and high-speed differential receivers cannot process efficiently. For detailed guidance on central rack terminations, refer to our comprehensive technical manual on patch panel punch-down configurations.
Ethernet Wall Jack Wiring Diagram Color Code Table
The following reference table maps each of the eight individual insulated conductors to its designated pin assignment, transmission pair, and functional color code. Modern keystone modules feature color-coded stickers affixed to the side of the terminal block, displaying parallel sequences for both T568A and T568B layouts.
| Wire Color | T568B Pin Assignment | T568A Pin Assignment | Pair Designation & Function |
|---|---|---|---|
| White / Orange Striped | Pin 1 | Pin 3 | Pair 2 – Transmit Positive (TX+) / Data Pair |
| Solid Orange | Pin 2 | Pin 6 | Pair 2 – Transmit Negative (TX-) / Data Pair |
| White / Green Striped | Pin 3 | Pin 1 | Pair 3 – Receive Positive (RX+) / Data Pair |
| Solid Blue | Pin 4 | Pin 4 | Pair 1 – Bidirectional Data / PoE DC Positive |
| White / Blue Striped | Pin 5 | Pin 5 | Pair 1 – Bidirectional Data / PoE DC Return |
| Solid Green | Pin 6 | Pin 2 | Pair 3 – Receive Negative (RX-) / Data Pair |
| White / Brown Striped | Pin 7 | Pin 7 | Pair 4 – Bidirectional Data / PoE DC Return |
| Solid Brown | Pin 8 | Pin 8 | Pair 4 – Bidirectional Data / PoE DC Positive |
When mapping an ethernet wall jack wiring diagram, observe that Pins 1, 2, 3, and 6 carry primary legacy data traffic (100BASE-TX). However, in 1000BASE-T (Gigabit Ethernet) and 10GBASE-T applications, all four pairs function bidirectionally to transmit high-speed data simultaneously utilizing PAM-5 or PAM-16 pulse amplitude modulation schemes.
Terminal Block Cable Gauge and Conductor Specifications
The mechanical connection inside a wall jack relies on IDC V-blades that slice through individual conductor insulation to establish gas-tight electrical contact. Choosing the proper conductor wire gauge and cable category is paramount to ensuring structural durability and electrical continuity across the terminal block.
Category 5e, Category 6, and Category 6A cables utilize solid copper conductors ranging from 22 AWG to 24 AWG (American Wire Gauge):
- Category 5e Cable: Standard thickness utilizes 24 AWG solid copper conductors with a nominal outer diameter of 0.20 inches (5.1 mm). It provides bandwidth frequencies up to 100 MHz.
- Category 6 Cable: Employs thicker 23 AWG solid copper wire to mitigate signal attenuation over long runs, supported by a central longitudinal spline (cross-web separator) that isolates copper pairs. Rated up to 250 MHz.
- Category 6A Cable: Utilizes 23 AWG or heavy-duty 22 AWG solid copper conductors designed for 10 Gigabit transmission up to 500 MHz. Cable outer jackets are significantly thicker (up to 0.35 inches / 9.0 mm) to combat Alien Crosstalk (AXT).
Always specify solid copper conductors (23–24 AWG) for permanent wall jack installations. Never punch down stranded patch cable (26 AWG) into a 110-type IDC terminal block. Stranded conductors deform under punch-down blade pressure, causing intermittent contact, high resistance points, and eventual open circuits.
Shielded twisted-pair (STP or F/UTP) cabling adds an overall foil wrap and an uninsulated tinned copper drain wire. This drain wire acts as a continuous chassis ground wire throughout the horizontal run. When installing shielded ethernet wall jacks, the metallic jacket shell must clamp directly onto this drain wire to dump induced electromagnetic interference (EMI) safely to ground.
How to Punch Down an Ethernet Wall Jack Wiring Diagram Step by Step
Follow this exact procedural sequence to terminate a Category 6 or 6A unshielded twisted pair cable into an standard 110-style keystone wall jack module using a spring-loaded impact punch-down tool.
Required Tools: Precision wire strippers, impact punch-down tool with 110 blade, flush cutters, keystone jack strain relief cap, cable jacket stripper.
Step 1: Outer Jacket Preparation and Stripping
Measure approximately 1.5 inches (38 mm) from the cable end. Place the cable inside a dedicated twisted-pair jacket stripper. Score the outer PVC or LSZH jacket lightly without nicking the inner conductor insulation. Bend the cable slightly to pop the score line, then slide the outer jacket off to expose the four twisted pairs and central plastic spline.
Step 2: Spline Removal and Pair Separation
If installing Cat6 or Cat6a cabling, pull the four twisted pairs back away from the central cross-web spline. Use flush cutters to trim the plastic spline as close to the jacket base as possible without cutting the wire insulation. Do not untwist the pairs at this stage.
Step 3: Positioning Conductors in the Terminal Block
Locate the color-coded T568B (or T568A) label on the sides of the keystone jack housing. Insert the main cable jacket into the rear entry slot of the keystone. Route each twisted pair into its corresponding wire guide slot on the IDC terminal block. Critical Rule: Maintain pair twist as close to the terminal blade as possible. Do not untwist pairs more than 0.5 inches (13 mm) prior to termination; excessive untwisting degrades Near-End Crosstalk performance.
High-speed differential signaling protocols rely on wire pair twist geometry to cancel out internal cross-talk noise—a physical principle similar to balance requirements found in advanced automotive Ethernet physical layer networks.
Step 4: Punch-Down Termination Process
Position the individual conductor wire firmly down into the V-shaped terminal channel. Hold the impact tool perpendicular (90-degree angle) to the keystone block. Ensure the impact tool’s cutting blade is facing outward toward the outer edge of the wall jack (away from the center of the module). Push down firmly until the internal spring mechanism trips with an audible click, driving the conductor into the IDC contacts while simultaneously trimming the excess wire length cleanly.
Step 5: Cap Securing and Wall Plate Installation
Inspect all eight IDC slots under magnification or bright light to verify that conductors are fully seated beneath the contact blades. Place the plastic protective strain-relief dust cap over the terminal block assembly and press down firmly until the retention latches snap into place. Snap the completed keystone jack into the wall plate bezel from the rear until the mounting clip locks securely.
Power over Ethernet Voltage, Ground Wire, and Hot Wire Dynamics
Modern structured cabling systems deliver both high-speed data communications and high-wattage Direct Current (DC) power over the exact same 8-conductor horizontal cable using Power over Ethernet (PoE) technology under IEEE 802.3 specifications.
Understanding electrical line conditions across an ethernet wall jack wiring diagram requires examining standard voltage parameters:
- IEEE 802.3af (PoE / Type 1): Supplies up to 15.4W at the Power Sourcing Equipment (PSE) port with an operating DC voltage range of 44.0V DC to 57.0V DC (50V DC nominal).
- IEEE 802.3at (PoE+ / Type 2): Delivers up to 30.0W per port with a voltage range of 50.0V DC to 57.0V DC.
- IEEE 802.3bt (4PPoE / Type 3 & Type 4): Delivers 60W to 90W of continuous power utilizing all four conductor pairs simultaneously, operating between 50.0V DC and 57.0V DC.
Never unplug an active high-power PoE (IEEE 802.3bt Type 4) patch cable from a wall jack under full electrical load. Electrical arcing can occur between the male RJ45 plug contact pin and the jack spring wire, causing permanent gold-plating erosion and contact pitting over time.
In low-voltage Ethernet architecture, there is no conventional AC 120V “hot wire” or “neutral wire.” Instead, PoE injects power as a common-mode DC voltage split across differential signal pairs (Alternative A mode uses Pins 1-2 and 3-6; Alternative B uses Pins 4-5 and 7-8). The positive voltage rail acts as the hot conductor leg, while the opposing pair functions as the low-potential DC return line.
In shielded network deployments, static electricity and electromagnetic interference are safely routed away from delicate network hardware by bonding the metallic keystone shielding shroud directly to a continuous drain wire/ground wire connected to an earth ground potential at the building grounding busbar.
Common Ethernet Wall Jack Wiring Diagram Errors and Diagnostics
Improper termination techniques account for over 80 percent of initial network physical-layer link failures. When troubleshooting a newly punched-down wall jack, reference this field diagnostic guide to correct common assembly errors:
1. Excessive Pair Untwisting (Crosstalk Failure)
Symptom: Wiremap passes continuity testing, but cable certification fails Category 6 NEXT (Near-End Crosstalk) or Return Loss limits.
Cause: The installer untwisted wire pairs more than 0.5 inches (13 mm) away from the IDC terminal block.
Fix: Re-terminate the cable end. Trim back the outer jacket, strip a fresh section, and retain strict pair twisting right up to the IDC blade entry point.
2. Reversed Pair or Transposed Conductors (Wiremap Error)
Symptom: Continuous red light on wiremap tester for Pins 1 and 2 or Pins 3 and 6.
Cause: Transposing individual striped and solid wires during punch down (e.g., placing Solid Orange on Pin 1 and White/Orange on Pin 2).
Fix: Use an extraction tool or small hook to carefully lift the miswired pair from the IDC slot and re-punch the wires into the correct T568B color slots.
3. Incomplete Conductor Seating (Open Circuit)
Symptom: Intermittent network connection or total link failure on a specific pin.
Cause: Insufficient impact force applied to the punch-down tool, leaving the solid copper conductor resting on top of the IDC slot without fully piercing the insulation.
Fix: Adjust the impact tool force dial from “Low” to “High” and re-punch the incomplete terminal block pin directly.
4. Shield Drain Wire Short Circuit
Symptom: PoE switch detects an isolation fault or ground loop overload.
Cause: An untrimmed metal foil layer or bare drain wire grounded against an active IDC data pin inside a shielded jack enclosure.
Fix: Snip all exposed shielding foil flush against the cable outer jacket and insulate the drain wire using shrink tubing before securing the shield clamp.
For additional testing and validation steps, review our technical field guide on structured cabling cable analyzer certification.
Ethernet Wall Jack Wiring Diagram Technical FAQ
What is the primary difference between T568A and T568B wiring configurations?
The only physical difference between T568A and T568B is the swap of the green and orange wire pairs across Pins 1, 2, 3, and 6. T568B is standard across modern commercial networks, while T568A is utilized in legacy residential installations and US government structures. Both standards offer identical physical performance up to 10 Gbps.
Can I mix Category 5e and Category 6 keystone jacks on the same network cable run?
While a Cat6 cable punched down into a Cat5e wall jack will transmit data successfully, the overall physical channel performance drops down to the lowest rated component rating (Category 5e standard). To maintain full Category 6 gigabit performance and bandwidth specifications, match Category 6 cable with Category 6 keystone jacks throughout.
Does Power over Ethernet (PoE) require special wall jack modules?
Standard high-quality keystone jacks handle standard PoE (IEEE 802.3af/at up to 30W). However, high-power PoE (IEEE 802.3bt Type 4 up to 90W) benefits significantly from jacks specifically rated for “PoE+ / PoE++” execution. High-grade modules feature specially angled contact springs that prevent erosion on the primary electrical mating surface during connection under load.
Why does my wiremap tester indicate a “Split Pair” error even though all colors match on both ends?
A split pair error occurs when one conductor from one twisted pair is swapped with a conductor from another pair on both ends of the cable (e.g., swapping White/Orange with White/Green on both ends). While physical continuity exists, the differential signal geometry is destroyed, leading to extreme electromagnetic noise and signal degradation.
What wire gauge is ideal for long runs powering PoE devices through a wall jack?
Always choose 23 AWG solid bare copper Cat6 or Cat6A cabling for high-wattage PoE applications. Smaller 24 AWG or 26 AWG conductors generate higher electrical resistance, resulting in elevated heat buildup inside cable bundles and voltage drops across runs exceeding 50 meters.
Step-by-Step Guide to Understanding the Ethernet Wall Jack Wiring Diagram
Identify – Strip back approximately 1.5 inches of the outer cable jacket using a cable stripper without nicking interior wire pair insulation.
Locate – Untwist wire pairs slightly, keeping unravelling under 0.5 inches to maintain original twist rates and minimize crosstalk.
Reference – Consult the wire color code diagram printed on the side of the keystone wall jack block for T568B pin assignments.
Connect/Route – Slot each colored wire into its corresponding IDC terminal slot according to the correct pin assignment guide.
Verify – Firmly seat wires using a 110 punch-down tool with the cutting blade facing outward to trim excess wire flush.
Troubleshoot – Plug an RJ45 network cable tester into the finished wall outlet to confirm sequential continuity from pins 1 through 8.
