The throttle position sensor (TPS) mounts to the throttle body shaft. In a standard 3-pin potentiometer setup, Pin 1 receives a 5V reference signal from the ECU, Pin 2 outputs a variable 0.5V to 4.5V signal based on blade angle, and Pin 3 provides ground connection. Secure retaining bolts to 20 in-lbs torque spec.
📌 Key Takeaways
- The 3-pin TPS operates on a 5-volt ECU reference wire, producing 0.5V at idle and up to 4.5V at wide-open throttle (WOT).
- Crucial component identification includes the rotating potentiometer arm, wiper contact, 5V reference pin, signal wire, and ground.
- Mounting hardware requires a precise torque spec of 18 to 22 in-lbs (2.0–2.5 Nm) to prevent cracking the plastic housing.
- Common failure points include internal resistance dead spots, resulting in sudden hesitation, surging, or diagnostic code P0120/P0121.
- DIY replacement is straightforward using a digital multimeter, but severe signal dropouts require full TPS assembly replacement.
Locating and diagnosing the throttle position sensor (TPS) requires precise mapping of the engine bay’s air intake architecture. Positioned directly on the throttle body assembly, the TPS translates physical throttle plate rotation into a proportional analog voltage signal sent to the Engine Control Unit (ECU). Whether troubleshooting flat spots under acceleration, rough idling, or erratic transmission shift scheduling, referencing a detailed throttle position sensor diagram educational image enables technicians to rapidly identify pinouts, reference voltages, and nearby engine bay landmarks. Understanding these spatial relationships and electrical characteristics ensures accurate physical mounting and diagnostic isolation during system testing.
Locating the TPS via Throttle Position Sensor Diagram Educational Image Visual Landmarks
To accurately locate the throttle position sensor on an internal combustion engine, technicians must first identify the intake air assembly. Trace the primary intake duct from the air filter housing downstream to the cast aluminum throttle body housing. The TPS is mounted directly to the throttle shaft stub end, opposite the mechanical cable wheel or electronic throttle control motor.
Spatial orientation varies depending on engine block orientation and cylinder head configuration:
- Transverse Engine Layouts (Front-Wheel Drive): The sensor is typically located on the side of the throttle body facing the firewall or rear engine bay compartment. It is situated along the main intake manifold plenum runner line, directly above the throttle body coolant flow inlet and outlet ports, and superior to the engine oil pressure switch housing.
- Longitudinal Engine Layouts (Rear-Wheel Drive / All-Wheel Drive): The TPS sits toward the upper middle section of the engine bay. It is positioned behind the front timing chain cover assembly, mounted laterally on the driver or passenger side of the intake plenum, depending on intake manifold orientation.
On dual-overhead-cam (DOHC) configurations, do not confuse the TPS with the Camshaft Position Sensor (CMP). The CMP is located directly on the valve cover or timing chain cover, whereas the TPS is strictly affixed to the intake throttle shaft axis.

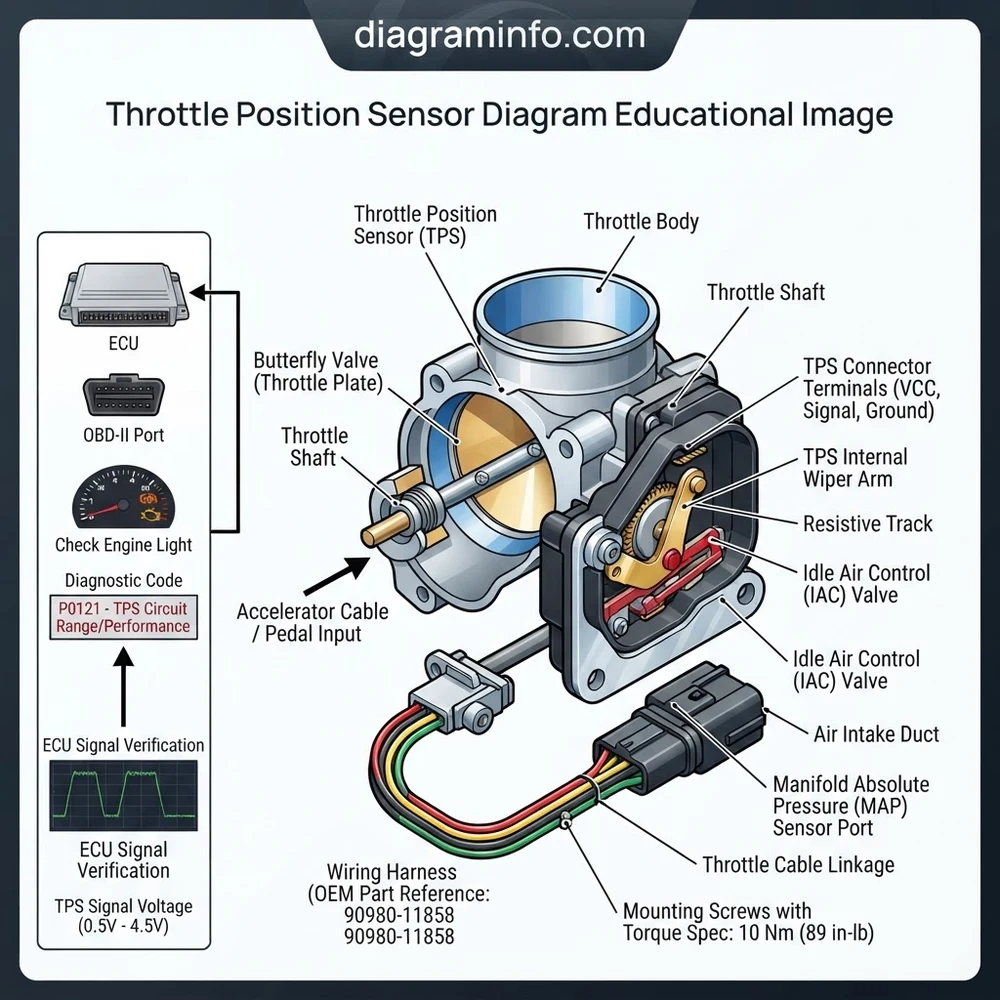

As illustrated in any standardized throttle position sensor diagram educational image, the sensor housing is a black composite plastic module held in place by two Torx (typically T20 or T25) or Phillips head fasteners. It features a weather-sealed 3-pin or 4-pin electrical connector. Pin A supplies the regulated +5.0V DC reference signal originating from the ECU; Pin B serves as the low-noise analog ground path; Pin C returns the sweeping 0.5V–4.5V output signal to the controller. Four-wire configurations integrate a dedicated Idle Validation Switch (IVS) circuit to confirm closed-throttle engine state.
Check Engine Light and OBD-II Diagnostic Code Triggers in the ECU System
When the internal wiper arm of the potentiometer suffers from wear, thermal fatigue, or carbon degradation, signal output strays outside preset factory logic tables. The engine management software detects this anomaly, illuminate the Check Engine Light on the instrument cluster, and store a diagnostic code within flash memory.
Common OBD-II diagnostic fault codes associated with TPS failure include:
- P0120: Throttle/Pedal Position Sensor/Switch A Circuit Malfunction
- P0121: Throttle/Pedal Position Sensor/Switch A Circuit Range/Performance Problem
- P0122: Throttle/Pedal Position Sensor/Switch A Circuit Low Input (Signal shorted to ground or open wire)
- P0123: Throttle/Pedal Position Sensor/Switch A Circuit High Input (Signal shorted to +5V or open ground)
- P0220: Throttle/Pedal Position Sensor/Switch B Circuit Malfunction (Dual-channel sensor systems)
Operating a vehicle with an erratic TPS signal can cause sudden engine surging, transmission shift delays, or trigger a forced ‘Limp Mode’ strategy by the ECU. Address TPS fault codes immediately to prevent drivetrain shock or hazardous loss of acceleration power.
Because the ECU relies on TPS input to compute fuel injection duration, ignition timing advance, and transmission line pressure, an uncalibrated or failing sensor impacts overall engine efficiency. Erratic voltage drops create dead zones that mimic fuel starvation or low engine oil pressure symptoms under heavy acceleration loads.
| Pin Terminal | Circuit Function | Typical Wire Color | Operating Voltage / Value |
|---|---|---|---|
| Pin 1 (A) | 5V Reference Supply | Grey / Orange | +4.95V to +5.05V DC |
| Pin 2 (B) | Sensor Signal Return | Dark Blue / White | 0.45V (Idle) to 4.5V (WOT) |
| Pin 3 (C) | Sensor Signal Ground | Black / Light Blue | < 0.1V (< 2.0 Ohms to GND) |
| Fastener Spec | Mounting Screws (2x) | M4 x 0.7 Thread | 18–25 in-lbs (2.0–2.8 Nm) |
Diagnostic Testing Protocol Using a Throttle Position Sensor Diagram Educational Image
Diagnosing a faulty TPS requires systematic electrical verification using a Digital Multimeter (DMM), breakout leads, and an OBD-II live-data scan tool. Refer to your vehicle-specific throttle position sensor diagram educational image to verify pin layout prior to back-probing connections.
Step 1: Visual Landmark Identification and Mechanical Inspection
Locate the throttle body behind the air intake tube. Inspect the mechanical throttle linkage, return spring, and throttle plate pivot shaft. Ensure no physical obstruction, carbon buildup, or binding stops the throttle plate from returning to its true idle mechanical stop. Verify that nearby throttle body coolant flow lines are dry and free of leaks that could contaminate the electrical connector.
Step 2: Reference Voltage and Ground Verification
Disconnect the harness plug from the TPS module. Turn the ignition key to the ON position (Engine OFF). Set your DMM to DC Volts scale (20V range). Probe Pin A (+5V VREF) relative to engine chassis ground. The meter must display a steady 5.0V DC. Next, check resistance on Pin B (Ground) relative to the negative battery terminal; resistance must measure less than 2.0 Ohms. If VREF is absent or voltage drops below 4.7V, inspect harness routing near the upper timing chain housing for pinched wires or corrosion.
Step 3: Signal Voltage Sweep and Graphing Isolation
Reconnect the sensor harness plug. Back-probe Pin C (Signal output) with the positive DMM probe lead and secure the negative probe lead to battery ground. Switch ignition ON (Engine OFF). At closed throttle (0% throttle opening), voltage should read between 0.45V and 0.75V. Manually actuate the throttle shaft smoothly to Wide Open Throttle (WOT). Voltage must scale linearly without dropping to zero or spiking to 5.0V, reaching between 4.2V and 4.7V at full open stop. An oscilloscope or graphing DMM provides the highest diagnostic accuracy, displaying instantaneous signal dropouts that standard digital meters miss.
When replacing the sensor, align the inner potentiometer drive blade with the throttle shaft flat surface. Tighten the two mounting screws evenly to a torque spec of 18–25 in-lbs (2.0–2.8 Nm). Do not over-tighten, as cracking the composite mounting ears will misalign internal wiper arms.
Throttle Position Sensor Diagram Educational Image Technical FAQs
How do I distinguish the TPS from the Idle Air Control (IAC) valve on the throttle body?
The TPS is aligned directly with the centerline axis of the rotating throttle shaft because it must physically turn alongside the throttle plate. In contrast, the Idle Air Control (IAC) valve is mounted to a bypass passage block on the side or bottom of the throttle body, featuring a larger cylindrical stepper motor design to control idle air volume around a closed throttle plate.
Why does the ECU store diagnostic code P0122 after replacing a TPS module?
Diagnostic code P0122 indicates a low signal voltage output detected by the ECU. This commonly occurs if the replacement TPS blade was improperly clocked relative to the throttle shaft during installation, if the harness plug seal is preventing full pin engagement, or if the initial throttle position calibration procedure was not executed via an OBD-II scan tool after hardware installation.
What torque spec should be applied to throttle position sensor mounting screws?
Standard OEM specification dictates tightening TPS composite mounting screws to 18–25 in-lbs (2.0–2.8 Nm). Applying excessive torque risks stripping the aluminum threads on the throttle body housing or fracturing the plastic mounting tabs on the sensor body, leading to vibration-induced signal noise during engine operation.
How do throttle body coolant flow lines affect TPS sensor performance and longevity?
Throttle body coolant flow passages route warm engine coolant through the aluminum housing to prevent throttle plate icing in cold weather climates. If internal seals fail or external hose clamps lose tension, coolant leaks directly onto the TPS electrical connector, shorting the 5V reference circuit and causing erratic voltage feedback to the ECU.
Can a failing TPS trigger false diagnostic code logs for oil pressure or timing systems?
Yes. Because modern ECU software uses TPS output, MAP readings, and RPM inputs to calculate total engine load, a floating or corrupted TPS signal distorts engine torque calculations. This can trigger false performance codes for variable valve timing actuation along the timing chain control circuit or flag engine load anomalies that overlap with low oil pressure protection strategies.
Step-by-Step Guide to Understanding the Throttle Position Sensor Diagram Educational Image
Identify – Locate the throttle position sensor mounted on the throttle body housing.
Locate – Find the 3-pin electrical connector using the pinout schematic on the diagram.
Reference – Match wire colors and terminal numbers on the educational diagram to your vehicle harness.
Connect/Route – Back-probe the signal wire with a multimeter set to DC voltage while ignition is on.
Verify – Sweep the throttle linkage smoothly, ensuring output scales from 0.5V up to 4.5V without voltage drops.
Troubleshoot – Clear OBD-II check engine light codes and torque retaining fasteners to 20 in-lbs.
