GM Wiper Motor Wiring Diagram: 2026 Pinout Guide
A standard GM wiper motor wiring diagram uses a 12V ignition hot wire (yellow), low-speed control (dark blue), high-speed control (cyan/light green), and park switch signal (gray). The wiper motor housing serves as the main ground wire. Verify 12V across the yellow wire pin assignment when ignition is ON for proper function.
📌 Key Takeaways
- Standard GM wiper motors operate on a 12V DC system protected by a 20A to 25A fuse.
- Yellow is always the fused 12V hot wire supplying power to both motor terminals and park switch.
- Ground wire contact occurs directly through the motor casing mounting bolts to the vehicle chassis.
- Park switch failure prevents blades from returning to bottom windshield rest position upon shutdown.
- Replace damaged pin assignment connectors DIY, but consult a pro for internal park switch mechanical wear.
Rewiring, troubleshooting, or retrofitting a General Motors windshield wiper assembly requires an exact understanding of motor terminal pinouts, internal parking logic, and power feed structures. GM utilized two core electrical configurations across classic muscle cars, C/K series trucks, and modern utility platforms: ground-switched dual-speed circuits and positive-switched pulse/intermittent systems.
Connecting these motors improperly can quickly short out the internal park switch contact wiper arm, burn out internal field coils, or result in continuous motor run-on. Using the precise gm wiper motor wiring diagram reference below ensures clean wire routing, accurate terminal identification, and proper integration with your vehicle’s dash switch and power distribution harness.

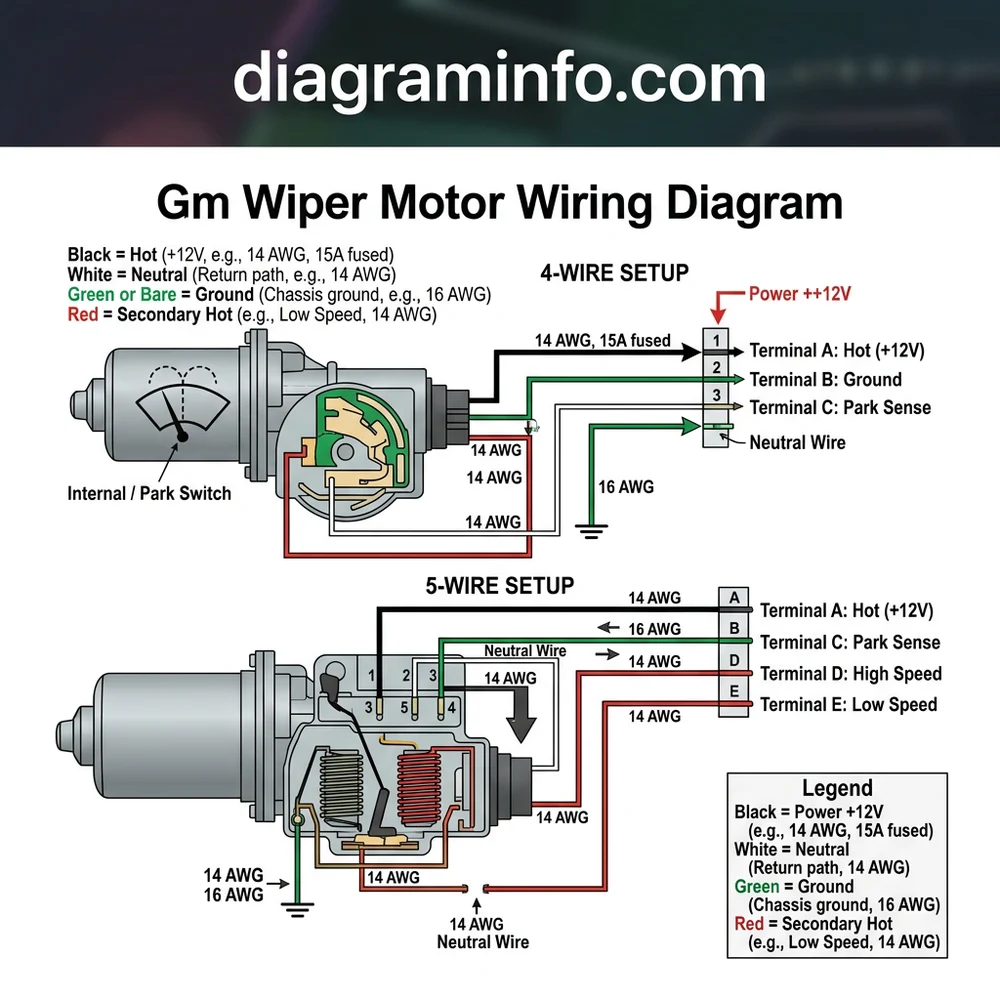

Decoding the GM Wiper Motor Wiring Diagram Color Codes and Pin Assignment
GM wiper motors utilize standard factory wire color coding across most classic and modern platforms, though terminal connector layouts vary between 3-pin, 4-pin, and 5-pin terminal block housings. Classic GM installations (such as late 1960s to mid-1980s A-body, F-body, and C/K truck applications) typically utilize a ground-switched 3-wire or 4-wire terminal block where constant ignition power feeds directly to the motor casing, and speed control occurs by completing ground paths through the dash switch.
Modern GM assemblies and aftermarket retrofit packages utilize positive-switched systems where the motor frame serves as a dedicated ground path while positive 12V feeds are routed through internal delay logic modules or high/low relays. To safely execute your wiring project, consult our automotive relay wiring guide to understand how external switches interact with inductive motor loads. Always inspect the molded connector housing markings (typically stamped with letters A through E or numbers 1 through 5) before finalizing crimps.
| Wire Color Code | Pin Assignment / Terminal | Circuit Function | Voltage & Wire Gauge Spec |
|---|---|---|---|
| Yellow | Terminal A / Pin 1 | Switched Hot Wire (+12V Ignition) | 12V DC nominal, 16 AWG TXL |
| Dark Green | Terminal B / Pin 2 | High-Speed Motor Field Coil Feed | 12V DC (Ground Switched), 16 AWG |
| Purple / Light Blue | Terminal C / Pin 3 | Low-Speed Motor Field Coil Feed | 12V DC (Ground Switched), 16 AWG |
| Gray | Terminal D / Pin 4 | Pulse / Delay Control Signal | 0-12V Variable Resistance, 18 AWG |
| Black | Terminal E / Motor Case | Ground Wire (Chassis / Frame Ground) | 0V Reference (<0.2 ohms), 14 AWG |
| White / Pink Stripe | Auxiliary Terminal / Park Pin | Park Switch Neutral Wire Return Feed | 12V Constant during sweep, 18 AWG |
Understanding Internal Park Switch Logic and Terminal Voltage
The operational key to any GM windshield wiper motor lies in its internal park switch and dynamic braking mechanism. Understanding how the internal cam mechanism opens and closes determines whether your wiper blades return smoothly to the cowl or stop dead in the middle of the windshield when turned off at the dash switch.
When the dashboard switch is in the LOW or HIGH position, voltage flows directly through the corresponding field windings inside the motor housing. However, when you flip the dash switch to OFF, power is not immediately severed to the wiper assembly. Instead, the circuit shifts motor power control over to the internal park switch contacts via a constant neutral wire return feed.
Inside the gear housing, a copper park switch contact rides along an eccentric plastic cam gear. As long as the wiper arm is in mid-sweep, the cam holds the park contact closed, delivering positive voltage to the low-speed winding even though the dash switch is turned off. Once the motor drives the linkage to the bottom park position, the notch in the cam gear drops the contact arm open, interrupting voltage and grounding the field winding through a dynamic braking resistor. This rapid electrical short across the motor armature instantly stops rotation, preventing momentum from coasting the blades back up onto the glass.
• Operating Supply Voltage: 11.5V DC to 14.4V DC (Standard 12V Nominal)
• Low-Speed Amperage Draw: 3.5A – 5.0A (No Load) / 8.0A – 10.5A (Wet Glass Load)
• High-Speed Amperage Draw: 5.0A – 7.0A (No Load) / 11.0A – 14.0A (Wet Glass Load)
• Max Park Switch Resistance: Less than 0.5 Ohms across park contacts
• Maximum Ground Circuit Voltage Drop: 0.1V DC across terminal block to battery negative
When conducting diagnostic checks across your harness terminals, ensure that key-on battery voltage measures between 12.0V and 14.2V across the main hot wire feed. If voltage drops below 11.0V, current draw increases dramatically, causing the internal thermal breaker inside the motor casing to trip continuously under heavy rain conditions.
How to Wire a GM Windshield Wiper Assembly Step-by-Step
Completing a reliable installation requires strictly following terminal connection steps to avoid damaging sensitive electronic wiper control modules or burning internal motor brushes. Follow this structured installation process when connecting or replacing a classic GM wiper assembly.
Step 1: Isolate Electrical Power and Prepare Terminal Ends
Disconnect the negative battery cable before touching any harness wires. Inspect the primary wiring harness leading from the firewall bulkhead connector to the wiper motor terminal block. Ensure all conductors are clean, stripped to 1/4-inch insulation length, and fitted with high-quality weather-pack or tin-plated brass spade terminals. Refer to our fuse block distribution schematics if your vehicle exhibits blown fuses prior to starting wiring.
Step 2: Establish Primary Motor Housing Ground Wire Integrity
GM wiper assemblies rely heavily on a clean, low-resistance ground wire path. Mount a dedicated 14 AWG Black ground wire directly from the steel ground strap on the wiper motor housing rubber mounting grommet ring to an unpainted chassis metal surface or direct battery ground ring. Never rely solely on rubber-isolated firewall mounting screws for grounding path continuity.
Step 3: Connect Switched Power Feed (Hot Wire) to Terminal A
Attach the 16 AWG Yellow wire carrying ignition-switched +12V DC power from your fuse block to Terminal A on the terminal block. Ensure this circuit passes through a dedicated 20-amp inline or panel-mounted fuse. This wire supplies continuous voltage to both the operational motor windings and the internal park circuit during vehicle operation.
Step 4: Attach High-Speed and Low-Speed Field Coils
Route the 16 AWG Purple (or Light Blue) wire to Terminal C on the wiper motor terminal block for low-speed operation. Connect the 16 AWG Dark Green wire to Terminal B for high-speed operation. In ground-switched platforms, these wires route back to the dash switch terminals, which selectively complete the circuit path to ground when moved to LOW or HIGH positions.
Step 5: Connect Intermittent Module Signal and Neutral Return
If your GM application utilizes pulse/intermittent wipers, attach the 18 AWG Gray wire from the intermittent wiper module to Terminal D. Connect the White or Pink striped wire to the park switch neutral return connector. This allows the delay module to feed short electrical pulses to the park circuit, cycling the wipers once per selected time interval.
Step 6: Perform Electrical Bench Testing and Re-engage Battery
Before installing wiper arms onto the transmission splines, reconnect the negative battery cable. Turn the ignition key ON and switch the wipers through LOW, HIGH, and INTERMITTENT settings. Turn the switch OFF and verify that the drive crank rotates to its absolute lowest mechanical stop. Once the parking cycle terminates naturally, install the wiper arms onto the linkage splines in the correct resting position.
For custom harnesses or street rod conversions, always use cross-linked polyethylene (TXL or GXL) automotive wire. Standard PVC primary wire degrades quickly under engine bay heat. Use 14 AWG for primary ground wires, 16 AWG for main ignition hot wires and field leads, and 18 AWG for signal/delay switch connections.
Common GM Wiper Motor Wiring Diagram Faults and Voltage Drop Testing
Wiring errors and degraded aging connectors are responsible for over 80% of GM wiper system failures. Diagnosing issues requires systematic voltage drop testing with a digital multimeter across all terminal block contacts and ground paths.
Running a GM wiper motor with incorrect pin assignments or shorted field windings will cause rapid current draw exceeding 25 Amps. This risks melting internal armature solder points and destroying dash switch trace contacts within seconds. Always test circuits with a 20A circuit breaker inline.
1. Missing or High-Resistance Frame Ground Connection
Symptom: The wiper motor fails to respond entirely, or runs extraordinarily slow on both low and high switch settings, accompanied by motor casing heat build-up.
Cause: GM rubber mounting bushings isolate the motor frame from the firewall to reduce cabin noise. If the copper brass grounding strap bridging the rubber bushing breaks or corrodes, current cannot return to the chassis.
Fix: Clean the copper ground terminal tab with 400-grit sandpaper. Run a dedicated 14 AWG ground wire from the motor case ground screw directly to the engine block or main firewall ground bus bar.
2. Transposed Low-Speed and High-Speed Lead Wires
Symptom: Turning the dash switch to LOW causes high-speed wiper arm movement, while selecting HIGH results in slow wiper operation.
Cause: Dark Green (High Speed) and Purple/Light Blue (Low Speed) wires have been swapped at Terminal B and Terminal C on the wiper motor terminal block connector.
Fix: Depin the spade connector housing using a terminal release tool and swap positions B and C. Verify correct operation against your specific vehicle model’s wiring pinout.
3. Park Switch Contact Failure or Neutral Wire Disconnection
Symptom: Wiper blades stop instantly anywhere on the windshield the moment the dash switch is flipped OFF, failing to return to the bottom cowl position.
Cause: Broken White/Pink park return wire or severely oxidized/bent contacts inside the motor gear housing cover plate. If you are also experiencing charging system issues, see our guide on starter solenoid wiring diagrams to verify master vehicle power stability.
Fix: Test for key-on +12V DC on the park contact terminal block pin. If power is present, remove the gear housing cover and clean the park contact points with contact cleaner and fine emery cloth, adjusting contact finger tension carefully.
4. Terminal Block Voltage Drop and Corrosion
Symptom: Wiper motor clicks or stutters intermittently when activated under wet snow or heavy rain conditions.
Cause: Resistance across weathered plastic terminal block connectors causes voltage drop greater than 0.5V DC across the ignition feed path.
Fix: Set multimeter to DC Volts. Place positive probe on positive battery post and negative probe on Terminal A with wipers running on LOW. If multimeter reads higher than 0.5V, replace the pitted spade connector plug or harness pig-tail.
Frequently Asked Questions About GM Wiper Motor Wire Harnesses
How do I identify terminal pin assignments on an unmarked classic GM 5-pin wiper motor?
Orient the motor so the connector terminal block faces you with terminals pointed upward. From left to right, classic GM 5-pin terminal blocks follow a standardized layout: Terminal A is main +12V ignition power feed (Yellow), Terminal B is High Speed (Dark Green ground-switched wire), Terminal C is Low Speed (Purple/Light Blue ground-switched wire), Terminal D is Delay signal (Gray wire), and Terminal E is park mechanism ground (Black wire).
Why do my GM windshield wipers park at the top of the glass instead of the bottom cowl position?
Wipers parking at the top of the stroke indicates either that the mechanical wiper park arm linkage was bolted onto the motor drive shaft 180 degrees out of phase, or that internal dynamic braking contact timing is inverted. To fix this, remove the center nut holding the linkage arm to the wiper motor splines, run the motor through a full cycle until it stops in park naturally, and reattach the linkage arm pointing in the correct resting orientation toward the driver’s side stop bumper.
Can I test a classic GM wiper motor on a bench without the factory dash switch connected?
Yes, you can easily bench test classic GM ground-switched wiper motors using a 12V power supply or battery. Connect positive +12V DC to Terminal A (Yellow wire lead) and attach a solid ground wire to the bare metal housing of the motor casing. To test low speed, attach a jumper wire from motor casing ground to Terminal C (Low Speed). To test high speed, attach the jumper wire from casing ground to Terminal B (High Speed). The motor should run smoothly in both modes.
What fuse size should be installed on the main GM wiper motor ignition feed wire?
General Motors specifies a 20-amp fuse for standard dual-speed windshield wiper motor circuits. For heavy-duty truck platforms or applications utilizing integrated fluid washer pumps on the same circuit, use a 20-amp or 25-amp slow-blow fuse. Never install a fuse larger than 25 amps, as this will fail to protect the fine 18 AWG copper windings inside the motor housing during mechanical wiper blade freeze-ups.
How does an aftermarket modern toggle switch wire to a vintage GM ground-switched wiper motor?
To wire a modern 3-position toggle switch (OFF-LOW-HIGH) to a classic ground-switched GM wiper motor, connect the center common pin of the toggle switch directly to chassis ground. Connect the switch’s LOW output terminal to motor Terminal C (Purple wire), and the HIGH output terminal to motor Terminal B (Dark Green wire). Supply continuous ignition-switched +12V power directly to Terminal A (Yellow wire) on the motor housing terminal block.
