3 Prong 240v Plug Wiring Diagram: Easy Setup Guide
A 3 prong 240v plug wiring diagram illustrates connecting two hot wire leads to the brass-colored common terminal screws and the third ground wire or neutral wire to the remaining prong. This configuration provides dual-phase power for appliances like dryers, ensuring the device receives 240 volts of electricity safely and efficiently.
📌 Key Takeaways
- Visual guide for connecting high-voltage 240V appliance plugs
- Identify the two hot terminals versus the ground/neutral terminal
- Always disconnect the power supply at the breaker before wiring
- Ensure wire gauges match the circuit amperage requirements
- Essential for replacing old dryer or welder power cords
Whether you are setting up a high-powered workshop tool, a heavy-duty air conditioner, or a specialized piece of industrial equipment, understanding a 3 prong 240v plug wiring diagram is essential for a safe and functional electrical installation. Properly wiring a 240V outlet or plug is a common requirement for DIY enthusiasts who have graduated beyond standard 120V household circuits. This guide provides a detailed breakdown of the internal connections, identifying exactly where each wire goes to ensure your equipment receives the correct voltage without risking a short circuit or electrical fire. By following a clear 3 prong 240v plug wiring diagram, you will learn to distinguish between the various terminals, understand color-coding standards, and master the technical nuances of high-amperage connections.
Most modern 3-prong 240V configurations (NEMA 6 series) consist of two “hot” wires and one “ground” wire. Unlike standard 120V outlets, these configurations do not typically utilize a neutral wire, as the potential difference is created between the two 120V legs of the electrical system.
The main 3 prong 240v plug wiring diagram serves as a visual map for three distinct connection points within the plug housing. At the top or center, you will typically find the ground terminal, which is identifiable by its green-colored screw or its U-shaped or rounded pin. Below this, the two flanking pins represent the hot terminals. In a standard 240V single-phase system, each of these hot wires carries 120 volts relative to the ground, but because they are 180 degrees out of phase with each other, the total potential across them equals 240 volts.
When looking at the diagram, you will notice that the hot wire connections are usually made to a brass screw terminal. In many cases, these terminals are interchangeable because 240V AC current alternates; however, for consistency and future troubleshooting, professional electricians often follow a specific color pattern. The black wire is generally connected to one brass screw, while the red wire (or a white wire marked with black tape to indicate it is “hot”) is connected to the other. The ground wire, which is either bare copper or wrapped in green insulation, is exclusively reserved for the green terminal. This ground connection is vital for safety, as it provides a low-resistance path for electricity to travel back to the breaker panel in the event of a fault, preventing the metal casing of your appliance from becoming “live.”
It is important to note that variations exist depending on the specific NEMA (National Electrical Manufacturers Association) rating of your plug. For example, a NEMA 6-20P plug, often used for large window air conditioners, has one horizontal blade and one vertical blade to prevent it from being accidentally plugged into a standard 120V outlet. Conversely, older NEMA 10-30 or 10-50 plugs, which were once common for dryers and ranges, feature two hots and a neutral wire instead of a ground. While this article focuses on the modern, grounded NEMA 6 configuration, always verify the specific NEMA number stamped on the face of your plug or receptacle before beginning.

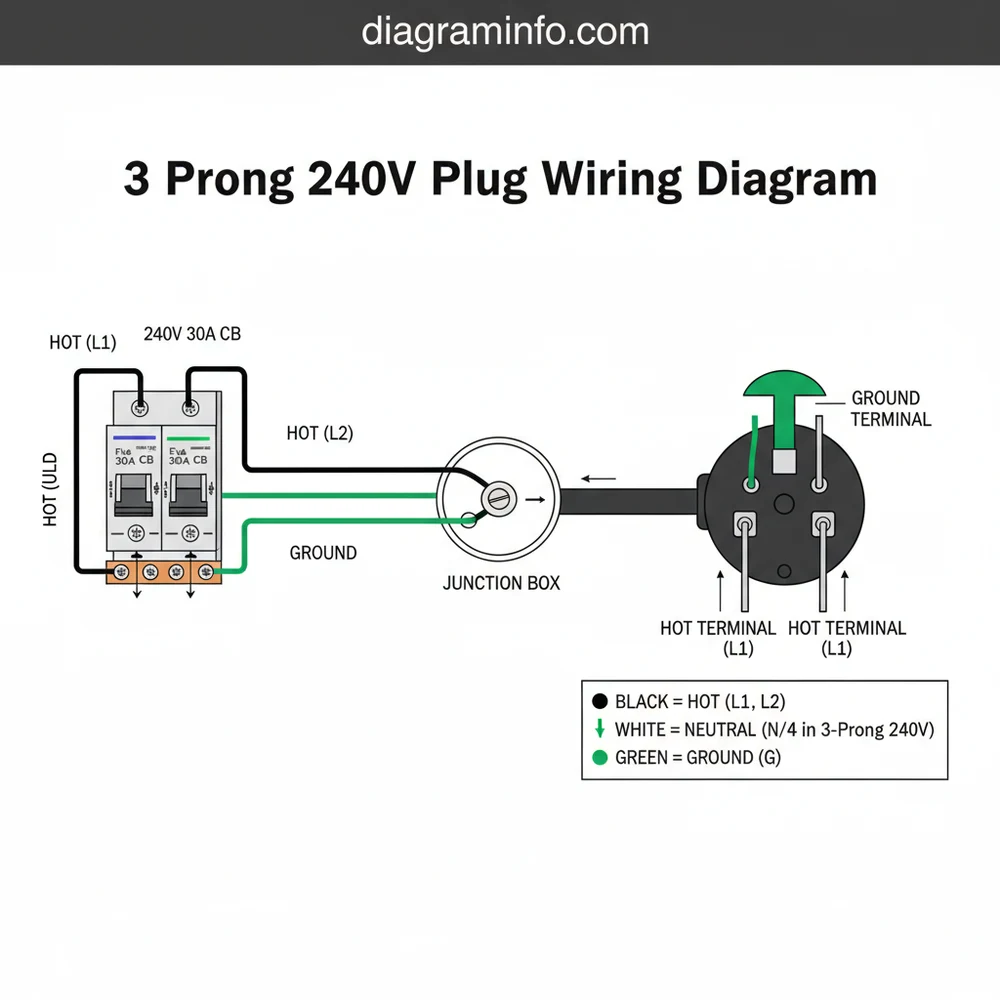

[DIAGRAM_PLACEHOLDER: 3 Prong 240V Plug Internal View]
Top Center: Green Terminal (Ground Wire – Green/Bare)
Left Terminal: Brass Screw (Hot Wire 1 – Black)
Right Terminal: Brass Screw (Hot Wire 2 – Red/White marked hot)
Interpreting and implementing a 3 prong 240v plug wiring diagram requires a methodical approach. To ensure the safety of your installation, you must first gather the necessary tools and prepare the cable. You will need a high-quality wire stripper, a screwdriver (usually a Phillips or a specialized Robertson drive), and a voltage tester. The thickness of the wire, known as the gauge, is critical. For a 20-amp circuit, you must use 12-gauge wire, while a 30-amp circuit requires 10-gauge wire. Using a gauge that is too thin for the current load can cause the wire to overheat and potentially start a fire.
- ✓ Step 1: Power down the circuit at the main breaker panel and verify zero voltage with a tester.
- ✓ Step 2: Disassemble the plug housing by loosening the exterior screws to reveal the internal terminals.
- ✓ Step 3: Strip approximately 3/4 inch of the outer jacket from the cable, then strip 1/2 inch of insulation from the individual wires.
- ✓ Step 4: Identify the ground wire and secure it firmly to the green-colored ground terminal.
- ✓ Step 5: Connect the first hot wire (black) to one of the brass screw terminals.
- ✓ Step 6: Connect the second hot wire (red or marked white) to the remaining brass screw terminal.
- ✓ Step 7: Tighten the cord clamp or strain relief to ensure the wires cannot be pulled out of the terminals.
- ✓ Step 8: Reassemble the plug housing and conduct a final visual inspection.
Never substitute a neutral wire for a ground wire in a modern 240V circuit. While they both eventually connect to the same bus bar in the main panel, the ground wire is an emergency safety path and should never carry current under normal operating conditions.
Even with a clear 3 prong 240v plug wiring diagram, certain issues frequently arise during the installation process. One of the most common problems is loose terminal connections. Because 240V appliances often draw significant current, even a slightly loose screw can create resistance, leading to arcing, heat buildup, and melting of the plug housing. If you notice a burnt smell or discoloration on the plug’s exterior, it is a clear sign of high resistance caused by a poor connection or an undersized wire gauge.
Another frequent issue is the confusion between the hot wire and the neutral wire. In some older homes, you might find a cable with only black, white, and bare wires. In a 240V application where no neutral is required, the white wire is used as the second hot leg. If the installer fails to mark this white wire with black or red electrical tape at both ends, a future technician might mistake it for a neutral wire, leading to dangerous wiring errors. If your equipment fails to start or your breaker immediately trips after installation, use a multimeter to check for continuity between the pins and to ensure that 240 volts are present across the two hot terminals. If you are unsure about the integrity of your home’s wiring or if you encounter aluminum wiring instead of copper, it is imperative to seek professional help from a licensed electrician.
When connecting stranded wire to screw terminals, twist the strands tightly and wrap them clockwise around the screw. This ensures that as you tighten the screw, the strands are drawn into the connection rather than being pushed out.
To achieve the best results with your 3 prong 240v plug wiring diagram, consider several best practices that enhance both longevity and safety. First, always select high-quality, UL-listed components. Industrial-grade plugs often feature better internal clamps and superior heat resistance compared to budget residential versions. When dealing with high-voltage equipment, the slight increase in cost for a premium plug is a worthwhile investment in the safety of your home.
Maintenance is another often-overlooked aspect of electrical safety. Every few months, especially for plugs that are frequently moved or used with vibrating machinery, give the plug a quick inspection. Look for signs of “pitting” on the blades or any softening of the plastic. If the plug feels excessively hot to the touch during operation, it may be time to disassemble it and retighten the terminals. Furthermore, when stripping your wires, be careful not to nick the copper conductors. A nicked wire creates a weak point that can break under stress or create a localized hot spot.
For those looking to save costs, the most effective method is to get the installation right the first time. Mistakes in 240V wiring can result in fried circuit boards on expensive appliances, which are far more costly to replace than the time spent double-checking your connections against the diagram. Always ensure that the common terminal (the ground) is the first wire you connect and the last one you would theoretically disconnect if the cable were pulled. This “first-make, last-break” principle is a cornerstone of electrical safety.
While the term “traveler wire” is commonly associated with 3-way lighting circuits, it is sometimes colloquially used to describe the hot legs in a 240V system because they “travel” from the two different phases of the panel. However, in technical terms, you are dealing with two hots and a ground. By maintaining clear distinctions between these components and strictly adhering to the 3 prong 240v plug wiring diagram, you can confidently power your high-voltage equipment.
Final considerations involve the environment where the plug will be used. if you are wiring a plug for an outdoor welder or a pump in a damp basement, ensure you are using a weather-resistant (WR) rated outlet and a plug designed to seal out moisture. Electricity and water are a lethal combination, and the higher voltage of a 240V circuit significantly increases the risk of a dangerous ground fault. By following the steps outlined in this guide and paying close attention to terminal identification and wire colors, you ensure that your high-voltage projects are both powerful and safe. Always remember that while DIY electrical work is rewarding, the 3 prong 240v plug wiring diagram is your primary tool for ensuring everything is connected exactly as the manufacturer intended. If you ever feel overwhelmed by the complexity of your electrical panel or the gauge of the wire required, do not hesitate to consult a professional to verify your work. Safety is the ultimate goal in any electrical undertaking.
Step-by-Step Guide to Understanding the 3 Prong 240V Plug Wiring Diagram: Easy Setup Guide
Identify the three wires in the power cord, typically two color-coded hot wire leads and one green or bare ground wire.
Locate the terminals inside the plug, noting the two brass-colored screws and the single green or silver screw.
Understand how the two hot wires must connect to the common terminal screws to provide the necessary voltage.
Connect the ground wire to the green terminal and the two hot leads to the brass terminals, tightening firmly.
Verify that no insulation is trapped under the screws and that no traveler wire was mistakenly used in this circuit.
Complete the assembly by securing the plug housing and testing the connection with a multimeter before plugging in the appliance.
Frequently Asked Questions
Where is the common terminal located on the plug?
The common terminal on a 240v plug refers to the two brass-colored screws intended for the hot wire connections. In a 3-prong setup, these two terminals receive the dual 120v lines to create 240v. The third terminal, often silver or green, is for the ground wire or neutral wire.
What does a 3 prong 240v plug wiring diagram show?
This diagram shows the specific layout for high-voltage power connections. It visualizes how two separate 120v hot wire lines attach to the plug to provide 240v of power. It also indicates the safety connection for the ground or neutral wire, which prevents electrical shocks and equipment damage.
How many connections does a 240v plug have?
A standard 3-prong 240v plug has three technical connections. Two of these are hot wire leads providing the voltage, while the third is a ground or neutral wire. Unlike complex lighting circuits, these high-voltage plugs do not utilize a traveler wire, which is exclusive to three-way switch configurations.
What are the symptoms of a bad 240v plug connection?
Symptoms of a bad connection include a buzzing sound, scorch marks on the outlet, or the appliance failing to heat up. If a hot wire or common terminal is loose, it can cause arcing. Always check for tight connections and ensure no wires are frayed or making improper contact.
Can I replace a 240v plug myself?
Yes, replacing a 240v plug is a manageable DIY task if you follow a wiring diagram. You must turn off the main breaker and use a multimeter to verify the power is off. Ensure each hot wire and the ground wire is secured tightly to its respective terminal.
What tools do I need for 240v plug wiring?
You will need a screwdriver (usually Phillips or flathead), wire strippers, and a multimeter. The multimeter is crucial to ensure you have 240v across the hot leads. You may also need needle-nose pliers to properly bend the ground wire or hot wire around the terminal screws.
