2013 Dodge Dart Coolant Hose Diagram: Routing Guide 2026
The 2013 Dodge Dart coolant hose diagram maps upper radiator lines from the water outlet, lower lines to the water pump, and heater core subnet loops. It details the thermal circuit topology, thermostat gateway housing, and turbo feed connections across 1.4L, 2.0L, and 2.4L engines, referencing exact OEM routing positions.
📌 Key Takeaways
- 1.4L Turbo models feature dedicated coolant feed lines integrated into the main loop topology.
- The thermostat gateway housing opens at 194°F (90°C) to allow full radiator circulation.
- Quick-disconnect plastic connectors at the firewall heater core subnet are high-wear points.
- System bleeding requires opening the top radiator air-bleed screw to eliminate airlocks.
- Spring-loaded hose clamps must maintain original tension to prevent pressure leaks.
Navigating the complex thermal management architecture of the 2013 Dodge Dart requires an exact understanding of coolant routing pathways and component links. Whether servicing the 1.4L Turbo MultiAir, the 2.0L Tigershark, or the 2.4L MultiAir II engine, referencing a precise 2013 Dodge Dart coolant hose diagram is crucial to avoid misrouting, thermal air locks, or severe engine overheating. This technical repair guide breaks down fluid schematics, component identification, line routing topology, and advanced troubleshooting protocols according to factory service standards.

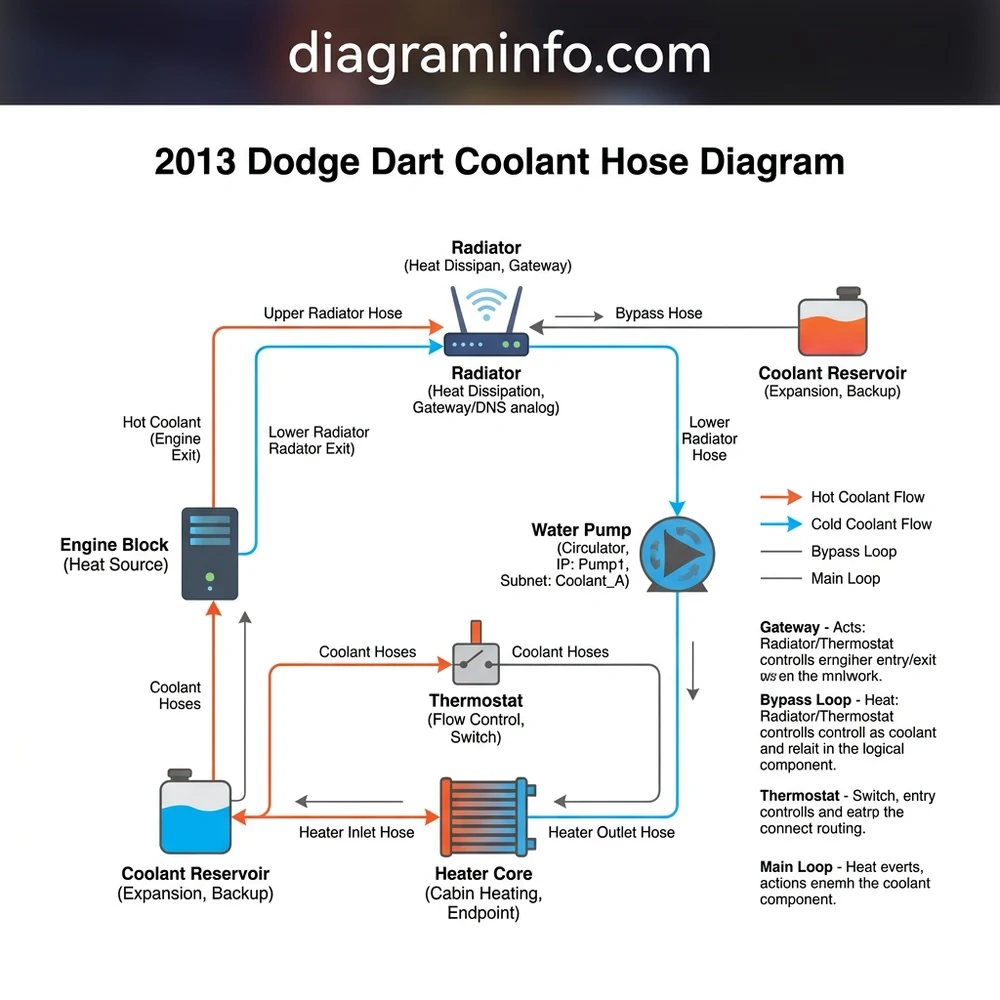

2013 Dodge Dart Coolant Hose Diagram: Complete Component Identification
The cooling system schematic for the 2013 Dodge Dart consists of primary feed lines, bypass circuits, auxiliary turbocharger cooling loops (on 1.4L models), and heater core return assemblies. To successfully interpret a 2013 Dodge Dart coolant hose diagram, each hose must be identified by its physical position, inner diameter (ID), and operational connection points within the engine bay layout.
| Diagram Reference / Identifier | Component Description | Inner Diameter (ID) / Specs | Primary Connection Points |
|---|---|---|---|
| CH-01 (Upper Hose) | Radiator Inlet Hose | 1.25 in (31.7 mm) EPDM | Thermostat Housing Outlet to Upper Radiator Neck |
| CH-02 (Lower Hose) | Radiator Outlet Hose | 1.38 in (35.0 mm) EPDM with internal spring | Lower Radiator Outlet to Water Pump Inlet Housing |
| HC-01 (Heater Supply) | Heater Core Feed Line | 0.625 in (15.8 mm) Quick-Connect | Cylinder Head Outlet Water Box to Firewall Heater Core Connection |
| HC-02 (Heater Return) | Heater Core Return Line | 0.625 in (15.8 mm) Quick-Connect | Firewall Heater Core Connection to Water Pump Return Tube |
| ET-01 (Expansion Line) | Degas / Surge Tank Feed | 0.375 in (9.5 mm) Reinforced PVC/EPDM | Radiator Upper Air Bleed Port to Pressurized Expansion Tank |
| TC-01 (Turbo Feed – 1.4L) | Turbocharger Coolant Supply Hose | 0.50 in (12.7 mm) High-Temp Silicone/Braided | Engine Block Supply Port to Turbocharger Bearing Housing |
Every hose section in the schematic utilizes specific hardware index keys that function similarly to a discrete IP address on a network schematic. These distinct position codes ensure mechanics do not interchange high-pressure turbo loop lines with lower-pressure surge tank return pathways. Understanding these designated reference codes allows you to order exact replacement parts and cross-verify connection ports during a complete cooling system overhaul.
Factory coolant specification for all 2013 Dodge Dart engine options requires Mopar Organic Additive Technology (OAT) 10-Year/150,000-Mile formula (Material Standard MS-12106). Do NOT mix HOAT (Hybrid OAT) or conventional IAT coolants with this system, as severe clogging and gel formation in small-diameter bypass hoses will occur. System capacity ranges from 6.5 quarts (2.0L/2.4L) to 7.2 quarts (1.4L Turbo).
Cooling System Topology: Subnet Routing and Thermal Gateway Controls
The cooling system topology of the 2013 Dodge Dart is organized into three distinct sub-circuits—or subnets—that manage fluid distribution based on engine operating temperature, pressure levels, and auxiliary cooling demands. Managing flow across these hydraulic loops requires precise routing through specific junction points and valve nodes.
1. Primary Engine Cooling Subnet
The main engine cooling loop handles major heat dissipation. High-volume coolant flows out of the water pump, through the engine block channels, and into the cylinder head. When operating temperatures exceed the threshold, fluid passes into the upper radiator hose (CH-01), through the cross-flow radiator core, and returns via the lower radiator hose (CH-02) back to the water pump inlet. Proper alignment along this main loop prevents localized boiling around cylinder jackets.
2. Passenger Cabin Climate Subnet
The climate control subnet routes hot coolant continuously through the heater core inside the HVAC housing. Unlike older mechanical valve systems, the 2013 Dodge Dart relies on continuous fluid loop circulation through quick-disconnect lines (HC-01 and HC-02). Interior climate temperature is regulated via blend doors rather than shutting off coolant flow, maintaining stable hydraulic pressure across the engine bypass loop.
3. Turbocharger Auxiliary Subnet (1.4L MultiAir Engines Only)
The 1.4L Turbo model incorporates a dedicated auxiliary subnet designed to cool the center housing rotating assembly (CHRA) of the turbocharger. Coolant is fed directly from an engine block port via line TC-01 into the turbo housing and exits through a dedicated return line back into the expansion tank or water pump inlet. This subnet relies on thermal siphoning after engine shutdown to dissipate residual heat and prevent oil coking inside turbocharger bearings.
The thermostat assembly on the 2013 Dodge Dart acts as a primary thermal gateway switch. On the 2.0L and 2.4L Tigershark engines, the thermostat housing contains an integrated housing module with a 194°F (90°C) calibrated wax element. On the 1.4L MultiAir engine, the thermostat housing is mounted directly to the driver-side rear of the cylinder head and includes integrated ports for the heater core supply and bypass routing.
How to Read the 2013 Dodge Dart Coolant Hose Diagram
Interpreting a 2013 Dodge Dart coolant hose diagram requires tracing fluid pathways from the hydraulic pressure source (the water pump) outward to heat exchangers and back. Schematic diagrams utilize standardized line weights, color coding, and directional arrows to indicate pressurized supply vs. unpressurized return flows.
1. Identifying Dynamic Hydraulic Flow Arrows
On technical schematics, solid black or red arrows denote high-pressure supply flow (coolant exiting the water pump under pressure). Dashed or blue arrows indicate return lines bringing cooled fluid back toward the pump inlet. Dynamic hydraulic fluid movement relies on maintaining pressure integrity across all connections. A leak in any line breaks system pressure, dropping the boiling point of the coolant mixture from ~265°F (129°C) under 16 PSI back down to 212°F (100°C) at standard atmosphere.
2. Locating Service Access Points and Bleed Valves
Air pockets inside the cooling lines are a primary cause of post-service overheating in the Dodge Dart. The OEM diagram marks a designated service access point located on the upper heater core hose plastic T-fitting or near the thermostat housing housing elbow (engine dependent). When filling or flushing the system, this access point bleeds trapped air out of the elevated heater core subnet. Refer to the overall troubleshooting section for detailed manual bleeding steps.
3. Deciphering Quick-Connect vs. Clamped Hose Fittings
Diagram symbols differentiate between standard constant-tension spring clamps and spring-locking quick-connect fittings. Quick-connect ports (found extensively on heater core and surge tank connections) use internal O-rings and retaining clips. On the schematic, these are denoted by square junction blocks, whereas standard clamped hose Barb connections are illustrated with simple parallel lines over the connection neck.
How to Replace Coolant Hoses on the 2013 Dodge Dart
Replacing worn, cracked, or swollen hoses requires proper tool selection and adherence to OEM torque limits and installation procedures. Follow these step-by-step technical instructions when performing maintenance guided by the 2013 Dodge Dart coolant hose diagram.
Step 1: Coolant System Depressurization and Draining
Ensure the engine is completely cold. Remove the expansion tank pressure cap. Raise and support the vehicle safely. Remove the lower engine splash shield (belly pan) using a 10mm socket and T30 Torx driver. Position a clean drain pan under the lower passenger side of the radiator. Locate the radiator drain petcock access point, open it counterclockwise, and allow fluid to drain completely.
Step 2: Accessing and Removing Hose Connections
Use hose pinch pliers to isolate adjacent lines if performing a partial hose replacement. For standard spring clamps, use specialized flexible-cable hose clamp pliers to compress clamp tabs fully before sliding them down past the barbed fitting shoulder. For heater core quick-connect fittings, press the locking collar tabs inward while pulling the hose coupling straight back off the aluminum firewall tubes. Do not twist quick-connect housings, as this can fracture the delicate aluminum heater core stubs.
Never use screwdrivers or sharp metal tools to pry rubber hoses off plastic thermostat housings or radiator necks. Polymer hose barbs on the 2013 Dodge Dart radiator and water box are prone to hair-line cracking under shear force. Use a specialized pick tool with silicone spray lubricant slid beneath the hose end to break the adhesive bond safely.
Step 3: Fitting New Hoses and Torque Specifications
Clean all aluminum and plastic mating barbs thoroughly with scotch-brite pads and brake cleaner to remove corrosion and rubber residue. Slide new constant-tension spring clamps onto the replacement hose prior to installation. Position the new hose onto the fitting, ensuring it seats fully past the retention bead. Position clamps precisely between alignment marks printed on factory replacement hoses.
| Fastener / Fitting Description | Tool Required | Factory Torque Specification |
|---|---|---|
| Thermostat Housing Bolts (1.4L) | 10mm Socket | 89 in-lbs (10 N·m) |
| Thermostat Housing Bolts (2.0L / 2.4L) | 10mm Socket | 106 in-lbs (12 N·m) |
| Water Pump Mounting Bolts | 10mm / 13mm Sockets | 18 ft-lbs (25 N·m) |
| Worm-Gear Hose Clamps (Aftermarket) | 5/16 Nut Driver | 35 in-lbs (4 N·m) max |
Step 4: Vacuum Refilling and Air Elimination
Attach a cooling system vacuum refill tool to the expansion tank neck. Connect shop air to draw a vacuum of 24–26 inHg on the cooling system network. Hold vacuum for 3 minutes to verify complete system sealing. Open the refill valve to draw premixed Mopar OAT coolant into the system without introducing air locks. Alternatively, if gravity filling, open the plastic bleeder access point screw on the upper heater hose or thermostat housing until a steady stream of fluid without air bubbles escapes, then tighten to 18 in-lbs (2 N·m).
2013 Dodge Dart Coolant Hose Diagram Troubleshooting and Diagnostics
Thermal anomalies, mysterious fluid loss, and persistent OBD-II fault codes frequently trace back to mechanical hose failures or incorrect installation. Below are systematic diagnostic procedures for common failure modes within the 2013 Dodge Dart cooling system architecture.
1. Diagnosing Lower Radiator Hose Collapse
If the lower radiator hose (CH-02) flattens or collapses when the engine revs or reaches operating temperature, the internal reinforcement spring has degraded or rusted away. Alternatively, a stuck-closed expansion tank cap pressure valve creates a vacuum within the system as coolant cools and contracts. Replace the lower hose assembly with an OEM line containing the inner anti-collapse wire coil and install a new 16 PSI surge tank cap.
2. Pinpointing Hard-to-Find Micro-Leaks
Small pinhole leaks in the small-diameter turbocharger supply lines (TC-01) or degas lines (ET-01) often evaporate before dripping onto the ground, leaving behind a powdery orange or purple crystal residue. Connect a cooling system pressure tester to the expansion tank and pressurize the system to 15 PSI (do not exceed 18 PSI). Inspect all quick-connect fittings, plastic T-junctions, and hose ends with a UV light if fluorescent leak detection dye has been added to the mixture.
3. Resolving Thermal Fault Codes and Sensor Discrepancies
The Engine Control Module (ECM) monitors thermal performance via the Engine Coolant Temperature (ECT) sensor located on the thermostat housing. Fluid flow problems cause specific fault diagnostic trouble codes (DTCs):
- P0128 (Thermostat Coolant Temperature Below Regulating Temperature): Often caused by a thermostat stuck open or fluid bypassing the thermal gateway valve prematurely due to damaged internal hose baffles.
- P0217 (Engine Coolant Over Temperature Condition): Caused by air locks in the heater core subnet, restricted lower radiator hoses, or a failed water pump impeller.
- P2181 (Cooling System Performance): Indicates calculated thermal flow rate measured across the network bus deviates from expected values, usually pointing to intermittent flow restriction across secondary subnets.
2013 Dodge Dart Coolant Hose Diagram Frequently Asked Questions
What is the primary cause of heater core hose quick-connect leaks on the Dart?
Heater core quick-connect leaks on the 2013 Dodge Dart are typically caused by degraded internal EPDM O-rings exposed to contaminated fluid or improper removal techniques. Heat cycling hardens the inner rubber seals, reducing spring tension against the aluminum heater core pipe. Replacing the individual clip-and-seal assembly or the entire pre-molded hose line (HC-01/HC-02) restores a pressure-tight connection.
Where is the manual air bleeder access point located on the 1.4L Turbo model?
On 1.4L MultiAir engines, the primary manual air bleeder valve access point is integrated into the top driver-side plastic neck of the radiator assembly or located on the upper heater core return line T-fitting near the firewall. Opening this brass or plastic screw allows air trapped in the high-elevation cylinder head circuit to vent during static fluid fills.
Can I replace spring clamps with standard worm-gear clamps on coolant lines?
While worm-gear clamps can be used in emergencies, OEM constant-tension spring clamps are strongly recommended across all Dodge Dart cooling lines. Plastic hose barbs and aluminum pipes expand and contract significantly during engine thermal cycles. Constant-tension spring clamps dynamically adjust clamping force during temperature swings, whereas static worm-gear clamps can pinch plastic fittings when hot or leak when cold.
How do I know if my 2013 Dodge Dart has a 1.4L, 2.0L, or 2.4L cooling setup?
Inspect the 8th digit of your vehicle identification number (VIN) or examine the engine bay layout. The 1.4L Turbo (VIN code H) features a visible turbocharger at the front of the exhaust manifold with braided/rubber coolant lines running to it and a rear-mounted thermostat box. The 2.0L (VIN code A) and 2.4L (VIN code B) Tigershark naturally aspirated engines lack turbo cooling lines and utilize a front-right mounted thermostat housing housing with larger integrated bypass tubes.
Why does my expansion tank bubble even when the engine isn’t overheating?
Bubbling inside the expansion tank indicates combustion gases are being forced into the cooling subnet through a breached head gasket, or air is being sucked into the suction side of the water pump via a pinhole leak in the lower hose. Perform a block-check combustion gas test (chemical fluid tester) at the expansion tank neck to rule out head gasket failure before replacing coolant hoses.
Step-by-Step Guide to Understanding the 2013 Dodge Dart Coolant Hose Diagram
Identify – Identify your vehicle engine configuration (1.4L Turbo, 2.0L, or 2.4L) and review the overall hose topology.
Locate – Locate the main thermostat gateway housing, radiator inlet/outlet ports, and heater core subnet quick-disconnects.
Reference – Reference the diagram’s layout index (similar to an IP address map) to verify correct hose sizes and routing paths.
Connect/Route – Route replacement hoses through factory mounting brackets, clear of hot exhaust components, and secure all spring clamps.
Verify – Verify system seal by performing a vacuum bleed and monitoring Diagnostic Network System (DNS) live data for steady coolant temperature.
Troubleshoot – Troubleshoot thermal airlocks or fluid leaks by cross-referencing flow direction arrows on the diagram if engine temps rise.
