4 Prong Dryer Outlet Wiring Diagram: Easy Setup Guide
A 4 prong dryer outlet wiring diagram illustrates connecting two hot wires to the side brass terminals, a white neutral wire to the center silver terminal, and a green ground wire to the U-shaped screw. This configuration separates the neutral and ground paths, meeting modern NEC safety standards for 120/240V laundry circuits.
📌 Key Takeaways
- Provides a dedicated path for the ground wire to enhance home safety
- Identifying the two hot wire terminals is crucial for 240V power
- Always disconnect the main breaker before touching any outlet wiring
- Use 10/3 AWG copper wire to handle the 30-amp dryer load
- Essential for upgrading older 3-prong laundry rooms to modern standards
Installing or upgrading a heavy-duty appliance requires precision, and a detailed 4 prong dryer outlet wiring diagram is the most critical tool in your arsenal to ensure a safe and code-compliant installation. Whether you are replacing an outdated three-prong receptacle or wiring a new laundry room from scratch, understanding how the current flows through each terminal is essential for preventing electrical fires and equipment damage. This guide provides a comprehensive breakdown of the NEMA 14-30R configuration, explaining the specific roles of the two hot legs, the neutral return, and the dedicated safety ground. By the end of this article, you will have a professional-grade understanding of wire color coding, terminal identification, and the step-by-step sequence required to complete this high-voltage project successfully.
Modern building codes require a 4-prong outlet (NEMA 14-30R) for all new dryer installations. Unlike older 3-prong systems, the 4-prong setup separates the neutral and ground paths, providing an extra layer of protection against electrical shock.

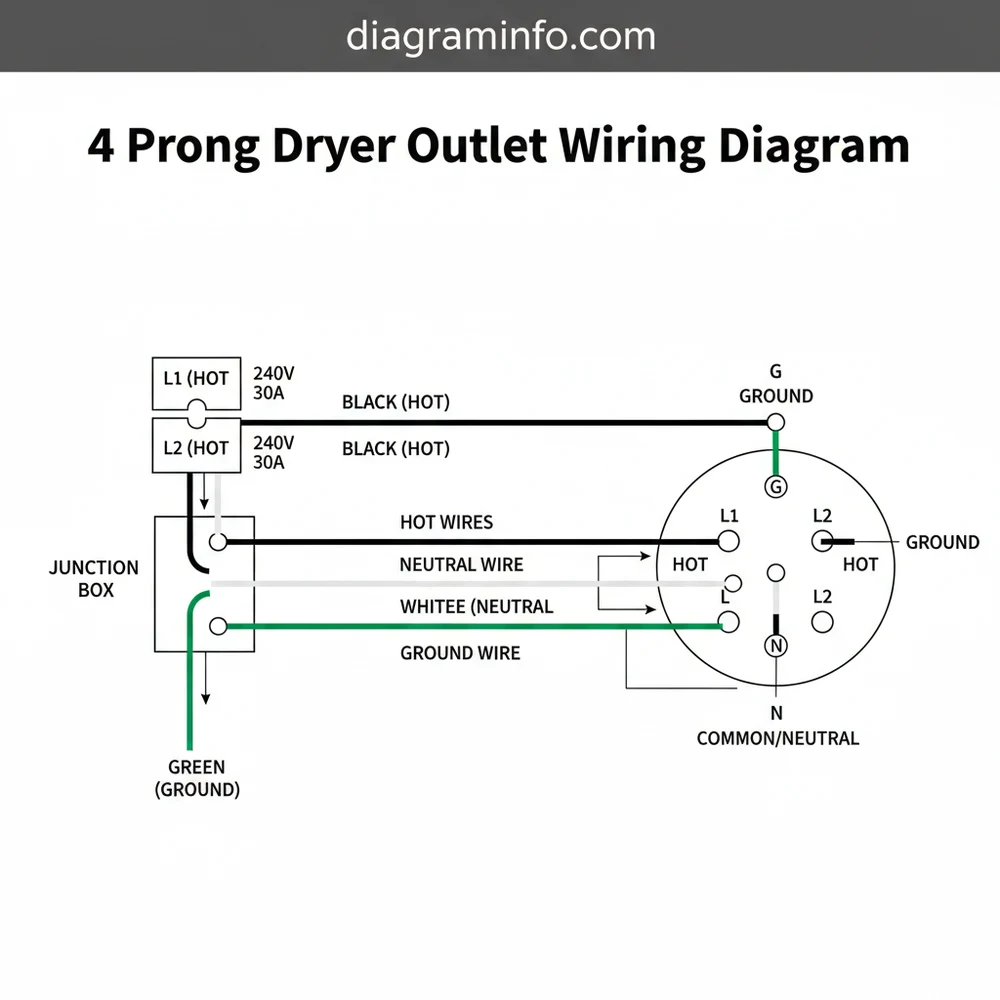

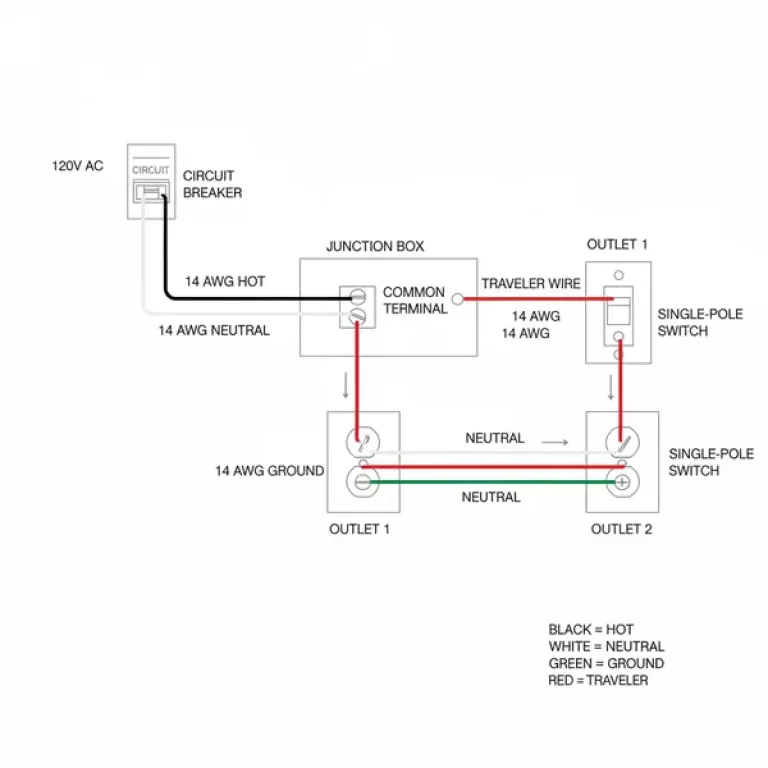

Decoding the 4 Prong Dryer Outlet Wiring Diagram
The 4 prong dryer outlet wiring diagram represents a NEMA 14-30R receptacle, which is designed to handle 125/250 volts at 30 amps. To interpret the diagram correctly, you must first identify the four distinct slots and their corresponding terminals on the back of the device. The “14” in the NEMA designation indicates a four-wire configuration, while the “30” indicates the amperage rating.
At the heart of the diagram are the two hot wires, typically colored black and red. These connect to the two side terminals, often marked “X” and “Y.” These terminals feature a brass screw to indicate they carry the high voltage. Each hot wire provides 120 volts relative to the neutral, but because they are on opposite phases, they provide a combined 240 volts to power the dryer’s heavy heating element.
The neutral wire, which is white, connects to the terminal usually located at the top (the straight slot opposite the rounded or “D” shaped hole). This terminal uses a silver screw. The neutral wire’s job is to complete the 120V circuit that powers the dryer’s internal components, such as the timer, sensors, and drum light.
Finally, the ground wire, which is either green or bare copper, connects to the green hexagonal screw at the bottom of the outlet. This corresponds to the “D” shaped hole in the face of the receptacle. Unlike the “traveler wire” systems found in complex lighting circuits, the dryer outlet uses a direct, dedicated path for each function to ensure stability under heavy loads.
[DIAGRAM_PLACEHOLDER: A technical illustration showing a NEMA 14-30R outlet face and rear terminals. Labels: Top Slot = Neutral (White/Silver), Bottom Slot = Ground (Green/Green), Left Slot = Hot 1 (Black/Brass), Right Slot = Hot 2 (Red/Brass). Wire gauge noted as 10 AWG.]
Required Components and Material Specifications
Before beginning the installation based on your 4 prong dryer outlet wiring diagram, you must gather materials that meet the National Electrical Code (NEC) standards. Using the wrong gauge or type of wire is a primary cause of circuit failure and overheating.
- ✓ Wire Gauge: You must use 10-gauge wire (10/3 Romex or individual THHN conductors in conduit). The 10-gauge thickness is required to safely handle the 30-amp load.
- ✓ Receptacle Type: Ensure you have a NEMA 14-30R (R stands for Receptacle). Do not confuse this with a NEMA 14-50R, which is for ranges and handles 50 amps.
- ✓ Circuit Breaker: A double-pole 30-amp breaker is required in the main service panel.
- ✓ Electrical Box: A deep 2-gang plastic or metal box is recommended to accommodate the thick 10-gauge wires.
Step-by-Step Installation Guide
Following the 4 prong dryer outlet wiring diagram requires a methodical approach. Safety is paramount when working with 240-volt systems, as the current levels involved are lethal.
Step 1: Power Disconnection and Verification
Before touching any wires, turn off the double-pole 30-amp breaker at the main electrical panel. Use a non-contact voltage tester or a multimeter to verify that no voltage is present at the existing outlet or wires. Ensure you test between both hot legs and from each hot leg to the ground.
Step 2: Preparing the Cable
Strip approximately 6 to 8 inches of the outer jacket from your 10/3 cable. This will reveal four wires: black, red, white, and a bare or green ground wire. Using wire strippers, remove about 3/4 inch of insulation from the tips of each of the three insulated conductors. Be careful not to nick the copper, as this creates a weak point that can heat up under load.
Step 3: Connecting the Ground Wire
Locate the green common terminal on the outlet, which is usually at the bottom. Loop the bare or green ground wire around the green screw in a clockwise direction. Tightening the screw will pull the wire tighter around the shank. This connection ensures that if a “hot wire” accidentally touches the metal frame of the dryer, the current has a safe path back to the panel, tripping the breaker.
Step 4: Connecting the Neutral Wire
Find the silver terminal screw, which corresponds to the straight slot opposite the ground. Connect the white neutral wire here. In a 4-prong system, this white wire is strictly for carrying return current from the 120V components. It must remain isolated from the ground wire at the outlet to maintain the “separated neutral” integrity required by modern codes.
Step 5: Connecting the Hot Wires
The two remaining wires—black and red—are your hot legs. These provide the 240V potential. Attach one to each of the brass screws on the sides of the outlet. In most standard residential wiring, it does not matter which hot wire goes to which brass screw (X or Y), as they are both carrying 120V relative to the neutral. Ensure the connections are exceptionally tight.
Step 6: Securing the Outlet
Carefully fold the thick 10-gauge wires into the electrical box. Because this wire is stiff, you may need to use pliers to “Z-fold” them so they fit without putting excessive pressure on the terminals. Screw the outlet into the box and attach the faceplate.
Never bridge the neutral and ground terminals in a 4-prong outlet. While this was common practice in older 3-prong setups, doing so in a 4-prong configuration creates a “bootleg ground,” which can energize the exterior shell of your appliance and cause a fatal shock.
Understanding Voltage and the Role of the Neutral
To fully grasp the 4 prong dryer outlet wiring diagram, one must understand the electrical theory behind the 120/240V split-phase system. Most household appliances operate on 120 volts. However, high-demand heating appliances like dryers require more power. By using two hot wires, each providing 120V from different phases of the transformer, the dryer can access 240V.
If you were to measure the voltage with a multimeter on a correctly wired outlet, you would see:
- Hot to Hot: 240 Volts
- Hot to Neutral: 120 Volts
- Hot to Ground: 120 Volts
- Neutral to Ground: 0 Volts
The neutral wire is the “common terminal” for the 120V parts of the dryer. If the neutral wire becomes disconnected or loose, your dryer’s drum might turn and the timer might run, but the heating element will not function, or vice versa. More dangerously, a loose neutral can cause 120V components to see higher voltages if the load becomes unbalanced, potentially frying the dryer’s control board.
Common Issues & Troubleshooting
Even with a perfect 4 prong dryer outlet wiring diagram, issues can arise during or after installation. The most frequent problem is a loose connection at the brass screw terminals. Because 10-gauge wire is very stiff, it often tries to pull away from the screw as you push the outlet into the box.
If your dryer is not heating, the first step is to check the voltage at the outlet. A common scenario is a “tripped” breaker where only one pole has opened. Since the dryer needs both hot legs to heat, it may seem to have power (the lights come on) but it fails to get hot. Always flip the breaker completely to “Off” and then back to “On” to reset both poles simultaneously.
Another common issue involves the appliance cord itself. If you are converting an old dryer to work with a new 4-prong outlet, you must remove the “bonding jumper” (usually a small copper strap or white wire) that connects the dryer’s neutral terminal to its ground screw. If you fail to remove this jumper when using a 4-wire cord, you are effectively negating the safety benefits of the 4-prong system.
Use a torque screwdriver to tighten the terminal screws to the manufacturer’s specifications (usually found on the packaging). High-amperage circuits expand and contract with heat; a connection that feels “tight enough” by hand may loosen over time, leading to arcing and melted plastic.
Best Practices for a Professional Installation
To ensure the longevity of your electrical work, follow these professional best practices. First, always use high-quality, industrial-grade receptacles. The inexpensive “residential grade” outlets often have thinner metal contacts that can lose their grip on the dryer plug over years of use, creating resistance and heat.
Second, consider the placement of the outlet. The 4 prong dryer outlet wiring diagram is usually oriented with the ground slot at the bottom, but some electricians prefer the ground at the top. The NEC does not strictly mandate orientation, but installing it with the ground at the top ensures that if a metal object falls behind the dryer and lands on a partially plugged-in cord, it hits the ground prong first, rather than bridging the two hot prongs and causing a short circuit.
Finally, always inspect the dryer cord for wear. A 4-prong cord (NEMA 14-30P) should be heavy and flexible. If you notice any fraying or if the prongs look burnt, replace the cord immediately. The cost of a new cord is negligible compared to the potential cost of an electrical fire.
Why the 4-Prong System is Superior
The shift from 3-prong to 4-prong outlets was driven by a need for increased safety. In a 3-prong system, the neutral wire served as both the current return and the safety ground. If the neutral wire ever broke or became loose, the entire metal cabinet of the dryer could become “hot” with electricity. Anyone touching the dryer while also touching a grounded object (like a washing machine or a concrete floor) would become the path to ground, resulting in a severe shock.
The 4-prong system solves this by providing a dedicated ground wire that never carries current under normal operating conditions. This ensures that the appliance frame remains at zero volts relative to the ground, even if the neutral wire fails. This redundancy is the hallmark of modern electrical safety.
In conclusion, mastering the 4 prong dryer outlet wiring diagram is about more than just matching colors to screws; it is about understanding the flow of 240-volt power and the vital role of the safety ground. By using the correct 10-gauge wire, ensuring tight connections at every brass screw and silver terminal, and strictly following the separated neutral and ground protocol, you can install a dryer outlet that will operate safely for decades. Always remember that when in doubt, or if you encounter aluminum wiring (which requires special connectors), you should seek the assistance of a licensed professional electrician to ensure your home remains safe and up to code.
Frequently Asked Questions
Where is the dryer outlet located?
The dryer outlet is typically located in the laundry room, positioned approximately 36 to 48 inches above the floor. It is usually placed directly behind the dryer or slightly to the side to allow for easy access to the power cord while remaining hidden from view.
What does this wiring diagram show?
The diagram shows the 120/240-volt configuration required for modern dryers. It maps the placement of two hot wires for high-voltage heating elements, a neutral wire for the dryer’s timer and lights, and a dedicated ground wire for safety, ensuring the chassis remains uncharged.
How many wires does the 4-prong outlet have?
A 4-prong outlet utilizes four distinct wires: a black hot wire, a red hot wire, a white neutral wire, and a green or bare copper ground wire. This setup is the current electrical code standard, replacing the older three-wire systems that lacked a separate ground connection.
What are the symptoms of a bad dryer outlet?
Signs of a faulty outlet include a dryer that won’t start, the drum spinning without heating, or visible burn marks on the outlet face. Frequently tripped breakers or a burning smell during operation also indicate loose connections or internal arcing that requires immediate attention.
Can I install this outlet myself?
If you are comfortable working with electrical circuits and understand local building codes, you can install this yourself. However, because it involves 240V high-voltage electricity, you must verify that the power is off using a multimeter and consider hiring a professional if you are uncertain.
What tools do I need for this task?
You will need a set of insulated screwdrivers, wire strippers, a non-contact voltage tester, and a multimeter. A 30-amp 4-prong receptacle and a compatible wall box are also required, along with 10/3 Romex or THHN wire if you are running a new circuit.
