The rock cycle diagram for kids illustrates how Earth’s geological system transitions between igneous, sedimentary, and metamorphic rock types. The layout displays cooling magma forming igneous rock, weathering and erosion creating sedimentary layers, and deep heat and pressure transforming structures into metamorphic rock in a continuous, cyclic configuration.
📌 Key Takeaways
- Covers 3 major rock classifications (igneous, sedimentary, metamorphic) and 5 primary geological processes.
- Igneous rocks are uniquely identified by crystallization patterns from cooled magma or lava.
- Metamorphic transformation occurs deep within Earth’s crust under extreme temperature and pressure conditions.
- The most common mistake is confusing sedimentary compaction with thermal metamorphic recrystallization.
- Use interactive diagrams for basic conceptual learning and advance to mineral hardness scales for detailed studies.

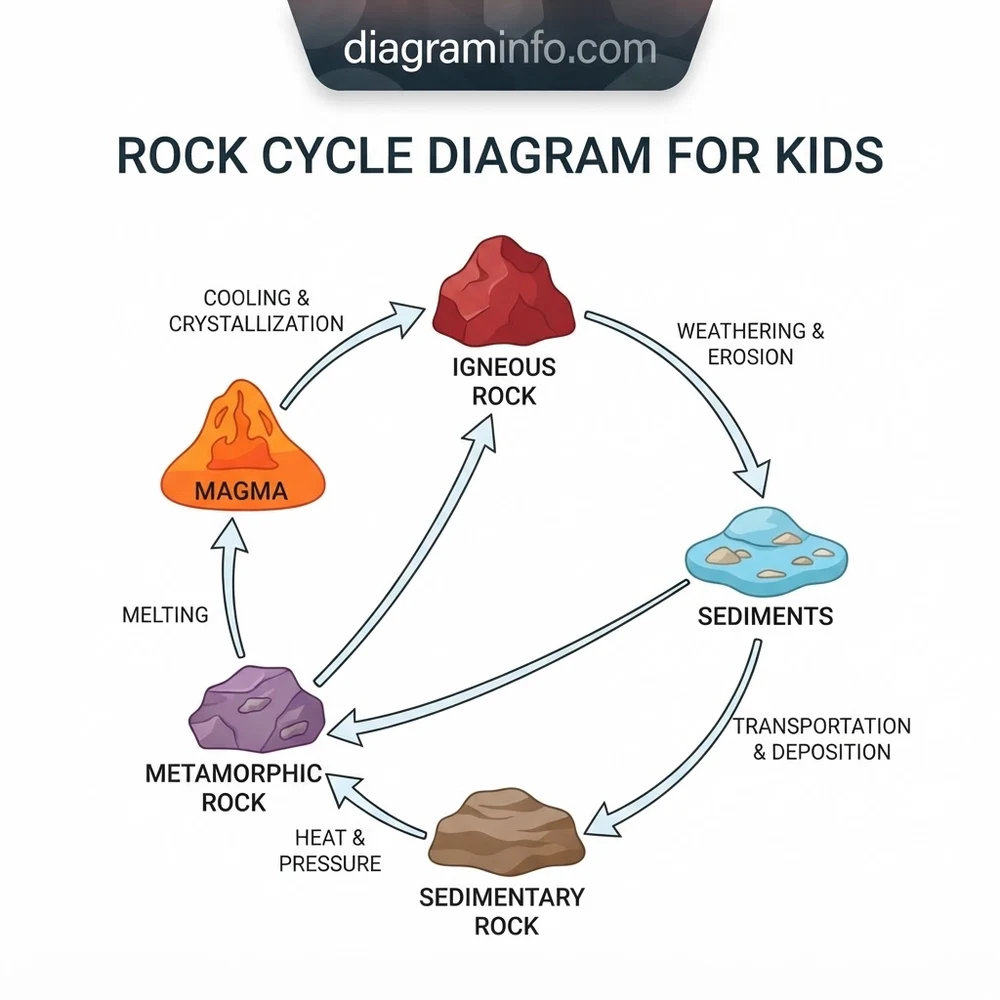

Understanding geological system processes requires a clear visual model, and utilizing a rock cycle diagram for kids provides an accessible layout for analyzing Earth’s dynamic crustal transformations. This foundational schematic maps the continuous mass-transfer loop governing igneous, sedimentary, and metamorphic rock systems under specific thermal and pressure regimes. Whether referencing this visual configuration for educational modules, evaluating aggregate crushing plant configurations, or interpreting geotechnical core sampling diagnostics, understanding the vector transitions between rock states is critical. As shown in the diagram below, Earth’s lithospheric materials undergo continuous recycling through predictable thermal, mechanical, and chemical pathways.
The rock cycle operates as a closed thermal-mass system on a global scale, but locally behaves as an open mechanical network where surface weathering and subduction drive energy exchanges.
Rock Cycle Diagram For Kids: Key Structural System Components
Every standard schematic represents three main lithospheric material classes and the mechanical transitions linking them. Analyzing the rock cycle diagram for kids requires breaking down the core structural units, processing conditions, and material properties that govern each state.
Igneous Rock System and Magmatic Thermal Process
Igneous structures originate from molten rock (magma beneath the crust or lava on the surface) that cools and crystallizes at temperatures ranging from 600°C to 1,300°C. In the schematic layout, intrusives (such as granite) cool slowly below the surface, producing coarse-grained crystalline structures with high structural density. Extrusives (such as basalt) cool rapidly above ground, yielding fine-grained or glassy matrix configurations. According to OEM geological specifications, igneous rocks form the primary foundational crustal material.
Sedimentary Lithification and Surface Degradation Layout
Sedimentary phases represent the mechanical degradation, transportation, deposition, and compaction of pre-existing rock units. Atmospheric factors break solid rock into clastic sediments. Through burial depth and fluid movement, secondary mineral precipitation seals pore spaces, completing the lithification process. Soil classification schematics often interface directly with this section of the rock cycle blueprint to analyze particle distribution and soil stability parameters.
Metamorphic Configuration and Pressure-Heat Transformation
Metamorphic structures develop when igneous or sedimentary host rocks undergo solid-state recrystallization under extreme geothermal heat (200°C to 800°C) and directional pressures ranging from 2 to 12 kilobars. This phase alters mineral textures and crystallographic orientations without entering a full liquid state. Foliated configurations, such as slate or schist, display distinct structural planar alignments caused by differential stress field vectors.
| Rock Category | Formation Temperature (°C) | Formation Pressure (kbar) | Typical Density Range (g/cm³) |
|---|---|---|---|
| Igneous (Intrusive/Extrusive) | 600°C – 1,300°C | 0.1 – 5.0 kbar | 2.60 – 3.10 g/cm³ |
| Sedimentary (Clastic/Chemical) | 20°C – 200°C | 0.01 – 1.5 kbar | 2.00 – 2.65 g/cm³ |
| Metamorphic (Foliated/Non-Foliated) | 200°C – 800°C | 2.0 – 12.0 kbar | 2.70 – 3.30 g/cm³ |
How to Read the Rock Cycle Diagram For Kids Layout
Reading a technical rock cycle blueprint requires tracking state changes along directional process lines. Follow this sequential guide to systematically decode the transition pathways shown on the schematic.
Mapping Thermal Fusion and Crystallization Vectors
Begin analysis at the geothermal magma reservoir vector. Follow the primary exit vector upward to evaluate thermal loss and crystallization:
- Intrusive Cooling Path: Sub-surface path leading to slow crystallization and plutonic formation.
- Extrusive Volcanic Path: Rapid surface cooling line producing fine-grained basaltic or obsidian structures.
Tracing Surface Degradation and Lithification Pathways
Locate the directional vectors extending from exposed surface rock units toward depositional sedimentary basins:
Lithification requires overburden hydraulic press parameters equivalent to a minimum burial depth of 1,000 to 3,000 meters to drive out pore fluid and initiate matrix cementation.
- Weathering/Erosion Vector: Mechanical breakdown by fluid, ice, or wind forces.
- Transport & Deposition Vector: Sediment accumulation in low-energy marine or lacustrine environments.
- Compaction & Cementation Vector: Pressure consolidation turning loose gravel, sand, and clay into solid conglomerate, sandstone, or shale.
Evaluating Recrystallization and Bypass Loop Sequences
Examine the internal transitional vectors connecting igneous and sedimentary branches directly to metamorphism. Geothermal gradients combined with tectonic compression alter crystal structures. Note that any rock type can short-circuit directly back to magma if temperatures exceed the liquidus melting line, bypassing intermediate surface steps entirely.
Troubleshooting Common Rock Cycle Diagram For Kids Schematic Errors
Simplified schematics often contain structural oversights that mislead users analyzing rock phase transitions. Identifying and correcting these diagrammatic flaws ensures accurate geological modeling.
Identifying Mislabeled Process Vectors and Directional Arrows
A frequent error in basic illustrations is representing the cycle as a single closed circle. Real geological systems operate as a cross-linked network. Ensure the schematic includes cross-over vectors—such as metamorphic rock weathering directly into sedimentary particles, or igneous rock undergoing high-pressure metamorphism without prior erosion.
Correcting Thermal and Mechanical Threshold Misclassifications
Diagrams often misrepresent the boundary between high-grade metamorphism and partial melting. According to geological specs, when temperature parameters exceed 800°C under hydrologic conditions, partial melting (anatexis) begins. This transitions the system out of metamorphic solid-state physics and back into the magmatic igneous phase.
Failing to account for intermediate melt boundaries (migmatite phase) in system schematics leads to incorrect classification of high-temp regional metamorphic zones.
Rock Cycle Diagram For Kids Frequently Asked Questions
What is the primary heat source driving the igneous loop in a rock cycle diagram for kids?
The igneous phase is driven by internal geothermal energy resulting from radioactive decay (primarily Uranium, Thorium, and Potassium isotopes) and primordial heat trapped within Earth’s mantle and core, generating temperatures above 600°C.
How does pressure alter mineral density during metamorphic transformation?
Directional and lithostatic pressure reduces inter-atomic spacing within mineral crystal lattices. This recrystallizes loose structures into denser, tightly packed polymorphs (such as transforming shale into high-density garnet-bearing schist).
Can sedimentary rock bypass the metamorphic phase in this system schematic?
Yes. A sedimentary rock structure can be subducted directly into high-temperature mantle zones, melting directly into magma and bypassing the solid-state metamorphic phase entirely before re-crystallizing as an igneous rock.
Why are arrows bidirectional in a complete rock cycle blueprint?
Bidirectional vectors reflect systemic pathways where any rock type can be transformed into any other type depending on the environmental inputs—whether exposed to surface atmospheric weathering or tectonic subduction forces.
Step-by-Step Guide to Understanding the Rock Cycle Diagram For Kids
Identify – Locate the three main rock categories (igneous, sedimentary, metamorphic) printed on the visual layout.
Locate – Find the primary fluid state (magma/lava) and sediment collection zones on the system chart.
Reference – Follow the directional process arrows to trace melting, cooling, and weathering pathways across the diagram.
Connect/Route – Draw or follow shortcut arrows showing direct cross-transitions between metamorphic and sedimentary states.
Verify – Test specimen physical characteristics against diagram labels to verify proper rock category classification.
Troubleshoot – Resolve missing path confusion by re-checking arrow directions against the heat and pressure key.
