Echo Weed Eater Parts Diagram: 2026 Component Guide

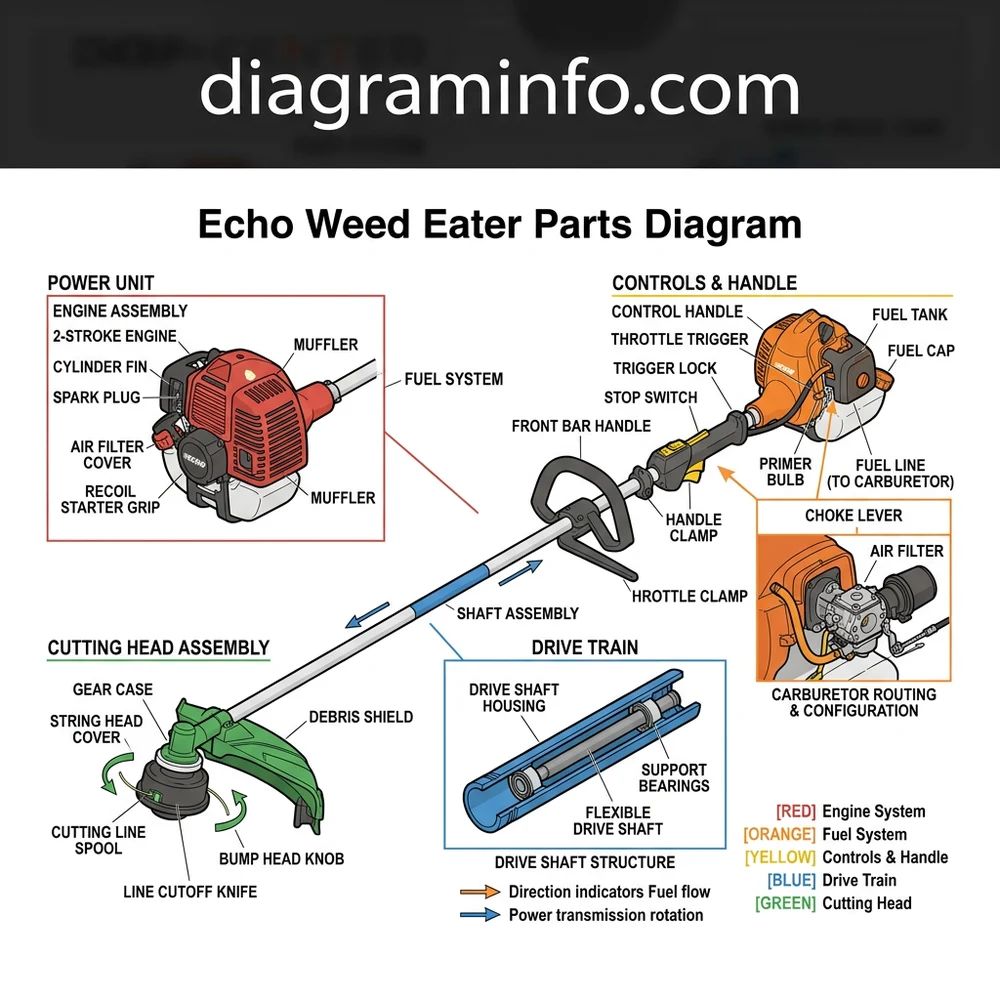

An Echo weed eater parts diagram illustrates the complete system structure, including the two-stroke engine block, Zama carburetor assembly, fuel line configuration, clutch drum, flexible drive shaft, and gear case. It details component layout for model lines like the SRM series, specifying part numbers, washer sequences, and torque specifications for accurate rebuilds.
📌 Key Takeaways
- Crankcase bolts and cylinder fasteners typically require 35–45 in-lbs torque during reassembly.
- Fuel line configuration requires exact placement, distinguishing the weighted intake line from the return outlet on the purge bulb.
- Gear case lubrication requires grease application via the dedicated maintenance port every 50 operating hours.
- Stiffened metering diaphragms in Zama/Walbro carburetors are the most frequent cause of engine starvation.
- Perform routine line, filter, and head maintenance yourself; consult certified technicians for cracked crankcases or bent shafts.
Maintaining two-stroke outdoor power equipment requires an accurate understanding of the internal powertrain, fuel routing, and rotational drive components. An echo weed eater parts diagram serves as an essential mechanical schematic, detailing exact part placement, fastener torque values, and OEM part numbering across various trimmer series such as the SRM-225, SRM-2620, and PAS-225. Whether performing routine carburetor rebuilds, replacing worn centrifugal clutch shoes, or diagnosing air leaks in the crankcase, utilizing an accurate exploded view blueprint ensures seamless component identification, precise reassembly sequences, and strict adherence to OEM factory specifications during heavy-duty overhaul operations.
Echo Weed Eater Parts Diagram: Complete Subsystem Component Breakdown
To systematically analyze an echo weed eater parts diagram, technicians must divide the equipment into four primary structural assemblies: the two-stroke engine powerhead, the fuel delivery network, the centrifugal drive system, and the lower gearcase shaft configuration. Each assembly contains closely matched components engineered to withstand high vibrational loads and continuous engine speeds exceeding 9,000 RPM.
Recommended Best Deal Products
According to OEM factory service manuals, the powerhead schematic forms the structural foundation of the trimmer. It houses the engine block, cylinder assembly, piston, crankshaft, and ignition module. Interpreting these parts correctly ensures proper mechanical tolerance management during major overhauls.
Standard cylinder torque spec for Echo 21.2cc engine blocks is 60–80 in-lbs (6.8–9.0 Nm). Spark plug gap (NGK BPM8Y or CMR7H) must be set precisely between 0.024 and 0.028 inches (0.6–0.7 mm). Ignition module air gap to flywheel magnet pole face requires 0.012–0.015 inches (0.30–0.40 mm) clearance.
- Engine Cylinder & Crankcase: The die-cast aluminum cylinder features a hard-chrome plated bore (e.g., Part #A130001000) matched with dual piston rings to ensure optimal compression seal and heat dissipation.
- Piston & Wrist Pin Assembly: Includes the needle bearing, wrist pin clips, and piston rings configured to balance thermal expansion at operating temperatures up to 350°F (176°C).
- Ignition Flywheel & Armature: The flywheel features cast cooling fins and embedded permanent magnets that pass the solid-state ignition coil to send precise timed voltage to the spark plug.
- Fuel Tank & Purge System: Consists of a high-density polyethylene fuel tank, three-line rubber grommet system, in-tank ceramic fuel filter, and fuel return lines connecting directly to the diaphragm carburetor.
- Centrifugal Clutch Assembly: Features twin spring-tensioned friction shoes mounted to the crankshaft output, designed to engage the clutch drum at approximately 3,800 to 4,200 RPM.
- Drive Shaft & Housing Tube: Utilizes either a flexible wound steel cable or a solid steel inner shaft mounted inside an extruded aluminum outer tube supported by oil-impregnated liner bushings.
Navigating the Echo Trimmer Engine Schematic and Structural Layout
Understanding the internal system configuration requires tracing power generation from the combustion chamber down to the cutting head assembly. The overall mechanical layout relies on a balanced rotational mass. Torque produced by the piston stroke turns the crankshaft, which drives the clutch drum assembly. The rotational force transfers down the inner drive cable into the lower bevel gearcase, multiplying torque to turn the spool line head.
When analyzing an engine schematic or full chassis layout blueprint, technicians must pay close attention to seal orientations, gasket placements, and fastener thread lockers. Below is a comprehensive reference overview of key trimmer components, associated OEM part numbering trends, torque values, and functional roles within the system system configuration.
| Subsystem Component | Typical OEM Part Identifiers | Assembly & Torque Specification |
|---|---|---|
| Zama/Walbro Carburetor System | A021001690, RB-K93, C1U-K54A | Mounting Bolts: 25–35 in-lbs; Initial L/H Needles: 1.5 turns out |
| Recoil Starter Assembly | A051001311, A051000840 | Case Fasteners: 30–45 in-lbs; Drive Pawl Spring tension indexed |
| Centrifugal Clutch Rotor & Drum | A552000110, A556000030 | Clutch Hub Bolt: 130–170 in-lbs (Apply medium blue threadlock) |
| Lower Bevel Gear Housing | P021014310, 61040127430 | Pinch Bolt: 45–60 in-lbs; Fill with Lithium-based gear grease |
| Speed-Feed Trimmer Head | 78890-30000, 99944200907 | M10 x 1.25 Left-Hand Thread (LH); Hand tight onto arbor |
Recommended Best Deal Products
For precise diagnostic procedures regarding fuel starvation, cross-reference this technical guide with our detailed documentation on two-stroke fuel system diagnosis, check our manual on carburetor tuning parameters, and review procedures for gearbox bevel gear maintenance.
How to Read and Apply an Echo Weed Eater Parts Diagram for Repairs
Interpreting an echo weed eater parts diagram efficiently requires a structured mechanical approach. Exploded diagrams use reference callout numbers (e.g., item 1, item 2) that correlate with an index table detailing the exact manufacturer part numbers, descriptions, and quantities per unit. Follow this four-phase methodology when utilizing a diagram schematic for repair operations:
- Locate Model and Serial Indexing: Trimmer components vary by production year and serial number breaks. Always locate the identification tag on the crankcase or fan housing (e.g., SRM-225 S/N: T89414001001 to T89414999999). Match this exact serial range to the corresponding schematic.
- Map the Exploded Subassembly: Locate the specific system requiring repair—such as the fuel tank grommet assembly. Trace line indicators to verify the correct orientation of components like washers, check valves, and retaining clips.
- Identify Stack Order and Hardware Specifications: Exploded views display the strict assembly sequence. For instance, when servicing the centrifugal clutch, the diagram illustrates the exact order of wave washers, clutch shoes, stepped bolts, and the outer drum bearing.
- Cross-Reference Torque Values and Chemical Sealants: Factory diagrams often include callout flags for fastener torque, thread locker application (Loctite 242/243), or specialized grease application points.
The arbor bolt securing the lower gearcase to the trimmer head utilizes Left-Hand (LH) threads to prevent backing off during counter-clockwise rotation. Turning this bolt clockwise loosens the assembly, while counter-clockwise tightens it. In addition, exercise extreme caution when disassembling recoil starter springs; contained spring tension can cause sudden mechanical release.
Diagnosing Mechanical Failures Using Trimmer System Blueprints
When troubleshooting engine performance issues, physical inspection combined with schematic review allows technicians to pinpoint root causes quickly. Air leaks, fuel delivery blocks, drive binding, and loss of cylinder compression present distinct technical symptoms that correlate directly with structural component failures.
1. Fuel Delivery Failure and Engine Flooding
If the engine cranks but fails to start, verify the fuel line routing against the diagram configuration. The clear line serves as the prime line, the black line acts as the main fuel suction feed equipped with an internal filter, and the orange/red line acts as the vapor return line. A misplaced check valve or degraded tank grommet (Part #V137000030) will allow air intrusion, preventing the Zama diaphragm pump from pulling fuel. Check the carburetor metering lever height using a Zama ZT-1 gauge; an improperly set metering lever starves the engine or causes continuous crankcase flooding.
2. Persistent Trimmer Head Rotation at Idle
If the cutting head spins while the engine idles at standard baseline RPM (2,800–3,200 RPM), the fault lies within the centrifugal clutch system schematic. Reference the clutch drum layout to inspect the dual extension springs (Part #V451000170). Stretched, fatigued, or broken clutch springs eliminate initial tension, allowing the clutch shoes to drag against the drum housing at lower shaft speeds. Clean all clutch friction surfaces with brake cleaner to remove oil contamination from crankcase seal weeping.
3. Loss of Compression and Crankcase Air Leaks
Two-stroke engines require absolute crankcase sealing to create primary compression for fuel scavenging. If the engine experiences erratic high-RPM runaway or refuses to hold a low idle, perform a crankcase pressure test at 5 PSI (0.34 bar) for 30 seconds. Referring to the cylinder/crankcase blueprint, inspect the double-lip oil seals installed on the PTO and flywheel sides of the crankshaft. Damaged crankcase gaskets (Part #V100000160) or scored cylinder walls necessitate immediate replacement of the piston ring set and top-end cylinder body.
Echo Weed Eater Parts Diagram Technical FAQ and Service Specifications
What Spark Plug and Gap Settings are Specified in the Echo Parts Schematic?
Most modern Echo string trimmers (such as the SRM-225 and PAS-225 series) specify an NGK BPM8Y or CMR7H resistor spark plug. Manufacturer specifications dictate a precise electrode gap of 0.024 to 0.028 inches (0.6 to 0.7 mm). Tighten the spark plug into the aluminum cylinder head to a torque value of 110–150 in-lbs (12.5–17.0 Nm). Never cross-thread the plug into the cylinder bore.
How Do You Properly Route Fuel Lines According to the Fuel Tank Diagram?
According to the OEM fuel tank blueprint, the three-hole rubber grommet accepts three distinct lines: the black fuel line connects from the weighted tank filter to the straight fitting on the carburetor (inlet); the clear line routes from the carburetor purge bulb elbow back to the tank; and the vent line mounts to a tank check valve capped with a plastic shield. Ensuring proper line diameter (typically 3mm x 5mm vitreous fuel tubing) prevents vacuum locks and fuel leaks.
What Type of Lubricant is Required for the Gear Housing Layout?
The lower bevel gear housing layout requires high-temperature, lithium-based gear grease specifically formulated for high-speed small engine gearcases (such as Echo Power Blend Gear Grease). Remove the location plug bolt on the side of the gearbox casing every 50 operating hours and pump in grease until clean lubricant pushes through the arbor cavity. Do not overfill, as excessive hydrostatic pressure can blow out the internal lip seals.
How Do You Adjust the Carburetor Metering Lever Using the Assembly Schematic?
During a Zama or Walbro carburetor rebuild, place the metering lever onto its pivot pin along with the metering spring and retaining screw. Referencing the carburetor exploded view, place a specialized metering gauge across the carburetor body casting face. The control arm of the lever should just contact the gauge edge ( flush with the body casting face on most Zama RB series carbs). Bending the lever tab slightly adjusts the height to prevent engine lean-out or fuel overflowing.
What is the Correct Procedure for Replacing the Recoil Starter Spring Assembly?
Refer to the starter system structural diagram to locate the recoil rope rotor, drive pawls, return spring cassette, and housing case. Wear safety eye protection before unscrewing the central retaining screw. If the spiral recoil spring has dislodged from its housing cassette, carefully wind it counter-clockwise into the outer housing channel from the perimeter inward, ensuring the outer hook engages the housing recess before re-engaging the rope rotor assembly and setting preload turns.
Step-by-Step Guide to Understanding the Echo Weed Eater Parts Diagram
Identify – Locate the specific Echo model and serial number on the engine shroud before consulting the parts diagram.
Locate – Find the target component group in the schematic, such as the carburetor layout, clutch assembly, or cutting head gear box.
Reference – Cross-reference exploded callout numbers with the parts list to confirm hardware stack order and exact replacement part numbers.
Connect/Route – Reassemble components per the schematic configuration, matching primary fuel lines and return ports precisely to prevent vapor lock.
Verify – Torque fasteners to manufacturer specifications and rotate the drive shaft manually to ensure proper engagement without mechanical binding.
Troubleshoot – If the unit fails to idle or spin smoothly, check the diagram to ensure gaskets, thrust washers, and diaphragms are installed correctly.
