EFI Return Style Fuel System Diagram: Component Breakdown & Troubleshooting 2026
A return-style fuel system routes excess fuel from the engine back to the fuel tank via a fuel return line, maintaining consistent pressure at the fuel rail. The fuel pressure regulator, often near the rail or tank, bleeds off surplus fuel, preventing vapor lock and ensuring a stable fuel supply for optimal engine performance.
📌 Key Takeaways
- Fuel pressure in a return-style system is typically regulated between 40-60 PSI by the fuel pressure regulator, ensuring consistent supply to the injectors.
- Identifying the fuel return line and high-pressure fuel pump (HPFP) is crucial for distinguishing return vs. returnless systems on the diagram.
- Always relieve fuel system pressure before disconnecting any fuel lines to prevent fuel spray and potential fire hazards.
- The most common failure point is a clogged fuel filter or a failing fuel pump, leading to low fuel pressure and poor engine performance.
- Complex issues involving the injection pressure regulator or HPFP diagnostics often require specialized tools and professional expertise due to high pressures.
This detailed analysis demystifies the intricacies of a common rail, return style fuel system diagram found in modern diesel engines, specifically focusing on the Cummins ISM/ISX engine series from approximately 2004-2017. Understanding this system is paramount for accurate diagnosis and efficient maintenance. The accompanying diagram visually outlines the complex pathways and critical components, enabling technicians to trace fuel flow, identify pressure regulation points, and troubleshoot performance issues effectively. Mastering this layout is key to preventing costly downtime and ensuring optimal engine operation.
FUEL SYSTEM COMPONENTS BREAKDOWN

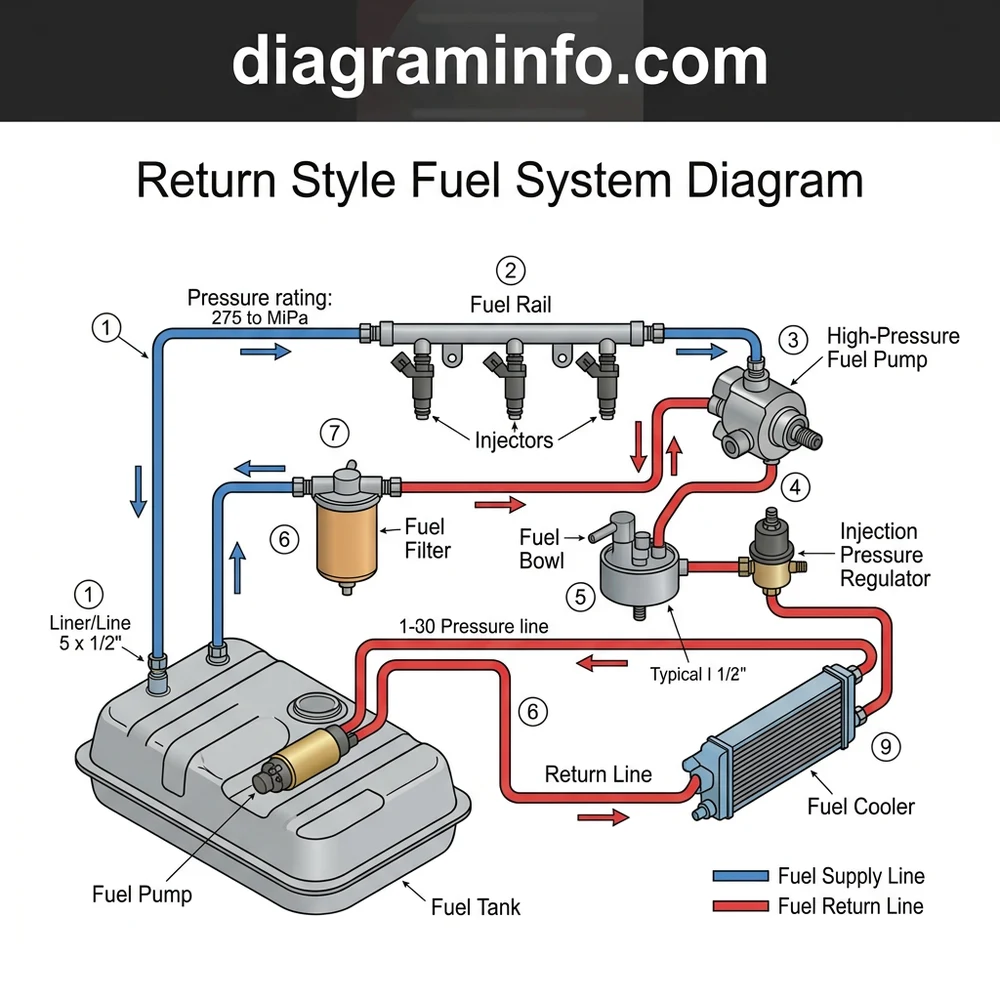

The return style fuel system diagram illustrates a sophisticated network designed to deliver precisely pressurized and filtered fuel to the engine’s injectors, while actively managing excess fuel and heat. Each component plays a vital role in this intricate dance of pressure, filtration, and flow.
- Fuel Tank: The primary reservoir for diesel fuel. It often includes an in-tank fuel pump in some configurations, though in many heavy-duty applications, a separate lift pump is utilized.
- Fuel Heater: Positioned before the primary filter, the fuel heater prevents fuel gelling in cold temperatures by warming the fuel, ensuring consistent flow and pump lubrication.
- Fuel Filter/Water Separator (Primary): This initial filtration stage removes larger particulates and, critically, separates water from the diesel fuel to prevent corrosion and damage to downstream components. Many designs incorporate a sight glass and a drain valve for water removal.
- Primer Pump: A manual or electric pump, often located near the fuel filter housing, used to prime the system after filter changes or fuel system component replacement, removing air from the lines. This is crucial for restarting the engine.
- Fuel Lift Pump (Low Pressure Fuel Pump): Responsible for drawing fuel from the tank, pressurizing it to a lower, consistent pressure (typically 70-130 PSI for this system), and delivering it to the high pressure fuel pump (HPFP).
- Fuel Cooler: Located on the fuel return line path, this component dissipates heat absorbed by the fuel from the engine block and HPFP, returning cooler fuel to the tank. This is vital for maintaining fuel density and extending pump life.
- Fuel Filter (Secondary): A finer filter element positioned after the lift pump and before the HPFP, removing smaller particulates missed by the primary filter, protecting the sensitive HPFP and injectors.
- Fuel Bowl: Often integrated into the filter housing, this provides a reservoir of filtered fuel for the HPFP. Some systems may not have a distinct ‘fuel bowl’ but achieve similar functionality through integrated filter designs.
- High Pressure Fuel Pump (HPFP): This is the heart of the common rail system, compressing fuel from lift pump pressure to extremely high pressures (up to 29,000 PSI or more) required for direct injection. It delivers fuel to the common rail.
- Fuel Pressure Limiting Valve (FPLV): A safety valve located on the common rail, designed to open and vent fuel back to the return line if rail pressure exceeds a predetermined maximum, protecting system components from over-pressurization.
- Injection Pressure Regulator (IPR) / Fuel Pressure Control Valve (FPCV): Electronically controlled, this valve (often located on the HPFP or common rail) precisely meters the amount of fuel entering the high-pressure side or being released from the rail, controlling common rail pressure.
- Common Rail: A high-pressure accumulator that stores fuel at a constant, electronically controlled pressure, supplying it uniformly to all fuel injectors.
- Fuel Injectors: Electronically actuated devices that spray atomized fuel directly into the combustion chambers at precise timings and quantities. Each injector has a small internal return path for leakage fuel.
- Fuel Return Line: This line collects excess fuel from the common rail (via the IPR/FPLV), leakage fuel from the injectors, and sometimes overflow from the HPFP, channeling it back to the fuel tank, often via the fuel cooler. This system is defined by its continuous circulation and return of fuel, which helps cool the HPFP and regulate pressure.
On many Cummins ISX/ISM engines, the HPFP (e.g., Bosch CP3/CP4) not only generates high pressure but also features an integrated metering unit (similar to an IPR) that regulates the amount of fuel entering the high-pressure pumping elements, thus controlling rail pressure. The fuel cooler’s position and size are critical for mitigating thermal degradation of the fuel and pump components, especially under heavy load conditions where fuel circulation is maximized.
COMMON FAILURE POINTS & SYMPTOMS
Understanding potential failure points within the return style fuel system diagram is critical for effective diagnostic strategies. Early detection of symptoms can prevent cascading damage and costly repairs.
- High Pressure Fuel Pump (HPFP):
- Symptom: Low rail pressure codes (e.g., P0087), hard starting (especially cold), lack of power under load, excessive fuel dilution in engine oil.
- Diagnosis: Monitor rail pressure with a diagnostic scan tool (e.g., Cummins INSITE) during cranking and various RPMs. Compare actual pressure to desired pressure. A manual fuel pressure gauge can verify lift pump output to the HPFP. Inspect fuel filter for metallic debris, indicating internal HPFP wear.
- Injection Pressure Regulator (IPR) / Fuel Pressure Control Valve:
- Symptom: Erratic rail pressure, engine stalling, no start, rough idle, P0088 (high rail pressure) or P0087 (low rail pressure) codes, depending on failure mode (stuck open or closed).
- Diagnosis: Monitor IPR/FPCV duty cycle and rail pressure on a scan tool. A rapidly fluctuating or stuck-high/low duty cycle with corresponding incorrect rail pressure often indicates a faulty valve. Occasionally, contaminated fuel can cause physical sticking of the spool valve.
- Fuel Filter/Water Separator (Clogged):
- Symptom: Reduced engine power, stumbling under load, hard starting, lift pump working harder (indicated by higher amperage draw or unusual noise), engine derate.
- Diagnosis: Monitor fuel pressure before and after the filter with pressure gauges. A significant pressure drop across the filter indicates clogging. Visually inspect the filter element for debris.
- Fuel Lift Pump (Weak/Failing):
- Symptom: Low fuel pressure to the HPFP, hard starting, air in fuel system (after priming), P0087 (low rail pressure) secondary to insufficient supply.
- Diagnosis: Use a low-pressure fuel gauge to measure output pressure and flow volume at the HPFP inlet. Manufacturer specifications for typical Cummins ISM/ISX lift pump pressure are generally 70-130 PSI. Consult our Fuel Pressure Troubleshooting Guide for detailed procedures.
- Fuel Return Line Restriction/Leakage:
- Symptom: Restriction can lead to abnormally high rail pressure, IPR overwork, or even FPLV activation. Leakage results in fuel odor, visible drips, and potential air intrusion, leading to hard starting or stalling.
- Diagnosis: Visually inspect the entire fuel return line for chafing, cracks, or loose connections. A restriction can be identified by measuring return line pressure, which should be relatively low (e.g., < 10 PSI).
- Fuel Injectors (Leaking/Sticking):
- Symptom: Excessive black smoke, misfires, rough idle, poor fuel economy, increased engine oil level due to fuel dilution, P020x series codes.
- Diagnosis: Perform a cylinder contribution test with a scan tool. A manual injector return flow test can identify excessive leakage. For specific issues, consult our guide on Diesel Injector Diagnostics.
REPAIR & REPLACEMENT STEPS: High Pressure Fuel Pump (HPFP) Replacement
Replacing the High Pressure Fuel Pump (HPFP) is a critical procedure that demands precision and adherence to OEM specifications. This process is applicable to many Cummins ISX/ISM engines, which commonly utilize Bosch CP3 or CP4 style pumps. This example focuses on a typical Cummins ISX application.
Always wear appropriate PPE (safety glasses, gloves). Diesel fuel is highly flammable, and the system operates under extreme pressure. Ensure the battery is disconnected before beginning work to prevent accidental engine cranking or electrical shorts. Depressurize the system according to manufacturer procedures.
- System Depressurization:
- With the engine off, disconnect the battery.
- Slowly loosen the fuel supply line at the HPFP to relieve residual low-side pressure. For high-pressure rail depressurization, some OEM procedures may require using a specialized scan tool to cycle the IPR/FPCV or loosening a high-pressure line at the rail (exercise extreme caution, as pressures can still be very high).
- Access and Disconnection:
- Drain engine coolant if the HPFP is water-cooled or obstructs coolant lines.
- Remove any accessory drives, brackets, or engine components obstructing access to the HPFP.
- Disconnect electrical connectors from the IPR/FPCV on the HPFP (typically a 2-pin connector, often with a yellow and green wire for signal/return).
- Disconnect the low-pressure fuel supply line from the lift pump to the HPFP inlet.
- Disconnect the high-pressure fuel line from the HPFP outlet to the common rail. Ensure to cap all open fuel lines and ports immediately to prevent contamination.
- Disconnect any fuel return lines originating from the HPFP itself.
- HPFP Removal:
- Remove the mounting bolts securing the HPFP to the engine block or timing cover. These are often Torx or hex head bolts.
- Carefully withdraw the HPFP from its mounting bore. Be mindful of the drive gear connection. In some designs, the HPFP is gear-driven from the camshaft or timing gear train and may require specific alignment during removal/installation.
- Installation of New HPFP:
- Inspect the new HPFP for any shipping damage. Ensure all O-rings and seals are correctly seated and lubricated with clean diesel fuel.
- Carefully align the HPFP drive gear (if applicable) and slide the new pump into position.
- Install the mounting bolts, tightening them to manufacturer specifications.
- Reconnection and Final Checks:
- Reconnect all fuel lines, ensuring new sealing washers or O-rings are used on all high-pressure fittings.
🔧 Specification
High-pressure line fittings: Torque to 30-35 Nm (22-26 ft-lbs). HPFP mounting bolts: Torque to 50-55 Nm (37-41 ft-lbs) in a crisscross pattern. Always verify with OEM service manual for specific engine model and year.
- Reconnect electrical connectors.
- Replace any removed engine components or accessories.
- Reconnect battery.
- Reconnect all fuel lines, ensuring new sealing washers or O-rings are used on all high-pressure fittings.
- Priming and Leak Test:
- Prime the fuel system using the manual or electric primer pump until resistance is felt or fuel flows freely from the bleed valve (if equipped), indicating air has been purged. Some systems automatically prime when the key is turned to the ON position.
- Start the engine and immediately check for any fuel leaks around the HPFP and all reconnected lines. Monitor common rail pressure and IPR/FPCV duty cycle via a scan tool to ensure proper function. Minor leaks on the fuel return line are less critical but still require immediate attention.
For a deeper dive into HPFP specifics and potential rebuilds, consult our article on High Pressure Fuel Pump Overhaul. Always verify part numbers, such as Bosch 0445020XXX for specific HPFP models, against the engine serial number (ESN) for correct application.
FAQ
What is the primary function of the fuel return line in a return style fuel system?
The fuel return line serves multiple critical functions. Primarily, it routes excess fuel from the common rail (regulated by the injection pressure regulator), leakage from the injectors, and often bypass fuel from the high pressure fuel pump (HPFP) back to the fuel tank. This constant circulation helps regulate common rail pressure and, crucially, cools the fuel. Fuel absorbs significant heat from the engine and HPFP, and returning this heated fuel through a fuel cooler before it re-enters the tank prevents thermal degradation of the fuel and protects the fuel system components, enhancing their longevity.
How does a clogged fuel filter or water separator affect engine performance?
A clogged fuel filter or water separator directly restricts the flow of fuel to the fuel lift pump and subsequently to the high pressure fuel pump (HPFP). This restriction causes a significant pressure drop on the suction side, forcing the lift pump to work harder, potentially leading to premature failure. Symptoms include reduced engine power, hesitation under load, hard starting, and in severe cases, the engine may derate or shut down completely due to insufficient fuel supply to maintain desired rail pressure. Regular maintenance, as outlined in our Diesel Fuel Filter Maintenance Best Practices, is essential.
Can a faulty injection pressure regulator (IPR) cause hard starting or a no-start condition?
Absolutely. The injection pressure regulator (or Fuel Pressure Control Valve) is pivotal in precisely controlling the high pressure within the common rail. If the IPR fails to maintain adequate pressure, typically due to being stuck open (allowing too much fuel to bypass) or experiencing electrical faults, the engine’s control module will not allow the injectors to fire. Modern diesel engines require a minimum rail pressure (often 2,000-3,000 PSI) before injection can commence, making a functional IPR essential for starting.
What role does the primer pump play in system maintenance?
The primer pump, often a manual hand pump, is invaluable after any fuel system component replacement or filter service. Its primary role is to purge air from the fuel lines and system components (like the fuel filter housing or fuel bowl) before attempting to start the engine. Introducing air into the high-pressure system can lead to difficult starting, rough running, and in some cases, can damage the HPFP if it’s run dry. Proper priming ensures that the HPFP receives a continuous supply of fuel, preventing air cavitation and ensuring rapid restart.
Step-by-Step Guide to Understanding the Efi Return Style Fuel System Diagram: Component Breakdown & Troubleshooting 2026
Identify – Locate the fuel tank, fuel lines (supply and return), and the fuel rail on the diagram.
Locate – Pinpoint the fuel pump (low and high pressure, HPFP if applicable) and the fuel pressure regulator within the system.
Reference – Use the diagram to trace the fuel flow path from the tank, through the fuel filter, to the engine, and back via the fuel return line.
Connect/Route – Ensure proper routing of supply and return lines, checking for correct connections to the fuel bowl (if present) and the injection pressure regulator.
Verify – Confirm the location of key sensors and components, such as the high-pressure fuel pump (HPFP), and their connection points.
Troubleshoot – Use the diagram to isolate sections for pressure testing or component inspection if issues like low fuel pressure or leaks occur in the return style fuel system.
Frequently Asked Questions
What are the main components of the return style fuel system diagram?
The main components typically include the fuel tank, low-pressure fuel pump, fuel filter, fuel lines (supply and return), fuel rail, fuel injectors, and the fuel pressure regulator. For direct injection, a high pressure fuel pump (HPFP) and sometimes a fuel bowl are also present.
What are symptoms of a failing return style fuel system diagram pump?
Symptoms of a failing fuel pump include difficulty starting, engine misfires, loss of power under acceleration, and a whining noise from the fuel tank. These issues arise from insufficient fuel pressure delivery to the engine, impacting overall performance.
How do I diagnose a fuel leak in return style fuel system diagram?
To diagnose a fuel leak, visually inspect all fuel lines, connections, and the fuel tank for wet spots or fuel smell. Pay close attention to the fuel return line and around the fuel rail. A fuel pressure test can also reveal drops indicating leaks.
What is the fuel pressure spec for return style fuel system diagram?
Typical fuel pressure specifications for a return-style system range from 40-60 PSI at the fuel rail, regulated by the fuel pressure regulator. Always consult your specific vehicle’s service manual for exact manufacturer specifications to ensure accuracy.
How long does return style fuel system diagram fuel pump last?
A return style fuel system pump generally lasts between 100,000 to 150,000 miles, but this can vary based on fuel quality, driving conditions, and maintenance. Regularly replacing the fuel filter can significantly extend its lifespan.
Can I replace the return style fuel system diagram fuel filter myself?
Yes, replacing a return style fuel system fuel filter is often a DIY task for experienced mechanics. Ensure you relieve fuel pressure, use appropriate tools, and replace it with the correct filter type, paying attention to flow direction markings for proper function.
