Mercedes C300 Serpentine Belt Diagram: Proper Routing 2026
The 2010 Mercedes C300 serpentine belt routing typically involves the crankshaft, alternator, power steering pump, A/C compressor, and idler pulley. The belt tensioner maintains proper tension. Always refer to the diagram sticker under the hood for exact routing, usually a mirrored image of the engine’s pulley layout.
📌 Key Takeaways
- Always cross-reference the diagram with the sticker under the hood; slight variations can exist by engine variant (e.g., M272/M276).
- Identify the automatic belt tensioner and all idler pulleys (smooth and grooved) before attempting removal or installation.
- Ensure proper tensioner operation; a failing tensioner can cause belt slippage, noise, or premature belt wear.
- Common mistake: routing the belt incorrectly around the water pump or idler pulleys, leading to immediate system malfunction or belt shredding.
- Seek professional help if the tensioner is seized, pulleys are damaged, or if you cannot correctly route the belt and maintain tension after multiple attempts.
Understanding the precise routing of the serpentine belt on your 2010 Mercedes C300 (W204 chassis, M272 engine) is fundamental for any maintenance or replacement task. This multi-ribbed belt drives critical auxiliary components, including the alternator, power steering pump, air conditioning compressor, and water pump. Correct belt routing path is paramount to ensure proper function, prevent premature wear on components, and avoid potential engine damage. This comprehensive guide provides a detailed pulley diagram analysis, part numbers, and step-by-step instructions for technicians and advanced DIYers.
Always ensure the engine is off and cool before attempting any work on the serpentine belt or related components. Disconnect the negative battery terminal to prevent accidental starts or electrical shorts during the procedure.

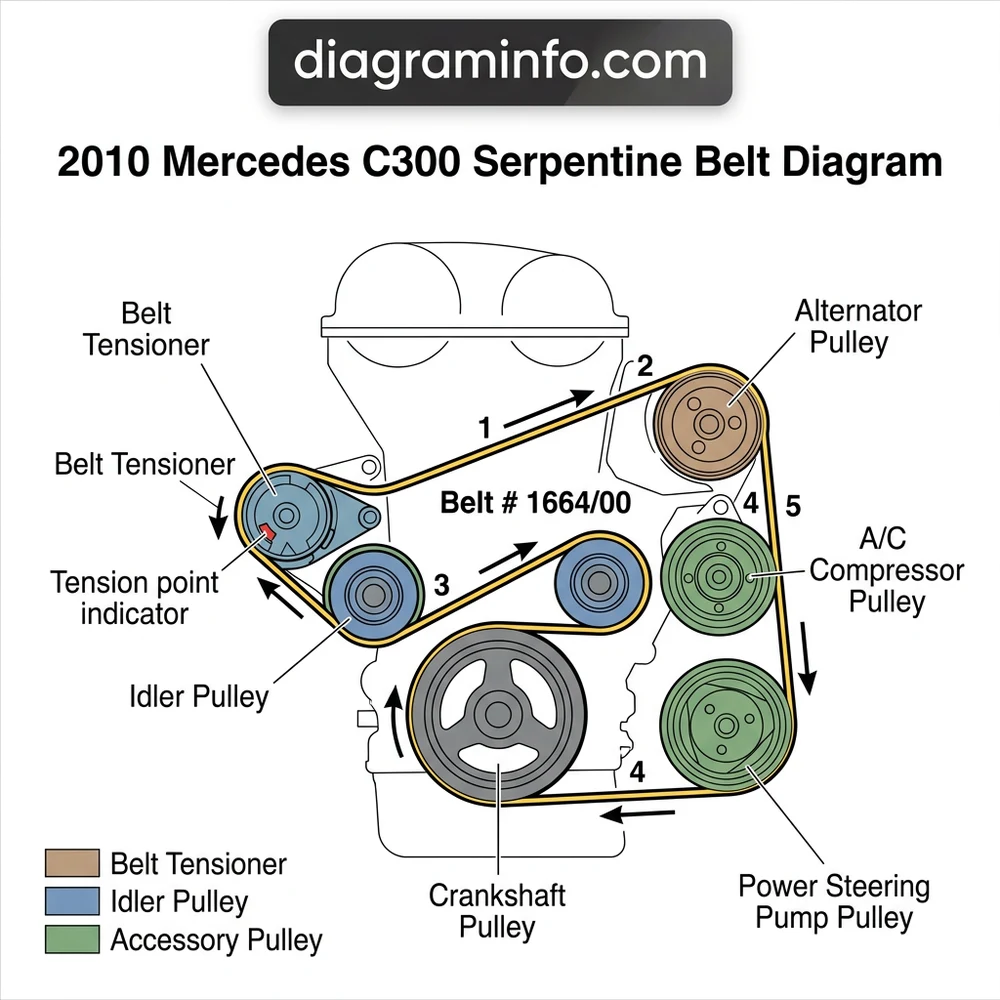

DIAGRAM_PLACEHOLDER
BELT PART NUMBERS
Selecting the correct serpentine belt for your 2010 Mercedes C300 is crucial for longevity and optimal performance. While aftermarket options exist, manufacturer specifications often recommend OEM or equivalent quality parts. The M272 engine typically uses a single serpentine belt for all accessory drives.
| Belt Type | OEM Part # | Dimensions (Ribs x Length mm) | Compatible Models (M272 Engine) |
|---|---|---|---|
| Serpentine Drive Belt | A0019931496 (Mercedes-Benz) | 6PK x 2400 mm | C300 (W204), C350 (W204), E350 (W211, W212), CLK350 (W209), ML350 (W164), R350 (W251), SLK350 (R171) with M272 Engine |
| Serpentine Drive Belt | Continental 6PK2400 | 6PK x 2400 mm | Common aftermarket equivalent |
| Serpentine Drive Belt | Gates K060945 (equivalent to 6PK2400) | 6PK x 2400 mm | Common aftermarket equivalent |
Always cross-reference the belt part number with your vehicle’s VIN or a trusted Mercedes-Benz parts catalog to confirm the exact fitment. Minor variations can occur even within the same model year depending on specific options or market.
For information on diagnosing specific auxiliary component issues, consult our guide on M272 Engine Component Diagnostics.
STEP-BY-STEP ROUTING INSTRUCTIONS
Properly routing the serpentine belt on your 2010 Mercedes C300 M272 engine requires attention to detail, as incorrect installation can lead to component malfunction or belt damage. Refer to the pulley diagram for visual guidance throughout this procedure. This detailed belt routing path applies to the standard M272 engine configuration.
- Identify the Pulleys: Before beginning, familiarize yourself with the positions of the primary pulleys. From bottom to top, left to right (as viewed from the front of the vehicle):
- Crankshaft Pulley (1): The largest pulley at the very bottom, directly driving the belt.
- AC Compressor Pulley (2): Located on the lower passenger side.
- Idler Pulley (Smooth) (3): A small, smooth idler pulley typically located above the AC compressor.
- Power Steering Pump Pulley (4): Located on the upper passenger side.
- Alternator Pulley (5): Located on the upper driver’s side.
- Water Pump Pulley (6): Centrally located, usually just below the alternator.
- Belt Tensioner Pulley (Ribbed) (7): Located towards the top-center, typically with a square drive opening for a breaker bar. This is the belt tensioner.
- Idler Pulley (Ribbed) (8): Another idler pulley, often located above the water pump and below the tensioner, sometimes ribbed depending on its position in the routing.
- Release Tension: Using a long breaker bar with the appropriate size socket (often 17mm or 19mm) inserted into the square drive of the belt tensioner (7), rotate the tensioner clockwise (towards the passenger side) to relieve tension on the belt. This allows for removal of the old serpentine belt.
- Initial Placement on Crankshaft: Begin by sliding the new OEM belt onto the crankshaft pulley (1). Ensure the ribs of the belt engage correctly with the pulley grooves.
- Route to AC Compressor: From the crankshaft (1), guide the belt over the AC compressor pulley (2). The ribbed side of the belt should be in the grooves.
- Under Idler Pulley (Smooth): Continue routing the belt under the smooth idler pulley (3). Ensure the smooth back of the belt rides on this pulley.
- Over Power Steering Pump: Bring the belt up and over the power steering pump pulley (4). This is typically a ribbed pulley.
- Over Alternator: Next, route the belt over the alternator pulley (5). This is also a ribbed pulley.
- Around Water Pump: The belt then goes under the water pump pulley (6). The smooth back of the belt usually rides on this pulley.
- Over Ribbed Idler Pulley: Guide the belt over the ribbed idler pulley (8), ensuring the ribs engage.
- Final Routing to Tensioner: With the tensioner still released (held by the breaker bar), carefully guide the remaining slack of the belt around the belt tensioner pulley (7). This is the final pulley to engage.
- Release Tensioner: Slowly release the tensioner, allowing it to apply pressure to the new belt. Double-check that the belt is seated correctly in all grooves on every ribbed pulley and is riding smoothly on all smooth pulleys.
A common error is reversing the belt direction on a smooth idler pulley, leading to premature belt wear. Always verify the smooth side of the belt contacts smooth pulleys and the ribbed side contacts ribbed pulleys, as indicated by the pulley diagram. Should you need to replace the belt tensioner, refer to our detailed procedure for Mercedes C300 Belt Tensioner Replacement.
TENSION & ADJUSTMENT NOTES
The 2010 Mercedes C300, like most modern vehicles, utilizes an automatic belt tensioner to maintain the correct belt tension. This system is designed to automatically adjust for minor belt stretch and wear, eliminating the need for manual adjustment. The tensioner mechanism typically consists of a spring-loaded arm and pulley assembly.
To inspect the tension, visually check the alignment mark on the belt tensioner body against the indicator on the arm. Manufacturer specifications indicate a specific range for correct tension. If the indicator falls outside this range, it suggests the tensioner itself is failing or the serpentine belt is severely worn or stretched beyond its operational limit. A properly functioning automatic tensioner will keep the belt taut without excessive looseness or extreme rigidity.
Common issues related to belt tension on the M272 engine include:
- Squealing or Chirping: Often indicative of insufficient tension, a worn belt part number, or misaligned pulleys. If the tensioner indicator is out of range, the tensioner spring may be weak.
- Belt Slippage: Can lead to reduced efficiency or failure of accessory components like the alternator or power steering pump. This is critical for systems like the water pump; improper tension could affect engine cooling.
- Vibration or Rattle from Tensioner: Suggests internal wear of the tensioner assembly, such as a worn bearing in the pulley or a failing spring/damper.
If you observe these symptoms or the tensioner indicator is out of specification, it is recommended to replace the entire belt tensioner assembly, not just the pulley. Over-tensioning is not a concern with automatic tensioners unless an incorrect belt size has been installed, which can lead to excessive load on pulley bearings. Always use the specified OEM belt or equivalent for correct fitment with the automatic tensioner system.
According to OEM specifications for the M272 engine, the automatic belt tensioner is designed for a service life typically exceeding 80,000 miles. However, it should be inspected with every serpentine belt replacement or if unusual noises are present.
FAQ
What are the signs that my 2010 Mercedes C300 serpentine belt needs replacing?
Key indicators include visible cracks, fraying, glazing (a shiny, hardened appearance on the belt’s surface), chunks missing from the ribs, or excessive squealing, especially during cold starts or when turning the steering wheel. Any loss of accessory function, such as dimming lights (alternator), heavy steering (power steering), or engine overheating (water pump), could also point to a failing serpentine belt or belt tensioner. Regular inspection of the belt routing path and its condition is part of routine maintenance.
Can I drive my Mercedes C300 with a broken serpentine belt?
Absolutely not. A broken serpentine belt means critical components like the alternator (for charging the battery), water pump (for engine cooling), and power steering pump are no longer functioning. Driving without these will quickly lead to a dead battery, an overheated engine, and a complete loss of power steering, risking severe engine damage and an unsafe driving condition. It’s imperative to stop driving immediately if the belt breaks.
What tools are required to replace the serpentine belt on a 2010 C300?
For a 2010 Mercedes C300 (M272 engine), you will typically need a long breaker bar (24-30 inches) and a socket (usually 17mm or 19mm) that fits the square drive on the belt tensioner. A flashlight is also helpful for inspecting the pulley diagram and ensuring proper belt routing path, especially in tight engine bay areas. No specialized Mercedes tools are usually required for just the belt replacement itself, assuming the tensioner is functional.
How often should the serpentine belt be inspected or replaced?
Manufacturer recommendations for the 2010 Mercedes C300 generally suggest inspecting the serpentine belt every 30,000 miles or at every major service interval. Replacement is typically recommended around 60,000 to 100,000 miles, or sooner if visible signs of wear are present. Factors like extreme temperatures, frequent short trips, and contamination from oil or coolant can accelerate belt degradation. Regular inspection of the belt routing path and its condition is crucial. Proper maintenance of your vehicle’s cooling system, including regular checks of the water pump, is outlined in our article on Mercedes Cooling System Maintenance.
Step-by-Step Guide to Understanding the Mercedes C300 Serpentine Belt Diagram: Proper Routing 2026
Identify – Locate the serpentine belt diagram sticker, usually on the radiator shroud or hood, and identify all pulleys and the belt tensioner.
Locate – Position a tensioner wrench (or appropriate socket) on the automatic tensioner’s pivot bolt to relieve belt tension.
Reference – Carefully remove the old belt, noting the exact belt routing path as indicated by the diagram or by taking a photo.
Connect/Route – Route the new serpentine belt around all pulleys (crankshaft, alternator, A/C, power steering, idlers) according to the diagram.
Verify – Double-check that the belt is correctly seated in all pulley grooves and that no part of the belt is twisted or misaligned.
Troubleshoot – Start the engine briefly to ensure the belt tracks properly and without unusual noise; if not, re-check routing and tensioner function.
Frequently Asked Questions
What is the part number for the 2010 mercedes c300 serpentine belt diagram?
While an exact OEM part number (e.g., A0019931896 for M272 engine) needs verification by VIN, common aftermarket equivalents are often listed as Gates K060875 or Dayco 5060875. Always confirm against your vehicle’s specifications as belt lengths can vary slightly based on engine accessories like A/C.
How do I route the 2010 mercedes c300 serpentine belt diagram correctly?
Refer to the specific belt routing path diagram, typically found on a sticker under the hood. Generally, it winds around the crankshaft, alternator, power steering, A/C compressor, and idler pulleys, with the automatic tensioner providing proper slack for installation. The pulley diagram is crucial for correct placement.
What size belt does 2010 mercedes c300 serpentine belt diagram use?
For the 2010 Mercedes C300 (W204 chassis, likely M272 engine), the serpentine belt is typically a 6-rib, 2225mm (approximately 87.6 inches) effective length. However, always confirm the exact size by consulting your owner’s manual or a parts catalog with your VIN, as variations can occur.
How do I adjust belt tension on 2010 mercedes c300 serpentine belt diagram?
The 2010 Mercedes C300 utilizes an automatic belt tensioner, meaning manual adjustment isn’t required. To relieve tension for removal/installation, use a wrench on the tensioner’s pivot point to rotate it and insert a pin to hold it open. The tensioner automatically maintains optimal tension during operation.
What causes the 2010 mercedes c300 serpentine belt diagram belt to slip?
Belt slippage often results from a worn or glazed belt, a failing automatic belt tensioner that can’t maintain adequate pressure, or contaminated pulleys (e.g., oil or coolant leaks). Worn idler pulleys or accessory bearings can also cause misalignment, leading to squealing and slippage.
Can I replace the 2010 mercedes c300 serpentine belt diagram belt myself?
Yes, replacing the serpentine belt is a common DIY task for the 2010 Mercedes C300, provided you have the right tools (e.g., tensioner wrench) and the correct belt routing path diagram. Ensure the engine is cool, relieve tension carefully, and double-check routing before starting the engine.
