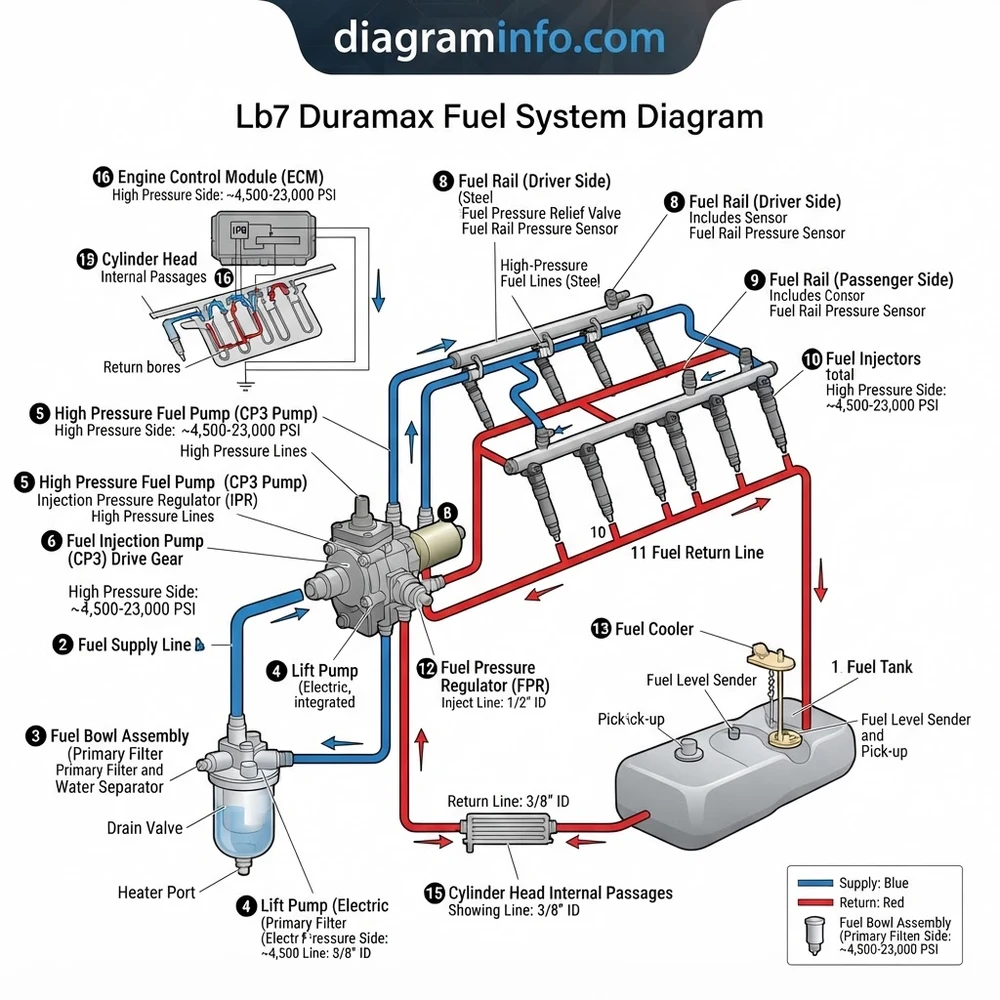

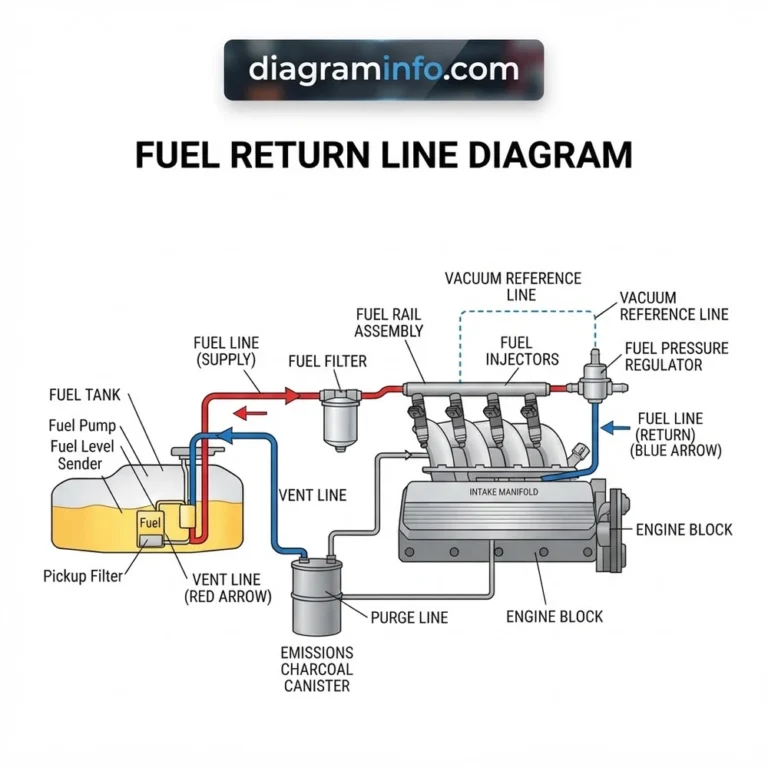

Comprehensive LB7 Duramax Fuel System Diagram Component Breakdown

Understanding the architecture of the lb7 duramax fuel system diagram demands a split-circuit perspective: the vacuum-fed suction side and the high-pressure common-rail side. Because fuel is drawn from the rear tank under negative gauge pressure, any leak in the supply lines introduces air into the fuel matrix rather than leaking diesel externally.

1. Fuel Tank Pickup and Fuel Heater Circuit

The primary supply path originates inside the fuel tank through a non-powered pickup tube equipped with a screen strainer. The fuel passes through steel and quick-connect rubber chassis lines along the frame rail toward the engine bay. Integrated upstream of the main filter assembly is the thermostatic fuel heater. Controlled by an internal bi-metallic switch, the 12V fuel heater element engages when fuel temperatures drop below 46°F (8°C) to melt paraffin wax crystals that cause cold-weather waxing and flow restrictions.

2. Fuel Filter Housing, Primer Pump, and Fuel Bowl

Mounted on the front passenger side of the engine compartment, the filter head assembly serves as the central maintenance point. It integrates four critical sub-components:

• Manual Primer Pump: A top-mounted mechanical diaphragm button used to manually purge air from the vacuum circuit after service.
• Air Bleed Screw: An 11mm plastic or brass screw located on the housing top used to vent trapped air during priming.
• Fuel Filter and Fuel Bowl Interface: A spin-on 2-micron filter medium incorporating a bottom water-in-fuel (WIF) sensor that signals the ECM when water accumulates in the lower fuel bowl section.
• Internal Check Valve: A spring-loaded check ball that prevents fuel from draining back to the tank when the engine is turned off.

3. High Pressure Fuel Pump (HPFP) and Injection Pressure Regulator

The core of the high-pressure supply is the Bosch CP3.2 high pressure fuel pump (HPFP), mounted deep in the engine valley and driven directly by the camshaft gear at a 1:1 ratio. The CP3 incorporates an internal mechanical gear pump (transfer pump) that creates up to 10–12 in-Hg of vacuum to pull fuel from the tank. Directly attached to the rear of the CP3 is the Fuel Pressure Regulator (FPR), or injection pressure regulator. The ECM sends a pulse-width modulated (PWM) signal to this solenoid to meter the exact volume of fuel entering the pump’s three radial pistons, maintaining target fuel rail pressure.

4. Fuel Rails, Internal Injectors, and Fuel Return Line Network

High-pressure fuel exits the CP3 through rigid steel delivery lines into two forged fuel rails—one for each cylinder bank. Mounted on each rail is a high-pressure relief valve (de-rate valve) and a Rail Pressure Sensor (FPR sensor). The fuel rails feed eight Bosch electro-hydraulic fuel injectors. On the LB7 architecture, these injectors are located internal to the cylinder head under the valve covers. Fuel return line assemblies, constructed of internal rigid lines connected via banjo bolts and copper washer crush seals, collect bypass fuel from the injectors and CP3, routing it through an externally mounted air-to-liquid fuel cooler located near the transmission crossmember before returning to the fuel tank.

Tracing Flow Across the LB7 Duramax Fuel System Schematic

When analyzing the lb7 duramax fuel system diagram during diagnostic troubleshooting, tracing the exact direction of fluid movement prevents misdiagnosing low-pressure starvation as a high-pressure pump failure. Fluid dynamics on the LB7 operate across two strict thermal and pressure zones.

During cranking, the internal gear pump within the CP3 high pressure fuel pump creates suction through the fuel filter housing. Fuel passes through the 2-micron spin-on element, clearing the manual primer pump check valve. Once inside the CP3 housing, the fuel lubricates the internal pump cam and plungers. The injection pressure regulator regulates how much fuel enters the high-pressure plungers based on desired rail pressure parameters sent by the Engine Control Module (ECM).

High-pressure fuel is then forced into both fuel rails. The rail pressure sensor monitors system pressure constantly, sending an analog voltage signal back to the ECM (ranging from 0.5V at rest to 4.5V at maximum pressure). If rail pressure exceeds maximum safety parameters (approximately 26,000 PSI), the mechanical relief valve on the fuel rail opens, routing excess fluid directly into the fuel return line. Uninjected bypass fuel from the internal injectors flows through internal balance lines under the valve covers, merges with CP3 housing bypass fluid, passes through the frame-mounted fuel cooler to shed heat built up during high-pressure compression, and drops back into the tank.

Diagnosing High Pressure Fuel Pump and Return Line Failures

Diagnosing operational faults within the LB7 Duramax fuel system requires systematically isolating suction-side vacuum leaks from high-pressure delivery drops. Below are the primary failure modes mapped to symptoms and precise diagnostic protocols.

1. Air Intrusion via Fuel Filter Head or Primer Pump Seal
   • Symptom: Extended crank times, hard starting after sitting overnight, engine stall shortly after ignition, or low-power DTC P0087/P1093.
   • Diagnosis: Install a clear vinyl sight glass line between the fuel filter housing output and the CP3 inlet. Crank the engine. Visible air bubbles indicate air pulling past dried nitrile O-rings in the manual primer pump assembly, a cracked plastic bleed screw, or a degraded fuel bowl seal. If suction vacuum exceeds 5 in-Hg at idle, check for plugged fuel tank pickup screens or squished supply hoses.
2. High Pressure Fuel Pump (CP3 / HPFP) Wear or Metering Solenoid Failure
   • Symptom: Inability to reach target rail pressure under heavy load, severe surging at idle, or engine refusal to start (actual rail pressure remains below 1,500 PSI during cranking).
   • Diagnosis: Unplug the two-wire harness connector from the injection pressure regulator on the rear of the CP3. Unplugging forces the regulator into a full-flow default state. Crank the engine while monitoring scan tool PID Actual Rail Pressure. If rail pressure spikes instantly to maximum (over 20,000 PSI), the CP3 pump mechanics are intact, pointing to an ECM drive circuit or FPR solenoid failure. If pressure fails to build, the internal CP3 plungers or transfer gear pump are worn beyond tolerance. Refer to specialized CP3 pump replacement protocols for bench testing limits.
3. Excessive Injector Body Internal Return Leakage
   • Symptom: Engine starts fine with starter fluid or when warm, but exhibits long crank or no-start conditions cold; fuel dilution in the engine oil pan; elevated balance rates (+/- 4.0 or higher).
   • Diagnosis: Perform a fuel return line balance test. Isolate the main injector return manifold at the back of each cylinder head. Disconnect the return line and direct it into a graduated container. Crank the engine for 15 seconds. If individual bank return flow exceeds 45 mL during a 15-second crank, one or more internal injectors have worn internal ball-and-seat valves, causing high-pressure fuel to bleed off into the fuel return line before it can open the nozzle pop needle. Consult our detailed high-pressure common rail testing procedure for isolate-by-bank instructions.
4. Fuel Cooler Restriction or Return Line Backpressure
   • Symptom: Injector line seals leaking, unexpected injector return hose blow-offs, hot fuel performance degradation.
   • Diagnosis: Connect a low-pressure gauge to the return rail upstream of the fuel cooler. With the engine running at operating temperature, backpressure should not exceed 10–15 PSI. Elevated readings indicate debris accumulation in the return cooler fins or a pinched return line along the frame.
5. Fuel Heater Harness Degradation or Short Circuit
   • Symptom: Blown ECM/IGN fuses, non-functional pre-heating resulting in cold-weather filter waxing and sudden stalls in sub-zero ambient conditions.
   • Diagnosis: Inspect the electrical connector at the fuel filter head housing. Measure resistance across the heater element pins; factory specification calls for 0.8 to 1.5 Ohms. High resistance or open circuit reading indicates a failed thermal element or melted wiring connector requiring socket replacement.

LB7 Duramax Fuel System Primer Pump and Filter Head Rebuild

Because the factory vacuum fuel setup relies heavily on the sealing integrity of the fuel filter housing, rebuilding the manual primer pump and replacing degraded internal O-rings is the standard fix for air-intrusion starting issues. Follow this technical rebuild sequence using standard mechanics tools and a fuel filter housing rebuild kit.

Step 1: System Depressurization and Housing Removal

Ensure the ignition key is OFF. Place a catch pan beneath the front passenger engine side. Disconnect the electrical harnesses from the thermostatic fuel heater at the top of the housing and the Water-In-Fuel (WIF) sensor at the bottom of the fuel bowl. Using quick-disconnect tools and hose pinch pliers, disconnect the rubber supply and outlet fuel lines from the filter head. Remove the two 12mm mounting bolts securing the filter housing bracket to the cylinder head and carefully lift the complete assembly from the engine compartment.

Step 2: Disassembly and Component Inspection

Clamp the filter housing bracket gently in a bench vise equipped with soft jaws. Unscrew the lower WIF sensor from the bottom of the spin-on filter, and spin off the fuel filter element. Using a large socket or strap wrench, remove the top threaded cap of the manual primer pump assembly. Carefully extract the inner coil spring, metal diaphragm plate, and internal rubber seals. Use an 11mm wrench to back out the plastic/brass air bleed screw located on top of the cast aluminium housing.

Step 3: Seal Replacement and Rebuild Specs

Clean all cast aluminum internal passages thoroughly with solvent and compressed air. Inspect the valve seats inside the manual primer chamber for pitting or corrosion. Install new fluorocarbon (Viton) O-rings provided in the rebuild kit across all internal critical seal locations:

• Rebuild Kit Seal 1: Lower center stud adapter seal.
• Rebuild Kit Seal 2: Upper primer button main seal ring.
• Rebuild Kit Seal 3: Inner roll pin check-valve seal.
• Rebuild Kit Seal 4: Replacement air bleed screw O-ring.

Reinstall the internal check ball, spring, diaphragm, and top primer pump cap. Torque the primer pump retainer cap to 89 lb-in (10 Nm). Thread in a new anodized aluminum replacement air bleed screw equipped with a fresh O-ring, torquing gently to hand-tight (max 18 lb-in / 2 Nm) to prevent thread stripping.

Step 4: Filter Installation and Manual System Priming

Apply a thin film of clean diesel fuel or clean engine oil to the seals of a fresh 2-micron fuel filter element. Thread the filter onto the rebuilt filter housing until the gasket contacts the mating base, then tighten an additional 3/4 to 1 full turn by hand. Thread the WIF sensor into the lower fuel bowl section, tightening to 18 lb-in (2 Nm). Mount the complete filter assembly back onto the engine cylinder head bracket and torque the two mounting bolts to 15 lb-ft (21 Nm). Reattach supply hoses, return lines, and electrical connections.

To prime the fuel system:

1. Loosen the top air bleed screw 2 to 3 full turns.
2. Depress the manual primer pump button repeatedly (typically 30–50 strokes) until solid liquid fuel flows out of the bleed screw port without visible air bubbles.
3. Tighten the air bleed screw firmly.
4. Pump the primer button an additional 10–15 times until it feels firm and rigid to press down.
5. Crank the engine. Upon engine fire, inspect all connection points for fuel return leaks or vacuum seepage.

For persistent air-in-line problems, technicians often install an aftermarket electric lift pump along the frame rail. Refer to our Duramax aftermarket lift pump installation guide for positive-pressure conversion specs.
