A Kobalt air compressor parts diagram illustrates the pneumatic and mechanical structure, connecting the motor, pump assembly, pressure switch, check valve, and safety relief valve. It maps air flow from intake filters to the receiver tank and regulator manifold, detailing part numbers and layout for accurate repair and seal replacements.
📌 Key Takeaways
- Pressure switch cut-in and cut-out factory settings operate between 125 and 155 PSI depending on configuration.
- The check valve prevents tank backflow into the pump head assembly when the motor shuts off.
- Safety relief valves require routine manual testing and thread seals using PTFE high-pressure tape.
- Worn pump reed valves and blown head gaskets represent the most common cause of slow pressure build-up.
- Pump assembly overhauls require accurate bolt torque specs, whereas internal electrical faults require professional service.
Navigating a kobalt air compressor parts diagram requires an understanding of mechanical and pneumatic schematics, as well as electrical load pathways. Whether maintaining a portable 8-gallon Kobalt Quiet Tech unit, a 30-gallon belt-drive model, or a 60-gallon stationary two-stage system, referencing an accurate exploded view blueprint ensures correct component identification and precise torque values during overhaul. This technical guide breaks down the core structural architecture, control manifold assemblies, and electrical schematics found across modern Kobalt compressor configurations to streamline service procedures and component replacement.
Kobalt Air Compressor Parts Diagram: Complete Component Breakdown

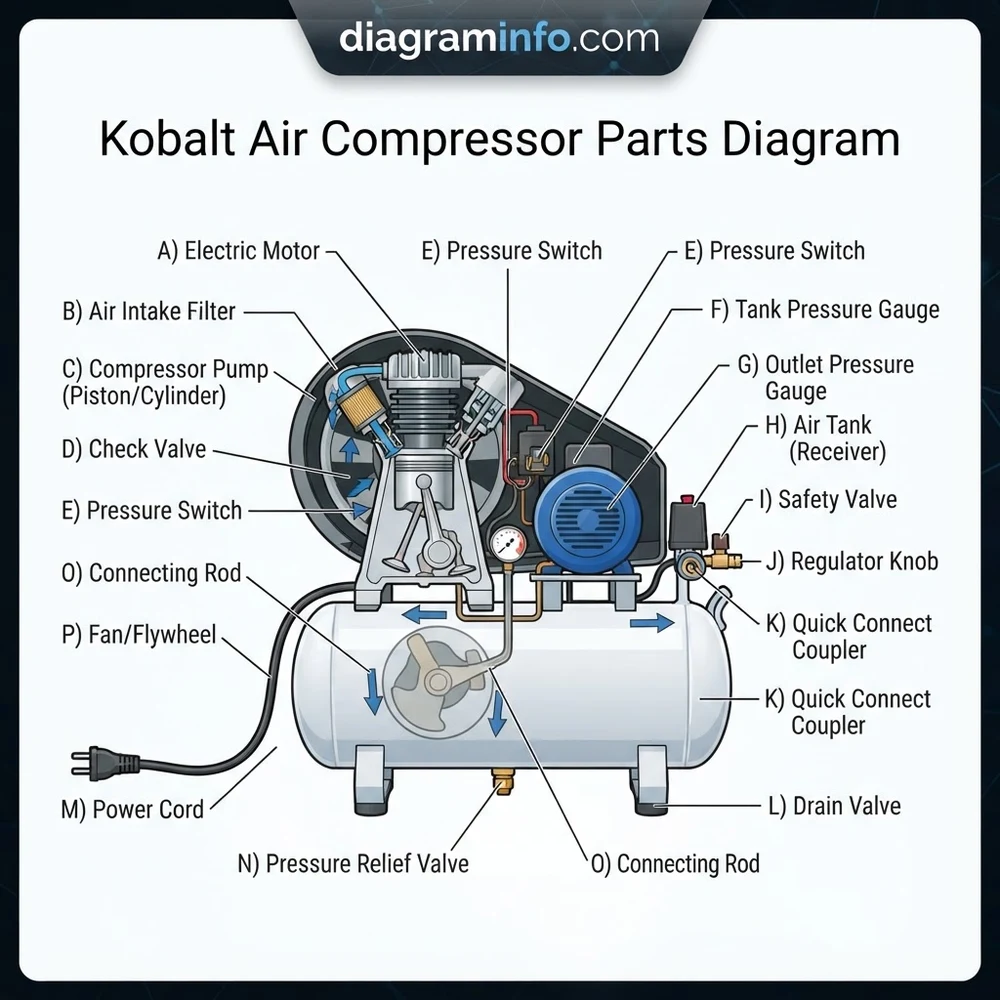

Every air compressor configuration integrates three primary functional groups: the power/compression module, the pressure control assembly, and the pneumatic storage vessel. As illustrated in the standard system layout, understanding how these components interact is vital for accurate diagnostic work and order verification using factory exploded views.
Recommended Best Deal Products
Manufacturer specs indicate cylinder head bolt torque values must strictly maintain 18–22 ft-lbs (24–30 Nm) on oil-lubricated pumps. Single-stage pressure switches are pre-set to a 105 PSI cut-in and 135 PSI cut-out differential, while dual-stage systems execute cut-out at 175 PSI.
The table below provides reference specs for key components typically found across popular Kobalt oil-lubricated and oil-free platforms (including models manufactured by Campbell Hausfeld and Sanborn for Lowe’s):
| Component ID | Functional Description | Standard Specs / Thread Standard | OEM Part Reference Range |
|---|---|---|---|
| Pump Cylinder Head | Houses intake/exhaust reed valves & high-temp gaskets | Cast Iron / Aluminum alloy body | 0332011-HD / E100584 |
| Check Valve Assembly | One-way air flow valve preventing receiver tank backflow | 1/2″ NPT Tank x 3/8″ Flare Tube x 1/8″ NPT Unloader | CV221500AV / A18293 |
| Pressure Switch Valve | Senses tank pressure to actuate motor contacts | 4-Port 1/4″ NPT, 120V/240V, 20A microswitch | CW208100AV / PS102000 |
| Safety Relief Valve | ASME pressure release valve set above maximum operating PSI | 1/4″ NPT, 150 PSI or 200 PSI pop-off setting | V-2151 / 145-0012 |
| Drain Valve | Manual ball drain valve at the lowest tank point | 1/4″ NPT male thread connection | D1004 / 080-0010 |
When inspecting the storage structure, verify compliance with air receiver tank safety standards to ensure structural integrity around welded seams, especially when servicing older equipment exposed to internal moisture accumulation.
How to Read the Kobalt Air Compressor Schematic and Blueprint Layout
Understanding a standard kobalt air compressor parts diagram schematic involves following two distinct pathways: the mechanical pneumatic flow line and the electrical control circuit loop.
Recommended Best Deal Products
On official blueprint layouts, solid lines represent high-pressure copper or aluminum delivery tubes, dashed lines represent low-pressure signal lines (such as the unloader line), and electrical wires are designated by standard color codes (Black = Line 1, White/Red = Line 2/Neutral, Green = Frame Ground).
Pneumatic Flow Route
Air enters through the intake filter housing directly into the pump valve plate. Upon compression, the air exits through the finned discharge tube (designed for thermal dissipation). The high-pressure stream passes through the brass check valve directly into the pressure vessel. A secondary 1/4-inch unloader line routes high-pressure air trapped above the pump pistons directly to the unloader valve integrated into the pressure switch structure.
Electrical Circuit Structure
Line voltage enters through a 12 AWG heavy-duty supply cord into the lower terminal block of the pressure switch. When tank pressure drops below the cut-in threshold (e.g., 105 PSI), mechanical spring tension closes the internal contacts, sending power to the electric motor start capacitor (typically 200–300 uF) and run windings. When maximum cutoff pressure (e.g., 135 PSI) is reached, the diaphragm pushes the linkage, snapping open the electrical contacts and simultaneously opening the unloader bleed valve.
Disconnect the 120V/240V power source and completely open the drain valve to bleed all stored receiver tank pressure to 0 PSI before loosening any compression fittings, head bolts, or manifold components identified on the parts blueprint.
If you are re-wiring a single-phase motor control, consult our guide on pressure switch calibration specs for step-by-step wiring diagrams and microswitch terminal pinouts.
Diagnosing System Faults with the Kobalt Air Compressor Parts Diagram
Isolating mechanical or electrical failure points becomes straightforward when matching symptoms directly against component locations on the system blueprint layout.
1. Air Leak at the Pressure Switch Unloader Valve (Continuous Hissing)
If air continuously bleeds from the unloader port while the motor is stopped, the issue is rarely the switch itself. The primary check valve located at the tank inlet port has failed to seat properly due to carbon buildup or a damaged fluorocarbon seal. Tank pressure backflows through the unloader line. Inspect and clean the check valve seal ring or perform a full component replacement using our pneumatic check valve replacement guide.
2. Motor Hums But Fails to Start (Thermal Overload Tripping)
Reference the electrical schematic in the system overview. Check for these failure points:
- Start Capacitor Failure: Inspect the cylindrical start capacitor mounted on the motor housing for bulging or loss of capacitance value (measure using a multimeter set to MFD).
- Trapped Head Pressure: A clogged unloader valve tube prevents head pressure relief upon motor shutdown. The motor attempts to start against 135 PSI backpressure, pulling locked-rotor amps (LRA) and tripping the thermal reset button.
3. Pressure Drops Rapidly Without Tool Usage
Locate the control manifold assembly on your schematic view. Spray a soapy water solution on the safety valve body, regulator adjustment knob stem, quick-connect couplers, and drain cock threads. Micro-bubbles pinpoint micro-fractures or deteriorated Teflon thread tape across NPT joints.
Kobalt Air Compressor Configuration and Component FAQs
Where can OEM reference numbers be found on a Kobalt air compressor configuration blueprint?
OEM part numbers are mapped in the parts list matrix accompanying the exploded view schematic. The item callout numbers on the diagram (e.g., Key No. 12) correspond directly to factory part numbers in the manual index, typically located on the rear cover plate or product label near the motor identification plate.
How do you identify a failing check valve using the system schematic?
Trace the line connecting the pump head discharge tube to the top port of the air tank on your diagram. The threaded fitting directly entering the tank is the check valve. If air leaks out of the small unloader tube attached to the pressure switch while the compressor is off, internal check valve poppet spring failure is confirmed.
What electrical specifications apply to Kobalt pressure switch wiring configurations?
Most Kobalt 8-gallon to 30-gallon single-stage compressors run on 120V AC, 15-Amp dedicated single-phase circuits. High-capacity 60-gallon stationary models utilize 230V AC, single-phase, 5-HP motors pulling up to 22 peak amperes. Pressure switches must be rated for at least 20A inductive load capability at the native operating voltage.
Are Kobalt oil-free and oil-lubricated pump components interchangeable in the diagram layout?
No, internal components are not interchangeable. Oil-free Quiet Tech units utilize dual-piston assemblies driven by eccentric bearings and PTFE/graphite piston rings running in non-honed aluminum sleeves. Oil-lubricated models use traditional cast-iron cylinders, forged connecting rods, splash-lubricated crankshafts, and oil-control rings requiring ISO 100 non-detergent compressor oil.
How often should the drain valve and pressure relief valve be serviced according to OEM specs?
According to factory maintenance standards, the tank drain valve must be operated daily or after every 4 hours of operation to purge accumulated water condensate. The ASME pressure relief valve should be manually tested monthly by pulling the ring under moderate tank pressure (approx. 50 PSI) to verify free movement of the internal valve plunger.
Step-by-Step Guide to Understanding the Kobalt Air Compressor Parts Diagram
Identify – Disconnect electrical power and drain remaining tank pressure completely before reading the schematic.
Locate – Find the target component, such as the check valve or pressure switch, on the exploded layout.
Reference – Cross-check component callout numbers against the manufacturer part list to source exact replacement parts.
Connect/Route – Reassemble replacement fittings, seals, or lines following original structural routing and torque specs.
Verify – Power on the system, check joints with leak-detection solution, and confirm automatic PSI cut-off.
Troubleshoot – Re-seal fittings with PTFE tape or adjust pressure switch contact alignment if leaks occur.
