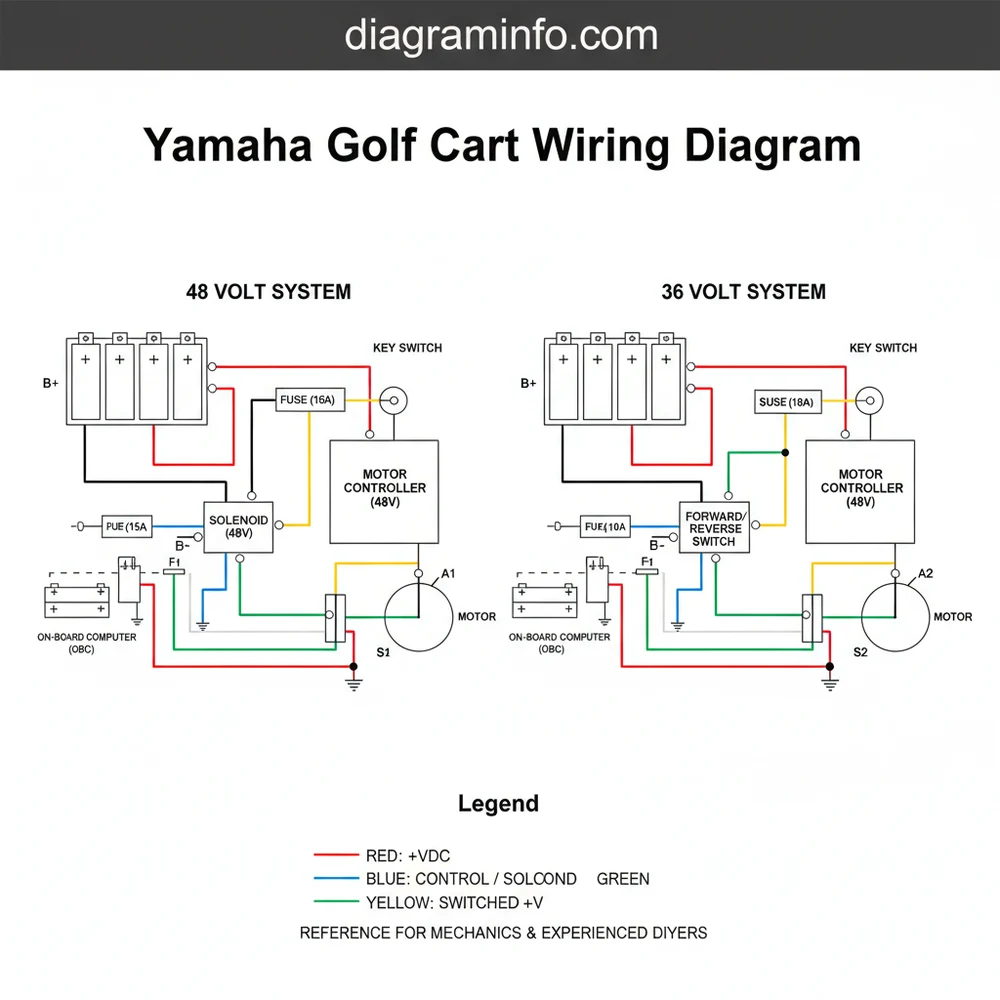

Yamaha Golf Cart Wiring Diagram 2026: Installation Setup

Navigating the intricate electrical systems of Yamaha golf carts, whether dealing with a robust 48-volt configuration or a traditional 36-volt setup, demands precision and a comprehensive understanding of the wiring architecture. This guide provides a detailed breakdown of a Yamaha golf cart wiring diagram, crucial for diagnostics, component replacement, and system upgrades. Our focus is on identifying wire colors, terminal connections, and the proper sequencing required to maintain optimal performance and ensure electrical integrity across various models like the G-series and Drive/Drive2 platforms.

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

WIRE COLOR REFERENCE TABLE

COMPONENT CONNECTION GUIDE

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Understanding the precise connection points for each critical component is paramount for accurate diagnosis and repair within a Yamaha golf cart’s electrical system. This guide details the wiring for the primary components, emphasizing correct terminal identification and sequence for both 36-volt and 48-volt systems.

Solenoid Wiring

The solenoid acts as the main power relay, connecting the battery bank to the controller and motor. Yamaha solenoids typically feature two large terminals (high current) and two smaller terminals (control voltage).

1. Large Terminals:
One large terminal connects directly to the main positive terminal of the entire battery bank (B+). This cable is usually heavy gauge red.
The other large terminal connects to the B+ input on the speed controller. This is also a heavy gauge red cable.
According to OEM specifications, ensure these terminals are torqued to prevent resistive heating. Typical torque specifications are 9-12 ft-lbs (12-16 Nm) for the large terminals.

2. Small Terminals (Activation Coils):
One small terminal receives switched battery positive voltage (Key Switch Output, sometimes routed through the Run/Tow switch in older models). This is often a light gauge red or brown wire.
The other small terminal receives a ground signal from the controller or pedal box microswitch, which completes the circuit to activate the solenoid. This ground path can vary; on many Yamaha models, it’s connected to the system’s main ground (B-) or to the controller’s M- terminal, depending on the control scheme.
Confirm continuity across the coil (typically 50-200 ohms) and that the coil activates with the correct voltage (e.g., 36V or 48V for the system).
For internal linking, refer to our comprehensive guide on Golf Cart Solenoid Troubleshooting for in-depth diagnostics.

1. Power Input/Output:
B+ Terminal: Connects to the output side of the solenoid (heavy gauge red).
B- Terminal: Connects to the main negative terminal of the battery bank (heavy gauge black).
M- or A1/A2 Terminal (Series Motor): Connects to the motor’s armature terminal (e.g., heavy gauge blue).
F1/F2 Terminals (Separately Excited Motor): Connect to the motor’s field windings (e.g., heavy gauge yellow and green).
Maintain clean, tight connections for all high-current terminals, typically torqued to 9-12 ft-lbs (12-16 Nm).

2. Control Inputs:
Throttle Input: A multi-pin connector (often 3 or 4 wires) from the throttle position sensor (e.g., light gauge blue for signal, white/black for ground, red for 5V reference). Verify the throttle signal range (e.g., 0-5V DC or resistance change).
Key Switch Input: Receives switched B+ from the key switch (light gauge red or brown).
Forward/Reverse Switch Input: Receives signals from the F/R switch, indicating the desired direction (e.g., light gauge yellow).
Run/Tow Switch Input: On 48 volt system controllers (e.g., Yamaha Drive), a specific input disables the controller in “TOW” mode for safety during maintenance or charging.
Brake Switch Input: Signals the controller when the brake pedal is depressed, often initiating regenerative braking or cutting power (e.g., light gauge green/white).

1. Charger Port:
Positive Terminal: Connects directly to the main positive terminal of the battery bank (heavy gauge red).
Negative Terminal: Connects directly to the main negative terminal of the battery bank (heavy gauge black).
Sense Wire (Charge Inhibit): A smaller wire (often orange or gray) that communicates charger status to the controller, inhibiting cart operation during charging. This is critical for preventing drive-offs while charging.

2. OBC Integration (Internal to Charger):
The OBC monitors battery voltage and temperature to optimize charging. Its primary role is to ensure proper current and voltage delivery.
In systems where the OBC is integrated into the cart (rather than the external charger), it will have inputs from the battery bank and outputs to the charger port, along with control lines to the controller.

Motor Wiring

Yamaha golf carts primarily use DC series-wound or separately excited shunt motors.

1. Series Motor (e.g., many 36V G-series):
Typically four large terminals: A1, A2, S1, S2.
A1 connects to the controller’s M- or A1 terminal (heavy gauge blue).
A2 connects to the main battery negative (B-) or controller’s B- terminal (heavy gauge black).
S1 and S2 are typically connected via the F/R switch to reverse the field current. In a stock setup, the field windings are in series with the armature.
Refer to the diagram for the specific F/R switch wiring for field reversal.

2. Separately Excited (Shunt) Motor (e.g., many 48V Drive models):
Typically four large terminals: A1, A2, F1, F2.
A1 and A2 are the armature terminals, connected to the controller (e.g., A1 to controller’s M- or A1, A2 to controller’s B-).
F1 and F2 are the field winding terminals, connected to the controller (e.g., F1 to controller’s F1, F2 to controller’s F2). The controller varies the current through the field windings for speed control and direction reversal.
All motor connections require heavy gauge wiring, typically 4-gauge or 2-gauge, torqued to manufacturer specifications (e.g., 8-10 ft-lbs or 11-14 Nm).

🔧 Specification

When replacing high-current cables, always use cables of equal or greater gauge (lower number) than the original to prevent excessive resistance and heat buildup. Ensure all terminal connections are clean, corrosion-free, and properly torqued to factory specifications for reliable current flow.

COMMON WIRING PROBLEMS & FIXES

📤 Share

📌 Pinterest
📘 Facebook
🐦 Twitter
💬 WhatsApp
✉️ Email

💾 Download

Diagnosing electrical issues in Yamaha golf carts often boils down to identifying breaks, shorts, or excessive resistance in the wiring. Here are some common problems and their systematic fixes.

1. No Power / Dead Cart:
Symptoms: Cart does not move, no solenoid click, no lights (if connected to main pack).
Diagnosis:
Battery Bank: Check the total voltage of your 36 volt system or 48 volt system. A severely discharged or failed battery can cause a complete lack of power. If individual battery voltage is low, it affects the entire bank.
Main Fuse/Circuit Breaker: Locate and test continuity across the main fuse or circuit breaker, typically found near the battery bank’s positive terminal. A tripped breaker or blown fuse will cut all power.
Run/Tow Switch: Ensure the run/tow switch is in the “RUN” position. Test for continuity or voltage output.
Solenoid Input: Check for full battery voltage (B+) on both large terminals of the solenoid before it clicks. If power is only on one side, the solenoid is not activating or there’s an open circuit.
Fixes: Replace fuse, reset breaker, charge batteries, replace faulty run/tow switch, or diagnose solenoid activation circuit (small wires).

2. Solenoid Clicks, But No Movement:
Symptoms: Audible click from the solenoid when the pedal is pressed, but the motor does not engage.
Diagnosis:
Solenoid Output: With the solenoid clicked, measure voltage across its two large terminals. There should be less than 1 volt drop. If you read full pack voltage, the solenoid contacts are internally burnt and not passing current.
Controller Input: Check for full pack voltage at the controller’s B+ terminal and continuity to B-.
Motor Connection: Inspect all heavy gauge cables from the controller to the motor for corrosion, looseness, or breaks. Test continuity through each motor winding (Armature and Field).
Fixes: Replace the solenoid if it’s clicking but not passing power efficiently. Repair or replace damaged motor cables. Consult our resource on Golf Cart Motor Testing for detailed motor diagnostics.

3. Erratic Speed or Intermittent Operation:
Symptoms: Cart speeds up or slows down unexpectedly, sometimes cuts out, or only operates at full speed.
Diagnosis:
Throttle Position Sensor (TPS): This is a prime suspect. With the run/tow switch in “TOW,” use a multimeter to check the voltage or resistance output of the TPS across its full range of pedal travel. Look for smooth, linear change (e.g., 0-5V or 5K-0 ohms). Jumps or dead spots indicate a faulty TPS.
Controller Issues: While less common than TPS failure, a failing controller can cause erratic behavior. Check for error codes if your controller supports them.
Loose Connections: Systematically check all small control wires for loose or corroded connections, especially at the controller, F/R switch, and key switch.
Fixes: Replace the TPS if found faulty. Clean and tighten all control wire connections. If the controller is suspected, professional diagnosis or replacement may be necessary.

4. Charger Not Working / Batteries Not Charging:
Symptoms: Charger does not activate, or batteries do not charge when plugged in.
Diagnosis:
Charger Port: Inspect the charger port for damage, corrosion, or loose connections. Test for full battery voltage across the main power terminals in the port.
Charger Inhibit Wire: On 48 volt systems, the charge inhibit wire (often orange or gray) tells the cart if the charger is connected. A faulty connection here can prevent the charger from activating.
OBC (On-Board Computer): If your cart has an internal OBC, it might be faulty. Check its connections.
Charger Itself: Test the charger’s output voltage when plugged into AC, but NOT the cart (refer to charger manual). A faulty charger is often the culprit.
* Fixes: Repair or replace the charger port. Trace and repair the charge inhibit wire. Replace the OBC or charger if they are determined to be faulty.

FAQ

How can I identify if my Yamaha golf cart is a 36-volt or 48-volt system?

The easiest way to identify your system voltage is by counting the batteries and checking their individual voltage. A 36-volt system typically uses six 6-volt batteries (6 x 6V = 36V). A 48-volt system commonly uses either six 8-volt batteries (6 x 8V = 48V) or four 12-volt batteries (4 x 12V = 48V). Always confirm by measuring the total voltage across the entire battery bank with a multimeter.

What is the function of the “Run/Tow” switch on a Yamaha golf cart?

The Run/Tow switch is a critical safety feature. In the “RUN” position, the cart’s electrical system is active and ready for operation. In the “TOW” position, it completely disconnects power from the controller and other key components, preventing accidental movement during towing, maintenance, or storage. This switch also protects the controller from damage during charging or when battery cables are being connected/disconnected. Always place the switch in “TOW” mode before any electrical work.

Can I bypass the Forward/Reverse switch for testing purposes?

Bypassing the F/R switch is generally not recommended for sustained operation due to safety concerns and potential damage to the controller or motor if done incorrectly. However, for diagnostic purposes, you might temporarily jumper the controller’s F/R input signal wires to test if the switch itself is faulty. Consult your specific Yamaha service manual, as the exact wire configuration (e.g., shorting to B+ or B- for a specific direction) varies by controller type (e.g., Curtis, AC). Extreme caution must be exercised, and only for brief, controlled tests on a raised vehicle.

Why is my Yamaha golf cart’s controller getting hot?

An overheating controller is typically indicative of excessive current draw, often caused by a failing motor, an overloaded cart, incorrect tire pressure, or internal controller fault. Check the motor for signs of overheating or unusual noise. Ensure the cart is not carrying loads beyond its rated capacity. Low battery voltage forcing the controller to work harder can also contribute. Proper ventilation around the controller is also crucial, as blocked cooling fins can lead to thermal shutdown. For further investigation into power system integrity, refer to our article on Golf Cart Battery Bank Maintenance.

What role does the B- terminal play in the controller’s wiring, especially in a 48-volt system?

The B- terminal on the controller is the primary negative (ground) connection for the entire propulsion system. In a 48-volt system, this terminal receives the main negative cable directly from the battery bank. It serves as the common return path for all current flowing through the motor and the controller’s internal circuitry. A poor or corroded connection at the B- terminal can lead to voltage drops, erratic performance, and severe overheating of the cable or the controller itself due to increased resistance. Manufacturer specs indicate that maintaining a clean and tightly torqued B- connection is paramount for optimal system efficiency and longevity.
